EK-Quantum Vector Master RTX 4090 D-RGB Manuel utilisateur

USER GUIDE

GPU WATER BLOCK

EK-Quantum

Vector² Master RTX 4090 D-RGB

Please note the installation of the product is intended to be undertaken

by an adequately trained and experienced person. You are installing the

product at your own risk. If you are not properly trained or experienced

or feel unsure about the installation procedure, please refrain from

installing the product yourself and contact our tech support for

assistance. We disclaim our liability for any damages to the product as

well as incidental, consequential, or indirect damages incurred due to

improper or inappropriate installation.

Before you start using this product, please follow these basic guidelines:

Carefully read the manual before beginning with the

installation process.

Remove your graphics card from the computer for the safest

mounting process to prevent any possible damage to your

GPU or its circuit board (PCB).

The EK Fittings require only a small amount of force to screw

them ﬁrmly in place since the liquid seal is ensured by the

rubber O-ring gaskets.

The use of corrosion-inhibiting coolants is always

recommended for liquid cooling systems and mandatory for

nickel-plated water blocks!

Do not use pure distilled water!

For best results, EK recommends the use of EK-CryoFuel

coolants! To reach optimal performance, make sure to

thoroughly bleed the air out of your water block!

- 3 -

TABLE OF CONTENTS

BOX CONTENTS 4

WATER BLOCK DIMENSIONS 5

TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS 6

NICKEL PLEXI 6

NICKEL ACETAL 7

PREPARING THE GRAPHICS CARD 8

REMOVING THE STOCK COOLER 8

GeForce RTX™ 4090 GAMING OC 8

PREPARING THE WATER BLOCK FOR INSTALLATION 9

CUTTING AND PLACING THERMAL PADS 9

APPLYING THERMAL COMPOUND 10

ATTACHING THE WATER BLOCK 11

INSTALLING THE BACKPLATE 13

ATTACHING THE BACKPLATE 14

INSERTING THE GRAPHICS CARD INTO THE CHASSIS 14

FITTINGS AND TUBING 15

CONNECTING THE D-RGB LED STRIP 15

TESTING THE LOOP 16

WARRANTY 16

SUPPORT AND SERVICE 17

SOCIAL MEDIA 17

- 4 -

6 mm

Thermal Grease (1 pc)

BOX CONTENTS

4 mm

8 mm

10 mm

Allen Key 2 mm (1 pc)

EK-Loop Multi Allen Key (1 pc)

Allen Key 2.5 mm (1 pc)

M2.5x8 AX1 Screw (1 pc)

M3x10 AX1 Screw (1 pc)EK-Quantum Vector2Master RTX 4090 D-RGB

M2.5x4 AX1 Screw (7 pcs)

Polyamid Washer M2.5

0.5mm (7 pcs)

M2.5x6 AX1 Screw (2 pc)

Standoff Ø4.5/2.5 (1 pc) Quantum Plug (2 pcs) Terminal OR 14x1 mm (2 pcs)

EK-Plug Out Spludger Tool (1 pc)

Standoff M2.5-M3 x 6.6mm

(1 pc)

Nut M2.5 (2 pcs)

EAN: 105977

EAN: 106046

Thermal Pad F 1.0 mm (7 pcs)

(3830046996732)

Thermal Pad G 2.0 mm (4 pcs)

(3830046996794)

120 mm

16 mm

120 mm

24 mm

- 5 -

WATER BLOCK DIMENSIONS

272 mm

176.3 mm

145.8 mm

142.5 mm

155 mm

27 mm

25.5 mm

- 6 -

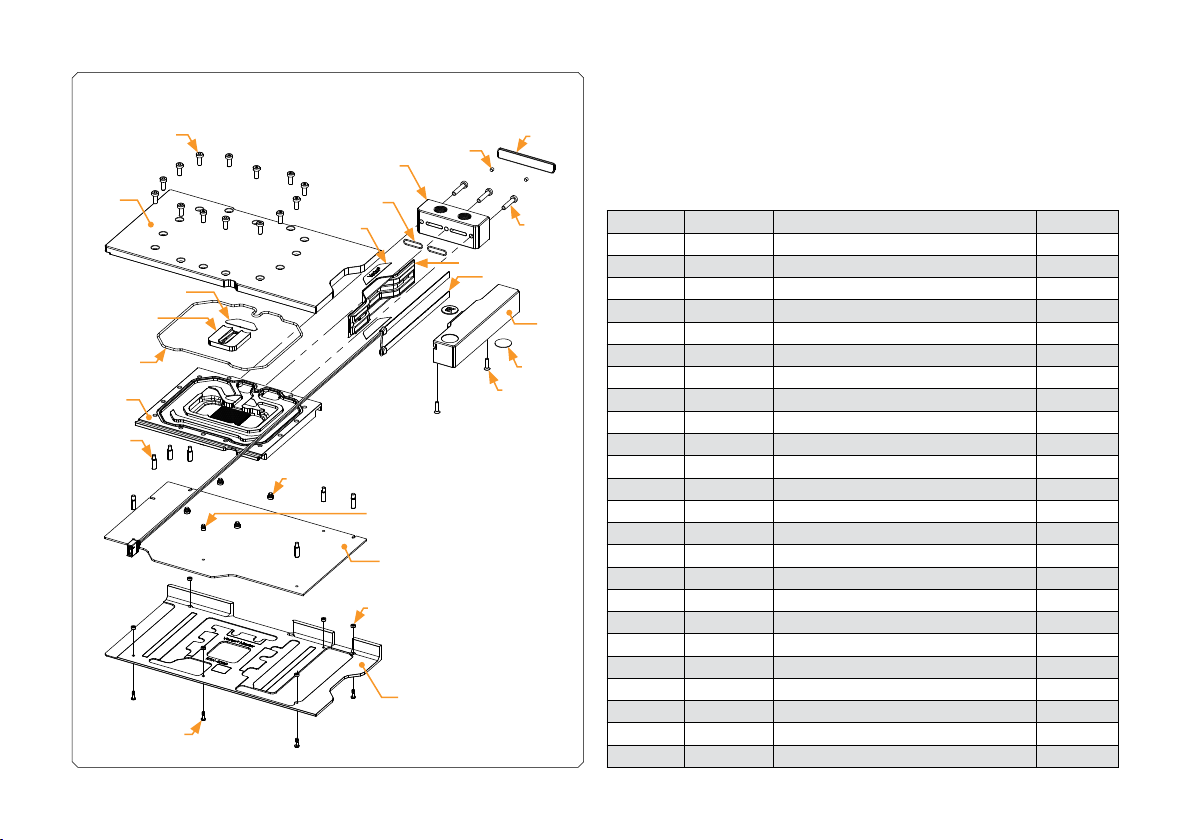

TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS

NICKEL PLEXI

- Dimensions: (L x H x W): 272 x 155 x 27 mm

- D-RGB LED count: 14

- D-RGB cable length: 50 cm

- D-RGB connector 3-pin 5V digital LED header

(Pinout: +5V | Data | Blocked | Ground)

Position EAN Description Quantity

1105968 Coldplate (Ni) 1

2105973 Backplate (Bl. Elox) 1

3105969 Top plate - Plexi 1

4103975 Bridge Plate 1

5103962 Plexi insert 1

6105975 LED Cover (N. Elox) 1

7105976 Main o-ring 140 x 2 mm 1

8103971 Stand out (Acetal) 1

9103964 Mylar sticker 2

10 100663 EK - Badge 2

11 8208 Screw M3 x 8 DIN7991 2

12 104188 Standoff 4.5/2.5 6

13 104187 Screw M2.5 x 8 mm 6

14 103986 Standoff M3.5-M2.5 x 11.3 mm 7

15 103987 Standoff M3.5-M2.5 x 3 mm 1

16 103988 Standoff M4-M2.5 x 3 mm 4

17 9013 Screw M4 x 8 DIN7984 14

18 103947 FC Terminal (Acetal) 1

19 8311 Screw M4 x 20 DIN7984 3

20 103942 Terminal Badge 1

21 104216 Disc magnet 3 x 3 2

22 104106 Terminal OR 14 x 1 mm 2

23 105978 PCB cardboard 1

24 101556 LED D-RGB strip 500/300 mm 1

- 7 -

NICKEL ACETAL

- Dimensions: (L x H x W): 272 x 155 x 27 mm

- D-RGB LED count: 40

- D-RGB cable length: 50 cm

- D-RGB connector 3-pin 5V digital LED header

(Pinout: +5V | Data | Blocked | Ground)

Position EAN Description Quantity

1105968 Coldplate (Ni) 1

2105973 Backplate (Bl. Elox) 1

3105970 Top plate (Acetal) 1

4103975 Bridge Plate 1

5103962 Plexi insert 1

6105976 Main O-ring 140 x 2 mm 1

7100663 EK - Badge 2

8104188 Standoff ﬁ 4.5/2.5 6

9104187 Screw M2.5 x 8 mm 6

10 103986 Standoff M3.5-M2.5 x 11.3 mm 7

11 103987 Standoff M3.5-M2.5 x 3 mm 1

12 103988 Standoff M4-M2.5 x 3 mm 4

13 9013 Screw M4 x 8 DIN7984 14

14 103947 FC Terminal (Acetal) 1

15 8311 Screw M4 x 20 DIN7984 3

16 103942 Terminal Badge 1

17 104216 Disc magnet 3 x 3 2

18 104106 Terminal OR - 14 x 1 mm 2

19 103968 Light guide 1

20 104296 LED D-RGB Strip 500/130 mm 1

21 8202 Screw M3 x 12 DIN7991 2

22 104211 Mylar sticker 2

23 103974 Standout (Acetal) 1

24 105978 PCB cardboard 1

- 8 -

PREPARING THE GRAPHICS CARD

REMOVING THE STOCK COOLER

GeForce RTX™ 4090 GAMING OC

Important! Before starting, make sure to have a clean,

ﬂat surface to work on. It is recommended to put foam or

soft material to lay the graphics card on.

STEP 1

First, unscrew the thirteen

(13) screws in order to remove

the stock cooler from the

GPU PCB. After removing the

screws, the connectors must

be unplugged.

STEP 2

After connectors are unplugged, an additional seven (7) Screws

must be removed from the front side of the GPU PCB. Finally,

unscrew four (4) I/O Bracket screws from the side of the GPU PCB.

Remove the stock backplate and I/O Bracket. I/O Bracket and ﬁve (5)

screws will be reused later. Make sure to remove all the thermal pads

and thermal grease from the GPU PCB.

STEP 1

STEP 2

Phillips Head Screwdriver

For this step, you will need:

Phillips Head Screwdriver

For this step, you will need:

SAVE FOR LATER STEPS

- 9 -

Phillips Head Screwdriver

PREPARING THE WATER BLOCK FOR INSTALLATION

STEP 1

Unscrew six (6) Screws AX1 M2.5 x 8 mm. Remove the backplate

together with the Screws and backplate standoffs. Standoffs must

stay on Screws AX1 M2.5 x 8 mm. Remove PCB cardboard. Save the

removed parts for later steps.

Do not remove standoffs from screws! In case the

standoff detaches from the screw, replace it with a spare

one. When replacing the standoff make sure that you

screw it on the AX1 M2.5 x 8 screws. Do not push the

standoff onto the screw AX1 M2.5 x 8 mm.

STEP 1

For this step, you will need:

BACK PL AT E

M2.5 x 8 AX1

BACK PL AT E S TAND OF F

DO NOT REMOVE

STANDOFFS

FROM SCREWS!

PCB

CARDBOARD

STEP 1

CUTTING AND PLACING THERMAL PADS

Thermal Pad F – 1.0 mm (120 x 16 mm)

120 mm

16 mm

1 mm

STEP 1

The GPU water block comes with thermal pads that have to be cut

into smaller pieces to cover all the VRM components, such as COILs,

MOSFETs, and drivers.

Remove the protective foil from both sides of the thermal

pad before installation.

Replacement thermal pads:

Thermal Pad F 1.0 mm – (120 x 16 mm) EAN: 3830046996732

Thermal Pad G 2.0 mm – (120 x 24 mm) EAN: 3830046996794

Thermal Pad G – 2.0 mm (120 x 24 mm)

120 mm

24 mm

2 mm

- 10 -

STEP 2

Once cut to the size, Thermal Pads should be placed on the PCB, as

shown in the picture:

Before attaching the PCB to the Water Block, make sure

all the Thermal Pads are placed correctly!

STEP 2

Thermal Pad - 120 x 16 x 1.0 mm

Thermal Grease

STEP 1

Apply the enclosed thermal grease (thermal compound) on the GPU

heat spreader – IHS – as shown in the image. The layer of the thermal

compound must be thin and even over the entire surface of the IHS.

The excessive or uneven application of thermal grease

may lead to poor performance!

APPLYING THERMAL COMPOUND

For this step, you will need:

STEP 1
