EK-Quantum Vector2 FTW3 RTX 3080 D-RGB Manuel utilisateur

USER GUIDE

GPU WATER BLOCK

EK-Quantum

Vector² FTW3 RTX 3080/90 D-RGB

This product is intended for installation by expert users only. Please

consult with a qualiﬁed technician. Improper installation may result

in damage to your equipment. EK assumes no liability whatsoever,

expressed or implied, for the use of this product or its installation. The

following instructions are subject to change without notice. Please,

read the manual carefully before starting the installation process. For

updates, you can visit our ofﬁcial website www.ekwb.com.

Before you start using this product, please follow these basic guidelines:

Carefully read the manual before beginning the installation

process.

Remove your graphics card from the computer for the safest

mounting process to prevent any possible damage to your

GPU or its circuit board (PCB).

The EK Fittings require only a small amount of force to screw

them ﬁrmly in place since the liquid seal is ensured by the

rubber O-ring gaskets.

The use of corrosion inhibiting coolants is always

recommended for liquid cooling systems and mandatory for

nickel-plated water blocks!

Do not use pure distilled water! For best results, EK

recommends the use of EK-CryoFuel coolants!

To reach optimal performance, make sure to thoroughly

bleed the air out of your water block!

- 3 -

TABLE OF CONTENTS

BOX CONTENTS 4

WATER BLOCK DIMENSIONS 5

TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS 6

NICKEL PLEXI: 6

NICKEL ACETAL: 7

PREPARING THE GRAPHICS CARD 8

REMOVING THE STOCK COOLER 8

CLEANING THE PCB 8

PREPARING THE WATER BLOCK FOR INSTALLATION 9

CUTTING AND PLACING THERMAL PADS 10

APPLYING THERMAL COMPOUND 11

ATTACHING THE WATER BLOCK 11

INSTALLING THE BACKPLATE 13

ATTACHING THE BACKPLATE TO THE WATER BLOCK 15

INSERTING THE GRAPHICS CARD INTO THE CHASSIS 15

FITTINGS AND TUBING 16

CONNECTING THE D-RGB LED STRIP 17

TESTING THE LOOP 17

WARRANTY 18

SUPPORT AND SERVICE 19

SOCIAL MEDIA 19

- 4 -

BOX CONTENTS

4 mm

8 mm

10 mm

EK-Loop Multi Allen Key (1 pc) Allen Key 2 mm (1 pc) Allen Key 2.5 mm (1 pc)

Thermal Pad F 1.0 mm (5 pcs) Thermal Pad G 1.0 mm (2 pcs) Thermal Pad G 2.0 mm (4 pcs)Thermal Grease (1 pc)

M2.5x8 AX1 Screw (1 pc)

M3x10 AX1 Screw (1 pc)EK-Quantum Vector2FTW3 RTX 3080/90 D-RGB

M2.5x4 AX1 Screw (8 pcs)

Polyamid Washer M2.5 0.5mm (8 pcs)

120 mm

16 mm

120 mm

24 mm

120 mm

24 mm

Standoff Ø4.5/2.5 (1 pc) MS-Quantum Plug (2 pcs)

EK-Plug Out Spludger Tool (1 pc)

Standoff M2.5-M3 x 6.6mm (1 pc) Nut M2.5 (2 pcs)

EAN: 104905

EAN: 104549

- 5 -

WATER BLOCK DIMENSIONS

328.5 mm

95.5 mm

123.5 mm

142.5 mm

155 mm

27 mm

3 mm

- 6 -

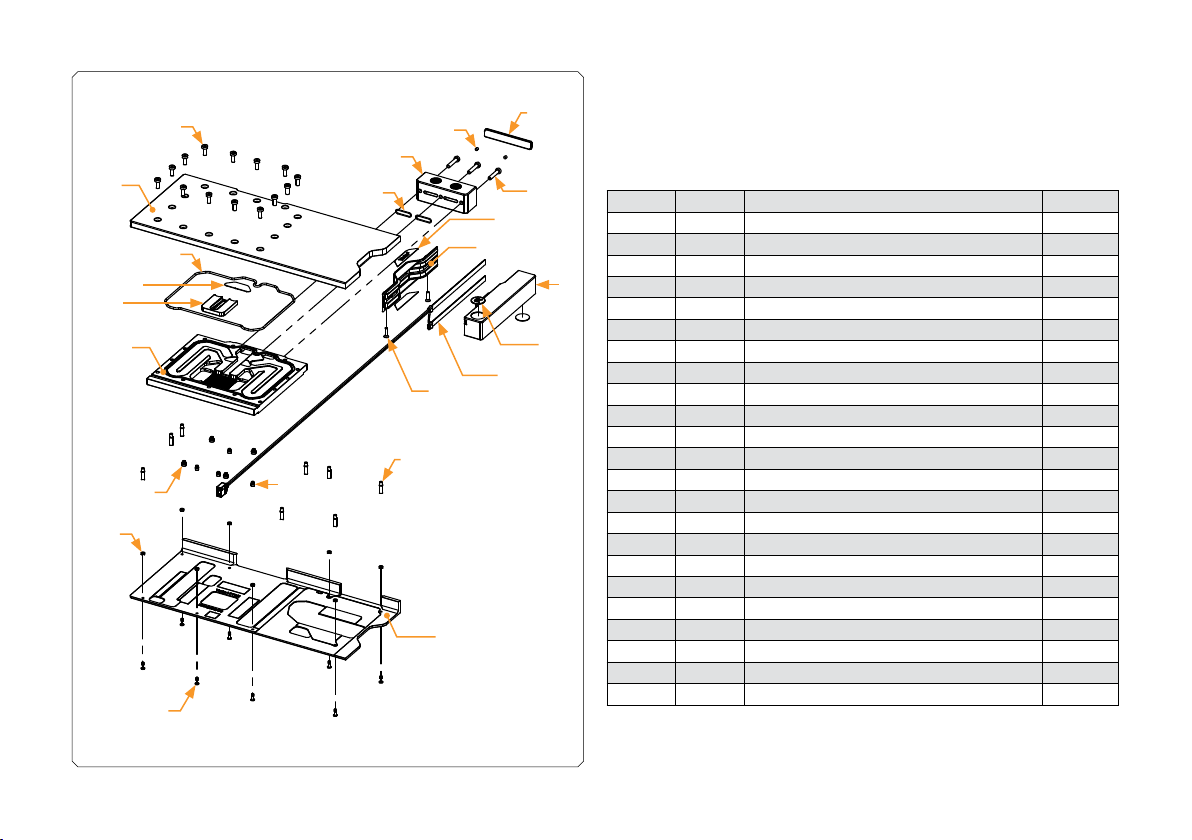

TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS

NICKEL PLEXI:

- Dimensions: (LxHxW): 328.5x 155 x 27 mm

- D-RGB LED count: 17

- D-RGB cable length: 50cm

- D-RGB connector 3-pin 5V digital LED header

Position EAN Description Quantity

1104149 FTW3 Backplate (Bl. Elox) 1

2104135 Nickel coldplate 1

3103975 Bridge Plate 1

4104136 TOP Plexi 1

5103962 TOP Plexi - Vector2 Insert 1

6104140 Main gasket 1

7103988 Standoff M4-M2.5 x 3mm 4

8103987 Standoff M3.5-M2.5 x 3 4

9103986 Standoff M3.5-M2.5 x 11.3mm 8

10 9024 Screw M4x10 DIN7984 14

11 104106 Terminal gasket -14x1 mm 2

12 103947 Terminal 1

13 104216 Disc magnet 3x3 2

14 103942 Terminal Badge 1

15 8311 Screw M4x20 DIN7984 3

16 103971 Acetal Stand Out 1

17 8208 Screw M3x8 7991DIN 2

18 103964 Mylar sticker 2

19 104138 LED cover 1

20 100663 EK Badge 2

21 100815 LED D-RGB strip 500/300mm 1

22 104187 Screw M2.5x8 AX1 8

23 104188 Standoff ﬁ 4.5/2.5 8

- 7 -

NICKEL ACETAL:

- Dimensions: (LxHxW): 328.5 x 155 x 27 mm

- D-RGB LED count: 19

- D-RGB cable length: 50cm

- D-RGB connector 3-pin 5V digital LED header

Position EAN Description Quantity

1104149 Backplate (Bl. Elox) 1

2104135 Coldplate (Nickel) 1

3103975 Bridge Plate 1

4104137 TOP Acetal 1

5103962 Plexi Insert 1

6104140 Main gasket 1

7103988 Standoff M4-M2.5 x 3mm 4

8103987 Standoff M3.5-M2.5 x 3 4

9103986 Standoff M3.5-M2.5 x 11.3mm 8

10 9024 Screw M4x10 DIN7984 14

11 104106 Terminal gasket -14x1 mm 2

12 103947 FC Terminal 1

13 104216 Disc magnet 3x3 2

14 103942 Terminal Badge 1

15 8311 Screw M4x20 DIN7984 3

16 103974 TOP Acetal Stand Out 1

17 100663 EK Badge 2

18 104187 Screw M2.5x8 AX1 8

19 104188 Standoff ﬁ 4.5/2.5 8

20 103968 TOP Acetal Light Guide 1

21 104296

LED D-RGB Dense Strip Double - 500_130mm

22 104211 Mylar sticker 2

23 8202 Screw M3x12 DIN7991 2

- 8 -

PREPARING THE GRAPHICS CARD

STEP 1

REMOVING THE STOCK COOLER

Place your graphics card on a flat surface and use the Phillips head

screwdriver to remove the thirteen (13) marked screws, the Stock

Backplate, and the Stock Cooler Backplate from the backside of

the GPU.

Carefully and slowly detach the PCB from the stock cooler and

disconnect the four cables connecting the stock cooler to the PCB.

Always remove the stock cooler slowly and with

uniform force - it might be firmly glued to the PCB with

thermal pads.

STEP 2

CLEANING THE PCB

Wipe off the remains of the original thermal compound using a

nonabrasive cloth or Q-tip, as shown in the sample image, until the

components and circuit board are completely clean. EK recommends

the use of denatured alcohol for removing TIM leftovers. After that,

remove all remaining stock thermal pads from the PCB.

STEP 2

- 9 -

PREPARING THE WATER BLOCK FOR INSTALLATION

STEP 1

Unscrew eight (8) Screws AX1 M2.5x8 as shown in the image.

Remove the backplate together with eight (8) Screws AX1 M2.5x8

and backplate standoffs. Standoffs must stay on Screws AX1

M2.5x8. Remove cardboard. Save the backplate set for later steps.

Do not remove standoffs from screws! In case the

standoff detaches from the screw, replace it with a

spare one. When replacing the standoff make sure

that you screw it on the AX1 M2.5x8 screw. Do not

push the standoff onto the screw AX1 M2.5x8!

STEP 1

For this step, you will need:

Phillips Head Screwdriver

M2.5 x 8 AX1

BACK PL ATE S TA ND OFF

DO NOT

REMOVE

STANDOFFS

FROM

SCREWS!

PCB

CARDBOARD

- 10 -

CUTTING AND PLACING THERMAL PADS

STEP 1

Your EK-Quantum Vector2 FTW3 RTX 3080/90 D-RGB block comes

with Thermal Pads that have to be cut into smaller pieces to cover all

the VRM components. EK made sure to provide you with more than

an adequate quantity of Thermal Pads to complete this Step.

CAUTION: You must remove the protective foil from both

sides of the thermal pad before installation.

Replacement thermal pads:

Thermal Pad F 1.0 mm – (120 x 16 mm) EAN: 3830046996732

Thermal Pad G 1.0 mm – (120 x 24mm) EAN: 3830046996770

Thermal Pad G 2.0 mm – (120 x 24mm) EAN: 3830046996794

For this step, you will need:

Scissors

STEP 1

Thermal Pad F – 1.0 mm (120 x 16 mm)

120 mm

16 mm

1 mm

Thermal Pad G – 1.0 mm (120 x 24 mm)

120 mm

24 mm

1.0 mm

Thermal Pad G – 2.0 mm (120 x 24 mm)

120 mm

24 mm

2 mm

STEP 2

The cardboard is printed in scale 1:1. Cut Thermal Pads to the size

printed on the cardboard. Once cut to the size, Thermal Pads should

be placed on the block, as shown in the picture. Thermal Pads of

thicknesses 1 and 2 mm are included.

Before attaching the PCB to the Water Block, make sure

all the Thermal Pads are placed correctly!

STEP 2

Thermal Pad F 1.0mm
