PoE ULTRA INJECTOR,

802.3AT, 10/100/1000 Mbps,

60 WATT

Manual

DN-95104

DN-95104, the high power single port active PoE injector with detection chip

inside. It output 60w for high power PD though 8 lines. It support

10/100/1000Mbps network environment. DN-95104 supply power for PoE

standard terminal equipment, such as the high power Base station, wireless

Access Point, Network Camera etc. DN-95104, designed for indoor using with

input voltage 100V～240VAC. This power supply works with other equipment

over Cat5/Cat5e, and the best effective distance is 100 meters. It can work to

400 meters with PoE extender. (PoE extender is not included)

1. Data input port

2. PoE power input

3. AC power input

4. Power indicator

5. Load activations indicator

6, 7. Install holes

MAIN SPECIFICATION

Provide power with detection chip

Output power 60W

Output current 1.1A

Power pin:4/5(+),7/8(-) and 3/6(+),1/2(-)

Small size, high-power, lower cost.

Support power for IEEE802.3af/IEEE802.3at terminal equipment

Support power for no-IEEE802.3af/IEEE802.3at terminal equipment

OUTLINE DRAWING

SPECIFICATIONS

Standards

IEEE802.3 10Base-T Ethernet

IEEE802.3u 100Base-Tx Fast Ethernet

Support 10/100/1000Base-T LAN

Support IEEE802.3af/IEEE802.3at standard terminal equipment

Support Non-IEEE802.3af/IEEE802.3at standard terminal

RoHS Compliant

WEEE Compliant, CE/FCC

FCC Part 15,Class B

EN 55022 Class B

MTBF:100,000 h@25℃

PoE power output

Ethernet Pin: 4/5(+),7/8(-) and 3/6(+),1/2(-)

Data: 10/100/1000Mbps

Output voltage: 55V

Output current: 1.1A

Input AC voltage: 100-240VAC

AC input current: 1.5A@100-240VAC

AC Hz:50-60Hz

Size & Weight

Size: 193mm x 85mm x 41mm

Weight: 380g

LED instructions

AC power LED: GREEN

ACTIVE Load LED: GREEN

Working Environment

Temperature: -5 to 45℃

Height: -304.8 meter to 3048 meters

Humidity: Max to 90%, without Coagulation

AC Surge Protection

1.5KA(8/20us)

3KV(1.2/50us)

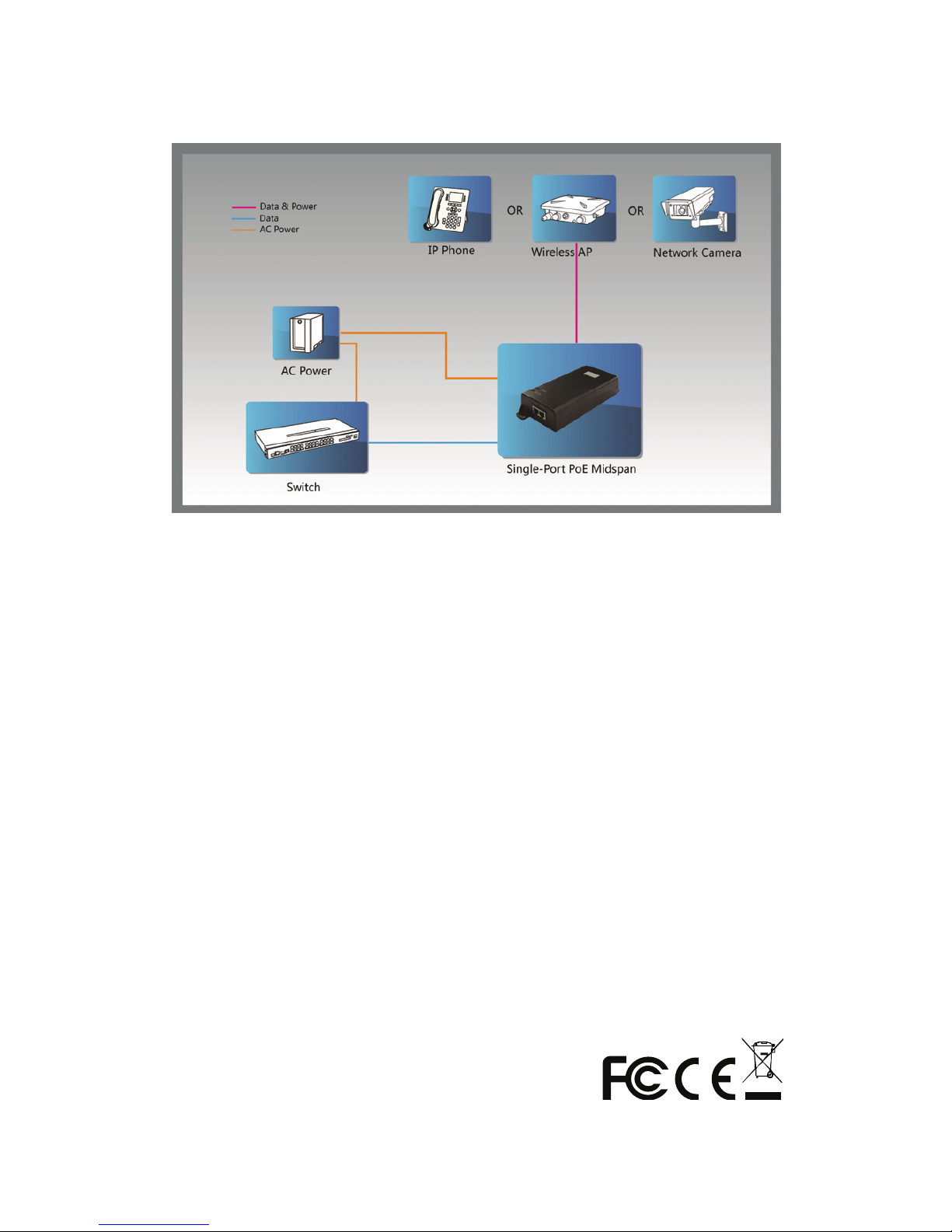

APPLICATION PICTURE

Package info. DN-95104, Power cable * 1, User Manual *1

Note: If wrongly installed or improperly used in the living area, the device can cause

interference in radios and other electronic devices. Appropriate use is when the device, as far

as feasible, is operated with shielded connection cables (with network products in addition to

category 5 shielded cables and higher). The device has been tested and falls within the limits

of class B computing equipment according to the requirements of EN 55022.

Warning: This device conforms with test category B - it can cause radio interference in the

living area; in this case the operator may demand that appropriate measures are implemented

and arise for this reason. Declaration of conformity: The device fulfills the EMV requirements

according to EN 55022 for ITE and EN 55024. Devices with external or integrated power

supply furthermore fulfill the requirements of EN 61000-3-2 and EN 61000-3-3. In this way, the

fundamental protection requirements of the EMV-2004/108/EC guideline are fulfilled. The CE

conformity has been proven. The pertinent declarations are deposited with the manufacturer.

www.assmann.com

ASSMANN Electronic GmbH

Auf dem Schüffel 3

58513 Lüdenscheid

Germany
