Digitus DN-95342-1 Manuel utilisateur

16/24FE (PoE) + 2G Combo

PoE Switch

User Manual

DN-95342-1 Rev.2



DN-95343 Rev.3

Introduction

The DIGITUS® Combo PoE Switch are Gigabit Uplink Unmanaged Switch which

provides you with a high-performance, low-cost, easy-to-use, seamless and standard

upgrade to boost your old network to 1000Mbps. Increase the speed of your network

server and backbone connections, making Gigabit connection to a server or uplinking

a network necessarily.

Its PoE ports can automatically detect and supply power with those IEEE 802.3af/at

compliant Powered Devices (PD). The electrical power is transmitted along with data

in one single cable allowing you to expand your network where there are no power

lines or outlets, where you wish to fix devices such as AP, IP Cameras or IP Phones, etc.

Features

16 or 24 port 10/100Mbps PoE RJ45 Ports

2 x 10/100/1000Mbps Combo Ports

Complies with IEEE802.3af/at Power over Ethernet

Supports PoE Power up to 32W for each PoE port

Auto detect power device

Remote power and Data feeding up to 100m

Flow Control for Full Duplex operation and back pressure for Half Duplex

Operation

Support VLAN and CCTV function

8K MAC address, automatic address learning and address aging

Support Energy-Efficient Ethernet (EEE) function EEE802.3az

Support PD Alive function at CCTV mode (the switch port is disconnected

will automatically connected)

Package Contents

Check the following contents of your package:



PoE Switch x1



Manual x 1



Power Cord x 1



Accessories (Mounting Ears x2, Rubber Feet x4, screw x8)

If any part is lost and damaged, please contact your local agent immediately.

Hardware Description

Front Panel

The Front Panel Consists of DIGITUS 10/100M Auto-Negotiation Ethernet RJ45 Ports,

2-Port Gigabit Combo Port. The LED indicators are also shown on the panel.

DN-95343

DN-95342-1

Port Status indicator

16*10/100

Mbps PoE

Port

2*10/100/100

0 Mbps Port

2*1000 Mbps

share SFP slot

2*10/100/100

0Mbps Port

2*1000Mbps

share SFP

slot

24*10/100

Mbps PoE

Port

Port Status indicator

LED indicator

LED

Color

Function

PWR Green Off: No Power supply

Light: Indicates the switch has power

LNK/ACT Green

Off: No device is connected to the corresponding port

Light: Indicates the link through that port is successfully

established at 10/100/1000Mbps.

Blink: Indicates that the Switch is actively sending or

receiving data over that port.

Speed Green

Off: Indicates the link through established at

10/100Mbps.

Light: Indicates the link through established at 1000Mbps.

PoE Orange

Off: No PoE powered device (PD) connected

Light: There is a PoE PD connected to be port,

which supply power successfully.

Blink: Indicates port abnormal power supply

DIP Switch:

The DIP switch is located on the left panel.

Default: The factory default mode, can normal communication between

port 1~26.

VLAN:1-24 port can be isolated each other but 1-24 port can connect to

25T/S~26 T/S port after open VLAN to stop broadcast storm to

increase forwarding rate of frame.

CCTV:Up to 250m PoE distance allows you to expand you network via

Ethernet cable but where you want to fix device such as IP

Cameras.

Note:After change the mode, in order to the corresponding

configuration take effect. The switch needs to restart manually.

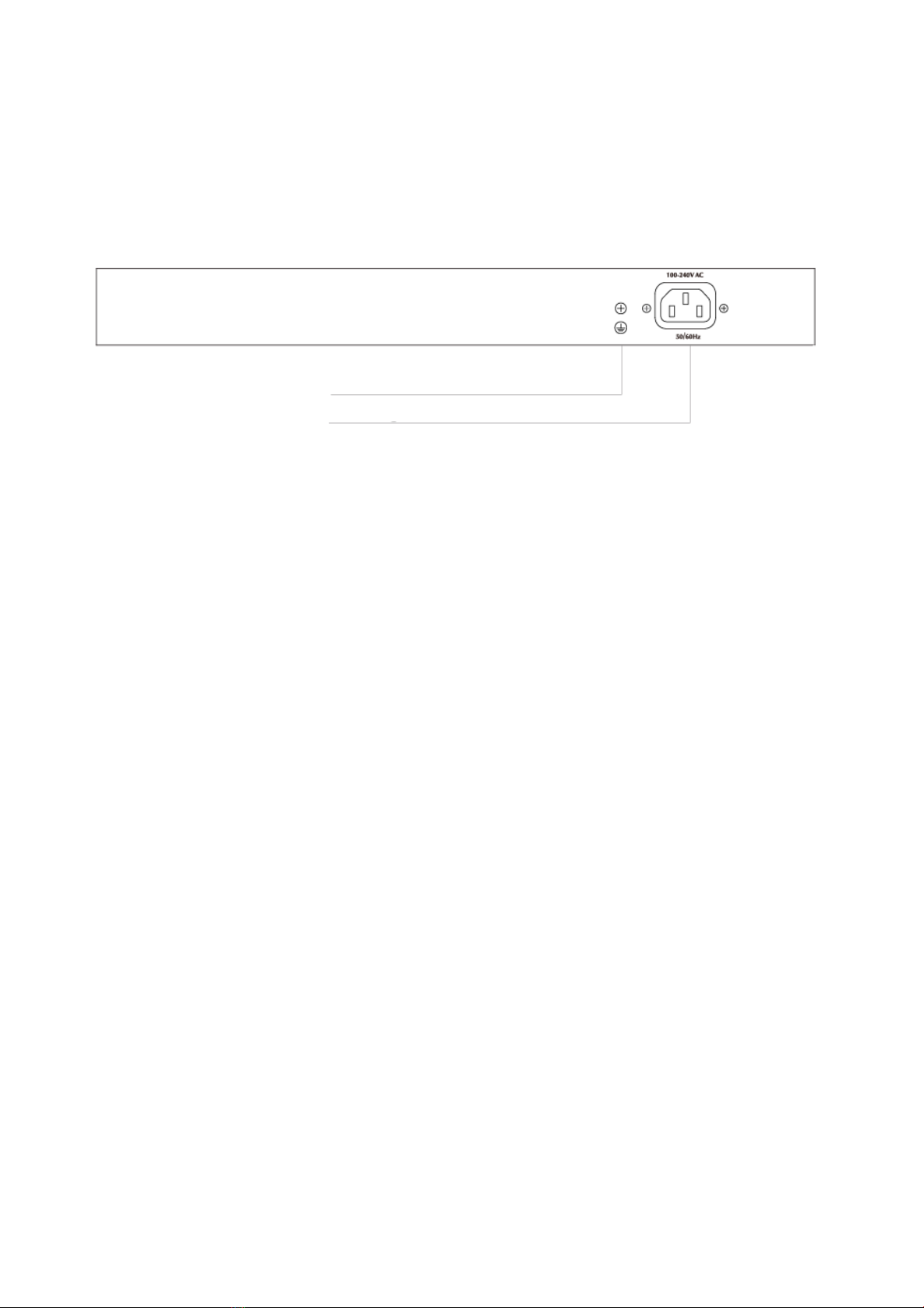

Rear Panel

The rear panel of DIGITUS Combo PoE Switch indicates an AC inlet power socket,

Grounding Column.

Installation the Switch

This part describes how to install your Ethernet Switch and make connections to it.

Please follow the following instructions in avoid of incorrect installation causing device

damage and security threat.

Before cleaning the switch, unplug the power plug of the switch first. Do not

clean the switch with wet cloth or liquid.

Do not place the switch near water or any damp area. Prevent water or

moisture from entering the switch chassis.

Do not place the switch on an unstable case or desk. The switch might be

damaged severely in case of a fall.

Ensure proper ventilation of the equipment room and keep the ventilation

vents of the switch free of obstruction.

Make sure that the operating voltage is the same one labeled on the switch.

Do not open the chassis while the switch is operating or when electrical

hazards are present to avoid electrical shocks.

Power Socket

Grounding Column

Desktop Installation

Install the Switch on a desktop, please attach these cushioning rubber feet provided

on the bottom at each corner of the Switch in case of the external vibration. Allow

adequate space for ventilation between the device and the objects around it. The

installation diagram is as follows:

(Example: DN-95343 Rev.2)

Rack-mountable Installation

The switch is rack-mountable and can be installed on an EIA-19 inch equipment rack.

To do this, first, please install the mounting brackets on the switch’s side panels (one

on each side), secure them with the included screws, and then use the screws

provided with the equipment rack to mount the switch on the 19 inch rack.

(Example: DN-95343 Rev.2)

Turn on the switch

Plug in the negative connector of the provided power cord into the power socket of

the device, and the positive connector into a power outlet. After the device is powered

on, it begins the Power-On Self-Test. The PWR LED indicator will light on all the time.

Specifications

Model

DN-95342-1 Rev.2

DN-95343 Rev.2

Description

16FE (PoE) + 2G Combo

24FE (PoE) + 2G Combo

Standard IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z,

IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.3az

Network Media (Cable)

10BASE-T: UTP category 3,4,5 cable (≤100m)

100BASE-TX: UTP category 5 cable (≤100m)

1000BASE-T: UTP category 5e cable (≤100m)

1000BASE-X: MMF or SMF SFP module

LED

PWR, PoE, LINK/ACT, Speed

MAC Address Table

8K, Auto-learning, Auto-aging

Transfer mode

Store-and-Forward

Frame Forward Rate

10Base-T: 14881pps/Port

100Base-TX: 148810pps/Port

1000Base-T/X: 1488095pps/Port

Switching Capacity

7.2G

8.8G

Packet forwarding rate

5.4Mpps

6.5Mpps

Packet buffer

4M bit

Dimensions (L*W*H)

440*207*44 mm

Fan

Fan x 2

Power Input

AC: 100~240V, 50/60Hz

PoE Port

Port 1 to 16

Port 1 to 24

PoE Power on RJ45

Mode A 1/2(+),3/6(-)

PoE Power Output Voltage: 55V DC

Power: 32W(Max)

PoE Power budget

370W

250W

Temperature Operating Temperature: 0°C ~ 40 °C (32 °F ~104°F)

Storage Temperature: -40 °C ~ 70 °C (-40 °F ~158°F)

Humidity Operating Humidity: 10% ~ 90% non-condensing

Storage Humidity: 5% ~ 90% non-condensing

MTBF

>50000 hours

This is a Class A product. In home environment, this product may cause radio interference. In this

case, the user may be required to take appropriate measures.

Hereby Assmann Electronic GmbH, declares that the Declaration of Conformity is part of the shipping

content. If the Declaration of Conformity is missing, you can request it by post under the below

mentioned manufacturer address.

www.assmann.com

Assmann Electronic GmbH

Auf dem Schüffel 3

58513 Lüdenscheid

Germany
