Digitus DN-95340 Manuel utilisateur

8-Port 10/100/1000 Mbps PoE Gigabit

Desktop Switch

Manual

DN-95340

Product Description:

The DIGITUS Gigabit Desktop Switch with eight Power over Ethernet ports, offers

your network significant improvement in terms of performance and efficiency.

Thanks to PoE support, you only need a single (network) cable for power and data

transfer. This switch makes it much easier to connect devices such as access points,

network cameras, and IP telephones, and requires far less cabling than alternatives. It

also allows you to extend your network in places where there are no power supply

cables or sockets available. The switch does not require any configuration and

therefore guarantees quick and seamless integration into the network. Moreover, the

fanless design of the Switch ensures soundless operation, which makes this device

the perfect solution for office environments and meeting rooms.

Product Features:

•8-Port 10/100/1000 Mbps PoE Gigabit Desktop Switch

•Ethernet IEEE802.3 / 802.3u / 802.3x/802.3ab / IEEE802.3 af/at

•Power over Ethernet (PoE) - You only need one cable for power and data transfer

•PoE power budget: 131 Watts (one to eight ports)

•Supports PoE: Provides 8 PoE Port, each port output 30W maximum power

•No configuration necessary

•Maximum power output: 135 Watts

•Status LEDs on each port

•Pin Feet: V+ (RJ45 Pin 1, 2) V- (RJ45 Pin 3, 6)

•Circuit isolation protection

•Backplane: 16Gbps

•MAC address table: 4K

•Dimensions (L x W x H): 250 mm x 115 mm x 39 mm

•Weight: 670g

•Color: Black

Package Content:

8-Port Gigabit Switch

Power Supply

Manual

Power cable

Hardware Description:

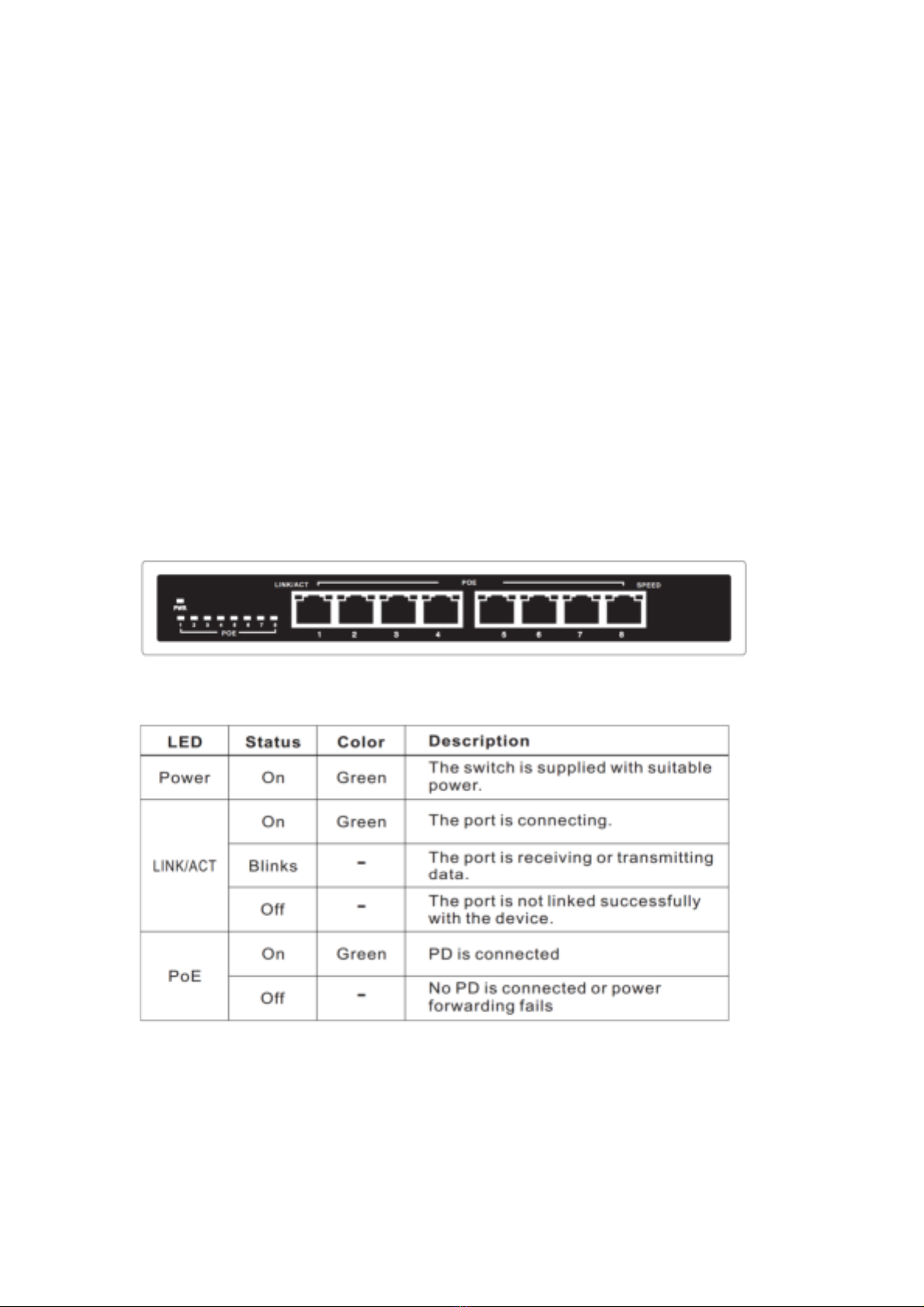

The Front Panel

The front panel consists of LED Indications.

LED Indicators

Per Device: Power

Per Port: LINK/ACT (Link/Activity)

Per PoE Port: PoE

The Real Panel

The rear panel view of the PoE switch consists of a DC power connector.

RJ-45 Ports ( Auto MDI/MDIX )

8 auto-sensing ports of 10Base-T, 100Base-TX or 1000Base-TX connections.

All ports can support Power over Ethernet to power devices.

Remark: MDI means connecting to another Hub or Switch while MDIX means

connecting to a workstation or PC. Therefore, Auto MDI/MDIX means that you can

connect to another Switch or workstation without changing pin-to-pin or crossover

cabling.

DC Power Connector

Plug the female connector into the switch and male connector into a power outlet.

Support input voltages 44~57 VDC.

Product Specifications:

Item Description

Summarize

Fixed port 8x 10/100/1000Base-TX ports.

LED Indicators PWR, PoE, Link/Act LED.

Input voltage 100V～240V AC，50/60Hz (for power adapter)

48VDC (for switch)

Network Media 10BASE-TX: UTP category 5, 5e cable

100BASE-TX: UTP category 5, 5e cable

1000BASE-TX: UTP category 5, 5e cable

Forwarding Rate 10BASE-T: 14880pps / port

100BASE-TX: 148800pps / port

1000BASE-TX: 1488000pps / port

Power Supplies 135W

Operating

temperature 0℃～40℃.

Storage temperature -10℃～70℃.

Relative humidity 20%～85% (non-condensing).

Thermal methods Fanless.

Switching capacity 16G.

MAC address table 4K.

Weight <2 Kg

PoE

PoE port 4/8 10/100/1000Base-TX ports.

All 8 PoE ports or 4 PoE ports (Port 5-8)

PoE Standard IEEE802.3af, IEEE802.3at, per port 15.4W, max 30W

Pin assignment V+ (RJ45 Pin1, 2), V- (RJ45 Pin 3, 6).

Hereby ASSMANN Electronic GmbH, declares that this device is in compliance with the

requirements of Directive 2014/30/EU (EMC), Directive 2014/35/EU (LVD) and the Directive

2011/65/EU for RoHS compliance. The complete declaration of conformity can be requested

by post under the below mentioned manufacturer address.

Warning:

This device is a class B product. This equipment may cause some radio interference in living

environment. In this case, the user can be requested to undertake appropriate measures to

prevent interference.

www.assmann.com

Assmann Electronic GmbH

Auf dem Schüffel 3

58513 Lüdenscheid

Germany
