HDMI KVM IP Extender Set

Manual

DS-55507

Table of Contents

1. Introduction ............................................................................2

2. Main Features .........................................................................3

3. Package Contents ....................................................................3

4. Specification............................................................................4

5. Operating Controls and Functions............................................6

5.1 Encoder Panel ........................................................................6

5.2 Decoder Panel........................................................................7

6. Application Example................................................................8

1. Introduction

The HDMI KVM IP Extender Set comprises a transmitter unit

(positioned locally) as well as a receiver unit (positioned at a distance).

The HDMI signal can be extended using a network cable (Cat5e, CAT

6, CAT 6A, CAT 7) up to a maximum distance of 150 m (point-to-point

connection). The HDMI signal can also be extended to an unlimited

distance using the existing network infrastructure or using standard IP

network switches (IP connection). The highest supported video

resolution is Full HD (1920x1200/60 Hz, 4:4:4). The set also enables

convenient access to a computer (mouse and keyboard) using the USB

ports on the receiver unit. The set is perfectly suited for industrial,

commercial and public sector applications.

2. Main Features

•Extends the maximum length for HDMI cables to up to 150 m

via a simple network cable

•Extension of the signal (unlimited distance) via the

existing local network infrastructure or commercial network

switches (IP connection)

•Supports video resolutions up to: Full HD

(1920x1200/60 Hz, 4:4:4)

•KVM functionality for connection to mouse and keyboard

•Supports Cat5e, CAT 6, CAT 6A, CAT 7, CAT 8 network cable

•IR transmission

•Compact design for easy and flexible installation

•Sturdy metal housing

3. Package Contents

•1x Transmitter unit

•1x Receiver unit

•1x IR transmission cable (1.5 m)

•1x IR receiver cable (1.5 m)

•1x Power adapter (DC 12V/1A, 1.15 m)

•1x USB-B-A cable (1.5 m)

•1x User manual

4. Specification

Technical

HDCP Compliance

HDCP 1.4

USB Version

USB 1.1

Video Bandwidth

6.75Gbps

Video Resolution

640x480@60Hz~1920x1200@60Hz

HDMI Audio Formats

LPCM 2.0CH, 32KHz, 44.1KHz, 48KHz

IR Frequency

20Hz ~ 60KHz

Compression

Technology

H.265

Request for Switcher

/Router

Support 1 GMP, Support DHCP

Color Space

RGB, YCbCr 4:4:4, YCbCr 4:2:2

Color Depth

8/10/12-bit

ESD Protection

Human body model

±8kV (Air-gap discharge)

±4kV (Contact discharge)

Connections

Encoder

Inputs: 1×HDMI Type A

[19-pin female]

Outputs: 1×LAN [RJ45 connector]

Control: 1×IR OUT

[3.5mm Stereo Mini-jack]

1×USB [USB-B, female]

Decoder

Inputs: 1× CAT [RJ45 connector]

Outputs: 1× HDMI Type A

[19-pin female]

Control: 1× IR IN

[3.5mm Stereo Mini-jack]

2× USB [USB-A, female]

Mechanical

Housing

Metal Enclosure

Silkscreen Color

Black

Dimensions

67mm (W) × 91.5mm (D) × 17.5mm (H)

Weight

Encoder: 155g, Decoder: 150g

Power Supply

Input: AC100 - 240V 50/60Hz

Output: DC 5V/1A

Power Consumption

Encoder: 1.4W, Decoder: 1.7W

Operating

Temperature

-10°C ~ 50°C / 14°F ~ 122°F

Storage Temperature

-20°C ~ 60°C / -4°F ~ 140°F

Relative Humidity

20~90% RH (non-condensing)

Resolution /

Distance

1920x1200@60Hz - Feet / Meter

CAT 5e/6 cable

492ft / 150 meters

Resolution /

Cable length

1920x1200@60Hz - Feet / Meter

HDMI IN / OUT

50ft / 15 meters

5. Operating Controls and Functions

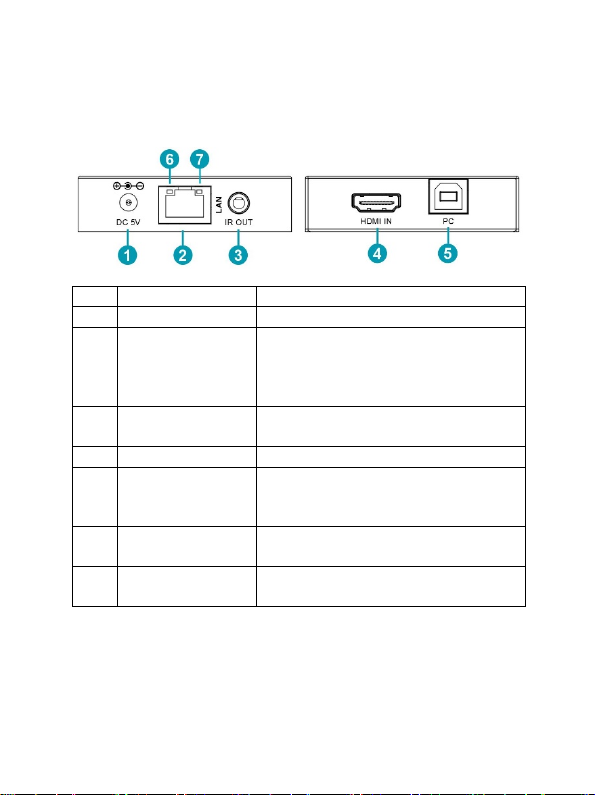

5.1 Encoder Panel

No.

Name

Function description

DC 5V

5V 1A input for power supply

LAN

The LAN port is connected to

decoder’s LAN port or connected to

switcher / router / hub with CAT

cable

IR OUT

Connect to IR blaster cable. The IR

blaster signal is from IR IN of decoder

HDMI IN

HDMI source input

Connect to PC. The PC can be

controlled for USB port of decoder.

(KVM function)

Data signal

indicator (orange)

The lamp flickers when the LAN port

is transmitting signal

Power LED

indicator (green)

The lamp is on when encoder is

powered on

5.2 Decoder Panel

No.

Name

Function description

DC 5V

5V 1A input for power supply

LAN

The LAN port is connected to

encoder’s LAN port or

connected to switcher / router /

hub with CAT cable

IR IN

Connect to IR receiver cable. The IR

signal is sent to IR OUT port of

encoder

HDMI OUT

HDMI output for display

Two USB port

USB 1.1 for connecting mouse and

USB keyboard

Data signal

indicator (orange)

The lamp flickers when the LAN

port is transmitting signal

Power LED

indicator (green)

The lamp is on when decoder is

powered on

6. Application Example

Figure 1: Encoder directly connects to Decoder

Encoder

Decoder

IR Receiver

Power Supply

IR Blaster

Mouse

DVD or Blu-ray Player

USB Keyboard

Ethernet Cat5e/6

Figure 2: Encoder connects to Decoder via a switcher

(One Encoder to multiple Decoders)
