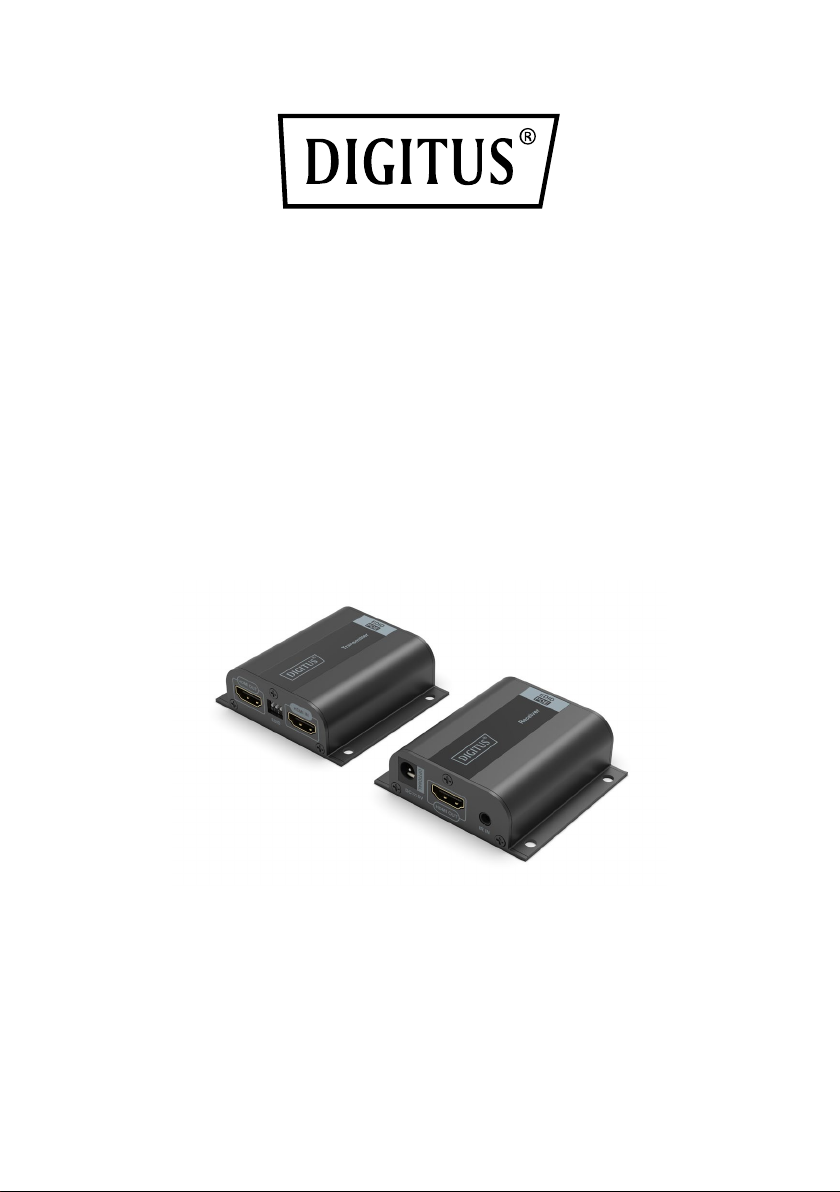

Digitus DS-55100-1 Manuel utilisateur

HDMI Extender Set,

Full HD, 50 m

Quick Installation Guide

DS-55100-1 Rev.3

Table of Contents

1. Introduction......................................................................... 3

2. Product Features ................................................................. 3

3. Package Content.................................................................. 4

4. Specification ........................................................................ 4

5. Penal Description................................................................. 4

6. Connection........................................................................... 6

7. Installation Requirements ................................................... 6

8. EDID Setting ......................................................................... 6

1. Introduction

The Digitus HDMI Extender Set, Full HD offers an extender

solution of up to 50 m for the highest demands. It is used to

transmit digital video and audio signals to a maximum length of

up to 50 m. The highest supported video resolution is 1080p /

60Hz. The transmitter unit features an EDID switch, which can be

used to regulate resolution and audio format of the output signal.

The transmitter also has an HDMI Loop Out Port, which allows

you to connect a local monitor. Thanks to PoC (Power over Cable)

support, it is only the transmitter unit that needs to be powered.

The package includes two bidirectional infrared units

(transmitter, receiver), which can be used for the remote control

of the connected input source.

2. Product Features

•Extends the maximum length for HDMI cable to up to 50 m

via a simple network cable

•Highest supported video resolution: 1080p / 60 Hz

•Supports CAT 6, CAT 6A, CAT 7 network cables

•EDID Switch - Allows you to set resolution and audio format

on the transmitter unit

•HDMI Loop Out - Allows you to connect a local monitor to

the transmitter unit

•Supports PoE (Power over Ethernet) - thus no power supply

is required for the receiver unit

•Supports uncompressed audio signals such as LPCM

•Compact size, simple use and installation

3. Package Content

•1x HDMI Extender transmitter unit

•1x HDMI Extender receiver unit

•1x Power supply unit: DC 5V/2A

•1x IR transmitter unit

•1x IR receiver unit

•1x Instruction manual

4. Specification

Support

HDCP 1.2a

Bandwidth

4.95 Gbps

Color depth

8 bits

Housing

Metal casing

Power supply unit

DC 5V/2A

Dimensions (1x unit)

L 7.2 x W 6.70 x H 2.3 cm

Color

black

5. Penal Description

Transmitter unit (TX)

①IR signal output to connect with blaster extension cable

②RJ45 signal output

③HDMI signal indicator led: it lights on all the time when

HDMI signal input, flashes when no signal input

④Reset button

⑤DC 5V power input

⑥HDMI signal output

⑦EDID switch

⑧HDMI signal input

Receiver unit (RX)

①DC 5V power input

②HDMI signal output

③IR signal input to connect with IR receiver extension cable

④LENGTH: for adjusting to the length of network cable

⑤RJ45 signal input

⑥RJ45 indicator led: it lights on all the time when HDMI

signal transmission, flashes when no signal transmission

6. Connection

DVD

HDMI EXTENDER RX

HDMI EXTENDER TX

HDMI OUT

CAT6/6A/7 Cable

HDMI display

7. Installation Requirements

1. HDMI source device (computer graphics card, DVD, PS3,

HD monitoring equipment etc.).

2. HDMI display device like SDTV, HDTV, and projector

with HDMI port.

3. UTP/STP CAT6/6A/7 cable, follow standard IEEE-568B.

8. EDID Setting

Switch Status

EDID information

switch 1

switch 2

switch 3

720P@60Hz 2.1CH

720P@60Hz 7.1CH

1080i@60Hz 2.1CH

1080i@60Hz 7.1CH

1080P@60Hz 2.1CH

1080P@60Hz 7.1CH

0 1 1

read and save the EDID of

the loop-out TV

1 1 1

Default EDID: 1080P 3D

2.1CH

1. Set the source device resolution to “Auto.” Don’t set any

specific resolution of the source device.

2. HDMI source device reads the EDID information of the

transmitter (TX) and then output the Relative HDMI signal

forma.

3. It needs to power on again or reset the transmitter unit

after re-setting EDID every time.

4. When connect a TV with loop-out HDMI port of

transmitter (TX), it can adjust EDID switch to read and

save this TV’s EDID information. When we use this

function, it should connect TV with transmitter first, and

then power on these devices, so that the EDID will be read

and saved successfully. At next time, even though do not

connect a TV into the loop-out HDMI Port, the source

device will output the saved EDID information last time.

This is a Class A product. In home environment, this product may

cause radio interference. In this case, the user may be required

to take appropriate measures.

Hereby ASSMANN Electronic GmbH declares that the

Declaration of Conformity is part of the shipping content. If the

Declaration of Conformity is missing, you can request it by post

under the below mentioned manufacturer address.

www.assmann.com

Assmann Electronic GmbH

Auf dem Schüffel 3

58513 Lüdenscheid

Germany
