Digitus DS-55510 Manuel utilisateur

4K HDBaseT™ 1x4 HDMI

Extender Splitter Set, 150 m

Manual

DS-55510

Table of Contents

1. Introduction ............................................................................2

2. Main Features .........................................................................3

3. Package Contents ....................................................................3

4. Specification............................................................................4

5. Operating Controls and Functions............................................6

5.1. Transmitter........................................................................6

5.2. HDBaseT Receiver..............................................................9

5.3. IR Pin Definition...............................................................11

6. EDID Mode ............................................................................12

7. ASCII Commands ...................................................................13

8. Application Example..............................................................18

1. Introduction

The DIGITUS® 4K HDBaseT™ HDMI Extender Splitter Set distributes the

input signal on up to four output devices over a distance of up to 120

m (4K/60Hz, 4:4:4) or up to 150 m (Full HD, 1080p/60Hz) using a

CAT6/7/8 cable. Supports IR and RS232 signal transmission, audio

extraction (digital/analog) and EDID management. Thanks to PoC

functionality, only the transmitter needs to be externally supplied

with power. Using the HDMI loop-out to the transmitter unit, a local

monitor can be connected in order to control the output to the

receiver.

2. Main Features

•Supports HDBaseT™ 1.0 via CAT6/7/8 cable up to 150 m

•Supports 4K2K/60Hz (4:4:4)

•Maximum transmission distance (UHD 4K2K): 120 m

•Maximum transmission distance (Full HD 1080p): 150 m

•EDID management

•HDMI loop-out to the transmitter unit

•PoC (Power over Cable) - Only the transmitter unit

requires an external power adapter

•Video bandwidth: 18 Gbps

•HDCP 2.2 / 1.4

•R232 signal transmission

3. Package Contents

•1x HDBaseT™ extender splitter (transmitter unit)

•4x HDBaseT™ receiver

•5x IR transmission cables (1.5 m)

•5x IR receiver cable (1.5 m)

•1x Power adapter (DC 24V/2.7A, 1.45 m)

•5x 3-pin Phoenix connector

•5x 5-pin Phoenix connector

•10x Mounting plate

•1x User manual

4. Specification

Technical

HDMI Compliance

HDMI 2.0b

HDCP Compliance

HDCP 2.2/1.x

Video Bandwidth

594MHz/18Gbps

Video Resolution

Up to 4k2k@60Hz 4:4:4

Color Depth

8-bit,10-bit,12-bit(1080p@60Hz)

8-bit (4K2K@60Hz YUV4:4:4)

8-bit,10-bit,12-bit (4K2K@60Hz

YCbCr 4:2:2/4:2:0)

Color Space

RGB 4:4:4, YCbCr 4:4:4 / 4:2:2 / 4:2:0

HDR

Support HDR, HDR10+, HLG,

Dolby vision

HDMI Audio Formats

LPCM 2.0/2.1/5.1/6.1/7.1,

Dolby Digital, Dolby TrueHD,

Dolby Digital Plus (DD+), DTS-ES,

DTS HD Master, DTS HD-HRA, DTS-X

Coaxial Audio Formats

PCM2.0, Dolby Digital / Plus,

DTS 2.0/5.1

Analog Audio Formats

PCM 2.0CH

ESD Protection

Human body model

±8kV (Air-gap discharge) &

±4kV (Contact discharge)

Connections

Input

1× HDMI Type A (19-pin female)

Output

1× HDMI Type A (19-pin female）

4x HDBaseT OUT [RJ45]

1x Coaxial Audio OUT [RCA]

1x L/R Audio OUT [5-pin phoenix

connector]

Control

1× RS-232 (3-pin phoenix connector）

1x EDID DIP switch [5-pin]

1x IR IN [3.5mm Stereo Mini-jack]

1x IR OUT [3.5mm Stereo Mini-jack]

Mechanical

Housing

Metal Enclosure

Color

Black

Dimensions

Transmitter: 220mm (W) × 130mm (D) ×

40mm (H)

Receiver: 140mm (W) × 65mm (D) × 18mm

(H)

Weight

Transmitter: 853g

Receiver: 246g

Power Supply

Input: AC100 - 240V 50/60Hz, Output: DC

24V/2.7A

(US/EU standards, CE/FCC/UL certified)

Power Consumption

35W

Operating

Temperature

0°C ~ 40°C / 32°F ~ 104°F

Storage Temperature

-20°C ~ 60°C / -4°F ~ 140°F

Relative Humidity

20~90% RH (non-condensing)

5. Operating Controls and Functions

5.1. Transmitter

Front Panel

No.

Name

Function description

Power LED

When the device is powered on, the

red power LED will be on.

IN LED

When the HDMI IN port connects an

active source device, the green LED

will be on.

LOOP LED

When the HDMI LOOP OUT port

connects an active display device, the

green LED will be on.

OUT (1~4) LED

When the HDBT OUTPUT port

connects an HDBaseT Receiver, the

corresponding green OUT LED will be

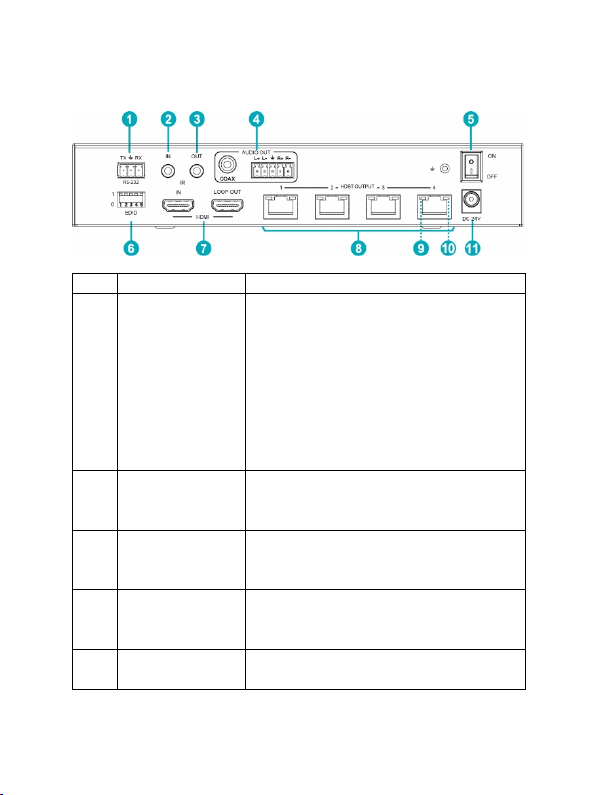

Rear Panel

No.

Name

Function description

RS-232

Connect to a PC or control system via a

3-pin phoenix connector cable for three

functions:

1. Firmware update;

2. Control the Splitter via

RS-232 commands;

3. RS-232 signal pass-through

(from transmitter to receiver or

from receiver to transmitter)

IR IN

Connect to IR receiver cable, the IR

receive signal will emit to “IR OUT” port

of the HDBaseT Receiver

IR OUT

Connect to IR blaster cable, the IR emit

signal is from “IR IN” port of the

HDBaseT Receiver

AUDIO OUT

(COAX, L/R)

Coaxial/balanced audio output port,

connect to amplifer or

speaker

POWER switch

Press this switch to power on/off the

device

EDID DIP

switch

Used to set EDID mode. Please refer to

Section “6. EDID

Mode” for details

HDMI port

IN: HDMI input port, connect to HDMI

source device such

as DVD or set-top box with an HDMI

cable

LOOP OUT: HDMI loop output port,

connect to the HDMI

display device such as TV or Monitor

with an HDMI cable

HDBT OUTPUT

port (1~4)

Connect to the HDBT IN port of the

HDBaseT receiver with a CAT cable

Connection

Signal Indicator

lamp (Green)

•Illuminating: Transmitter and Receiver are

in good connection status

•Flashing: Transmitter and Receiver are in

poor connection status

•Dark: Transmitter and Receiver are not

connected

Data Signal

Indicator lamp

(Orange)

•Illuminating: HDMI signal with HDCP

•Flashing: HDMI signal without HDC

•Dark: No HDMI signal

DC 24V

Plug the DC 24V power supply into the

unit and connect

the adaptor to an AC outlet (Note: The

transmitter can

power the receiver via a CAT cable)

5.2. HDBaseT Receiver

No.

Name

Function description

Power Indicator

When the receiver is powered on, the

power indicator will

be on

SERVICE port

Used for firmware update

DC 24V

Plug DC 24V/1A power supply into the

unit and connect

the adapter to an AC outlet.

(Note: The HDBaseT receiver also can

be powered by the

transmitter via a CAT cable)

HDBT IN

Connect to the HDBT OUTPUT port on

the transmitter

with a CAT cable

Connection

Signal Indicator

lamp (Green)

•Illuminating: Transmitter and

Receiver are in good connection

status

•Flashing: Transmitter and Receiver

are in poor connection status

•Dark: Transmitter and Receiver are

not connected

Data Signal

Indicator lamp

(Orange)

•Illuminating: HDMI signal with HDCP

•Flashing: HDMI signal without HDCP

•

Dark: No HDMI signal

HDMI OUT

HDMI output port, connect to HDMI

display device such

as TV or Projector with an HDMI cable

AUDIO OUT

Audio output port, connect to amplifer

or speaker

IR IN

Connect to the IR Receiver cable. The IR

signal will send

to the IR OUT port of the transmitter

IR OUT

Connect to the IR blaster cable, the IR

signal is from IR

IN port of the transmitter

RS-232

3-pin Phoenix connector for RS-232

command

transmission. The RS-232 command will

pass-through

from transmitter to receiver or from

receiver to transmitter
