Digitus DS-56200 Manuel utilisateur

DisplayPort over IP EXTENDER

Manual

DS-56200 • DS-56201

1. Introduction

Thanks for purchasing the DS-56200 DisplayPort over IP Extender (DS-56201

receiver only). We recommend that you read this manual thoroughly and retain for

future reference.

Features

The DisplayPort over IP Extender allows you to extend video and audio up to 100

meters distance between source or computer and monitor or projector. With the built-

in video and audio signals enhancement, you can gain the best video resolution

quality and audio stereo sound while listening, and no any additional software

needed. Furthermore, the installation and operation are easily more than expected.

With using in extension facilities of video and audio, this product, The DisplayPort

over IP Extender, delivers worthy of performing efficiency and value-added.

Support DisplayPort 1.1

With Expandable Receiver, each Receiver Unit with cascade function enables to

link two other (2) Receiver Units consecutively extending another 100m distance,

and continue expanding corresponding to custom demand as likely

Cascade/Tree Chain web architecture spread.

Uses easy to install, inexpensive CAT. 5e/6 cables

Each pair (TX & RX) extends the signals up to 100m (330 feet) using 1-to-1

connection

Uses network environment for transmission

Supports video high resolution up to 1920x1080@60Hz, Full HD 1080p

HDTV compatible (720p, 1080i, 1080p)

Supports Stereo 2.0

Cascaded-chainable receiver up to 10 layers

Supports RS-232 (Serial)

IR (Infrared remote) enabled

Support local DisplayPort monitoring port

Each receiver (remote) links cascade-chainable 2 receivers

Support VGA(DS-53201) and HDMI (DS-55201) receiver

Rack mountable

Package Contents

DS-56200

DisplayPort Extender Transmitter x 1

DisplayPort Extender Receiver x 1

Power Adaptor DC 5V x 2

User Manual x 1

DS-56201

DisplayPort Extender Receiver x 1

Power Adaptor DC 5V x 1

User Manual x 1

Specification

2. Detail and Diagram

Detail Picture

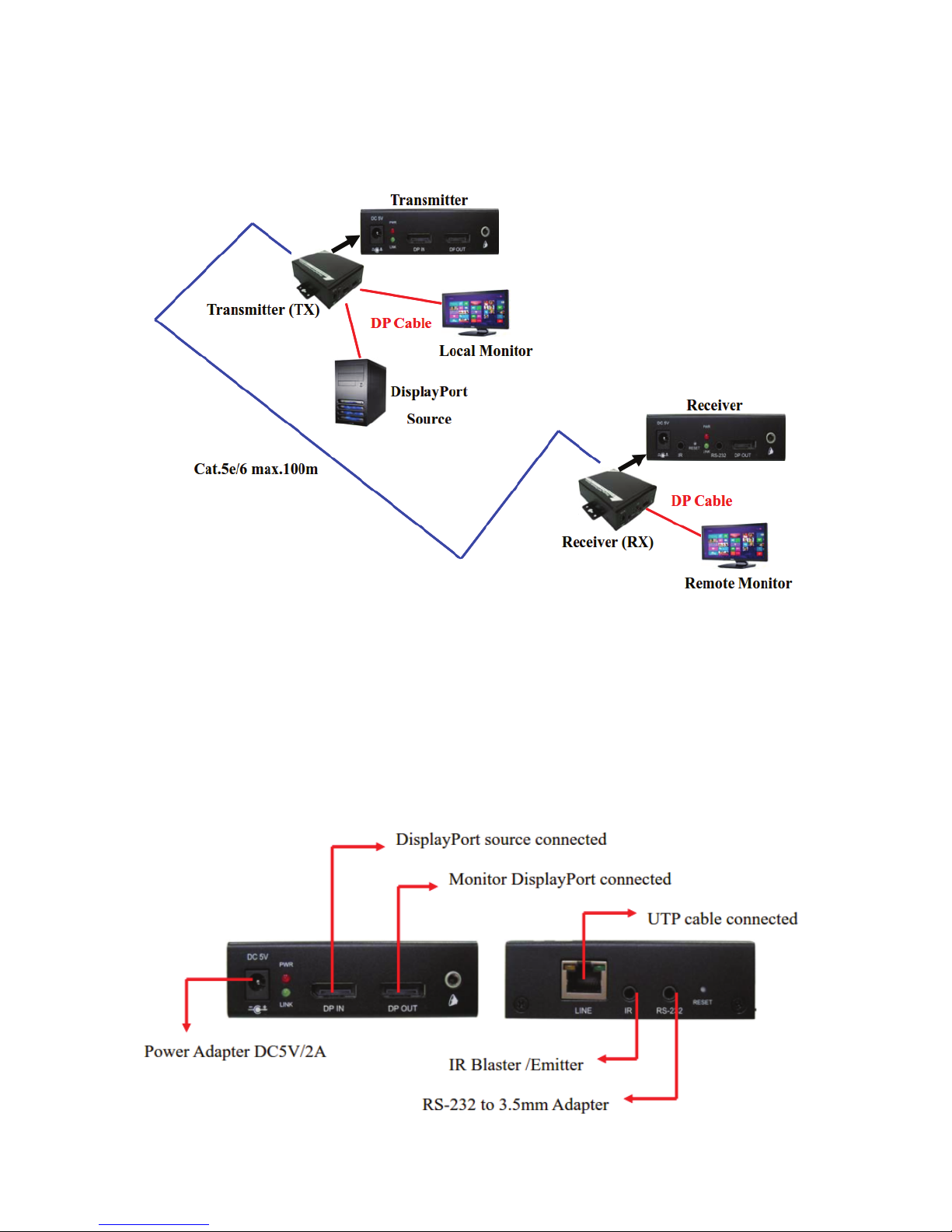

Application Diagram

1-to-1 connection

Transmitter Installation

Connect UTP Cable to Transmitter, please use CAT.5e/6 Cable

Connect the IR Blaster Emitter cable or RS-232 to 3.5mm adapter to the

Transmitter Unit IR Port or RS-232 control port if necessary.

Connect Transmitter with DisplayPort cable to DisplayPort connector of

DisplayPort source

Connects Transmitter with DisplayPort cable to DisplayPort connector of

Monitor if necessary

Plug DC 5V/2A power adapter

Receiver Installation

Connect UTP Cable to Receiver, please use CAT.5e/6 Cable

Connect the IR Receiver cable or RS-232 to 3.5mm adapter to the Receiver

Unit IR Port or RS-232 port if necessary

Connect Receiver with DisplayPort cable to DisplayPort connector of Monitor

Plug DC 5V/2A power adapter

Cascade Chain Connection

1. Plug DC 5V/2A power adapter.

2. Use UTP Cable connected with Receiver to link the other two (2) Receiver Units

consecutively to extend another 100m distance, the cable connector node is to

connect to Receiver LINE1 or LINE2 or LINE3 port (RJ45), as long as the LINE

port is not occupied, and user can continue expanding corresponding to custom

demand as likely Cascade/Tree Chain web architecture spread.

3. Connect the IR Receiver cable or RS-232 to 3.5mm adapter to the Receiver Unit

IR Port or RS-232 port if necessary.

4. Connect Receiver with DisplayPort cable to DisplayPort connector of Display

Monitor.

Each Receiver with three (3) Line port, one is used for source input, and the other

two are used for expanding source to other receivers. User can choose any LINE port

as source input at random, and use the other two LINE port for expanding source to

next tier receiver as long as the LINE port is not occupied.

Cascaded and mixed with VGA / HDMI / DisplayPort

IR Bypass Function Connection

Connect the IR Transmitter (or Emitter) cable to the IR Connector on the

DisplayPort

Transmitter Unit (TX)

Connect the IR Receiver cable to the IR Connector on the DisplayPort

Receiver Unit (RX)

Place the IR Eye of the IR Receiver cable near the Remote Controller

Place the IR Blaster of the IR Transmitter cable near the device that intend to

be controlled by the Remoter controller

RS-232 Bypass Function Connection

Connect the device, such as a PC, projector…etc, to the RS-232 port of the

DisplayPort Transmitter Unit or DisplayPort Receiver Unit via a RS-232 to

3.5mm adatper

Connect the controlling device to the RS-232 port of the DisplayPort Receiver

Unit or DisplayPort Receiver Unit via a RS-232 to 3.5mm adapter

Hub Extend Function Connection

The maximum distance between each tier could be up to 100 meters long, while

this could be extended through Network Switch. User can add one Network

Switch to extend another 100 meters.

The more Network Switches, the longer distance extended. The number of

Network Switches is as many as user want.

Note: In case of incorrect installation and improper use in a residential area, the interference to radio

devices and other electronic devices could be caused. It is recommended to use the device where

applicable with shielded cables (also shielded with networking products of cable Category 5e and

higher). The device was tested to comply with the limits for Computer and IT accessories of Class A

according to the requirements of EN 55022.

Warning: This product complies with the test class A - It may be used in the living area but could

cause radio interference; in this case, it may be demanded by the operator to take appropriate

corrective action at his/her own expense. Declaration of Conformity: The device meets the EMC

requirements according to EN 55022 class A and EN 55024 for ITE category with external or built-in

power supply to meet the requirements of EN 61000-3-2 and EN 61000-3-3 according to the EMC

Directive 2004/108/EC. The declaration of Conformity can be requested by post at the following

manufacturer address.

www.assmann.com

ASSMANN Electronic GmbH

Auf dem Schüffel 3

58513 Lüdenscheid

Germany
