Digitus DS-55204 Manuel utilisateur

4K HDMI Extender Set,

4K/60Hz

Quick Installation Guide

DS-55204 Rev.3

Table of Contents

1. Introduction......................................................................... 3

2. Product Features ................................................................. 3

3. Package Content.................................................................. 3

4. Specification ........................................................................ 4

5. Penal Description................................................................. 6

6. Connection........................................................................... 7

7. Installation Requirements ................................................... 8

8. Troubleshooting................................................................... 8

Important Safety Instructions:

1. Do not mix up HDMI to RJ45 sender and RJ45 to HDMI

receiver before installation.

2. Do not hot plug when it is working.

3. Use DC5V power supply only. Make sure specification

matched if using adapters not supplied by factory.

1. Introduction

The Digitus 4K Extender Set, 4K2K/60Hz offers an extender

solution of up to 60 m for the highest demands - both for

high-resolution graphics and for absolutely smooth video

playback. It transmits digital 4K2K/60Hz video and audio signals

to a maximum length of up to 30 m. 4K2K/30Hz content can be

transmitted to up to 60 m. It supports CAT 6, 6A network cables.

It consists of a transmitter as well as a receiver unit. It also

includes two infrared units (transmitter, receiver) which enable

the use of the remote control of the connected input source.

2. Product Features

•Extends 4K2K/60Hz video content to up to 30m

•Extends 4K2K/30Hz video content to up to 60m

•Supports 4K Ultra HD (60Hz), 4096 x 2160p resolution

•Integrated IR interface - Easy to control the input source

using a remote control

•Supports CAT 6 and CAT 6A network cables

•Supports HDCP 2.2

3. Package Content

•1x 4K HDMI Extender transmitter unit

•1x 4K HDMI Extender receiver unit

•2x Power supply unit: DC 5V/1A

•1x IR transmitter unit

•1x IR receiver unit

•1x Instruction manual

4. Specification

Item

Description

Model

DS-55204

Function

Product type

HDMI2.0 Extender

over CAT 6

Feature

HDMI2.0 extender

over CAT 6, 30m

with 4K@60Hz,

60m with 4K

@30Hz, zero

latency

HDMI

performance

and Interface

Max transfer rate

18Gbps

Color Depth

12bit

HDMI version

HDMI2.0

HDCP version

HDCP2.2

Supported video resolution

480i@60Hz,

480p@60Hz,

576i@50Hz,

576p@50Hz,

720p@50/60Hz,

1080i@50/60Hz,

1080p@50/60Hz,

4Kx2K@24/25/

30/60Hz

Supported audio formats

LPCM

Connector

RJ45

Latency

zero latency

Input and Output TMDS

signal

0.5~1.5Vp-p

(TMDS)

Input and Output DDC

signal

5Vp-p(TTL)

PSU Adapter

Voltage

DC5V/1A

Power

consumption

TX<2.5W

RX<3W

Protection

level ESD protection

1a (contact

discharge) level 3

1b (air-gap

discharge) level 3

International

StandardIEC61000-

4-2

Operating

environment

Operating temperature

(0°C ~ 50°C)

32°F ~ 122°F

Storage temperature

(-20°C ~ 60°C)

-4°F~ 140°F

Relative humidity

0 ~ 90% RH

(non-condensing)

Body

properties

Dimension

77.49×56.15×

22.66 mm

Material

Aluminum Alloy

material + crystal

panel

Weight

TX: 80g RX: 80g

Color

black

MTBF (Meantime between

failures)

>30000Hours

Accessory

5V1A power adapter x 2

IR transmitter x1

IR receiver x 1

User manual x 1

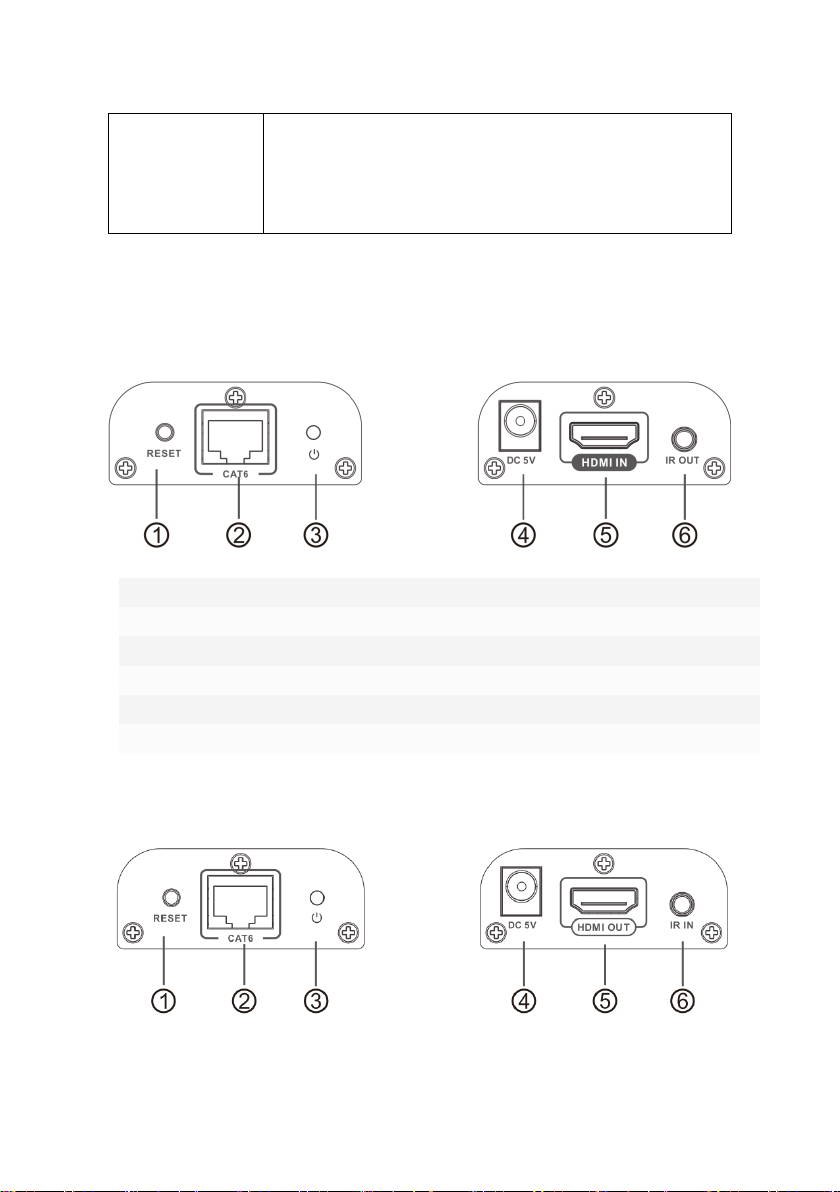

5. Penal Description

Transmitter unit (TX)

①

Reset button

Press for restarting the unit

②

RJ45 signal output

Output encoded HDMI signal

③

Power indicator

LED indicator turn on when power on

④

DC5V input

Connect with the power supply

⑤

HDMI signal input

Connect with the source device

⑥

IR signal output

Connect with IR blaster extension cable

Receiver unit (RX)

①

Reset button

Press for restarting the unit

②

RJ45 signal input

Input encoded HDMI signal

③

Power indicator

LED indicator turn on when power on

④

DC5V input

Connect with the display supply

⑤

HDMI signal output

Connect with the display device

⑥

IR signal input

Connect with IR receiver extension cable

6. Connection

DVD

HDMI EXTENDER RX

HDMI EXTENDER TX

HDMI OUT

CAT6/6A/Cable

HDMI display

6.1 Connection instruction

•Connect source device to Transmitter unit (TX), and display

device to Receiver unit (RX) via HDMI cables.

•Connect Transmitter unit (TX) and Receiver unit (RX) via

network cables (CAT6, CAT6A or CAT7).

•Connect power supplies, this HDMI extender works.

6.2 IR User Guide

•IR blaster extension cable should plug in the IR OUT port of

TX (Transmitter) of HDMI extender, and the IR receiver

extension cable should plug in the IR IN port of RX

(receiver) unit.

•The emitter of IR blaster should as close as possible to the

IR receiver window of the signal source device.

•Using the IR remote controller of the signal source device

towards the IR receiver (connected to the RX), to remote

control source media playback.

7. Installation Requirements

1. HDMI source device

2. HDMI display

3. CAT 6/CAT 6A/CAT 7 cable. Follow standard IEEE-568B.

(To comply with CE regulation. It is suggested to use

shielding network cable to avoid interference)

8. Troubleshooting

Problems Causes Solutions

Non-power-

connected/

all LED off

Maybe the power

supply is not

connecting well

or use the wrong

power adapter

Please check if the

power supply is

connecting well and the

output voltage value is

correct as recommended

No sound or

sound issues

Maybe the HDMI

connection is not

well; the audio

format is not

supported by the

displays; the

source player set

Please check if the HDMI

cables are connecting

well; if the audio format

is supported by the

displays, customers can

change to the supported

audio format or the

player`s audio output is

another port to

output audio

setting HDMI audio

output or not

No picture or

picture flicker

Maybe the HDMI

cable quality and

UTP cable quality

is not good

enough or not

connecting well

Please check if the HDMI

and UTP connection is

well or change another

good quality HDMI 2.0

standard HDMI cable or

UTP (CAT6 or higher is

recommended) cable will

solve the issue.

This is a Class A product. In home environment, this product may

cause radio interference. In this case, the user may be required

to take appropriate measures.

Hereby ASSMANN Electronic GmbH declares that the

Declaration of Conformity is part of the shipping content. If the

Declaration of Conformity is missing, you can request it by post

under the below mentioned manufacturer address.

www.assmann.com

Assmann Electronic GmbH

Auf dem Schüffel 3

58513 Lüdenscheid

Germany
