Digitus DS-55126 Manuel utilisateur

HDMI over Fiber Optic Extender Rev. 2

User Manual

DS-55126

Introduction

This HDMI over fiber optic incorporates over IP transport technology.

The extender set consists of an optical transmitter module that converts

the HDMI signals into light pulses for transmission over a single strand of

Multi-Mode or Single-Mode optical fiber cable. An optical receiver

module converts the light pulses back to an HDMI signal for display on a

monitor or projector. It allows you to extend up to 40 km long distance

between the source device and display monitor via optical cable. It also

supports IR pass back function. It can be widely applied in video

conference, medical system, shopping mall, multimedia

presentation…etc. filed.

Important safety notice

Please read below safety instructions carefully before installation and

operation:

Please pay attention to all the warnings and hints on this device

Do not expose this unit to rain, moisture and liquid

Do not put any stuff into the device

Do not repair or open this device without professional people’s

guidance

Make sure good ventilation openings to avoid product overheating

damage

Shut off power and make sure environment is safe before installation

Do not plug-in/out the network cables and IR cables when it is in

using to avoid cables damage

Use DC5V only. Make sure the specification matched if using 3rd

party DC adapters

Features

1. Support Single mode fiber optic transmission.

2. No need extra installation driver

3. Transmit 1080p signal up to 40km

4. Support IR pas back for easy control

5. Avoid the electromagnetic interference in environment for

long distance transmission

6. Low signal loss, wide frequency band and strong anti-interference

7. High-end aluminum alloy enclosure design

8. Wall-mountable design for convenient installation

Package Contents

HDMI extender TX x1

HDMI extender RX x1

DC5V2A x1

IR blaster extension cable x1

IR receiver extension cable x1

User’s manual x1

Installation Requirements

1. Source device with HDMI output port

(computer graphics card, DVD, PS3, HD monitor equipment etc)

2. Display device with HDMI input port (HDTV, projector)

3. HDMI cable and single mode fiber optic cable

Panel Descriptions

1. Rear panel of HDMI extender TX

①Power Input (DC 5V)

②HDMI signal input

③IR blaster extension cable port

④Fiber optic signal send port

2. Rear panel of HDMI extender RX

①Power Input (DC 5V)

②HDMI signal output

③IR receiver extension cable port

④Fiber optic signal receive port

3. Front Panel of TX and RX

①Power status indicator

②Network connection indicator

③Data transmission indicator

④Reset button

Connection and operation

FAQ

Q: TV display “waiting for connection” on the bottom right corner?

A: Please check if the power supply of TX (sender) and the fiber optic

cables are well connected.

Q: TV display “Please check the TX input signal”?

A: 1) Please check if there is an HDMI signal input of sender TX.

2) Try to connect the source device directly with display device to see

If there is signal output from source device or change the source device

and HDMI cables to retest.

Q: Display not fluent and stable?

1) Click “reset” button on the TX/RX panel or reconnect power.

Specifications

Specification DS-55126

HDMI signal

Full compatible with HDCP

Support resolution 480i@60Hz, 480p@60Hz, 576i@50Hz,

576p@50Hz, 720p@50/60Hz,

1080i@50/60Hz, 1080p@50/60Hz

DDC signal voltage

5Vp-p(TTL)

TMDS bandwidth

10.2Gpbs

Wave length Transmitter: 1310nm /1550nm

Receiver: 1550nm/ 1310nm

Transmission distance

～

40km

Link loss

≤14dB

Output light power

≥-11dBm

Receive sensitivity

≤-32dBm

Return loss

15dB

IR remote control

Support 20~60KHz IR remote control

Power supply

DC5V/2A x2pcs

Power consumption TX<4W

RX<3.5W

Working temperature

℃～

℃

Enclosure material

Aluminum alloy

Product dimension

138x81.5x24 (WxDxH) x2pcs

Weight TX:178g

RX:177g

Color

Black

Disclaimer:

The product name and brand name may be registered trademark of

related manufacturers.TM and ® may be omitted on the user manual.

The pictures on the user manual are just for reference, and there may be

some slight difference with the real products.

We reserve the rights to make changes without further notice to a

product or system described herein to improve reliability, function or

design.

This is a Class A product. In home environment, this product may cause radio

interference. In this case, the user may be required to take appropriate measures.

Hereby Assmann Electronic GmbH, declares that the Declaration of Conformity is

part of the shipping content. If the Declaration of Conformity is missing, you can

request it by post under the below mentioned manufacturer address.

www.assmann.com

Assmann Electronic GmbH

Auf dem Schüffel 3

58513 Lüdenscheid

Germany

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Digitus Extenseur

Digitus

Digitus DS-55321 Manuel utilisateur

Digitus

Digitus DS-55400 Manuel utilisateur

Digitus

Digitus DS-55504 Manuel utilisateur

Digitus

Digitus DS-51200 Manuel utilisateur

Digitus

Digitus DN-95121 Manuel utilisateur

Digitus

Digitus DS-55302 Manuel utilisateur

Digitus

Digitus DS-55501 Manuel utilisateur

Digitus

Digitus DC-53101 Manuel utilisateur

Digitus

Digitus DS-55517 Manuel utilisateur

Digitus

Digitus DS-55513 Manuel utilisateur

Digitus

Digitus HDBaseT DS-55523 Manuel utilisateur

Digitus

Digitus DS-56200 Manuel utilisateur

Digitus

Digitus DN-70185 Manuel utilisateur

Digitus

Digitus DA-70143 Manuel utilisateur

Digitus

Digitus DS-55101 Manuel utilisateur

Digitus

Digitus DN-95126 Manuel utilisateur

Digitus

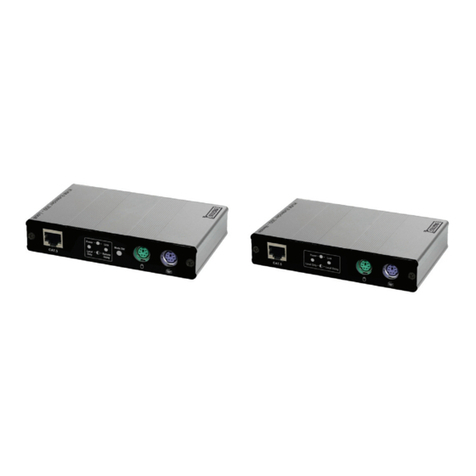

Digitus DC-51101-LOCAL Manuel utilisateur
