Digitus DA-70895 Manuel utilisateur
Thunderbolt™ 3
Docking Station 8K,
USB Type-C™
Quick Installation Guide
DA-70895
2
1Product Introduction
The Thunderbolt™ 3 Docking Station from DIGITUS® expands your
notebook with 11 additional ports using just one USB-C™
connection. Among other features, it includes 2 DisplayPort video
ports to connect a monitor, projector or TV. Thanks to dual
monitor support, these can be operated simultaneously. Using
Windows, a video signal can be output simultaneously on two
different video ports (SST mode), and 2 different video signals can
also be output on the 2 graphics ports (MST mode). Using Mac
OS, only SST mode is supported. The remaining interfaces offer
you connectivity to all common connections that a modern
docking station needs to offer. For example a network connection,
additional USB connections (USB-C™, USB-A), an audio output
and two independent card readers. Using the integrated USB-C™
port with PD charging, you can charge your notebook while using
the docking station. The docking station also offers various USB-C
and 3.0 ports for data transfer, connection of peripheral devices
such as mouse and keyboard as well as charging of mobile
devices.
1.1 Features
11 additional interfaces for your notebook for video, data,
power, Ethernet & audio.
1x SD slot & 1 Micro SD slot: Supports SD 3.0 (UHS-I)
Supports 4K Ultra HD (4096 x 2160 30-bit color @60 Hz) on
two monitors or 8K @ 30Hz on one monitor via Thunderbolt 3
Supports 4K @ 30Hz on dual monitors for devices with
DisplayPort 1.4 (HBR3) and 1080p @ 60Hz on dual monitors
for devices with DisplayPort 1.2 (HBR2) via USB-C devices
3
Dual display support with Windows OS - Monitor mirroring
& extension
Single display support with MAC OS - Monitor mirroring
3x USB 3.0 connections - 2x with up to 10 Gbps SuperSpeed
data transfer, one of the ports with BC 1.2 functionality for
charging mobile devices (1.5 A max.), 1x with up to 5 Gbps
SuperSpeed data transfer
1x Thunderbolt connection with Power delivery (PD) and date
transfer up to 40Gbps
Supports Power Delivery 3.0 (60 W max.) to quickly charge
your notebook
1 x Gigabit LAN 10/100/1000 Mbps RJ45 jack
The features of each port are as below:
When working on Thunderbolt3 Host (Mac OS and Windows)
The features of each port are as below:
Thunderbolt 3 Port:
Support input bandwidth up to 40Gbps (data + video);
Support host charging up to 60W (5V, 9V, 15V, 20V @ 3A)
Note: it is required to connect this product with host via a certified
TBT3 cable, a non-TBT3 cable may result in non-function
DP ports x2:
Support 4 lane DP1.4 resolution up to 8K 30Hz
Support dual video output (MST):
resolution up to 8K 30Hz + 4K 30Hz
RJ45:
Support Gigabit Ethernet (10M/100M/1000M)
4
USB-A (on back panel)：
Support USB3.2 Gen 1 up to 5Gbps;
Support max 5V/900mA downstream charging
USB-A 1 (on the side)：
Support USB3.2 Gen 2 up to 10Gbps;
Support max 5V/1.5A downstream charging
USB-A 2 (near Type-C)
Support USB3.2 Gen 2 up to 10Gbps;
Support max 5V/900mA downstream charging
Type-C:
Support USB3.2 Gen 2 up to 10Gbps;
Support max 5V/1.5A downstream charging
Audio 3.5mm combo jack:
Support phone out with digital audio max 96KHz ADC sampling
rate and 24bps
Support Mic in with digital audio max 96KHz ADC sampling rate
and 24bps
Support CTIA&OMTP auto detection
SD3.0 & mSD3.0 port：
Support SD3.0 UHS-I up to 104MBps data rate
Allow 2 card slots to work simultaneously
DC Jack:
Support 120W (20V, 6A) power supply
5
1.2 Package Contents

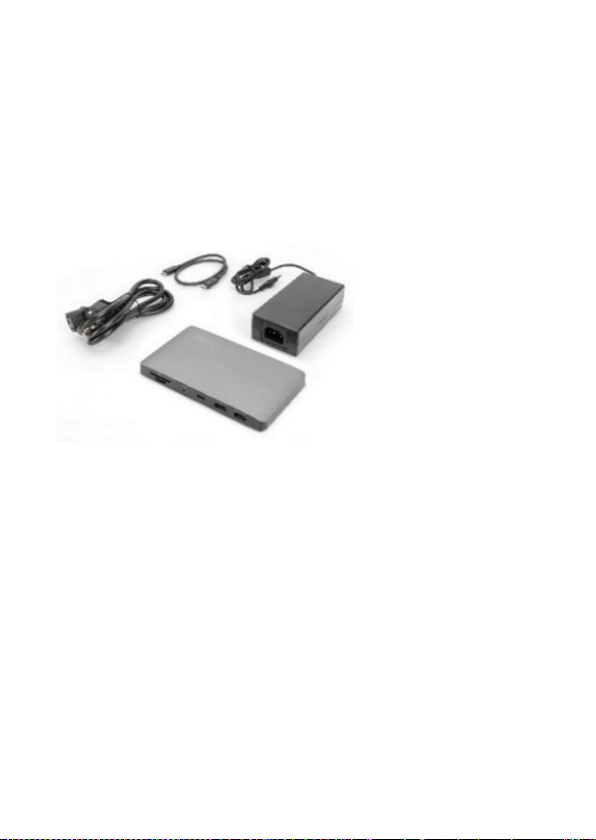

1 x Thunderbolt™ 3
Docking Station 8K, USB Type-C™
1 x Thunderbolt™ 3
Connecting Cable (30 cm)
1 x Power Adapter
1 x QIG
6
1.3 Specifications
Input /
Output
Connector
Input
Thunderbolt™ 3 Receptacle x1
DC Power Jack x1
Output
DisplayPort Receptacle x2
RJ45 Receptacle x1
USB3.2-A 5G Receptacle x1
USB3.2-A 10G Receptacle x2
USB Type-C 10G Receptacle x1
Audio 3.5mm combo jack x1
SD3.0 socket x1
MSD3.0 socket x1
Limited Warranty
1 Year
DisplayPort
Up to 8K/30Hz+4k/30Hz or Dual
4k/60Hz
Size
148x80x17.5mm
Weight
318g
Environmental
Operating Temperature: 0°C to + 45°C
Operating Humidity:
10% to 90 % RH (no condensation)
Storage Temperature: 0°C to +70°C
Storage Humidity:
10% to 90 % RH (no condensation)
Power Supply
DC 120W (20V/6A)
By pass 60w to host
7
1.4 Panel Description
1 Thunderbolt™
3 Receptacle
Connect TBT 3 host or
Multi-Function DisplayPort
(MFDP) Type-C Host
2
DisplayPort
1.4 Receptacle x 2
Connect DP monitors
3 RJ45 Receptacle
Connect Router with Gigabit
Ethernet (10M/100M/1000M)
4
USB-A
5G Receptacle
Connect USB-A devices
5
DC Power Jack
Connect 120W DC Power Adapter
6
SD/Micro SD 3.0
socket
Connect SD/Micro SD cards
7
Audio 3.5mm
combo jack
Connect Headphone or Amplifier
8
Type-C 10G Receptacle
Connect Type-C device
9
USB-A 10G
Receptacle x 2
Connect USB-A devices
8
2Connection Diagram
1
Memory Card
5
Monitor
2
Notebook
6
USB Drive
3
Tablet
7
Power supply
4
Headset
8
Modem/Router
Hereby Assmann Electronic GmbH, declares that the Declaration
of Conformity is part of the shipping content. If the Declaration of
Conformity is missing, you can request it by post under the below
mentioned manufacturer address.
www.assmann.com
Assmann Electronic GmbH
Auf dem Schüffel 3
58513 Lüdenscheid
Germany
