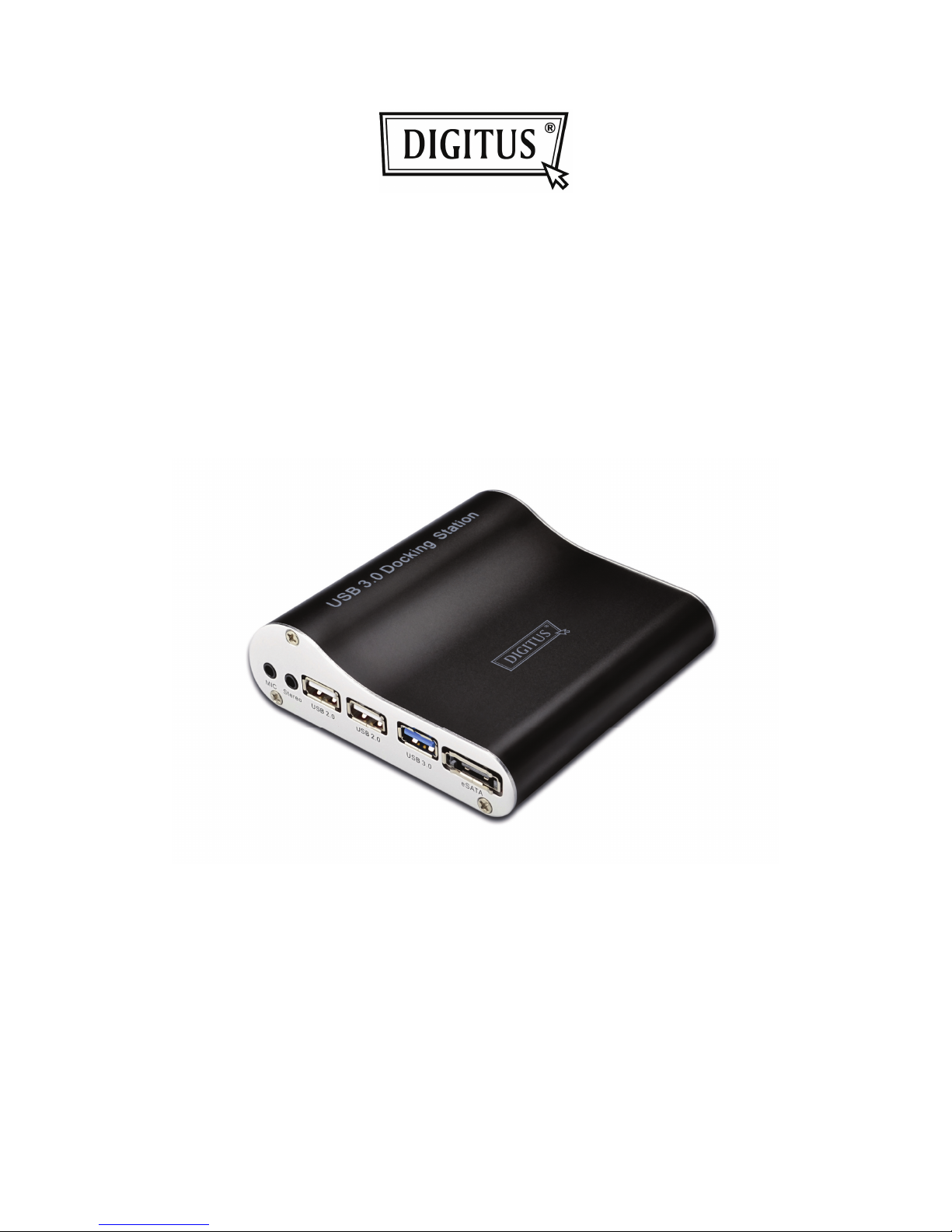

Digitus DA-70590 Manuel utilisateur

USB 3.0

DOCKING STATION

User Manual

DA-70590

Table of Contents

1.0 Introduction and Features ............................................ 1

2.0 Specifications ................................................................ 1

3.0 Package Contents ......................................................... 2

4.0 Panel Descriptions ........................................................ 3

5.0 Driver Installation .......................................................... 4

6.0 Connection..................................................................... 5

DEAR CUSTOMER

Thank you for purchasing this product. For optimum performance and safety,

please read these instructions carefully before connecting, operating or

adjusting this product. Please keep this manual for future reference.

1.0 INTRODUCTION

This USB 3.0 Docking Station uses universal USB technology to pass through

critical signals such as video, LAN and peripheral connectivity. As USB 3.0

speed can be up to 5Gbps, it is ten times of USB 2.0 and greatly improves the

stability of transmission and the efficiency of energy costing. You can plug one

USB 3.0 cable into your laptop instead of separate keyboard / mouse /

speakers / microphone / cables / Hard Disk, etc. This USB 3.0 Docking Station

provides a quick and easy connection to the workspace peripherals which are

used every day.

1.1 FEATURES

Supports Micro USB 3.0 input.

Supports HDMI output, pixel rates up to 165MHz, resolution max up to

1080p, and HDMI supports OS: Windows XP, Vista, and Win 7.

Supports external eSATA Ⅰ(1.5G)/eSATA Ⅱ(3G) HDD, and eSATA

supports OS: Windows 7, Vista, XP, 2003/2000/ME, Mac OS 10.X.

Supports external USB 3.0 Device, and USB 3.0 supports OS: Window

Vista, Window XP, Window Me, Win2000, Windows 7, Mac OS 10.X.

Supports external USB 2.0 Device.

Supports external Microphone and Earphone device.

Supports USB 2.0 to 10/100Mbps Ethernet and supports OS: Windows 7

(32/64bit), Windows Vista (32/64bit), Windows XP (32/64bit), Mac OS X

10.4/10.5/10.6.

2.0 SPECIFICATIONS

Signal Inputs/Output

Input Connector 1x Micro USB Female

Output Connector 1x HDMI Female

1x eSATA Female

1x USB 3.0 Female

2x USB2.0 Female

1x Microphone

1x Earphone

1x RJ45

Operating Frequency

Vertical Frequency Range 50/60Hz

HDMI Video Amplifier

Bandwidth

Max up to 1.65Gbps/165MHz

Resolutions(HDTV)

Interlaced(50&60Hz) 480i,576i,1080i for HDMI

Progressive(50&60Hz) 480p,576p,720p,1080p for HDMI;

Warranty

Limited Warranty 1 Year Parts and Labor

Environmental

Operating Temperature 0 ℃to +70℃

Operating Humidity 10% to 85 % RH (no condensation)

Storage Temperature -10℃to +80℃

Storage Humidity 5% to 90 % RH (no condensation)

Power Requirement

External Power Supply 5V/2A

Power consumption (Max) 5W

Accessories Adapter

User Manual English Version

CD CD X1

Note: Specifications are subject to change without notice

3.0 PACKAGE CONTENTS

Before attempting to use this unit, please check the packaging and make sure

the following items are contained in the shipping carton:

Main unit x 1

5V/DC Power Supply x 1

Micro USB 3.0 Cable x 1

User's Manual x 1

CD driver x 1

4.0 PANEL DESCRIPTIONS

1. Micro USB 3.0

Connect this port to the USB 3.0 port of computer using one provided Micro

USB 3.0 cable.

2. HDMI Out

Connect this port to HDTV using one HDMI cable.

3. Out LED

Indicate the status of the HDMI output.

4. Ethernet

Connect this port to Ethernet router or Hub

5. Power LED

Indicate the status of the Power

6. DC/5V

Connect this jack to 5V/2A power adapter

7. MIC

Connect this port to Microphone device.

8. Stereo

Connect this port to earphone device.

9. USB 2.0

Connect this port to USB 2.0 device, such as Keyboard, mouse, U disc.

10.USB 3.0

Connect this port to USB 3.0 device, such as USB 3.0 HDD.

11.eSATA

Connect this port to eSATA device, such as eSATAⅠ(1.5G) / eSATAⅡ(3G)

HDD

5.0 DRIVER INSTALLTION

Put the CD driver in you CD-ROM devices and follow the procedure to finish

the installation.

1) SMSC software installation

Open “SMSC software” folder, run “SMSC Setup” to finish software

installation. You will see a “ViewSpan Configuration” icon at the right and

bottom edge of the desk.

Click the icon, a dialog box is available where you can set HDMI resolution,

Mirror mode, Extend mode for HDMI port.

2) Ethernet driver installation.

Open “Ethernet driver” folder, run “Setup” to finish Windows or Mac OS

driver installation.

For the latest driver, you can open the following link to download:

http://www.asix.com.tw/download.php?sub=driverdetail&PItemID=105

Attention: Insert / Extract cable gently.

6.0 CONNECTION

1) Plug the power adapter into the DC/5V jack of the Docking station and then

connect the AC side of the power adapter into the wall outlet.

2) Connect Micro USB 3.0 female of the Docking station to USB 3.0 port of

computer using one provided Micro USB 3.0 cable.

3) Connect HDMI port to HDTV using one HDMI cable.

4) Connect Ethernet port to Ethernet router or hub.

5) Connect MIC,Stereo, USB 2.0 / 3.0, eSATA ports to computer peripheral

devices.

6.1 CONNECT DIAGRAM
