Digitus DA-71545 Manuel utilisateur

DUAL M.2 NVMe

SSD DOCKING STATION WITH

OFFLINE CLONE FUNCTION, USB-C™

Quick Installation Guide

DA-71545 Rev. 1

Description

The Dual NVMe Docking Station from DIGITUS® can accommodate M.2

SSDs of up to 4 TB per box. Manage a total of 2 SSDs in various formats with

a total storage of up to 8 TB. The integrated offline clone function even

makes it possible to duplicate storage media by pressing a button without a

connected end device. The copying progress is displayed by LED indicators

on the device. Supports M-Key and B+M Key NVMe SSDs in the common

formats 2242, 2260, 2280 & 22110. Easily extend the storage capacity of

numerous USB-C™ devices such as PCs, notebooks, TVs, gaming consoles or

routers.

Feature Benefits

•2 x M.2 Boxes for NVMe SSDs, each up to 4 TB

•Offline clone function by pressing a button (possible without PC)

•High data transfer rate of up to 10 Gbps

•LED indicators show copying progress

•Can be used as a storage medium for up to 8 TB in total

•Supported formats: 2242, 2260, 2280 & 22110 / M-Key, B & M-Key

SSDs (NVMe)

•USB-C™ connection: USB 3.2 Gen2

•Ideal storage extension for notebooks, PCs, gaming consoles, TVs, NAS

or routers (USB-C™)

•Plug and Play, no driver installation required

Technical Features

Capacity

Max. 4 TB per Box

Supported formats

2242, 2260, 2280 & 22110 / M-Key,

B & M-Key SSDs (NVMe)

USB-C™ connections

1 x Data USB-C™ 3.2 Gen2, 1 x

Power supply USB-C™

Maximum transfer rate USB-C™

10 Gbps

Modes

Clone and dual mode

Applications

PC, notebook, TV, router or gaming

console (with USB-C™ connection)

Storage formats

NTFS, FAT, FAT32

Input voltage USB-A power adapter

100 - 240 V AC / 50/60 Hz, 0.6 A -

Euro plug: Type A (CEE 7/16)

Power supply via USB-A

5 V / 3 A

Systems

Windows 10/8/8.1/7/XP, macOS

10.0 or higher

Dimensions (W x D x H)

7.9 x 7.7 x 1.8 cm

Weight

152 g

Material

ABS

Color

Black

Specials

•Supports Hot Swap (Plug in and

eject during operation)

•Offline clone function by

pressing a button (possible

without PC),

•LED indicators for copying

progress (25%, 50%, 75%, 100%)

Product Details

1) Clone button

2) M.2 NVMe SSD2

3) ON/OFF button

4) Power type C

5) Data type C

6) M.2 NVMe SSD1

7) Clone Indicator light

Basic Functions

•Insert NVMe SSD with vertical direction, connect USB-C cable

with data type C port and PC USB port

•Plug power adapter with power type C (workable with one SSD

or two SSD)

•View “Computer-Manage-Disk Management” to find

the new disk

•Right click the “Disk 1”, then click “New Simple Volume”

•According to the instruction, choose the size of partition,

then click “Next” to finish

•Then you can find the new hard disk in the “Computer”, it is ready to

use

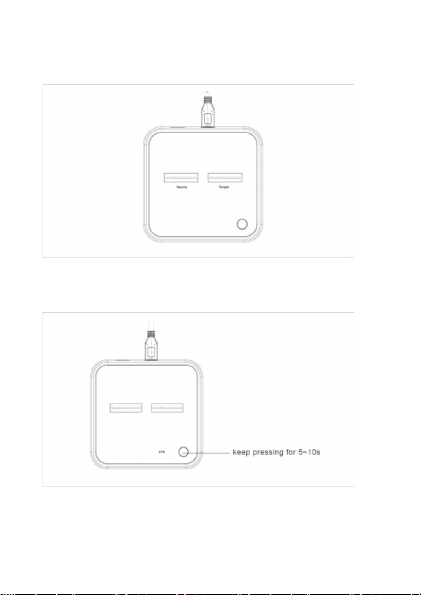

•Connect two NVMe SSD

(Source SSD capacity must be = < Target SSD)

•Plug power adapter with power type C

•Pressing clone button for several seconds, till clone LED light

25% flash

•Clone LED light flash from 25%, 50%, 75% and 100%

•It means that clone completed when 100% illuminate and all LEDs

are off finally (Tip: when connect with PC again, make sure

disconnect power type C first and follow operation as PC mode
