Universal Docking Station, USB Type C
Manual
DA-70861
1. INTRODUCTION
The fully functional universal docking station, USB type C from Digitus offers you
everything to create a fully equipped workspace. It offers three video interfaces
(HDMI, MiniDP and VGA), where two monitors can be operated at the same time.
Thus, the best possible supported resolution is achieved: Brilliant UHD (4K2K/30Hz).
In addition, it offers three USB 3.0 ports, where one port (5V/1.5A) also provides a
charging function for mobile devices. The USB interfaces are supplemented by a
USB-C with power delivery (PD) functionality. Two card readers are also built in
(MicroSD, SDHC, SDXC/MMC). Your notebook can also be connected to your network
via cable over the Gigabit Ethernet port. We top everything off with a stereo audio
port. Extend your notebook to 11 additional ports using only one USB-C port - with
the multifunctional Universal Docking Station USB Type C.
2
This Type-C docking offers integrated solution for power, data and video. It allows
you to connect Type-C host PC to VGA, HDMI, Mini DisplayPort displays for video
transmission, to USB-A devices for data transmission. It also helps the host PC to get
access to Ethernet through RJ45 port. Besides, the SD/MMC and Micro SD card slot
helps to read the information of the external memory in the host PC and the USB-C
female port can charge for the host computer.
2. FEATURES
Support USB-C input
Support HDMI Female, Mini DisplayPort Female, VGA Female, USB-C Female,
USB 3.0 Female, Gigabit Ethernet, Stereo, SD Card, Micro DS Card, USB-C
interface
Support HDMI resolution up to 4kx2k@30Hz
Support Mini DisplayPort resolution up to 4kx2k@30Hz
Support VGA resolution up to 1920x1200@60Hz
The total output of the 3 USB-A is 10W(5V@2A), 1 port supports BC 1.2, with
Support 10/100/1000Mbps bandwidth
Stereo port supports both microphone and headphone
USB-C female charging port for USB-C notebooks/ultrabooks
Multiple USB-C interfaces support plug and play, hot swap
Support SD/SDHC/SDXC
Support Secure Digital v3.0 UHS-I (Reading speed max 70Mbps, Writing speed
max 90Mbps)
Support MultiMediaCard (MMC) specification
Support Micro SD/SDHC/SDXC (up to 128 GB)
Supports: Mac OS 10.10.2 and above, Google Chrome, Windows: Windows 7 to
Windows 10,
3
3. PACKAGE CONTENT
Before attempting to use this unit, please check the packaging and make sure the
following items are contained in the shipping carton:
1 x Main unit: Universal Docking Station, USB Type C
1 x User Manual
4. SPECIFICATIONS
Input/Output Connector
Input USB-C Male x1
Output HDMI Female x1
Mini DP Female x1
VGA Female x1
USB-C Female x1
USB 3.0 Female x3
RJ45 X1
Stereo x1
SD card slot x1
Micro SD card slot x1
USB-C Female x1 for charging
Environmental
Operating Temperature 0°C to +45°C
Operating Humidity 10% to 90 % RH (no condensation)
Storage Temperature -10°C to +70°C
Storage Humidity 10% to 90 % RH (no condensation)
Power Supply
USB-C PD Charging Port 60W (20V/3A)
USB-A Port X3 Total output: 10W (5V@2A)
Other two ports share max 5W (5V@1A)
Regulatory Approvals
Certifications FCC, CE
Accessory Adapter
User Manual 10 languages
Chipset VL100: PD controller
4
5. OPERATION
1) Connect the USB-C male port of this product to your USB-C notebook/ultrabook
2) Connect the three USB3.0 ports to three USB devices
3) Connect the Mini DisplayPort port of the Docking to display with Mini DisplayPort
port with one Mini DisplayPort cable
4) Connect the HDMI port to HD display with one HDMI Cable
5) Connect the VGA port to HD display with one VGA Cable
6) Connect Gigabit Ethernet port of this product to Ethernet Router with an
Ethernet cable
7) Connect the Stereo port to earphone
8) Insert Micro SD and SD/MMC cards into the card reader ports
9) Connect the Type C charging port, it can charge your notebook/ultrabook and
support this adapter to work simultaneously
Note:
1. When connecting the USB-C male port of the adapter to Chromebook, the mouse to be
connected to the USB 3.0 port will not work immediately, it will have seconds’ delay.
This problem also occurs in other similar type-c adapter (including Apple original 3 in
1 Adapter) when connected to Chromebook.
2. When plugging in and out the PD Adapter, the connected USB devices will get
disconnected flashily and then reconnect in a few seconds, so to prevent possible data
loss or corruption, avoid disconnecting the PD Adapter from AC power while
transferring data
3. Three video ports can’t work simultaneously, the priority is HDMI=Mini DisplayPort >
VGA, when HDMI and Mini DisplayPort are connected at the same time, it is advised to
use one video port at one time to guarantee the normal work of this product
5

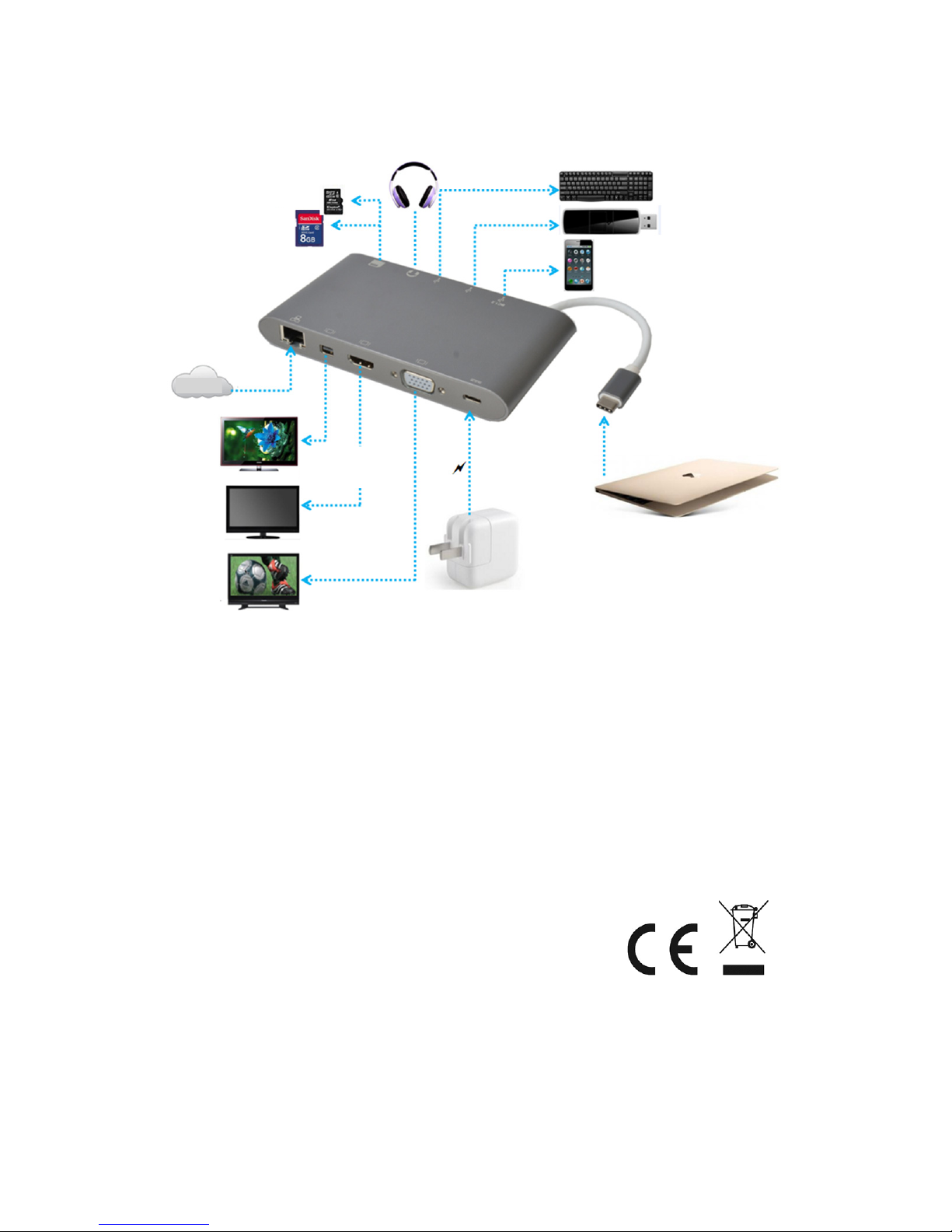

6. PORT DESCRIPTION
Hereby ASSMANN Electronic GmbH, declares that this device is in compliance with the requirements
of Directive 2014/30/EU and the Directive 2011/65/EU for RoHS compliance. The complete
declaration of conformity can be requested by post under the below mentioned manufacturer
address.
Warning:
This device is a class B product. This equipment may cause some radio interference in living
environment. In this case, the user can be requested to undertake appropriate measures to prevent
interference.
www.assmann.com
Assmann Electronic GmbH
Auf dem Schüffel 3
58513 Lüdenscheid
Germany
Memory Card
Headphone Keyboard
U Disk
Mobile phone
Network
Mini DisplayPort
Display
HDMI Display
VGA Display Power Adapter
Macbook
