DIGITAL Laser Printer LN15

User Manual

DIGITAL Laser Printer LN15 User Manual 1-1

CHAPTER

Getting Acquainted

The illustrations on the following pages identify the main parts of the

printer and two routes of paper feeding.

These parts are referred to

throughout the manual, so take some time to become familiar with

them.

DIGITAL Laser Printer LN15 User Manual 1-2

Figure 1–1 Front and right side view

Figure 1–2 Rear and left side view

Control panel

Slide cover

(Font/emulation card slot

and RAM card slots inside)

Multi-function feeder

cable

Paper tray

Front cover

(opened)

Upper door

Top cover

(Paper stacker)

Stacker-full sensor

Multi-function feeder

(Optional)

Paper guides

for manual feeding

Paper guides

for stack feeding

Rear stacker

Power switch

Power cord

connector

Centronics parallel

interface connector

Interface board

slot cover

DIGITAL Laser Printer LN15 User Manual 1-3

From optional paper tray

Figure 1–3 Interior view

The path from the paper tray to the top cover is for ordinary paper.

The straight path from the manual feed slot or optional multi-

function feeder to the rear stacker is for transparencies and envelopes.

Figure 1–4 Paper paths

Toner cartridge

Print density dial

Print unit

Paper tray

Top cover

(main stacker)

Rear

stacker

Manual

feed

slot

DIGITAL Laser Printer LN15 User Manual 1-4

Getting Ready

below

+10

°C

above

+35

°C

This section will help you:

• Choose a suitable location for the printer

• Identify the parts of the printer as you unpack it

Picking a Suitable Location

The first step is to pick a suitable location for your printer. For peak

performance and usability, follow these guidelines:

• Place the printer on a

sturdy, level surface.

• Choose a room that is well

ventilated and free of

excessive dust. Leave space

on either side of the printer

for proper ventilation.

• To avoid exposing the

printer to extremes of

temperature, do not put the

printer in direct sunlight or

near a heater. Ideal room

temperature is from 10°C

to 35°C (50°F to 95°F).

Humidity should be

between 20% and 80% RH

(no condensation).

• Use a grounded AC power

outlet. Do not use a three-

pronged adapter in an

ungrounded outlet.

DIGITAL Laser Printer LN15 User Manual 1-5

• Use only the power cord

furnished with the printer.

Do not use an extension

cord.

• Do not touch any

connector contacts and

corona wires to avoid

possible electrostatic

damage to the printer.

• Do not use a circuit shared

with equipment that causes

electrical noise, such as

motors.

• Do not use a circuit shared

with equipment that uses a

lot of power, such as a

copier or a coffee maker.

Unpacking and Checking Your Printer

As you unpack the printer, check each item carefully for damage. If

you find damage, notify your dealer. Check also that you have

received all the items.

This printer comes with everything you need except an interface

cable. If you do not yet have a cable, you must purchase one before

you can connect the printer to your computer.

Important:

Save the original carton and packing materials in case you need to

store or transport your printer.

✍

DIGITAL Laser Printer LN15 User Manual 1-6

• An interface cable is not a standard accessory. Please purchase

an appropriate cable according to the interface you intend to

use.

• The power cord may differ slightly from this figure depending

on the country where you purchased the printer.

Print unit

(placed in printer)

Printer

Toner

cartridge

Paper size

label

Cleaning

brush

Cleaner and

cleaner pad

Power

cord

Figure 1-5 Printer inventory

DIGITAL Laser Printer LN15 User Manual 1-7

This section describes how to assemble the printer and connect the

power cord after choosing a suitable location for the printer and

checking that you received all the parts.

Preparing the Print Unit and Installing the Toner Cartridge

This printer is shipped with the print unit mounted and protective

materials attached. Be sure to remove the two protective materials

from the print unit. This operation is possible with the print unit

mounted. First prepare and install the following two components:

• Print unit (photoconductor drum, developing unit, etc.)

• Toner cartridge

The toner cartridge first installed after you purchase the printer will

last about 2,500 printed pages under the condition of 5% coverage

on A4 paper. The succeeding toner cartridges last about 5,000

printed pages each.

Notice:

Do not touch any connector contacts and corona wires to avoid

possible electrostatic damage to the printer.

Be careful with the print unit’s drum (the green surface). The drum

is easily damaged by contamination or by exposure to light for more

than three minutes. Follow these guidelines:

• Never touch or scratch the drum surface.

• When the print unit is not in the printer, store it in a dark place or

cover it with a clean sheet of paper.

• When the print unit is in the printer, keep the printer top cover

closed. If you must work inside the printer for more than three

minutes, remove the print unit with the toner cartridge mounted

and store it in a dark place.

Setting Up

☞

DIGITAL Laser Printer LN15 User Manual 1-8

Projecting guide

To prepare the print unit and install the toner cartridge, follow these

steps:

1. Open the upper door. Lift

the milled portions at the

front left and right of the

upper door to open it.

2. Remove the protective

materials from the print unit.

Remove protective sheet q.

Pull clear tape wuntil its blue

end is visible and remove it.

Remove two restraint

cushions e.

3. Remove the toner cartridge

from its bag.

4. Shake the toner cartridge by

moving it back and forth in a

horizontal motion several

times.

5. Remove the plastic seal from

the toner cartridge. Gently

pull off the seal being careful

not to spill toner. Handle the

seal carefully to avoid staining

your hands or clothes.

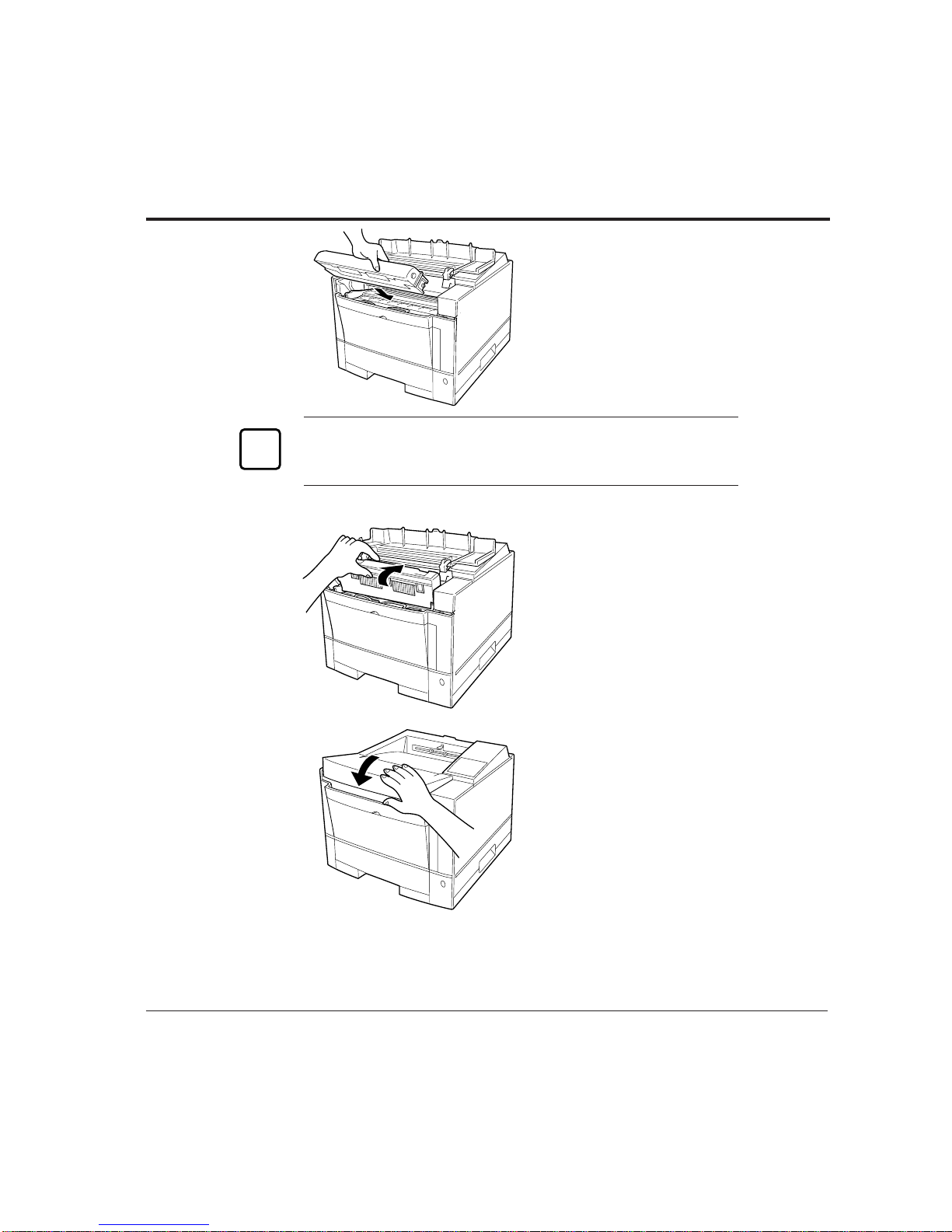

6. Install toner cartridge. Slide

DIGITAL Laser Printer LN15 User Manual 1-9

both projecting guides of the

toner cartridge into the

grooves of the print unit.

Notice:

If you have installed the toner cartridge, do not remove it from the print

unit until it is empty. This could cause toner to spill into the printer.

7. Lock the toner cartridge.

Push the toner cartridge

forward until it clicks into

place. (The cartridge stands

nearly upright when installed

correctly.)

8. Close the printer’s upper

door. Press down firmly on

the front portion of the upper

door and make sure the upper

door is locked completely.

☞
