Printer Model: K10222 (i70)

Preface

Shipping Materials

Thank you for purchasing a Canon Bubble Jet Printer.

Check that all the following items are in the box. If anything is missing or is damaged, contact your Canon

Authorized Dealer or Sales Representative.



Printer



Setup Software & User’s Guide CD-ROM



Quick Start Guide



Print Head



BCI-15 Black and BCI-15 Color Ink Tanks



Universal AC Adapter



Power Cord

* A USB cable should be purchased separately according to your computer. For details on cable

specifications, refer to page 2.

Introduction

This Quick Start Guide uses the following symbols to indicate important information. Always observe the

instructions indicated by these symbols.

Instructions that, if ignored, could result in death or serious personal injury caused by incorrect

operation of the equipment. These must be observed for safe operation.

Instructions that, if ignored, could result in personal injury or material damage caused by incorrect

operation of the equipment. These must be observed for safe operation.

Also read the Safety Precautions in the User’s Guide. Observe the warnings and cautions to avoid

personal injury or damage to the printer.

Trademark Notices

• Canon

is a registered trademark of Canon Inc.

•BJ

™

is a trademark of Canon Inc.

• Microsoft

and Windows

are registered trademarks of Microsoft Corporation in the U.S. and other

countries.

• Apple, Mac, Macintosh are trademarks of Apple Computer, Inc., registered in the U.S. and other

countries.

• All other trademarks and registered trademarks appearing in this Quick Start Guide are the property of

their respective owners.

without the express written permission.

Setting Up

1 Preparing the Printer

Place the printer on a flat surface.

Remove the tape from the printer.

The tape position is subject to change.

2 Connecting the Printer to the Computer

• Never attempt to plug the power cord into the power outlet or unplug the power cord when your

hands are wet.

• Never damage, modify, stretch, or excessibly bend or twist the power cord. Do not place heavy

objects on the power cord.

• Never use any power supply other than the standard power supply available in the country of

purchase. Using the incorrect voltage and frequency could cause a fire or electric shock.

• Always push the plug all the way into the power outlet.

• If using Windows 95, you can print only via infrared transmission.

• If your computer has an infrared transmission feature, you can print data without connecting a USB

cable. After connecting the universal AC adapter, proceed to “Installing the Print Head” on page 3.

• If your computer has an earth connection, ensure that this is attached.

• If you do not intend to use the printer for a long period of time, unplug the power cord from the

power outlet after turning off the printer.

USB cable Universal AC adapter Power cord

Recommended: Canon or

other computer manufacturer

cable, up to 5 meters in length

The power cord shape defers

with countries.

Follow the steps below to install the printer driver

correctly.

Ensure the printer and the computer are

switched off.

Connect the cable.

Plug the power cord into the Universal

AC adapter.

Plug the DC plug into the printer.

Plug the power cord into the power

outlet.

3 Installing the Print Head





Installing the Print Head

Open the paper rest.

Turn on the printer. Do NOT turn on the

computer yet.

The POWER lamp flashes and the printer begins to

operate. Wait until the POWER lamp remains fully lit.

Open the print head cover.

The print head holder moves to the center.

If the Add New Hardware Wizard or Found New Hardware Wizard screen appears when carrying out

the following operations, click Cancel and turn off the computer. For details, refer to page 7.

print head cover

print head holder

Press the lock button, then raise the

lock lever.

Do not touch internal parts other than the lock lever.

Remove the protective cap from the

print head.

Place the print head in the holder

aligning the mark with the mark.

• Do not touch the print

head nozzles.

• Do not attempt to

reattach the protective

cap once it has been

removed.

lock button

print head

nozzles

print head

print head holder

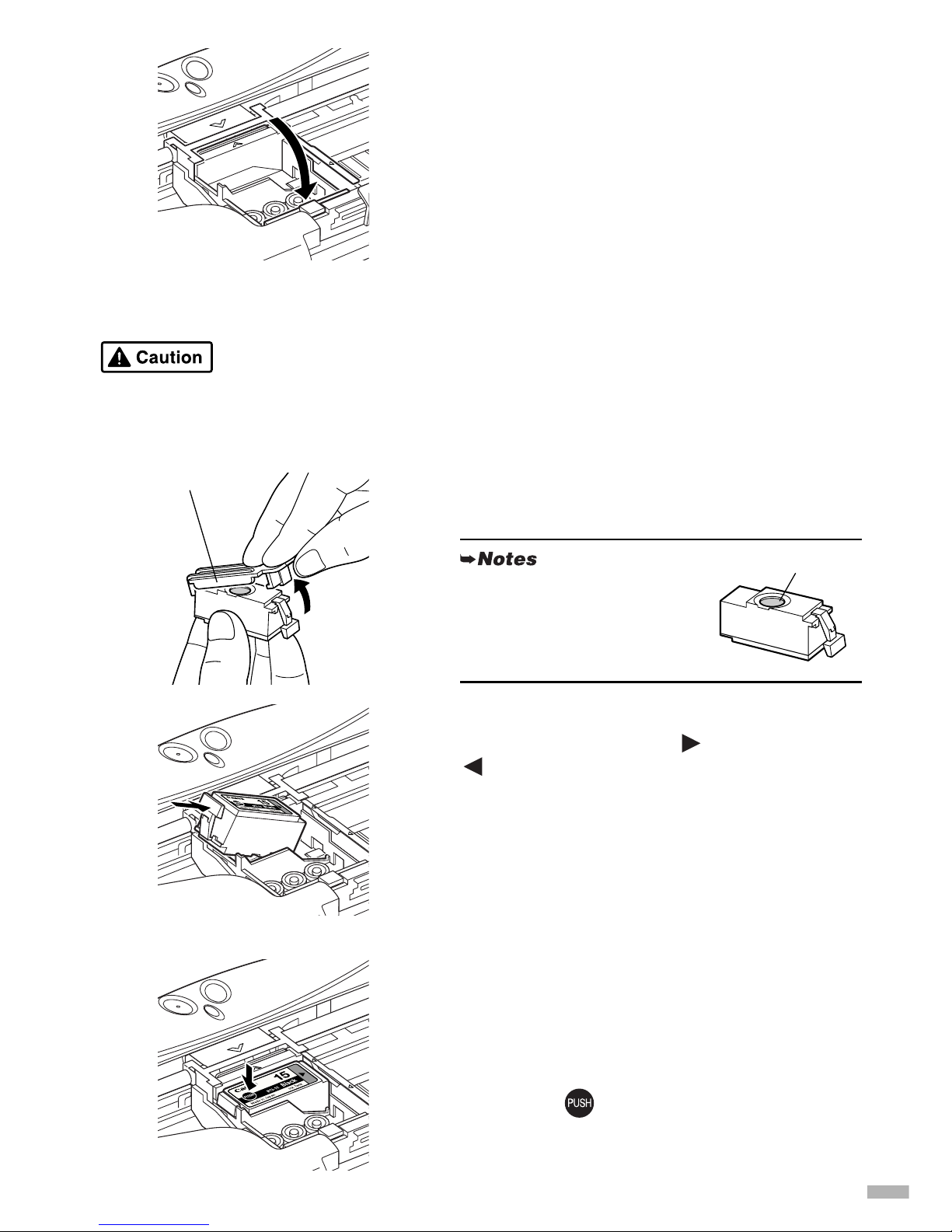

Lock the print head into place by

lowering the lever.

Press down the lock button until it clicks.

Do not touch the lock lever once the print head has been

installed.





Installing the Ink Tanks

• For safety reasons, store ink tanks out of the reach of small children.

• Do not drop or shake ink tanks as this may cause the ink to leak out and stain your clothes and hands.

Take out the black ink tank.

Hold the ink tank as shown in the

diagram and remove the protective cap.

Insert the black ink tank slant into the

back slot aligning the mark with the

mark.

Press the until it clicks into place.

• Do not touch the ink port.

• Do not attempt to reattach the

protective cap once it has

been removed.

protective cap

ink port

Use the same procedure to install the

color ink tank in the front slot.

Close the print head cover.

4 Loading Paper





Loading A4 (Letter) Size Plain Paper

Open the paper rest and the paper

output slot cover as shown.

Ensure the paper thickness lever to the

right position.

To avoid paper jams, fan the stack to

remove static cling, then align the

edges of the stack by tapping it on a flat

surface.

Load the paper, aligning it with the right

side of the sheet feeder.

You can load up to 30 sheets of plain paper. Do not load

exceeding the load limit mark.

Slide the paper guide against the left

side of the stack of paper.

Wait until the preparatory operation is complete: it

takes about 2 minutes.

Set the paper thickness lever to the right when using

plain paper, to the left when using thick paper. Refer

to the User’s Guide for infomation on loading

envelopes and other media.

You now need to install the printer driver:

Windows: Go to page 7

Macintosh: Go to page 9

print side load limit mark

5 Installing the Printer Driver





Installing the Printer Driver – Windows

Ensure the printer and computer are

switched off.

Turn on the computer and start

Windows. If any applications

automatically run, quit them.

Disable any virus detection programs.

Do NOT turn the printer on at this stage.

• When performing infrared transmission, requirements for using the computer must be satisfied.

Refer to “Printing Data through Infrared Transmission” on page 20 before installing the printer driver.

• Do not disconnect the cable or remove the CD-ROM during the installation. The driver cannot be

correctly installed.

• The screens below refer to Windows XP installation. Screen may differ depending on the operating

system you are using.

• When installing the printer driver in Windows XP or Windows 2000, log on to the system as a

member of the Administrators group.

• The Setup Software & User’s Guide CD-ROM contains the application software to import, edit,

and print image data. If you want to install the application software, click Install on step 7.

Internet Explorer 4.0 or later must be installed for Easy-PhotoPrint.

Internet Explorer 5.5 or later must be installed for Easy-WebPrint.

If the following screen appears automatically, click

Cancel

and follow steps 1 to 8 to install the printer

driver.

Special Notes for Windows 98 or Windows Me USB Users

Click

Cancel

to quit the screen and turn off the printer. Next, remove and replace the USB cable

connected to your computer.

When printing via IrDA, align the infrared port of

the computer to that of the printer.

OFF

Place the Setup Software & User’s

Guide CD-ROM in the CD-ROM drive.

Follow the instructions displayed on

screen. When the screen shown on the

left is displayed, click Install.

When the screen shown on the left

appears, turn the printer on.

If the printer is recognized, the printer driver will be

automatically installed.

Click OK.

Before you use the printer, you must carry out print head

alignment on page 11.

• If the CD-ROM does not run automatically, click

Start and select My Computer, then double-click

the CD-ROM icon. For non-XP Windows, double-

click My Computer in the Windows screen, then

double-click the CD-ROM icon.

• If the language selection screen appears, select a

language, then click the

button.

• If the USB connection is not recognized, refer to

“Notes on Handling the USB Interface (for

Windows Users)” on page 23.

• If the computer is not recognized when you use

infrared transmission, carry out the following

operations:

1. Click Manual selection.

2. Select the port from Selected Port:

· Windows XP/Windows 2000o[IR]

· Windows Me/Windows 98/Windows 95o[LPT3]

then click Next.

* Some computers may allocate port number for

infrared ports differently.

Autres manuels pour i70 Series

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Canon Imprimante

Canon

Canon imageRUNNER 3245 Series Manuel utilisateur

Canon

Canon Folder Professional 6011 Manuel utilisateur

Canon

Canon Satera LBP8610 Manuel utilisateur

Canon

Canon imageCLASS MF4580dn Guide de sécurité

Canon

Canon imageRunner Advance 715iF III Manuel utilisateur

Canon

Canon iPF755 - imagePROGRAF Color Inkjet Printer Manuel utilisateur

Canon

Canon i80 Series Manuel utilisateur

Canon

Canon PIXMA MX922 Manuel utilisateur

Canon

Canon ImageCLASS LBP720 Series Manuel utilisateur

Canon

Canon LASER SHOT LBP 6000 Manuel utilisateur

Canon

Canon Color Bubble Jet BJC-2000 Series Manuel utilisateur

Canon

Canon imagePROGRAF SD-21 Manuel utilisateur

Canon

Canon iP5000 - PIXMA Color Inkjet Printer Manuel utilisateur

Canon

Canon PIXMA MG5720 Mode d’emploi

Canon

Canon imagePROGRAF IPF9000S Manuel utilisateur

Canon

Canon imagePROGRAF iPF8300S Guide de l'utilisateur

Canon

Canon PIXMA TS3322 Manuel utilisateur

Canon

Canon Laser Class 810 Manuel utilisateur

Canon

Canon imagePROGRAF iPF771 Manuel utilisateur

Canon

Canon MP280 Guide de configuration

Canon

Canon LASER SHOT LBP3500 Manuel utilisateur

Canon

Canon imageRUNNER 2206 Manuel utilisateur

Canon

Canon PIXMA mini260 Manuel utilisateur

Canon

Canon i560 Series Manuel

Manuels Imprimante populaires d'autres marques

Lexmark

Lexmark 1400 Series Manuel

Evolis

Evolis Elypso Manuel utilisateur

Kyocera

Kyocera FS-9530DN Manuel utilisateur

Samsung

Samsung BIXOLON SRP-350plusF Manuel utilisateur

Dell

Dell Color Laser Printer 2130cn Manuel utilisateur

Tektronix

Tektronix Phaser 840 Manuel utilisateur

Epson

Epson ET-7750 Mode d'emploi

Eltron

Eltron P210 Guide Manuel utilisateur

Ricoh

Ricoh MD-P1 Manuel utilisateur

Epson

Epson SC-F7100 series Manuel utilisateur

Epson

Epson Stylus C40UX Manuel utilisateur

IRA3D

IRA3D POETRY4 Manuel utilisateur

Ricoh

Ricoh Aficio AP400 Manuel utilisateur

BIXOLON

BIXOLON SRP-352plusV Manuel utilisateur

Epson

Epson Stylus Photo PX700W Instructions de montage

Ricoh

Ricoh SP204SF Manuel utilisateur

Star Micronics

Star Micronics futurePRNT TSP100 Manuel utilisateur

Epson

Epson TM-TM88V-i Manuel d'utilisation et d'entretien

Canon i70 Series Manuel utilisateur

Manuels Imprimante populaires d'autres marques
