D-Link DVG-1120M Manuel utilisateur

VoIP Residential Gateway

Manual

(10/08/04)

Building Networks for People

D-Link

DVG-1120M

Contents

PackageContents ................................................................................3

Introduction............................................................................................4

Connections..........................................................................................5

Features andBenefits ...........................................................................6

LEDs ....................................................................................................7

Web-basedManagement......................................................................8

TechnicalSpecifications ......................................................................29

TechnicalSupport................................................................................32

Warranty..............................................................................................33

Registration ........................................................................................36

Contents of Package:

D-Link DVG-1120M

VoIPResidentialGateway

A/C PowerAdapter

CAT5-RJ-45 Ethernet Cable (Blue)

RJ-11 Telephone Cord (Gray)

QuickInstallationGuide

Package Contents



Note:Using a power supply with a different voltage ratingthantheoneincludedwith

theDVG-1120M will cause damage and void the warranty for this product.

If any of the above items are missing, please contact your reseller.

System Requirements For Configuration:



At least 128MB of memory and a 500MHz processor

Computer with Windows, Macintosh, or Linux-based operating

system with an installed Ethernet adapter

Internet Explorer or Netscape Navigator version 4.0 or above,

with JavaScript enabled



Introduction

TheD-LinkDVG-1120MVoIPStationGatewaylinkstraditionaltelephonenetworks

to IP networks with conventional telephone devices such as analog phones or

fax machines.

The DVG-1120M includes two Foreign Exchange Subscriber (FXS) interfaces

with normal RJ-11 telephone connectors that provide voice/fax communication

over the IP network.

Two Ethernet ports are also provided. One Ethernet port is for a DSL/Cable

Modem or other WAN device, and the other is for connection to create a home

or small office LAN network.

The built-in DHCP server and Network Address Translation (NAT) function

automatically assigns IP addresses for LAN users, allowing multiple users to

share a single Internet connection. You can configure and monitor the DVG-

1120M via the Webbrowser.Telnet andSNMPmanagement is also supported.

Byroutingcalls overtheInternet or anyIPnetwork, the DVG-1120M canreduce

or eliminate long distance or inter-office phone charges. Corporations can also

enjoy the benefits of network consolidation and reduction of leased lines by

relying on the Internet service providers to deliver toll-quality voice

communications over the IP networks.

Connections

AC Power Connector Use the

includedpoweradapter.Ifyouuse

a power adapter other than the

oneincludedwith the productyou

will damage the device and void

the warranty on this product.

PSTN/VoIP

Switch to

select PSTN

or VoIP mode

When the

switch is in

the down

position,

Phone1/2 will

bein VoIP

Mode.

When the

switch is in

the up

position,

Phone1/2 will

be configured

to PSTN

Mode.

Reset Switch Used to return the device

to its original configuration. This is the

same as performing a factory reset.

Diagnostic Port An RJ-14

port used to configure the

device. (User needs a RJ-

14 to RS-232 converter).

Plug one end of a straight-

through wired RJ-14 cable

to the device and the other

end to a serial port of a PC

running a terminal

emulation program (such

as Microsoft HyperTerminal)

or a VT-100 terminal.

Phone 1

Normal RJ-11 phone

jack used to connect

to a telephone or fax

machine. Plug your

normal telephone or

fax machine directly

into this jack.

Ethernet WAN

A10Mbps

Ethernet port

fitted with an

RJ-45

connector used

to connect the

VoIPgateway

to a WAN

device(e.g.

Cable/ADSL

Modem). This

port accepts

Category 3, 4

or 5 UTP

cabling with an

RJ-45

connector.

Ethernet LAN

A10/100Mbps

dual-speed

Ethernet port

fitted with an

RJ-45

connector used

to connect the

VoIPgateway to

aLANdevice

(hub, switch,

PC, etc.). This

port accepts

Category 5 or

betterUTP

cabling with an

RJ-45

connector.

Warning! Using a different power adapter than the

oneincludedwithyourpurchase will damage the

DVG-1120Mandvoid thewarranty.

Oneanalog FXSinterfaceport acceptingan RJ-11 connectorto facilitate

a VoIP connection

One 10Mbps WAN port for connecting to a DSL/Cable Modem or other

WAN devices

One 10/100Mbps LAN port for connecting to a local network

IP address assignment using DHCP (Dynamic Host Configuration

Protocol) or static configuration

IP Routing support (RIP1, RIP2 and Static Routing)

Remote software download/update

Supports IP sharing to allow multiple users to access the Internet via a

single IP address

Built-in PPPoE function to support dial-up connection for broadband

technology

Supports Caller ID

Supports QoS to guarantee voice quality

Automatic Call Redirection (ACR) function support

VoIP line automatic selection (e.g. 110, 119)

VoIProuting tablesupport



Features & Benefits



LEDS

Ethernet - This LED displays the

connection speed, link status, and

activity on the 10/100 dual-speed

Ethernet port that is used to connect

toyourLAN.

10/100M - This indicator remains

unlit when there is no connection,

or the port is operating at 10Mbps

throughaconnectiontoa10BASE-

T device. It is lit when the port is

operating at 100Mbps through a

connection to a dual-speed or

100BASE-TX Fast Ethernet

device.

Link/Act - When a good link to a

powered-up but idle device is

detected on a port, this indicator

shines steadily. When packets are

received from the device, the

indicator blinks off and on.

WAN This LED displays the

link status and activity on the

10MEthernetportthatisused

to connect to your WAN

device (usually a Cable or

ADSLModem).When agood

link to a powered-up but idle

device is detected on a port,

the WAN indicator shines

steadily. When packets are

received from the device, the

indicator blinks off and on.

Phone 1 - ThisLEDdisplays the

activity on the RJ-11 port that is

used to connect to your normal

telephone/faxmachineline.

Power This LED is lit when

the device is receiving

power; otherwise, it is unlit.

Status/Alarm

This LED will remain green when the

CPE is either performing a self-test or

booting up. The LED will flash green

slowly when the system is ready for a

connection with the CallAgent. It will

remain red when the self-test or

booting up is failed. It will flash red

slowly when the system is ready but

cannot receive an acknowledgment

from the CallAgent.

Hook/Ringing - When an off-

hook action is detected on a

phoneport,thisindicatorshines

steadily. When a ringing signal

isreceived from thedevice, the

indicator blinks off and on.

Web-based Management

In order to use a web browser to configure the VoIP gateway, you must make

sure it has a valid Ethernet connection to a PC or LAN via its LAN port.

Accessthe configurationutilityto checkthe LANport byentering theIPAddress

into your web browser address field.

Click on Login to the

Web-based

Management

module

Type 192.168.15.1

(the IPAddress) into

the address field of

your browser. http://192.168.15.1

Web-based Management (continued)

Setting Up the Connection

TheVoIPgateway’s WANportcomes

withDHCP asdefaultIPsetting.Ifthe

VoIP gateway cannot get the

assigned DHCP IP, it will use the

manual IP (default is 10.1.10.5 ) as

it’s default IP.

Click on Configure WAN Port.

To configure theWAN port, please dothefollowing:

Then go to Start>Control

Panel>Network

Connections>Right-click local

area connection >select

Properties> double click Internet

Protocol (TCP/IP). The screen at

right will appear.

Make sure the PC is in the same IP

domain as the VoIP gateway. You

can do this by changing the IP

address of the PC as shown here.

Manually input the

WAN IPAddress here.

Web-based Management (continued)

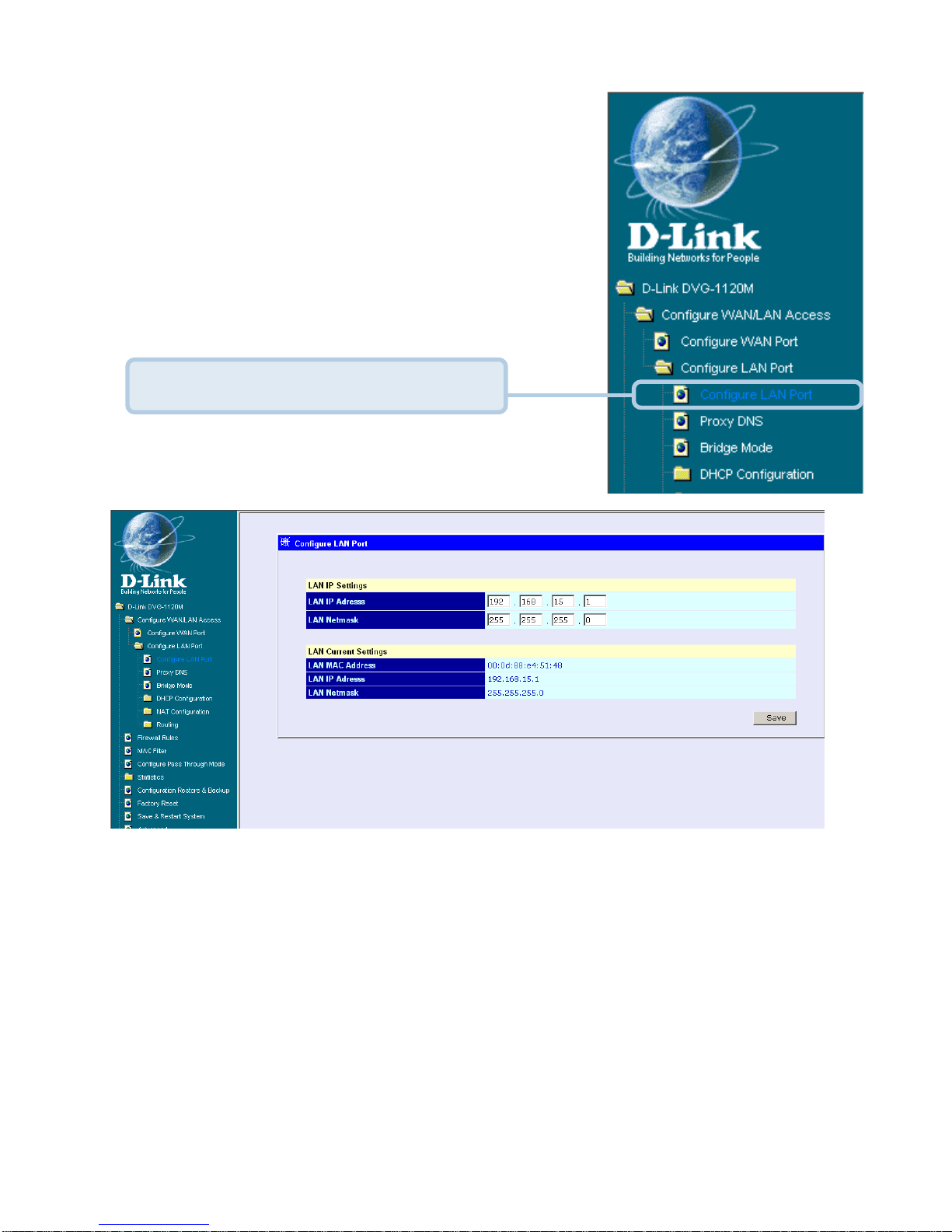

To configure the LAN port for the device, please do

thefollowing:

After you have configured your WAN and LAN ports you can click on Save

and Restart System in the Configuration menu, or you can continue to

configure the VoIP.After you have completed configuring the VoIP, you must

Save and Restart the System or your changes will not be saved.

In this configuration menu, users can configure the LAN IPAddress.

(Recommended for advanced users.)

By default the LAN IPAddress is: 192.168.15.1

Click on Configure LAN Port.
