D-Link DVG-2004S Manuel utilisateur

C

Ch

he

ec

ck

k

Y

Yo

ou

ur

r

P

Pa

ac

ck

ka

ag

ge

e

C

Co

on

nt

te

en

nt

ts

s

These are the items included with your DVG-2004S VoIP Gateway purchase：

If any of the above items are missing, please contact your reseller.

©2005 D-Link Systems, Inc. All rights reserved. Trademarks or registered trademarks are the property of their respective

holders. Software and specifications subject to change without notice. DVG-2004S

This product can be set up using Remote

IP configuration tool and Web browser,

such as IE (Internet Explorer).

D

D

V

V

G

G-

-2

20

00

04

4S

S

G

Ga

at

te

ew

wa

ay

y

• DVG-2004S VoIP Gateway

• CD-ROM (containing Manual and

Installation program)

• Ethernet cable

• Phone cable

• Power cord Using a powe

r

supply with a

different voltage rating

will damage and void the

warranty for this product.

Connecting DVG-2004S to Your

Network

A. First, connect the power adapter to the receptor at the front panel of the DVG-2004S

and then plug the other end of the power adapter to a wall outlet or power strip. The

“ready” LED will turn ON to indicate proper operation.

B. 1. Connect an Ethernet cable to the Ethernet jack located on the Cable / DSL

modem.

2. Insert the other end of the Ethernet cable to the LAN PORT on the front panel of

DVG-2004S. The LAN LED light will illuminate to indicate proper connection. If the

LAN LED is not illuminated, please go back and step B and repeat its instructions.

C. Insert a phone cord to FXS port on the back panel of the DVG-2004S.

LED Light Display

The LED lights show the status of the DVG-2004S where list on the front panel.

No. Label Color Display Status

(1) FXS 1-4 Green On The phone line is active

On Power on

Flash System is rebooting

(2) Ready Green

Off Power off

On Network connected

(3) LAN- Left (100M) Amber Flash Packet is through this port

On Network connected

(4) LAN- Right (10M) Green Flash Packet is through this port

(1) (2) (3) (4)

WhenyouhaveconnectedallthelinetotheDVG-2004S,itwilllooksimilartothis:

VoIP Remote Configuration

DVG-2004S you purchased comes with an installation Insert the CD into your PC or

laptop and double click the file name “Setup VoIP-Remote-Config ”. VoIP-Remote

config software will be installed on your computer.

Setup with VoIP-Remoteconfig.exe

Once you finish installing, a new icon is created on your desktop.

Double click this icon.

Click on the empty field and enter the MAC address (printed on the back of

DVG-2004S). If you cannot find the MAC address, click “Search” to view all the

available MAC addresses in the LAN. You will see the following window.

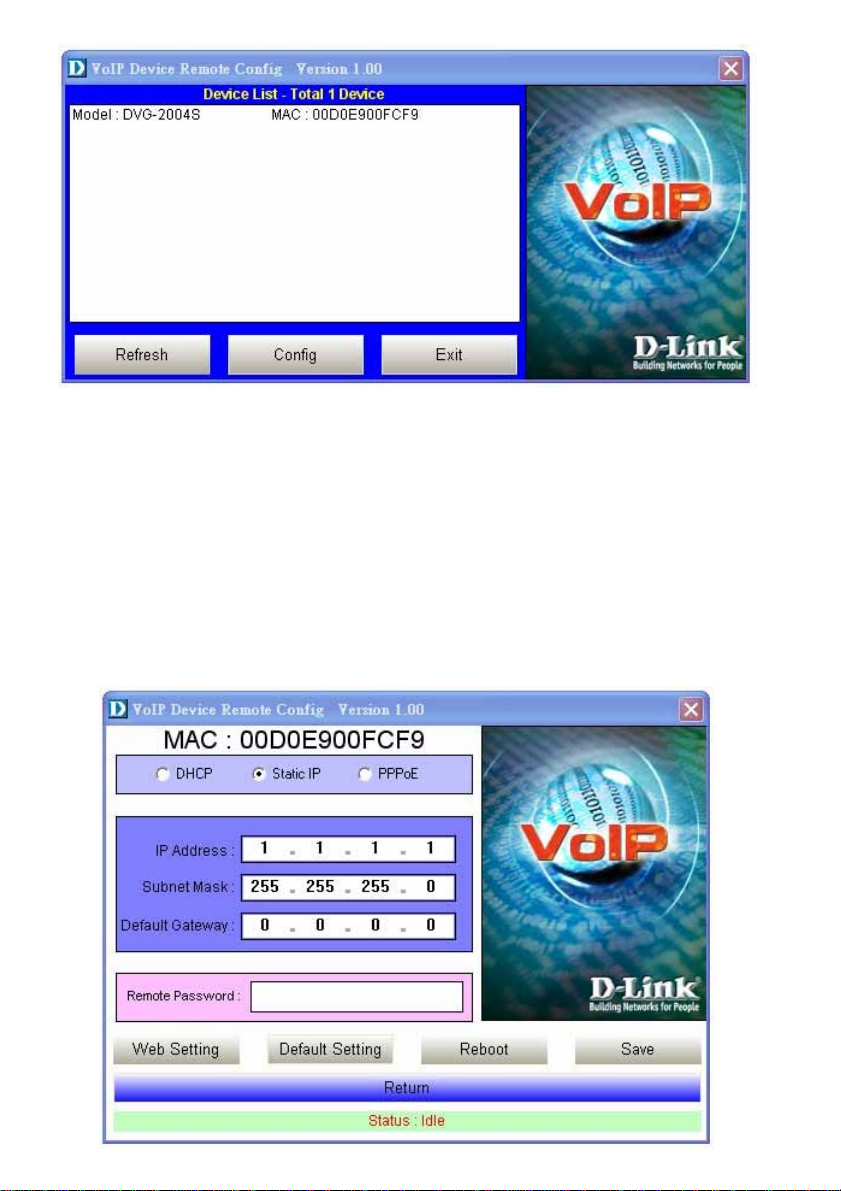

Device list: List all the devices installed in the LAN.

This window contains 3 buttons -

 Refresh: Refresh the information on the Device List.

 Config: Configure the device.

 Exit: Exit VoIP Device Remote Config.

After you click the Config button, you will see the following window.

There are 3 ways to setup the IP address: DHCP, PPPoE, and Static IP. Select your

Network settings. These are the most common setup:

 For LAN, please choose Static IP

 For xDSL, please chose PPPoE

 For cable internet, please choose DHCP

 For other Network setup, please consult your Network Administrator.

Before you can save these settings, please enter the password on the Remote

Password field.

 Remote Password: Default password is “1234”. After you enter the correct

password, you may select “Default Setting”, “Reboot” or “Save”.

 Web Setting: Link user directly to the web setting interface.

 Default setting: Restore to factory default settings.

 Reboot: Restart the system.

 Save: Save any changes and restart the system.

 Status: Displays the device’s current status (Idle, Rebooting etc).

 Return: Return to the “Device List” window.

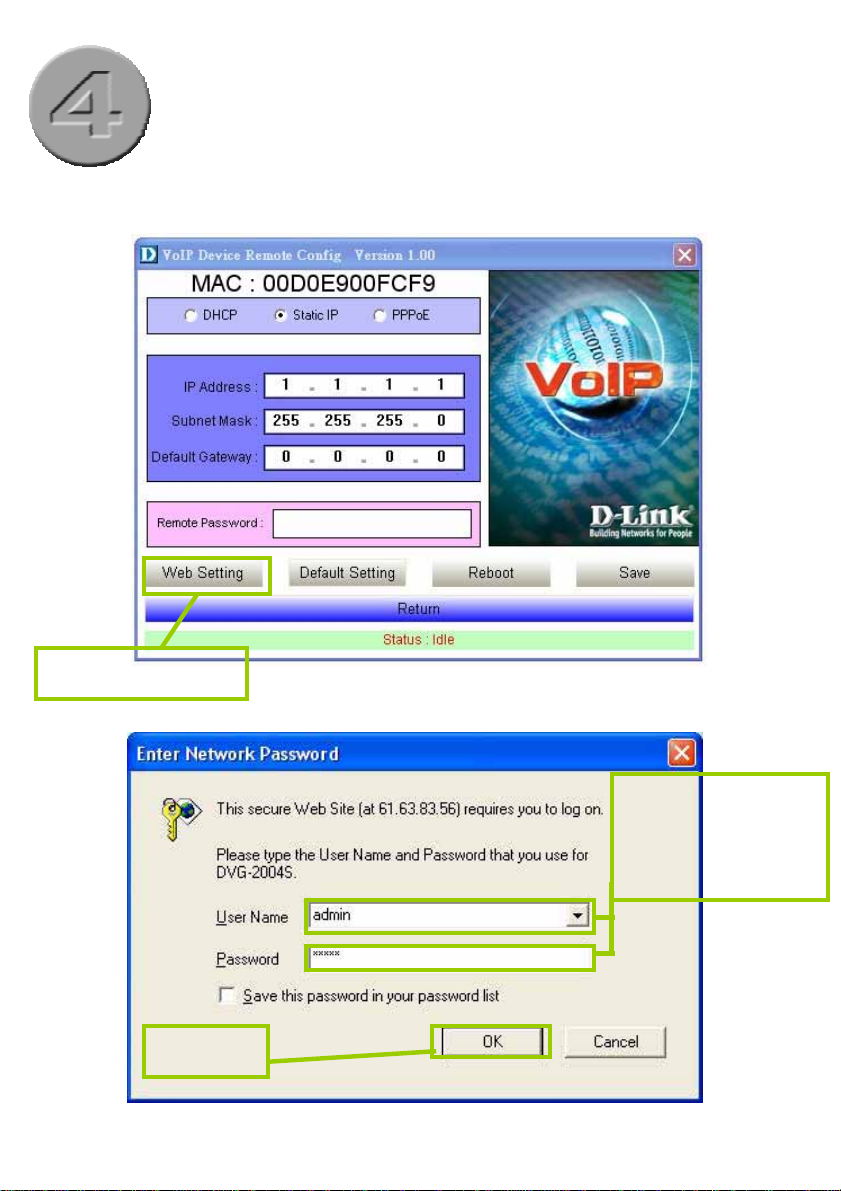

Login to the Browser

After choosing your Network environment, click “Web Setting”.

Click Web Setting

Type “admin” for

the username and

password.

Click OK

You will see the following screen.

Select General Setting from the Dialing Plan menu.

Click Submit

Select Dialing through SIP Server
