D-Link DIV-140 Manuel utilisateur

2D-Link DIV-140 Quick Install Guide

Package Contents

System Requirements

If any of the above items are missing, please contact your reseller.

• Computers with Windows®, Macintosh®, or Linux-based operating systems

and an installed Ethernet Adapter

• Internet Explorer version 6.0 or Netscape Navigator 7.0 or higher

(for conﬁguration)

• D-Link DIV-140 VoIP Gateway

• Power Adapter

• CAT5 Ethernet Cable

• RJ-45 to DB-9 Cable

• Four (4) RJ-11 Cables

• CD-ROM with Installation Guide, User Manual, and Special Offers

Note: Using a power supply with a different voltage than the one included with

the DIV-140 may damage the unit and will void the warranty for this product.

3 D-Link DIV-140 Quick Install Guide

Connecting the DIV-140 to your network

B. LAN Port

Connects DIV-140

to Ethernet enabled

device or switch.

A. Connect the power adapter to the receptor on the rear panel of the

DIV-140 and then plug the other end of the power adapter to a wall

outlet or power strip. The power LED will turn ON to indicate proper

operation.

A. Power Receptor

Receptor for Power

Adapter.

C.Connect the RJ-45 to DB-9 Console Cable from the Console port on the

DIV-140 to the Com Port on the computer that will be used to conﬁgure

the DIV-140.

Connect the LAN interface to the hub or switch connected to your internal

network using a CAT5 Ethernet cable. The LAN LED on the front of the

device should illuminate when a connection is made.

C. Console

U s e d t o c o n n e c t t h e

DIV-140 to the Com Port on

your computer.

PSTN Ports

Four (4) FXO ports used to

connect to wall phone jacks.

Reset Button

Press to reset the

DIV-140 to factory

default settings.

4D-Link DIV-140 Quick Install Guide

Conﬁguring the DIV-140

The terminal settings should

be 115200 8-N-1-N.

With the console cable connected from the Console port of the DIV-140

to the Com port of your PC, launch the HyperTerminal program:

A computer on your LAN must be assigned an IP address and subnet mask

in the same range as the DIV-140. By default, the DIV-140 is assigned an IP

address of 10.0.0.1 with a subnet mask of 255.0.0.0. It can be conﬁgured in

two ways, through the web interface or command line interface (CLI).

Enter admin for the Username and password for the

Password.

Power on the DIV-140, after the device boots up, login when prompted:

5 D-Link DIV-140 Quick Install Guide

It may be necessary to change the IP address of the DIV-140 to match

your local network. To change the IP address of the DIV-140, use the

following commands and procedure below:

At the Gateway prompt, enter the command, “set nw ip

[IP address] [subnet mask] [gateway address] [DNS address]”

and press Enter.

Verify the IP settings by entering the command, “show nw ip” and

pressing Enter. The IP settings will display:

6D-Link DIV-140 Quick Install Guide

After setting the IP address, you can conﬁgure the DIV-140 from the web

conﬁguration using a computer on your LAN. Open a web browser and

browse to the IP address of the DIV-140 using https.

Ex. https://192.168.0.2

Click Yes

Save the IP settings by using the “save” command. Press Enter,

and the DIV-140 will save the settings and reboot:

A Security Alert window will appear:

7 D-Link DIV-140 Quick Install Guide

After logging in, the System Information page will appear:

A login box will appear. Enter the user name and password. The default

user name is admin, and the default password is password.

Click OK

8D-Link DIV-140 Quick Install Guide

The following ﬁgure displays the setup for making VoIP to PSTN calls using

the DIV-140:

9 D-Link DIV-140 Quick Install Guide

The conﬁguration settings on the DIV-140 are as follows:

After logging into the DIV-140, browse to the System Conﬁguration >

Device page:

Verify the Country is set to the correct region and click Apply:

Verify the IP Conﬁguration settings are correct, and click Apply:

Browse to the Network Conﬁguration > General page:

10D-Link DIV-140 Quick Install Guide

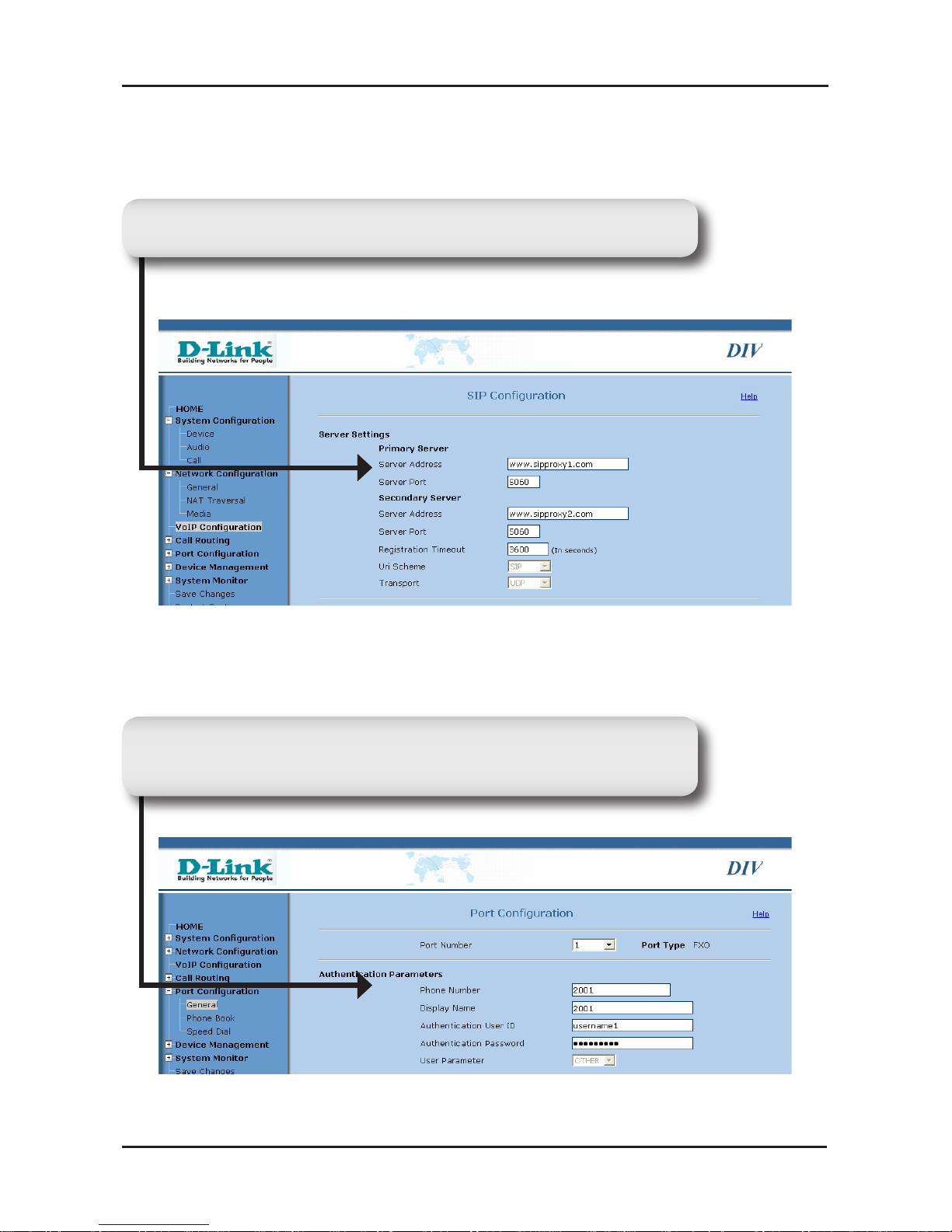

Enter the VoIP Server IP PBX IP address or domain name and

Server Port. The server port is 5060 by default. Click Apply:

Browse to the Network Conﬁguration > General page:

Browse to the Port Conﬁguration > General page:

The DIV-140 has four (4) PSTN ports numbered 1-4. Select port

1 and conﬁgure the Phone Number and Display Name as 2001

Click Apply:
