Burkert 6126 Manuel utilisateur

Bedienungsanleitung

Manuel d‘utilisation

Operating Instructions

Type 6126, Type 6606

Rocker solenoid valve

2/2 or 3/2-way solenoid valve

2/2 oder 3/2-Wege Magnetventil

Vanne magnétique 2/2 ou 3/2

1 THE OPERATING INSTRUCTIONS

The operating instructions contain important information.

▶Read the instructions carefully and follow the safety instructions

in particular.

▶Keep the instructions and provide them to every user.

▶The liability and warranty do not apply if the procedures in the

operating instructions are not followed.

1.1 Symbols

▶Highlights instructions to avoid a danger.

→Designates a procedure which you must carry out.

Warning of injuries:

DANGER!

Immediate danger! Serious or fatal injuries.

WARNING!

Possible danger! Serious or fatal injuries.

CAUTION!

Danger! Moderate or minor injuries.

Warning of damage:

NOTE!

Table of contents

1 The operating instructions.......................................................... 2

2 Intended use.............................................................................. 3

3 Basic Safety Instruction ............................................................. 3

4 General Information.......................................................................5

5 System Description.................................................................... 6

6 Technical Data ........................................................................... 7

7 Installation ...................................................................................10

8 Maintenance, Troubleshooting ................................................. 17

9 Spare parts.............................................................................. 18

10 Packaging, Transport, Storage................................................. 19

11 Disposal................................................................................... 19

english

2 INTENDED USE

Non-intended use of the solenoid valves Type 6126 and Type

6606 can be dangerous to people, nearby equipment and the

environment.

▶The solenoid valves Type 6126 and Type 6606 are designed for

use in analytical, medical and laboratory technology. They can

be used primarily for the metering, lling, mixing and distribution

of small amounts.

▶Do not use the device outdoors.

▶Use according to the authorized data, operating conditions

and conditions of use specied in the contract documents and

operating instructions. These are described in the chapter enti-

tled ““6 Technical Data””.

▶The device may be used only in conjunction with third-party

devices and components recommended and authorized by

Bürkert.

▶Correct transportation, correct storage and installation and

careful use and maintenance are essential for

reliable and faultless operation.

▶Use the device only as intended.

3 BASIC SAFETY INSTRUCTION

These safety instructions do not make allowance for any contin-

gencies and events which may arise during the installation, oper-

ation and maintenance of the devices.

DANGER!

Danger – high pressure!

▶Before loosening the lines and valves, turn o the pressure and

vent the lines.

Risk of electric shock!

▶Before reaching into the device or the equipment, switch o

the power supply and secure to prevent reactivation!

▶Observe applicable accident prevention and safety regulations

for electrical equipment!

Risk of burns/risk of re if used continuously through hot

device surface!

▶Keep the device away from highly ammable substances and

media and do not touch with bare hands.

english

WARNING!

Leaking medium when the diaphragm is worn.

▶Regularly check for leaking medium.

▶If the media is hazardous, protect the environment from danger.

General hazardous situations.

To prevent injury, ensure that:

▶The system cannot be activated unintentionally.

▶Installation and repair work may be carried out by authorized

technicians only and with the appropriate tools.

▶After an interruption in the power supply or pneumatic supply,

ensure that the process is restarted in a dened or controlled

manner.

▶The device may be operated only when in perfect condition and

in consideration of the operating instructions.

▶The general rules of technology apply to application planning

and operation of the device.

NOTE!

Electrostatic sensitive components / modules!

The device contains electronic components which react sensitively

to electrostatic discharge (ESD). Contact with electrostatically

charged persons or objects is hazardous to these components.

In the worst case scenario, they will be destroyed immediately or

will fail after start-up.

•Observe the requirements in accordance with

EN 61340-5-1 and 5-2 to minimise or avoid the possibility of

damage caused by sudden electrostatic discharge!

•Also ensure that you do not touch the electronic components

when the power supply voltage is present!

The solenoid valves Type 6126 and Type 6606 were developed

with due consideration given to the accepted safety rules and are

state-of-the-art. Nevertheless, dangerous situations may occur.

Failure to observe this operating manual and its operating instruc-

tions as well as unauthorised tampering with the device release

us from any liability and also invalidte the warranty covering the

device and accessories!

english

4 GENERAL INFORMATION

4.1 Scope of Supply

Check immediately upon receipt of the delivery that the contents are

not damaged and that the type and scope agree with the delivery note

and packing list.

If there are any discrepancies, please contact us immediately.

Germany

Contact address:

Bürkert Fluid Control Systems

Sales Center

Chr.-Bürkert-Str. 13-17

D-74653 Ingelngen

Tel.: + 49 (0) 7940 - 10 91 111

Fax: + 49 (0) 7940 - 10 91 448

E-mail: [email protected]

International

Contact addresses can be found on the final pages of the printed oper-

ating instructions.

And also on the internet at:

www.burkert.com Bürkert Company Locations

4.2 Warranty

This document contains no promise or guarantee. Please refer to

our general terms of sales and delivery. The warranty is only valid

if the device is used as intended in accordance with the specied

application conditions.

The warranty extends only to defects in the solenoid valves

Type6126 and Type6606 and their components.

We accept no liability for any kind of collateral damage

which could occur due to failure or malfunction of the

device.

4.3 Approvals

The approval rating on the Bürkert lables concerns to Bürkert

products.

Devices that carry the e1 marking have been approved by the

Federal Oce for Motorised Transport under the type approval

number

e1*72/245*2006/96*5791*00

and will be brought into circulation with the indicated approval

designation.

english

You can obtain an excerpt from the type approval from the address

below

Bürkert Werke GmbH & Co KG

Zulassungsbeauftragter

Christian-Bürkert-Str.13-17

D-74653 Ingelngen

4.4 Information on the Internet

Operating instructions and data sheets for Types 6126 and 6606

can be found on the Internet at:

www.burkert.com Documentation Type

5 SYSTEM DESCRIPTION

5.1 Intended Application Area

The solenoid valves Type 6126 and Type 6606 are designed for use

in analytical, medical and laboratory technology. They can be used

primarily for the metering, lling, mixing and distribution of small

amounts.

5.2 General Description

The solenoid valves Type 6126 and Type 6606 are direct-acting

rocker solenoid valves. They have a minimum dead volume and

a non-split, easy-to-rinse inner contour. The medium comes into

contact with the body material and the seals only. The heat transfer

into the medium is minimal, as the body is also separated from the

coil by a stainless steel plate.

Modularity

The valve is modular in design and can be supplied with dierent

port connections according to the application case. It can be used

individually and also in blocks.

english

6 TECHNICAL DATA

6.1 Operating Conditions

WARNING!

Risk of injury

Malfunction if used outside!

▶Do not use Type 6126 and Type 6606 outdoors and avoid heat

sources which may cause the allowable temperature range to

be exceeded.

Allowable temperatures

Ambient temperature: max. +55 °C

Medium temperature: -5... +50 °C

Media: neutral and aggressive, gaseous and liquid

media which do not attack body and seal

materials

see Bürkert Chemical Resistance Chart

(www.burkert.com)

Protection class: IP65 with ying leads or cable plug

IP40 with rectangular plug

6.2 Conformity

CE mark conforms to EMC Directive 2004/108/EEC

(only if cables, plugs and sockets connected correctly).

6.3 Mechanical data

Dimensions See data sheet

Body material PPS, PVDF, ETFE, PEEK

Brass, stainless steel

Seal material FKM, FFKM, EPDM

english

6.4 Pneumatic data

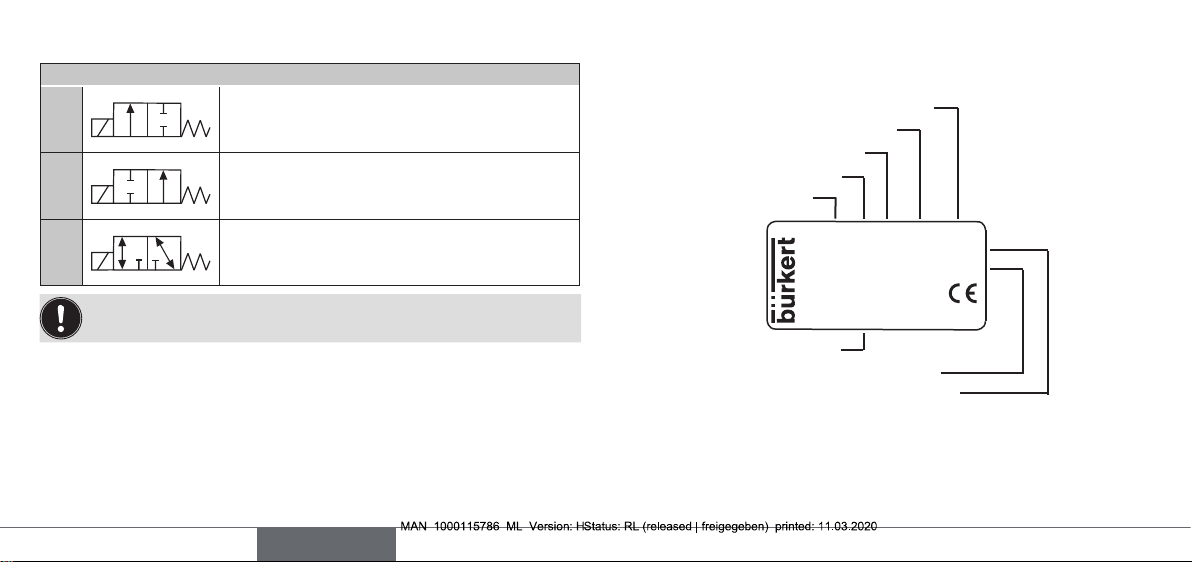

Circuit functions

P/NC

2/2-way valve, direct-acting, normally

closed

P/NO

2/2-way valve, direct-acting, normally

open

A in/out

P/NC R/NO

3/2-way valve, direct-acting,

universal function

Note the information specied on the label for voltage, type

of current, and pressure.

Pressure range Vac ... 2 bar

Port connections Threaded connection G1/8, M5

NPT1/8 or UNF1/4-28

Flange connection

Tube hose connection

6.5 Label

Example:

Made in Germany

00450000 W14UN

6606 T 1,6 FKM PD

G1/8 PNVAK-2bar

24V DC 3,4W

Identication number

Voltage/frequency output

Nominal connection pressure

Type

Circuit function

Orice

Seal material

Body material

english

6.6 Electrical Data

Connections: Spade connection in accordance with DIN

43650 C for cable plug

Type 2516 on top or on side

Rectangular plug for Type 2505

2 FEP ying leads, AWG24,

500 mm long

Power supply: 12 V DC

24 V DC

110 – 120 V UC

230 – 240 V UC

Voltage tolerance ±10 % - Residual ripple 10 %

Nominal output

12 – 24 V 3.4 W

110 – 240 V 4.0 W

Nominal

operating mode 100 % continuous operation

for block installation if temperatures of media or

surrounding area above +40 °C:

Intermittent duty 40 % (10 min)

Note the information specied on the label for voltage, type

of current, and pressure.

english

7 INSTALLATION

7.1 Safety instructions

DANGER!

Risk of injury from high pressure in the equipment!

▶Before loosening the lines and valves, turn o the pressure and

vent the lines.

Risk of injury due to electrical shock!

▶Before reaching into the device or the equipment, switch o the

power supply and secure to prevent reactivation!

▶Observe applicable accident prevention and safety regulations for

electrical equipment!

WARNING!

Risk of injury from improper installation!

▶Installation may be carried out by authorized technicians only and

with the appropriate tools!

Risk of injury from unintentional activation of the system and

an uncontrolled restart!

▶Secure system from unintentional activation.

▶Following installation, ensure a controlled restart.

7.2 Fluid Installation

DANGER!

Risk of injury from high pressure in the equipment!

▶Before loosening the lines and valves, turn o the pressure and

vent the lines.

Installation position: any, actuator preferably upwards.

Installation

Before installation, clean any possible dirt o the pipelines and

ange connections.

→If required, install a dirt trap to prevent malfunctions.

Mesh size: 5 µm

Pay attention to the ow direction of the valve.

english

Autres manuels pour 6126

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Burkert Unité de contrôle

Burkert

Burkert 8681 Manuel utilisateur

Burkert

Burkert 6027 Manuel utilisateur

Burkert

Burkert 2031 Manuel utilisateur

Burkert

Burkert 0258 Manuel utilisateur

Burkert

Burkert 8640 Manuel utilisateur

Burkert

Burkert 0470 Manuel utilisateur

Burkert

Burkert 8840 Manuel utilisateur

Burkert

Burkert 6013 Manuel utilisateur

Burkert

Burkert 6213 Manuel utilisateur

Burkert

Burkert 0262 Manuel utilisateur

Burkert

Burkert 5281 EV Manuel utilisateur

Burkert

Burkert 2030 Manuel utilisateur

Burkert

Burkert 5470 Manuel utilisateur

Burkert

Burkert 6650 Manuel utilisateur

Burkert

Burkert 6430 Manuel utilisateur

Burkert

Burkert 2060 Manuel utilisateur

Burkert

Burkert 2064 Manuel utilisateur

Burkert

Burkert 3323 Manuel utilisateur

Burkert

Burkert 8681 Manuel utilisateur

Burkert

Burkert 6518 Manuel utilisateur

Burkert

Burkert 6213 Manuel utilisateur

Burkert

Burkert 8653 AirLINE Field Manuel utilisateur

Burkert

Burkert 2300 Series Manuel utilisateur

Burkert

Burkert 2103 Series Manuel utilisateur

Manuels Unité de contrôle populaires d'autres marques

Festo

Festo Compact Performance CP-FB6-E Manuel de la liste des pièces

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuel utilisateur

JS Automation

JS Automation MPC3034A Manuel utilisateur

JAUDT

JAUDT SW GII 6406 Series Guide rapide

Spektrum

Spektrum Air Module System Manuel utilisateur

BOC Edwards

BOC Edwards Q Series Manuel utilisateur

KHADAS

KHADAS BT Magic Manuel utilisateur

Etherma

Etherma eNEXHO-IL Manuel utilisateur

PMFoundations

PMFoundations Attenuverter Manuel utilisateur

GEA

GEA VARIVENT Manuel utilisateur

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuel utilisateur

Altronix

Altronix LINQ8PD Instructions de montage

Eaton

Eaton Powerware Series Manuel utilisateur

WAGO

WAGO 750-407/040-000 Manuel utilisateur

Sony

Sony CCU-590 Manuel utilisateur

Graco

Graco 25D614 Manuel utilisateur

Task Force Tips

Task Force Tips YE-RF-900 Manuel de programmation

Shini

Shini SPV-U Series Manuel utilisateur
