Burkert 2610 Manuel utilisateur

Bedienungsanleitung

Manuel d‘utilisation

Operating Instructions

Type 2610, 2612, 2620

2/2-way valve

2/2-Wege-Ventil

Vanne 2/2 voies

Type 2610

2 INTENDED USE

Incorrect use of the solenoid valve Type 2610, the piston

actuated valve Type2612 and the diaphragm actuated valve

Type2620 can be dangerous to people, nearby equipment and

the environment.

The device is designed for blocking, dosing, lling and venting

gaseous and liquid media.

▶Use according to the permitted data, operating conditions and

conditions of use specied in the contract documents and oper-

ating instructions.

▶Correct transportation, correct storage and installation and careful

use and maintenance are essential for reliable and problem-free

operation.

▶Use the device only as intended.

▶Check media resistance.

2.1 Denition of term

In these operating instructions, the term “device” always refers to

the solenoid valve Type 2610, the piston actuated valve Type2612

and the diaphragm actuated valve Type2620.

1 OPERATING INSTRUCTIONS

The operating instructions contain important information.

▶Read the operating instructions carefully and follow the safety

instructions in particular, and also observe the operating conditions.

▶Operating instructions must be available to each user.

▶The liability and warranty for the Type 2610, Type 2612 and

Type2620 are void if the operating instructions are not followed.

1.1 Symbols

▶Designates an instruction to prevent risks.

→Designates a procedure which you must carry out.

Warning of injuries:

DANGER!

Imminent danger! Serious or fatal injuries.

WARNING!

Potential danger! Serious or fatal injuries.

CAUTION!

Danger! Minor or moderately severe injuries.

Warns of damage to property:

NOTE!

english

2.2 Insulation

Type 2610, 2620:

The device must not be insulated more

than 2 cm from the edge of the body

upwards to the actuator.

max. 2 cm

3 BASIC SAFETY INSTRUCTIONS

These safety instructions do not make allowance for any contin-

gencies

and events which may arise during installation, operation and

maintenance.

Risk of injury from high pressure.

▶Before loosening the lines and valves, turn o the pressure and

vent the lines.

Risk of electric shock.

▶Before reaching into the system, switch o the power supply

and secure to prevent reactivation. Observe applicable accident

prevention and safety regulations for electrical equipment.

Risk of burns or risk of re.

During continuous operation or hot media the surface of the

device may become hot.

▶Keep the device away from highly ammable substances and

media and do not touch the device with bare hands.

▶Do not obstruct the heat release required for operation.

Danger due to high and low temperatures.

The device may become extremely cold or hot depending on the

temperature of the media.

▶Keep away from ammable and cold-sensitive substances and

do not touch with bare hands.

Risk of injury from hot, cold and aggressive media.

Heat sources or temperature uctuations may cause malfunc-

tions or leaks.

▶Avoid heat sources which may cause the permitted temperature

range to be exceeded.

▶Before use, check media resistance.

english

Destruction of the coil by overheating (only Type 2610).

▶Connect the coil electrically only when the body has been installed.

▶In the case of AC voltage pay attention to movable core.

▶Check media resistance.

General hazardous situations.

To prevent injury, ensure that:

▶Do not feed in aggressive or ammable media.

▶Do not make any internal or external changes.

▶Ensure that the system cannot be activated unintentionally.

▶Installation and repair work may be carried out by authorized

technicians only and with the appropriate tools.

▶After an interruption in the power supply or pneumatic supply,

ensure that the process is restarted in a dened or controlled

manner.

▶Do not put any loads on the body.

▶The general rules of technology apply to application planning and

operation of the device.

4 TECHNICAL DATA

The following values are indicated on the type label:

• Type 2610: voltage, current type, coil power consumption

Type 2612, 2620: pilot pressure

• Pressure range

• Body material (MS=brass, VA=stainless steel)

• Seal material (PTFE, NBR)

4.1 Conformity

Type 2610 conforms with the EU Directives according to the EU

Declaration of Conformity (if applicable).

4.2 Standards

The applied standards, which verify conformity with the EU Directives,

can be found on the EU Type Examination Certicate and / or the EU

Declaration of Conformity (if applicable).

4.3 Operating conditions

Ambient temperature

Type 2610 max. +50 °C

english

Type 2612, 2620 max. +90 °C

max. +55 °C with attached pilot valve

Degree of protection

Type 2610 with cable plug: IP65 in accordance with EN

60529,

NEMA 4X

4.4 Fluidic data

Medium temperature

Type 2610, 2620 –200–+180 °C

Type 2612 –10–+90 °C

Viscosity 21 mm²/s

Media neutral gaseous and liquid media, which do

not attack body and sealing materials (see

table of resistance under www.buerkert.de).

Check media resistance in individual cases.

Pilot media

Type 2620 neutral gaseous and liquid media, air, water,

hydraulic uids up to max. 90 °C

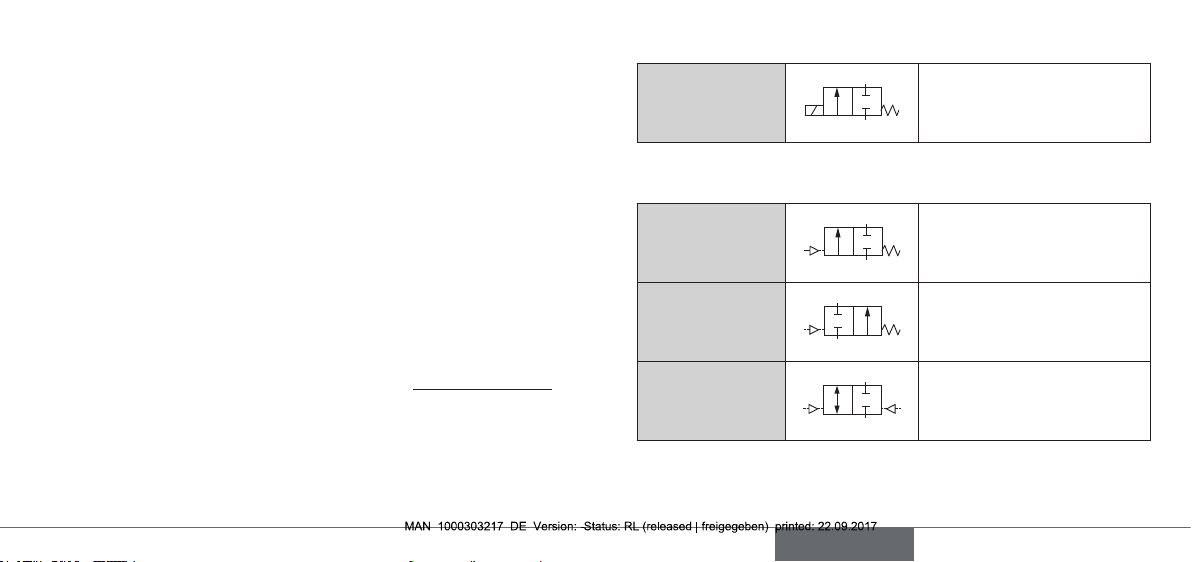

Circuit function (CF) Type 2610

Circuit function

(NC)

1 (P)

2 (A)

2/2-way valve, 1 (P) nor-

mally closed

Circuit function (CF) Type, 2612, Type 2620

Circuit function

(NC)

1 (P)

2 (A)

2/2-way valve, normally

closed by spring action

Circuit function

(NO)

1 (P)

2 (B)

2/2-way valve, normally

open by spring action

Circuit function I

1 (P)

2 (A)

2/2-way valve, double-

acting diaphragm actuator,

any direction of ow

english

10 20 30 40 50

CF A DN 4, 6 and 8

CF B and CF I DN 4,6 and 8

Operating

pressure

Pilot pressure [bar]

Type 2612 4.5 Mechanical data

Port connections

Type 2610, 2620 G1/4, G1/2

Type 2612 Flange

Materials

Body:

Designation MS Body: brass, seat: 1.4305 (G1/4)

Body: brass, seat: brass (G1/2)

Designation VA Body and seat: 1.4410

Actuator

Type 2610, 2620 Epoxy

Type 2612 Aluminium

Metal bellow

Type 2612, 2620 1.4541

Seal material

Type 2610, 2620 PTFE

Type 2612 NBR

Dimensions

Type 2610 see data sheet

english

Type 2612

∅3,7

∅6,3

62,7

67,4

5,6 7

27,9

24

Type 2620

∅6,3 15,5

58,6

G1/8

G1/2

G3/8

G1/4

173,6

187,6

185,6

174,6

∅6,3

8,5

14 SW27

45 45

74,5

english

4.6 Electrical data (only Type 2610)

Connections DIN EN 175301-803 Form A:

for cable plug Type 2511

Operating voltage see type label

Voltage tolerance ± 10 %

Power consumption 4 W operation, 72 W inrush

Switching frequency max. 10/min

O-time taus between

2 switching operations min. 1 s

4.7 Type label (example)

Identication number

Type 2610: voltage, frequency, power consumption

Type 2612, 2620: pilot pressure

Port connection,

pressure range

Type

Circuit function

Orice Seal material

Body material

2610 A 6,0 PTFE VA

Made in Germany

00167737 W17MG

24 V AC/DC 72/4W

G1/4 PN 0 - 10 bar

english

5 INSTALLATION

DANGER!

Risk of injury from high pressure in the equipment.

▶Before loosening the pipes and valves, turn o the pressure and

vent the lines.

Risk of injury due to electrical shock.

▶Before reaching into the device or the equipment, switch o the

power supply and secure to prevent reactivation.

▶Observe applicable accident prevention and safety regulations

for electrical equipment.

WARNING!

Risk of injury from improper installation.

▶Installation may be carried out by authorized technicians only and

with the appropriate tools.

Risk of injury from unintentional activation of the system and

an uncontrolled restart.

▶Secure system from unintentional activation.

▶Following assembly, ensure a controlled restart.

5.1 Fluid installation

Installation position: any, preferably magnetic system or actuator

upright.

→Check pipelines and ange connections for dirt and clean.

→Install a dirt lter before the valve inlet (0.2–0.4 mm).

Observe direction of ow. The arrow on the body indicates

the direction of ow.

Arrow indicating

direction of ow

Type 2610

Type 2620

NOTE!

Caution risk of breakage.

▶Do not use the coil or the actuator as a lever arm.

→Threaded connection: Hold the device with a open-end wrench

on the body and screw into the pipeline.

english

Flanged connection:

WARNING!

Risk of injury from escaping medium.

▶Leaking connections if seals not seated properly, if manifold

uneven or if surface quality of the manifold inadequate.

▶Make certain the seals included with delivery are properly

seated in the valve.

▶Ensure that the manifold is even.

▶Ensure that the surface quality of the manifold is adequate.

→Remove the cover plate.

→Insert the seal into the valve.

→Screw the body onto the manifold.

5.2 Electric installation (only Type 2610)

WARNING!

Risk of injury due to electrical shock.

▶Before reaching into the system, switch o the power supply

and secure to prevent reactivation.

▶Observe applicable accident prevention and safety regulations

for electrical equipment.

If the protective conductor contact between the coil and body is

missing, there is danger of electrical shock.

▶Always connect protective conductor.

▶Check electrical continuity between coil and body.

Operate the device only with the cable plug included in the

scope of delivery.

Note the voltage and current type as specied on the type

label.

→Check that seal is tted correctly.

→Screw cable plug tightly onto coil

(min. 0.5 Nm, max. 0.8 Nm).

english

Autres manuels pour 2610

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Burkert Unité de contrôle

Burkert

Burkert 6013 Manuel utilisateur

Burkert

Burkert 6228 Manuel utilisateur

Burkert

Burkert 6022 Manuel utilisateur

Burkert

Burkert 8691 Manuel utilisateur

Burkert

Burkert 6603 Manuel utilisateur

Burkert

Burkert 8791 REV.2 Manuel utilisateur

Burkert

Burkert 6240 Manuel utilisateur

Burkert

Burkert PTB 03 ATEX 1030 X Manuel utilisateur

Burkert

Burkert 3270 Manuel utilisateur

Burkert

Burkert 3320 Manuel utilisateur

Burkert

Burkert 2301 Series Manuel utilisateur

Burkert

Burkert 6027 Manuel utilisateur

Burkert

Burkert 6650 Manuel utilisateur

Burkert

Burkert 6520 NAMUR Manuel utilisateur

Burkert

Burkert 6020 Manuel utilisateur

Burkert

Burkert 2030 Manuel utilisateur

Burkert

Burkert AE3360 Manuel utilisateur

Burkert

Burkert 2060 Manuel utilisateur

Burkert

Burkert 2080 INOX Series Manuel utilisateur

Burkert

Burkert 8681 Manuel utilisateur

Burkert

Burkert 6011 Manuel utilisateur

Burkert

Burkert 6012 Manuel utilisateur

Burkert

Burkert 2006 Manuel utilisateur

Burkert

Burkert 6013 Manuel utilisateur

Manuels Unité de contrôle populaires d'autres marques

Festo

Festo Compact Performance CP-FB6-E Manuel de la liste des pièces

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuel utilisateur

JS Automation

JS Automation MPC3034A Manuel utilisateur

JAUDT

JAUDT SW GII 6406 Series Guide rapide

Spektrum

Spektrum Air Module System Manuel utilisateur

BOC Edwards

BOC Edwards Q Series Manuel utilisateur

KHADAS

KHADAS BT Magic Manuel utilisateur

Etherma

Etherma eNEXHO-IL Manuel utilisateur

PMFoundations

PMFoundations Attenuverter Manuel utilisateur

GEA

GEA VARIVENT Manuel utilisateur

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuel utilisateur

Altronix

Altronix LINQ8PD Instructions de montage

Eaton

Eaton Powerware Series Manuel utilisateur

WAGO

WAGO 750-407/040-000 Manuel utilisateur

Sony

Sony CCU-590 Manuel utilisateur

Graco

Graco 25D614 Manuel utilisateur

Task Force Tips

Task Force Tips YE-RF-900 Manuel de programmation

Shini

Shini SPV-U Series Manuel utilisateur
