1OPERATING INSTRUCTIONS

The operating instructions contain important information.

▶Read the operating instructions carefully and follow the safety

instructions in particular, and also observe the operating conditions.

▶Operating instructions must be available to each user.

▶The liability and warranty for the device are void if the operating

instructions are not followed.

1.1 Symbols

▶Designates an instruction to prevent risks.

→designates a procedure which you must carry out.

Warning of injuries:

DANGER!

Imminent danger! Serious or fatal injuries.

WARNING!

Potential danger! Serious or fatal injuries.

CAUTION!

Danger! Minor or moderately severe injuries.

Warns of damage to property:

NOTE!

2INTENDED USE

Incorrect use of the solenoid valve Type 0131 can be dangerous

to people, nearby equipment and the environment.

▶The device is designed to control, shut o and meter of neutral,

PVC versions also aggressive media.

▶Provided the cable plug is connected and installed correctly, e.g.

Bürkert Type 2508, the device satises protection class IP65 in

accordance with DIN EN 60529 / IEC 60529.

▶Use according to the permitted data, operating conditions and

conditions of use specied in the contract documents and oper-

ating instructions.

▶Correct transportation, correct storage and installation and care-

ful use and maintenance are essential for reliable and problem-

free operation.

▶Use the device only as intended.

2.1 Denition of term

In these operating instructions, the term “device” always refers to

the solenoid valve Type 0131.

english

Risk of injury due to malfunction of valves with alternating

current (AC)!

Sticking core causes coil to overheat, resulting in a malfunction.

▶Monitor process to ensure function is in perfect working order!

Risk of short-circuit/escape of media through leaking screw

joints!

▶Ensure seals are seated correctly.

▶Carefully screw valve and connection lines together.

General hazardous situations.

To prevent injury, ensure that:

▶Do not make any internal or external changes. Ensure that the

system cannot be activated unintentionally.

▶Installation and repair work may be carried out by authorized

technicians only and with the appropriate tools.

▶After an interruption in the power supply or pneumatic supply,

ensure that the process is restarted in a dened or controlled

manner.

▶Do not put any loads on the body.

▶The general rules of technology apply to application planning

and operation of the device.

3BASIC SAFETY INSTRUCTIONS

These safety instructions do not make allowance for any contin-

gencies and events which may arise during installation, operation

and maintenance.

Danger – high pressure!

▶Before loosening the lines and valves, turn o the pressure and

vent the lines.

Risk of electric shock!

▶Before reaching into the system, switch o the power supply

and secure to prevent reactivation!

▶Observe applicable accident prevention and safety regulations

for electrical equipment!

Risk of burns/Risk of re if used continuously through hot device

surface!

▶Keep the device away from highly ammable substances and

media and do not touch with bare hands.

english

4TECHNICAL DATA

4.1 Operating conditions

The following values are indicated on the type label:

•Voltage (Tolerance ± 10 %) / Current type

•Coil power consumption (active power in W - at operating

temp.)

•Pressure range

•Body material: PVC (PV) or Brass (MS)

•Sealing material: FKM, EPDM, NBR

Circuit functions

2/2-way valve; closed in rest

position

2/2-way valve; opened in rest

position

3/2-way valve; closed in rest

position, output A unloaded

3/2-way valve; in rest position

output A pressurized

P1 P2

3/2-way valve; in rest position,

pressure connection P2 connected

to output A. P1 closed

B3/2-way valve; in rest position,

pressure connection P connected

to output B

english

Electrical operating conditions

With high-performance elec-

tronics AC/DC

Without

electronics

50 Hz, 60 Hz

Ambient tem-

perature (inter-

mittent duty

„Fig. 2“)

max. +70 °C max. +55 °C

Operatingmode

(according to

DIN VDE 0580)

Long-term operation

Intermittent duty (Determination

of the permitted operating param-

eters see „Fig. 1“ und „Fig. 2“)

Long-term

operation

Intermittent

duty

Temperature

protection

switch

Device has a resettable tem-

perature protection switch which

switches the device o if unac-

ceptable heating occurs during

intermittent duty. Switches on

again only after cooling down and

after a new switching request.

without

Tab. 1: Electrical operating conditions

Intermittent operation for version with high-performance

electronics AC/DC

Characteristic values (according to DIN VDE 0580)

tSD – Cycle time

tED – Duty cycle

tSP – De-energized pause

ED – Relative duty cycle

SH – Switching frequency

tED

tSP

tSD

tSD[s] = 60

SH 1

min

tED [s] =

tSP [s] = tSD [s] – tED [s]

ED[%]

100

tSD [s]

Fig. 1: Characteristic values intermittent operation for version with high-

performance electronics AC/DC

english

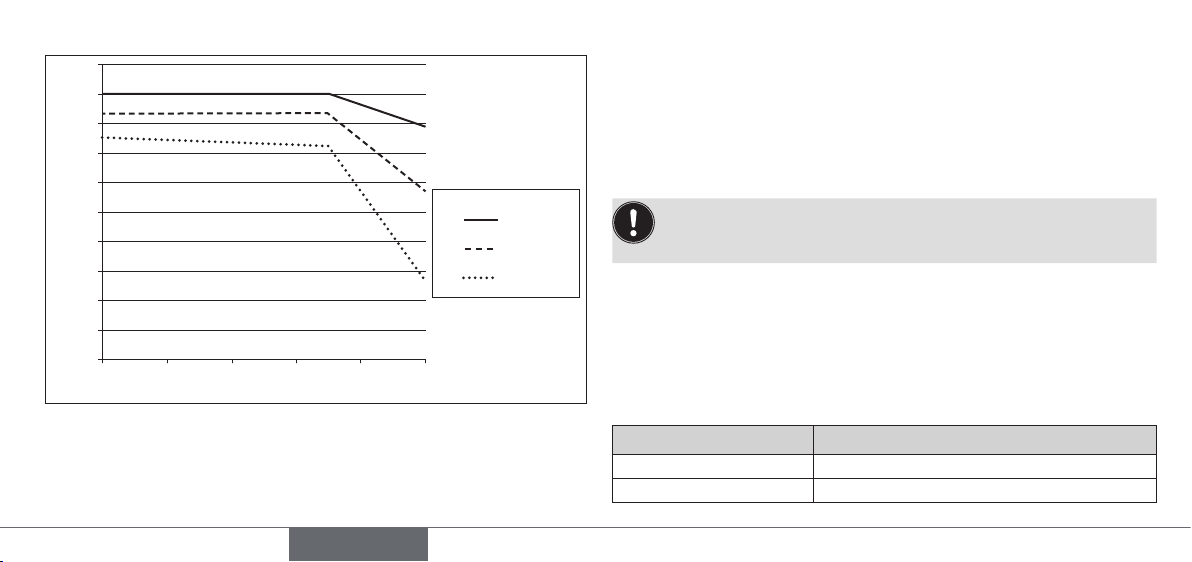

Permitted operating parameters

100

30 40 50 60 70

Ambient temperature [°C]

Switching frequency

6/min

10/min

15/min

Relative duty cycle [%]

Fig. 2: Relative duty cycle (ED) depending on switching frequency and

ambient temperature

4.2 Application conditions

Ambient temperaturemax. +50 °C

Protection class IP65 in accordance with DIN EN 60529 / IEC

60529 with cable plug, e.g. Bürkert Type 2508

Operating duration Unless otherwise indicated on the type label,

the solenoid system is suitable for continuous

operation

Important information for functional reliability during con-

tinuous operation: If standstill for a long period at least 1-2

activations per day are recommended.

Service life High switching frequency and high pressures

reduce the service life

4.2.1 Permitted temperature

Permitted medium temperature depending on body material and

sealing material

PVC Version:

Sealing material Permitted temperature

FKM -10 ... +50 °C

EPDM -10 ... +50 °C

english

Brass Version:

Sealing

material

Version with

high power AC/DC 1)

Version without elec-

tronic 50 Hz, 60 Hz 1)

NBR -10 ... +90 °C -10 ... +90 °C

FKM -10 ... +90 °C -10 ... +130 °C

EPDM -30 ... +90 °C -30 ... +130 °C

1) see description on the type label

Viscosity: 37 mm2/s

4.2.2 Permitted media

Permitted media depending on body material and sealing material

PVC Version:

Sealing

material

Permitted media

FKM Oxidizing acids and substances, salt solution

EPDM Alkalis, alkaline washing and bleaching lyes

Brass Version:

Sealing

material

Permitted media

NBR Neutral media, technical vacuum

FKM Per-solutions, hot oils without additives, diesel

and heating oil without additives, detergent

solution,

technical vacuum

EPDM Oil and grease-free liquids, cold and hot water,

technical vacuum

4.3 Conformity

In accordance with the EU Declaration of conformity, Type 0131 is

compliant with the EU Directives.

4.4 Standards

The applied standards, which verify conformity with the EU Direc-

tives, can be found on the EU-Type Examination Certicate and / or

the EU Declaration of Conformity.

english

4.5 Type label

Type

Circuit function

Orice

Sealing material

Body material

Id. Number

Manufacturer code

Voltage, Frequency,

Power consumption

Connection thread, Operating

pressure

0131 A 10,0 FKM PV

Made in Germany

00050443 W12MN

230V 50 Hz 16 W

D16 P

N 0

- 3 bar

5INSTALLATION

5.1 Safety instructions

DANGER!

Risk of injury from high pressure in the equipment!

▶Before loosening the pipes and valves, turn o the pressure and

vent the lines.

Risk of injury due to electrical shock!

▶Before reaching into the device or the equipment, switch o the

power supply and secure to prevent reactivation.

▶Observe applicable accident prevention and safety regulations

for electrical equipment.

WARNING!

Risk of injury from improper installation!

▶Installation may be carried out by authorized technicians only

and with the appropriate tools.

Risk of injury from unintentional activation of the system and an

uncontrolled restart!

▶Secure system from unintentional activation.

▶Following assembly, ensure a controlled restart.

english

5.2 Before installation

Installation position: any, actuator preferably upwards.

Procedure:

→Check pipelines for dirt and clean.

→Install a dirt lter before the valve inlet (≤500 µm).

5.3 Installation

Insert O-ring

Insert

Tighten union nut - evenly by

hand only

NOTE!

Caution risk of breakage!

•Do not use the coil as a lever arm.

→Body with welded sleeve: Use PVDF.

→Body with PVC bonded sleeves: Use Tangit special adhesive.

Valve body must not be installed under tension.

Sealing material must not get into the device.

→Observe direction of ow:

The arrow or letter on the body indicates the direction of ow:

from P →A (NC) or from P →B (NO).

english

Autres manuels pour 0131

Table des matières

Autres manuels Burkert Unité de contrôle

Burkert

Burkert 8691 Manuel utilisateur

Burkert

Burkert Type 2000 Manuel utilisateur

Burkert

Burkert 2065 Manuel utilisateur

Burkert

Burkert 2030 Manuel utilisateur

Burkert

Burkert 2100 series Manuel utilisateur

Burkert

Burkert 2702 Manuel utilisateur

Burkert

Burkert 6106 Manuel utilisateur

Burkert

Burkert 2080 Manuel utilisateur

Burkert

Burkert 6038 Manuel utilisateur

Burkert

Burkert 8653 AirLINE Field Manuel utilisateur

Burkert

Burkert 0290 Manuel utilisateur

Burkert

Burkert 3281 Manuel utilisateur

Burkert

Burkert 2030 Manuel utilisateur

Burkert

Burkert 2103 Series Manuel utilisateur

Burkert

Burkert 6724 Series Manuel utilisateur

Burkert

Burkert 2035 Manuel utilisateur

Burkert

Burkert 2300 Series Manuel utilisateur

Burkert

Burkert 8840 Manuel utilisateur

Burkert

Burkert 3320 Manuel utilisateur

Burkert

Burkert 6407 Manuel utilisateur

Burkert

Burkert 2103 Series Manuel utilisateur

Burkert

Burkert 3320 Manuel utilisateur

Burkert

Burkert 6144 Manuel utilisateur

Burkert

Burkert 6144 Manuel utilisateur

Manuels Unité de contrôle populaires d'autres marques

Festo

Festo Compact Performance CP-FB6-E Manuel de la liste des pièces

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuel utilisateur

JS Automation

JS Automation MPC3034A Manuel utilisateur

JAUDT

JAUDT SW GII 6406 Series Guide rapide

Spektrum

Spektrum Air Module System Manuel utilisateur

BOC Edwards

BOC Edwards Q Series Manuel utilisateur

KHADAS

KHADAS BT Magic Manuel utilisateur

Etherma

Etherma eNEXHO-IL Manuel utilisateur

PMFoundations

PMFoundations Attenuverter Manuel utilisateur

GEA

GEA VARIVENT Manuel utilisateur

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuel utilisateur

Altronix

Altronix LINQ8PD Instructions de montage

Eaton

Eaton Powerware Series Manuel utilisateur

WAGO

WAGO 750-407/040-000 Manuel utilisateur

Sony

Sony CCU-590 Manuel utilisateur

Graco

Graco 25D614 Manuel utilisateur

Task Force Tips

Task Force Tips YE-RF-900 Manuel de programmation

Shini

Shini SPV-U Series Manuel utilisateur
