1 THE OPERATING INSTRUCTIONS

The operating instructions contain important information.

▶Read the instructions carefully and follow the safety instruc-

tions in particular.

▶Keep the instructions in a location where they are available to

every user.

▶The liability and warranty for Type 0283, 0293 are void if the

operating instructions are not followed.

1.1 Symbols

▶Designates instructions for risk prevention.

→Designates a procedure which you must carry out.

Warning of injuries:

DANGER!

Immediate danger! Serious or fatal injuries.

WARNING!

Possible danger! Serious or fatal injuries.

CAUTION!

Danger! Moderate or minor injuries.

Warning of damage:

NOTE!

Content

1 The operating instructions.........................................................2

2 Intended use.............................................................................3

3 Basic Safety Instructions...........................................................3

4 Technical Data ..........................................................................4

5 Installation ................................................................................8

6 Maintenance, Troubleshooting ................................................10

7 Spare parts.............................................................................11

8 Transport, Storage, Disposal ...................................................12

english

2 INTENDED USE

The solenoid valve Type 0283 and Type 0293 is designed for

dosing, blocking, lling and aerating media.

Type 0293 is classied in accordance with DIN EN 161 Group2,

Class B for gas.

▶Use according to the permitted data, operating conditions

and conditions of use specied in the contract documents

and operating instructions. These are described in the chapter

entitled “Technical Data”.

▶Provided the cable plug is connected and installed correctly,

e.g. Bürkert Type 2508, the device satises degree of protec-

tion IP65 in accordance with DIN EN 60529 / IEC 60529.

▶Do not physically stress the device (e.g. by placing objects on it,

using it as a screwing aid, standing on it or using it as a lever arm).

▶The device may be used only in conjunction with third-party devices

and components recommended and authorised by Bürkert.

▶Use device only when in perfect condition and always ensure

proper storage, transportation, installation and operation.

▶Use the device only as intended.

2.1 Denitions of terms

The term "device" always refers to the solenoid valve Type 0283 or

Type 0293.

3 BASIC SAFETY INSTRUCTIONS

These safety instructions do not make allowance for any

contingencies and events which may arise during the installation,

operation and maintenance of the devices.

Danger – high pressure.

▶Before loosening the lines and valves, turn o the pressure

and vent the lines.

Risk of electric shock.

▶Before reaching into the device, switch o the power supply

and secure to prevent reactivation!

▶Observe applicable accident prevention and safety regulations

for electrical equipment!

Risk of burns/Risk of re if used continuously through hot

device surface.

▶Keep the device away from highly ammable substances and

media and do not touch with bare hands.

english

Risk of injury due to malfunction of valves with alternating

current (AC).

Sticking core causes coil to overheat, resulting in a malfunction.

▶Monitor process to ensure function is in perfect working

order!

General hazardous situations.

To prevent injury, ensure that:

▶The system cannot be activated unintentionally.

▶Installation and repair work may be carried out by authorized

technicians only and with the appropriate tools.

▶After an interruption in the power supply or pneumatic supply,

ensure that the process is restarted in a dened or controlled

manner.

▶The device may be operated only when in perfect condition

and in consideration of the operating instructions.

▶The general rules of technology apply to application planning

and operation of the device.

▶Do not make any modications to the device. Do not paint the

housing parts or screws.

4 TECHNICAL DATA

4.1 Conformity

Type 0283 and Type 0293 conforms with the EU Directives

according to the EU Declaration of Conformity (if applicable).

4.2 Standards

The applied standards, which verify conformity with the EU Direc-

tives, can be found on the EU-Type Examination Certicate and /

or the EU Declaration of Conformity (if applicable).

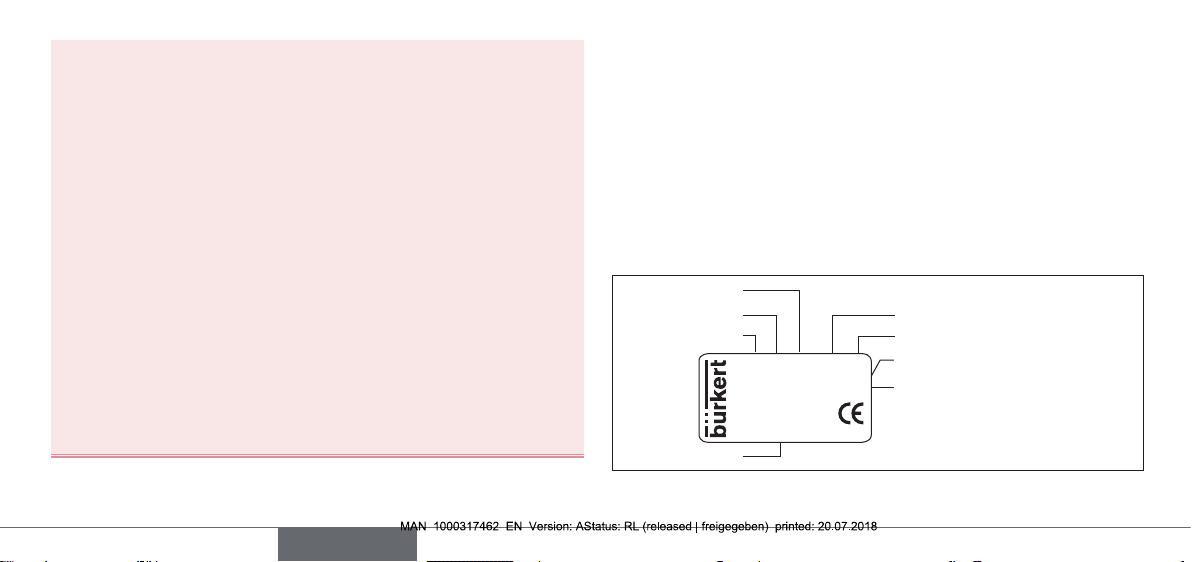

4.3 Type label (Examples)

Type

Circuit function

Orice

Seal material

Body material

Order number

Voltage, frequency, power

consumption

Port connection, pressure range

Made in Germany

0283 A 20.0 EPDM MS

G3/4 PN0-0,3bar

220-230V50Hz 16W

00053523 W16MP

Fig. 1: Type label solenoid valve type 0283 (Example)

english

Type

Circuit function

Orice

Seal material

Body material

Order number

Classication, Temperature range

*) see chapter “4.4 Degree of protection”

EC Examination Certicate,

Voltage, power consumption,

Degree of protection*

Port connection, pressure range

0293 A 25.0 NBR MS

Made in Germany

00279480 W16MP

230V AC/DC 100/9W IP65

Ventilklasse B -15-60°C

G1 P

N0- 0,15 bar

0085 18

Fig. 2: Type label solenoid valve type 0293 (Example)

4.4 Degree of protection

Provided the cable plug is connected and installed correctly

according to DIN EN 175301-803 form A, e.g. Bürkert Type 2508,

the device satises degree of protection IP65 in accordance with

DIN EN 60529 / IEC 60529.

Type 0283 and type 0293: Cable plug e.g. Bürkert Type 2508

4.5 Operating conditions

The values indicated on the rating plate must be observed

during operation of the device.

Circuit function of the direct-acting 2/2-way solenoid valve:

(NC)

2 (A)

1 (P)

Closed in rest position by spring force.

Permitted media

Type Seal

material Permitted media

0283 NBR Neutral media, compressed air, water,

hydraulic oil

FKM Per solutions, hot oils

EPDM Oil and grease-free media, e.g. hot water

0293 NBR Valve group 2, Class B:

Fuel gases of the 1st, 2nd and 3rd gas family

english

Permitted medium and ambient temperature

Type Seal

material Permitted media Permitted ambient

temperature

0283

NBR –10...+90 °C

max. 55 °CFKM 0...+100 °C

EPDM –30...+100 °C

0293 NBR –15...+80 °C –15...+60 °C

Service life

High switching frequency and high pressures reduce the service

life.

4.6 Electrical Data

Note the voltage and current type as specied on the rating

plate.

Connection: Type 0283 and type 0293:

DIN EN 175301-803 Form A

for cable plug Type 2508

Power supply: see type label

Voltage tolerance: ±10 %

Switching frequency: AC max. 150/min

Electrical operating conditions

With high-performance

electronics AC/DC

Without electronics

50 Hz, 60 Hz

Ambient

temperature (for

intermittent duty

see “Fig. 4”)

max. +70 °C max. +55 °C

english

Operating mode

(according to

DIN VDE 0580)

Long-term operation

Intermittent duty

(Determination of the per-

mitted operating param-

eters see

“Fig. 3” and “Fig. 4”)

Long-term

operation

Intermittent duty

Temperature

protection

switch

Device has a resettable

temperature protection

switch which switches the

device o if unacceptable

heating occurs during

intermittent duty. Switches

on again only after cooling

down and after a new

switching request.

without

Tab. 1: Electrical operating conditions

Intermittent operation for version with high-performance

electronics AC/DC

Characteristic values (according to DIN VDE 0580)

tSD – Cycle time

tED – Duty cycle

tSP – De-energized pause

ED – Relative duty cycle

SH – Switching frequency

tED

tSP

tSD

tSD [s] = 60

SH 1

min

tED [s] =

tSP [s] = tSD [s] – tED [s]

ED[%]

100

tSD

[s]

Fig. 3: Characteristic values intermittent operation for version with high-

performance electronics AC/DC

english

Permitted operating parameters

100

30 40 50 60 70

Ambient temperature [°C]

Switching

frequency

6/min

10/min

15/min

Relative duty cycle [%]

Fig. 4: Relative duty cycle (ED) depending on switching frequency and

ambient temperature

5 INSTALLATION

5.1 Safety instructions

DANGER!

Risk of injury from high pressure in the system/device.

▶Before working on the system or device, switch o the pres-

sure and vent/drain lines.

Risk of injury due to electrical shock.

▶Before working on the system or device, switch o the power

supply and secure to prevent reactivation.

▶Observe applicable accident prevention and safety regulations

for electrical equipment.

WARNING!

Risk of injury from improper installation.

▶Installation may be carried out by authorized technicians only

and with the appropriate tools.

Risk of injury from unintentional activation of the system and

an uncontrolled restart.

▶Secure system from unintentional activation.

english

▶Following installation, ensure a controlled restart.

Risk of short-circuit or escape of media through leaking

screw joints.

▶Ensure seals are seated correctly.

▶Carefully screw together coil and device socket or valve and

pipelines.

5.2 Fluid installation

Follow the safety instructions under “5.1”.

Installation can be in any position, preferably actuator upright.

→Before installation, clean any possible dirt o the pipelines.

→For Type 0283 install a strainer (≤ 500 µm) upstream of the

valve inlet. Type 0293 DN20 already has the strainer integrated

in the valve.

→With type 0293 DN25, a strainer (<=500μm), e.g. our type

TFU001, which is accessible for maintenance work, must be

installed upstream of the valve in accordance with DIN EN 161

→Seal the pipe connection with PTFE tape.

Attention: The PTFE tape must not get into the device.

→Observe direction of ow (see “Fig. 3”).

NOTE!

Caution risk of breakage.

▶Do not use the coil as a lever arm.

→Hold the device with an open-end wrench on the housing and

screw into the pipeline.

Identication for ow

direction

Fig. 5: Identication of ow direction

english

5.3 Electrical installation

WARNING!

Danger of electrical shock if the protective conductor contact

between the coil and housing is missing.

▶Always connect protective conductor.

Follow the safety instructions under “5.1” and observe the

voltage and current type specications on the rating plate.

max. 1Nm

Seal

Authorized cable plug

e.g. Type 2508 or other suitable

cable plug in accordance with

DIN EN 175301-803 Form A

Fig. 6: Connection of the cable plug – example Type 0293

6 MAINTENANCE, TROUBLESHOOTING

DANGER!

Risk of injury from high pressure in the system/device.

▶Before working on the system or device, switch o the pres-

sure and vent/drain lines.

Risk of injury due to electrical shock.

▶Before working on the system or device, switch o the power

supply and secure to prevent reactivation.

▶Observe applicable accident prevention and safety regulations

for electrical equipment.

WARNING!

Risk of injury from improper maintenance.

▶Maintenance may be carried out by authorized technicians only

and with the appropriate tools!

Risk of injury from unintentional activation of the system and

an uncontrolled restart.

▶Secure system from unintentional activation.

▶Following maintenance, ensure a controlled restart.

english

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Burkert Unité de contrôle

Burkert

Burkert 2030 Manuel utilisateur

Burkert

Burkert 8640 Manuel utilisateur

Burkert

Burkert 2030 Manuel utilisateur

Burkert

Burkert AirLINE 8652 Manuel utilisateur

Burkert

Burkert 3320 Manuel utilisateur

Burkert

Burkert 6026 Manuel utilisateur

Burkert

Burkert 3323 Manuel utilisateur

Burkert

Burkert WhisperValve 6724 Manuel utilisateur

Burkert

Burkert 3281 Manuel utilisateur

Burkert

Burkert 2031 Manuel utilisateur

Burkert

Burkert 5470 Manuel utilisateur

Burkert

Burkert 2103 Series Manuel utilisateur

Burkert

Burkert 6104 Manuel utilisateur

Burkert

Burkert 2712 Series Manuel utilisateur

Burkert

Burkert 6228 Manuel utilisateur

Burkert

Burkert 8840 Manuel utilisateur

Burkert

Burkert 1094 Standard Manuel utilisateur

Burkert

Burkert 5406 Manuel utilisateur

Burkert

Burkert 3233 Manuel utilisateur

Burkert

Burkert 6027 Manuel utilisateur

Burkert

Burkert 3281 Manuel utilisateur

Burkert

Burkert 0641 Manuel utilisateur

Burkert

Burkert 2730 Series Manuel utilisateur

Burkert

Burkert 2065 Manuel utilisateur

Manuels Unité de contrôle populaires d'autres marques

Festo

Festo Compact Performance CP-FB6-E Manuel de la liste des pièces

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuel utilisateur

JS Automation

JS Automation MPC3034A Manuel utilisateur

JAUDT

JAUDT SW GII 6406 Series Guide rapide

Spektrum

Spektrum Air Module System Manuel utilisateur

BOC Edwards

BOC Edwards Q Series Manuel utilisateur

KHADAS

KHADAS BT Magic Manuel utilisateur

Etherma

Etherma eNEXHO-IL Manuel utilisateur

PMFoundations

PMFoundations Attenuverter Manuel utilisateur

GEA

GEA VARIVENT Manuel utilisateur

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuel utilisateur

Altronix

Altronix LINQ8PD Instructions de montage

Eaton

Eaton Powerware Series Manuel utilisateur

WAGO

WAGO 750-407/040-000 Manuel utilisateur

Sony

Sony CCU-590 Manuel utilisateur

Graco

Graco 25D614 Manuel utilisateur

Task Force Tips

Task Force Tips YE-RF-900 Manuel de programmation

Shini

Shini SPV-U Series Manuel utilisateur
