Brickcom VD-E200Af series Fiche technique

Easy Installation Guide

Megapixel Day & Night

Vandal Dome Network Camera

VD-E200Af

VD-E200Nf

English

Package Contents

Please check to make sure the product package contains all the accessories

listed below.

A. Network Camera

B. Product CD

C. Allen Key

D. Screw Bag

E. Easy Installation Guide

F. Alignment Sticker

Hardware Installation

WARNING: Do not mount the camera on a soft material. The camera

may fall and be damaged.

Step 1. Camera Installation

A. Use the enclosed Allen key to detach the dome cover from the

camera device.

B. Hammer the three plastic anchors which are provided in the product

package into the three location holes. The user needs the three

screws which are included in the product package and a screwdriver.

Mount the camera on the wall or ceiling and position the three screw

slots over the plastic anchors. Insert the screws into the holes and

use the screwdriver to tighten the screws clockwise until they are

secure.

Step 2. Camera Connection

The camera is DC12V and PoE compliant, so there are two options for

connecting the camera to a power and Ethernet source. The camera can

either be connected to a PoE-enabled switch or a non-PoE switch.

A. If using a PoE-enabled switch:

Use an Ethernet cable to connect the camera to the PoE-enabled switch.

B. If using a non-PoE switch:

i. Use an RJ-45 cable to connect the camera to a PoE Injector.

ii. Use an RJ-45 cable to connect the PoE Injector to the non-PoE

switch.

iii. Use a standard power cable to connect the PoE Injector to a

power outlet.

C. If using the DC12V power Supply. The RJ45 cable will be for data

transmission.

Step 3. Complete the Installation

Place the dome cover back on the camera device using the Allen Key.

Software Installation

Step 1. Install the EasyConfig Software

Insert the CD into the CD-ROM, and follow the instructions of the

InstallShield Wizard to finish installation.

Step 2. Launch the EasyConfig Software

Launch the EasyConfig software, and click on the camera from the survey

list to connect.

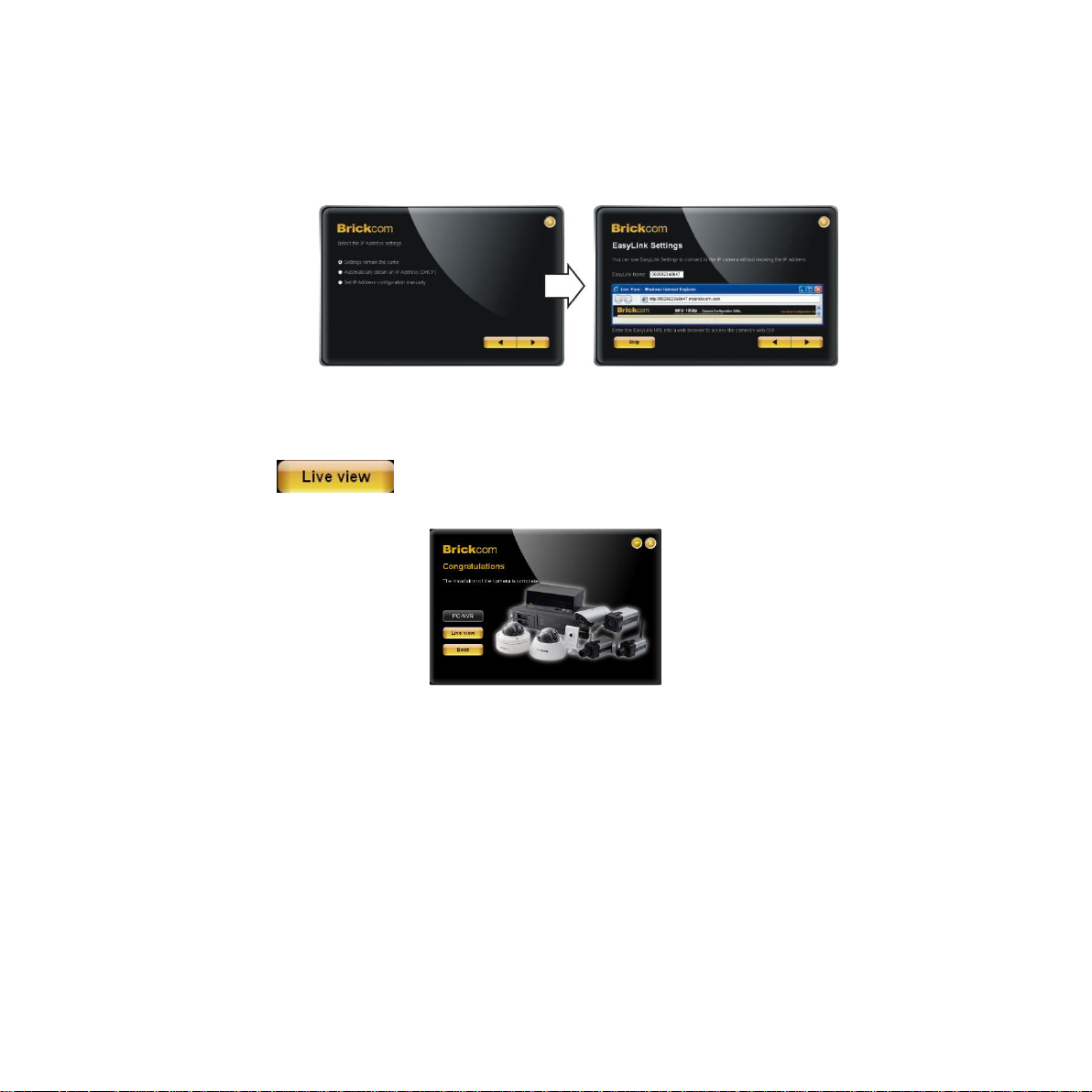

Follow the EasyConfig software to configure the camera’s IP address and

EasyLinkTM settings.

Step 3. Installation Completed

Click to view the live video feed of the network camera.
