Brickcom MB-500A Series Manuel utilisateur

Megapixel Mini Box Network Camera

MB-500A Series

User’s Manual

Quality Service Group

Product name:

Network Camera (MB-500A series)

Release Date:

2012/5

Manual Revision:

V1.0

Web site:

www.brickcom.com

Email:

support@brickcom.com

info@brickcom.com

Table of Contents

Before You Use This Product.......................................................................................... 0

FCC Warning.................................................................................................................. 0

Regulatory Information.................................................................................................... 1

Product Comparison....................................................................................................... 0

Package Contents........................................................................................................... 0

Cube Network Camera Overview.................................................................................... 2

Device Appearance Description...................................................................................... 4

LED Behavior.................................................................................................................. 5

Installation....................................................................................................................... 7

System Requirements.............................................................................................. 7

Camera Connection ................................................................................................. 8

Basic Connection............................................................................................... 8

Software Installation................................................................................................. 9

EasyConfig ...................................................................................................... 16

Accessing the Network Camera.................................................................................... 25

Check Network Settings......................................................................................... 25

Add Password to Prevent Unauthorized Access .................................................... 25

Before You Use This Product

In many countries, there are laws prohibiting or restricting the use of surveillance

devices. This Network Camera is a high-performance, web-ready camera which can be

part of a flexible surveillance system. It is the user’s responsibility to ensure that the

operation of this camera is legal before installing this unit for its intended use.

Upon opening the product’s package, verify that all the accessories listed on the

“Package Contents” are included. Before installing the Network Camera, read the

warnings in the “Quick Installation Guide” to avoid misuse. When installing the

Network Camera, carefully read and follow the instructions in the “Installation” chapters

to avoid damages due to faulty assembly or installation.

FCC Warning

This device complies with Part 15 of FCC rules.

Operation is subject to the following two conditions;

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference that may

cause undesired operations.

Regulatory Information

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there is

no guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference by one of the

following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

- Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for

compliance could void the user's authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference, and (2) this device must accept

any interference received, including interference that may cause undesired operation.

IMPORTANT NOTE:

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled

environment. This equipment should be installed and operated with minimum distance 20cm

between the radiator & your body.

This transmitter must not be co-located or operating in conjunction with any other antenna or

transmitter.

The availability of some specific channels and/or operational frequency bands are country

dependent and are firmware programmed at the factory to match the intended destination.

The firmware setting is not accessible by the end user.

Product Comparison

Model Name

Lesns

WiFi

PoE

USB port for 3G/ 4G

IR LED

DC Iris

MB-500A

Series

MB-500Ap

Board

Lens



WMB-500Ap

Board

Lens



MB-502Ap

Mount



WMB-502Ap

Mount



*This table compliant with MB-500A Series, MB-400A Series, MB-300A Series,

MB-200A Series, MB-130A Series.

Package Contents

Please check to make sure the product package contains all the accessories listed

below.

a. MB-500A Series

b. Product CD

c. Camera Stand

d. Easy Installation Guide

- 1 -

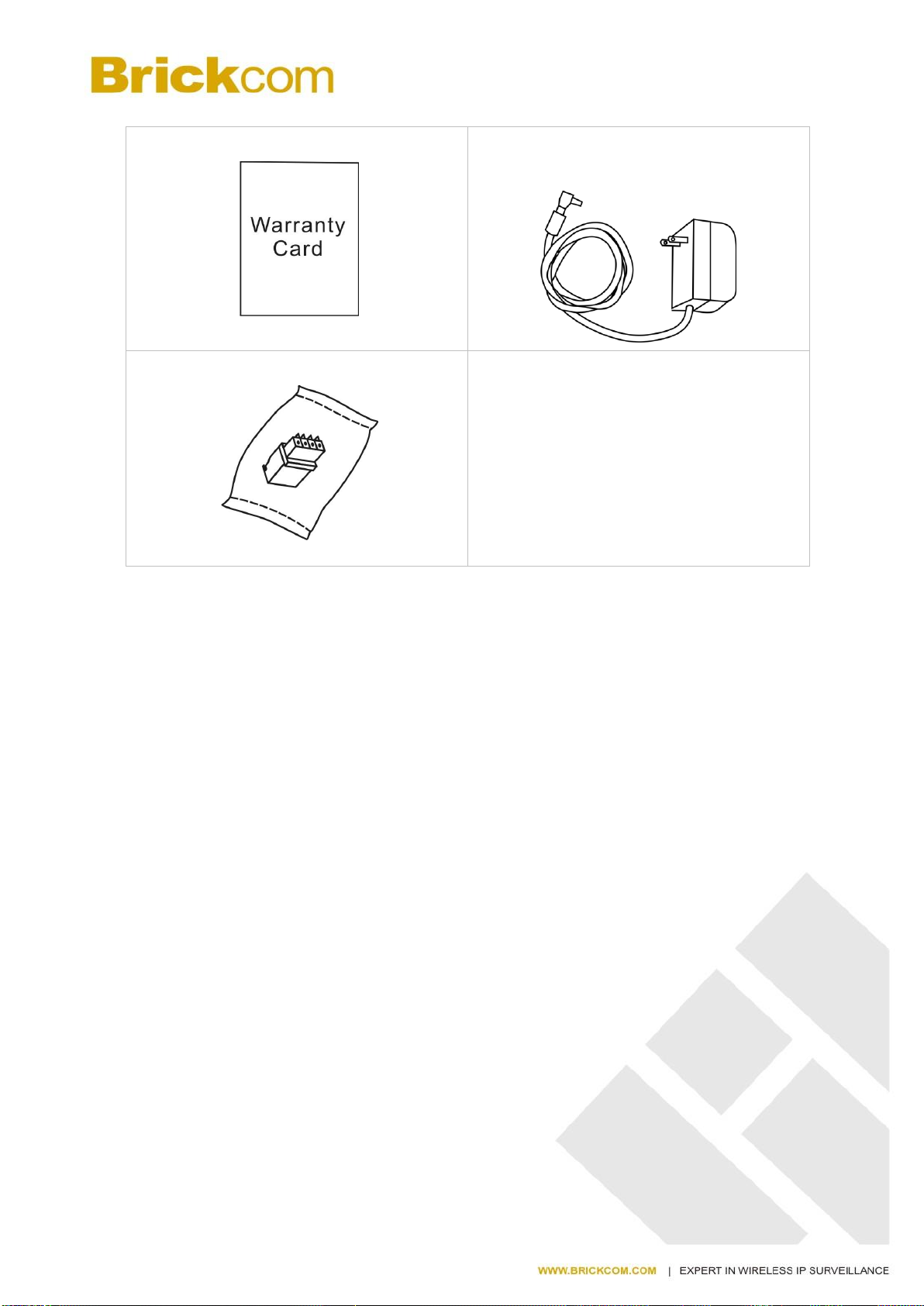

e. Warranty Card

f. Power Adapter

(Only for WMB-500Ap &WMB-502Ap)

g. Terminal I/O Connector Block

- 2 -

Mini Box Network Camera Overview

The compact Brickcom MB-500A series Mini Box network series offers a high quality, video

surveillance solution for residences and small businesses. Unlike a general webcam, this

camera series is a standalone surveillance system that does not need to be connected to a

computer. EasyLinkTM is a feature of the MB-500A series camera which allows for users to

simply plug in the camera to any home or small business network and play the video.

This camera series offers a user-friendly and unique design which allows anyone without a

technical background to use it. It features live video feed and two-way audio which can be

used over a local area network (LAN), through any internet browser, or via any 3G mobile

device. The wireless capability makes it easy to mount on any surface. The MB-500A

series features many cutting edge functions and its fashionable, streamline design make it the

perfect additional for any home or office.

Because of its many advanced features, the MB-500A series has many versatile applications.

Users can easily monitor the safety of their family members, pets, office, valuables, and

property.

Small Office and Retail Surveillance –

Security systems for small offices can be expensive and difficult to install and maintain. With

the EasyConfig software, the MB-500A series can easily be installed and configured by

anyone without extensive technical knowledge. The video can be reviewed remotely so

business owners can monitor office safety and employee productivity at all times.

Elderly and Child Care –

A high concern for many people is the safety of elderly relatives and small children. Users can

use the MB-500A series camera to ensure the safety of their loved ones by use of the live

view and intercom functions.

Pet Monitor –

The motion detection feature can be used to create forbidden areas in the home which the pet

should not enter when the owner is away. If the camera records the pet entering the region,

a recorded message can be programmed to play and the owner will be notified via email or

MMS.

- 3 -

- 4 -

Device Appearance Description

1. NOTE - The WPS and Privacy buttons must first be enabled through the web GUI in

order to work.

2. (*) These are optional features. Please refer to the Product List for the full list of optional

features available for the product.

Adjustable focal Lens

Light Sensor

Illumination LED

(MB-500Ap/WMB-500Ap)

Built-in Microphone

Speaker

Privacy LED

WPS LED (*)

FW Upgrade LED

Wireless LED (*)

Ethernet LED

Power LED

Ethernet RJ45 Socket

Power Connector

DIDO Terminal I/O Connector

Reset Button

WPS Button (*)

Privacy Button

Micro SD/SDHC slot

USB Port for 3G/4G

*WMB-500Ap / WMB-502Ap*
