Brickcom CB-100A Series Manuel utilisateur

Megapixel (PoE) Cube Network Camera

CB-100A/CB-101A/CB-102A Series

Quick Installation Guide

Quality Service Group

Read Before You Use

1. Power off the camera device

immediately if it starts smoking or

smells unusual.

2. Power off the camera device

immediately if the camera is exposed to

rain or liquid.

3. Do not set the camera device near any

heat sources. (Ex: television and oven)

4. Keep the camera device away from

direct sunlight.

5. Do not set the camera device over the

specific operating temperature.

6. Do not set the camera device in any wet

and humid environments.

7. Do not set the camera device on

unsteady surfaces.

8. Do not attempt to dismantle the camera

device.

9. Do not drop or hit the camera device.

10. Do not use the camera device when

there is lightning.

1. Check Package Contents

a. Network Camera

CB-100A/CB-101A CB-102A

b. Product CD

c. Camera Stand

CB-100A/CB-101A CB-102A

d. Warranty Card

e. Terminal I/O Connector Block

(CB-101A/CB-102A)

f. Easy Installation Guide

g. 1.5m White Flat RJ-45 cable

(CB-100A)

h. Power Adapter(CB-100A)

2. Device Description

<CB-100A/CB-101A>

Adjustable focal Lens

Built-in

Microphone

PIR(*)

Illumination LED(*)

Speaker(*)

<CB-102A>

Reset Button

Terminal I/O Connector

Ethernet RJ45

10/100 Socket

Power Connector

Reset Button

NOTE: (*) These are optional features. Please refer to the Product List for the

full list of optional features available for the product.

3. Connecting the CS-Mount Lens to CB-102A

1. Connect the CS-mount lens to the camera by turning it clockwise onto the

camera mount until it stops.

2. Adjust the focus controller to get the best resolution.

Micro SD slot(*)

Privacy button(*)

WPS button

(WCB-100A Only)

Power LED

WPS LED (WCB-100A)

Firmware upgrade LED

(CB-100A/CB-101A/CB-102A)

Status LED

Internet LED

Privacy LED

4. Camera Connection

<CB-100A>

Basic Connection

1. Connect the supplied power cable from the camera to the power outlet.

2. Connect the camera to a switch via Ethernet cable.

<CB-101A/CB-102A>

1 Terminal I/O Connector Block Connection

1.1 The supplied terminal I/O connector block can be used to connect

external devices, such as sensors and alarms to the camera. Use

the diagram above to attach the external devices to the connector

block. Attach the connector block to the terminal connector on the

camera.

2 Basic Connection (Without PoE)

2.1 Connect the camera to a switch using a standard Ethernet cable.

2.2 Connect the power adapter from the camera to a power outlet.

Note: DC12V 1A power adapter is required.

3 Power over Ethernet (PoE) Connection

3.1 The CB-101A is PoE compliant, so there are two options for

connecting the camera to a power and Ethernet source. The

camera can either be connected to a PoE-enabled switch or a

non-PoE switch.

A. If using a PoE-enabled switch:

1. Use a single Ethernet cable to connect the camera to the

PoE-enabled switch.

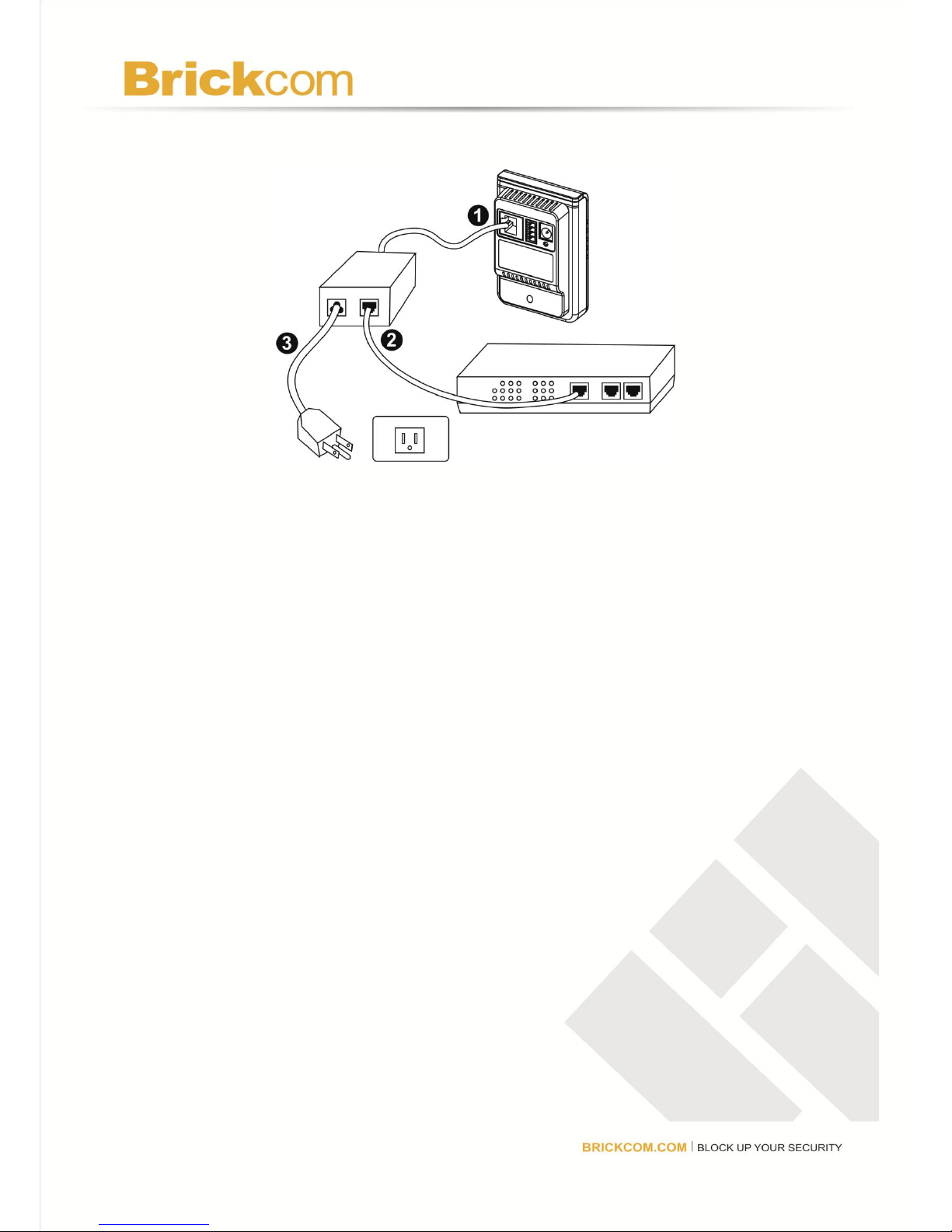

B. If using a non-PoE switch:

1. Use a standard Ethernet cable to connect the camera to a PoE Injector.

2. Use a standard Ethernet cable to connect the PoE Injector to the non-PoE

switch.

3. Use a standard power cable to connect the PoE Injector to a power outlet.

5. Setup the Network Camera

1. Insert the Installation CD into the CD-ROM driver. Run Auto-Run Tool

directly from the CD-ROM to start the installation. When installing the

Brickcom software kit for the first time, select a desired language for the

interface. The available languages are listed in the scroll box. Click

<Install> and follow the steps to install the EasyConfig wizard on the

desired computer.

Please follow the instruction of the InstallShield Wizard to finish the

Brickcom Software Kit installation.
