Brickcom FB-100A Series Manuel utilisateur

Megapixel Day & Night

Fixed Box Network Camera

FB-100A Series

Quick Installation Guide

Quality Service Group

Read Before You Use

1. Power off the camera device

immediately if it starts smoking or

smells unusual.

2. Power off the camera device

immediately if the camera is

exposed to rain or liquid.

3. Do not set the camera device near

any heat sources. (Ex: television and

oven)

4. Keep the camera device away from

direct sunlight.

5. Do not set the camera device over

the specific operating temperature.

6. Do not set the camera device in any

wet and humid environments.

7. Do not set the camera device on

unsteady surfaces.

8. Do not attempt to dismantle the

camera device.

9. Do not drop or hit the camera device.

10. Do not use the camera device when

there is lightning.

1. Check Package Contents

a. FB-100A

b. CS mount Lens (Optional)

c. Product CD

d. Camera Stand

e. Warranty Card

f. Power Adapter

g. Detachable Antenna (WFB-100A)

h. Quick Guide

2. Device Description

Light Sensor

WPS LED

(WFB-100A Only)

Status LED

Built-in

Microphone

WPS Button

(WFB-100A Only)

Ethernet RJ45 10/100 Socket

(Link/Power LED embedded)Power Connector (AC24V in)

Power Connector

(DC12V in)

SD/SDHC

Card Slot

Reset Button

Microphone/Line

Audio Out

Detachable Antenna

(WFB-100A Only)

Auto Iris Connector

Extension I/O

Terminal Block

3. Optional for CS Mount Lens

<Vari-focal Lens with Manual Iris> --- CS Mount

<Vari-focal Lens with Auto Iris (DC Drive)> --- CS Mount

Zoom Controller

Focus Controller

Zoom Controller

Focus Controller

Iris Controller

4. Connecting the CS-Mount Lens to the Camera

<Vari-focal Lens with Manual Iris> --- Optional Lens

1. Connect the CS-mount lens to the camera by turning it clockwise onto the

camera mount until it stops.

2. If necessary, adjust the iris controller, focus controller, and zoom controller to

get the best resolution.

To adjust the lens:

1. Adjust the iris ring controller to control the amount of light coming through

the lens. The more the iris is opened, the brighter the scene will be.

2. The zoom controller can be manually adjusted to control the zoom factor

on the camera. Users can create a tighter or wider view of the site being

recorded.

3. Adjust the focus controller to control the focus range of the lens.

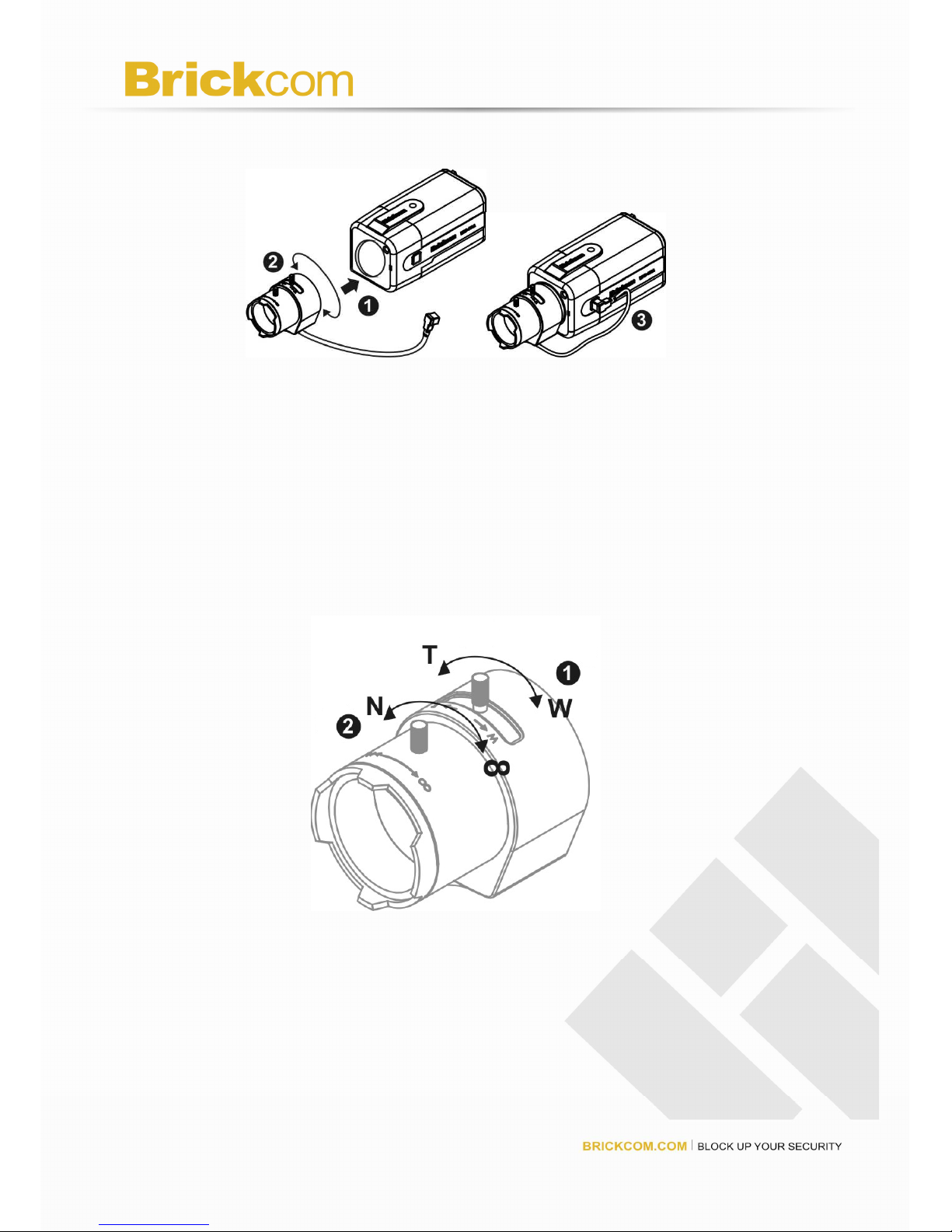

<Vari-focal Lens with Auto Iris> --- Optional Lens

1. Connect the CS-mount lens to the camera by turning it clockwise onto the

camera mount until it stops.

2. If necessary, adjust the iris controller, focus controller, and zoom controller to

get the best resolution.

3. Connect the lens cable plug (DC Iris control cable) to the camera side

connector.

To adjust the lens:

1. The zoom controller can be manually adjusted to control the zoom factor on the

camera. Users can create a tighter or wider view of the site being recorded.

2. Adjust the focus controller to control the focus range of the lens.

*For further information of vari-focal lens with auto iris, please refer to the supplied

lens’ instruction manual.

5. System Requirements

Operating System:

Microsoft Windows XP Home Edition SP2

Microsoft Windows XP Professional SP2

Computer:

IBM PC/AT Compatible

CPU:

Pentium 3GHz or faster

Memory:

1024 MB or more

Monitor:

1024 x 768 pixels or more, 24-bit True color or better

Network Interface:

10/100Mbps Network interface card must be installed

Web Browser:

Microsoft Internet Explorer 6.0 SP2 or higher

Adobe Reader:

Adobe Reader 8.0 or higher

Audio:

The audio function will not work if a sound card is not installed in the PC. Audio

may be interrupted depending on network traffic.

6. Camera Connection

Basic Connection (Without PoE)

1. To attach external devices, such as sensors and alarms, connect them to the

extension I/O terminal block.

2. Connect the camera to a switch using an Ethernet cable.

3. Connect the supplied power cable to the camera and plug it into a power

outlet.
