BestScope BS-3035 Series Manuel utilisateur

BS-3035 Series

Stereo Zoom Microscope

Instruction Manual

To Ensure safety and obtain optimum performance and familiarize yourself with the

use of this microscope, we recommend you read this manual before operating the

microscope. Retain this instruction in an easily accessible place near the microscope

for further reference.

BestScope International Limited

-1-

Contents

I. Structure and Characteristic................................................3

II. Main Technical Parameters............................................... 5

III. Configuration...................................................................6

IV. Assemblage...................................................................... 7

V. Operation...........................................................................9

VI. Assemblage and Usage of the Attachments................... 11

VII. Troubleshooting............................................................13

BestScope International Limited

-2-

This instruction manual is for BS-3035 Series Zoom Stereo Microscope, Please read

the instruction manual carefully before using, Proper modification can be made

without notice.

● Please contact manufacturer if something unclear or incorrect is found.

● The product you purchase may not include all the things mentioned in the manual.

● Please operate the instrument as the instruction manual.

Safety problems have been fully considered when design, users may get hurt or

instrument may get damaged if improper operations are taken. For your safety, please

read the instructions carefully before using.

Warning

1. Specified use

The instrument can be used for micro observation only.

2. Do not take the microscope apart

As it will be damaged. Please contact manufacturer if the microscope does not work.

3. Make sure the input voltage

The correct input voltage is marked on the power supply of the illumination.

Make sure the voltage in your position is right. Improper input voltage may cause

short circuit and fire. Please contact manufacturer if you have any questions.

4. Power supply cord

Please turn off the power supply and pull out the cord when replacing the bulbs.

5. Temperature for illumination

The temperature will be high if the bulb is lightened. Do not put fiber, papers and

inflammable things (eg. Gasoline, aether, methanol and ethanol) close to the bulb.

Attention

1. Be careful when replacing the bulbs

The bulb will be heated after using. Replace the bulb when it has been cooling enough

to avoid scald.

2. Check the illumination

Specific bulbs can be used. Bulbs with different specifications may cause damage to

the instrument. Refer to the manual for more information.

BestScope International Limited

-3-

I. Structure and Characteristic

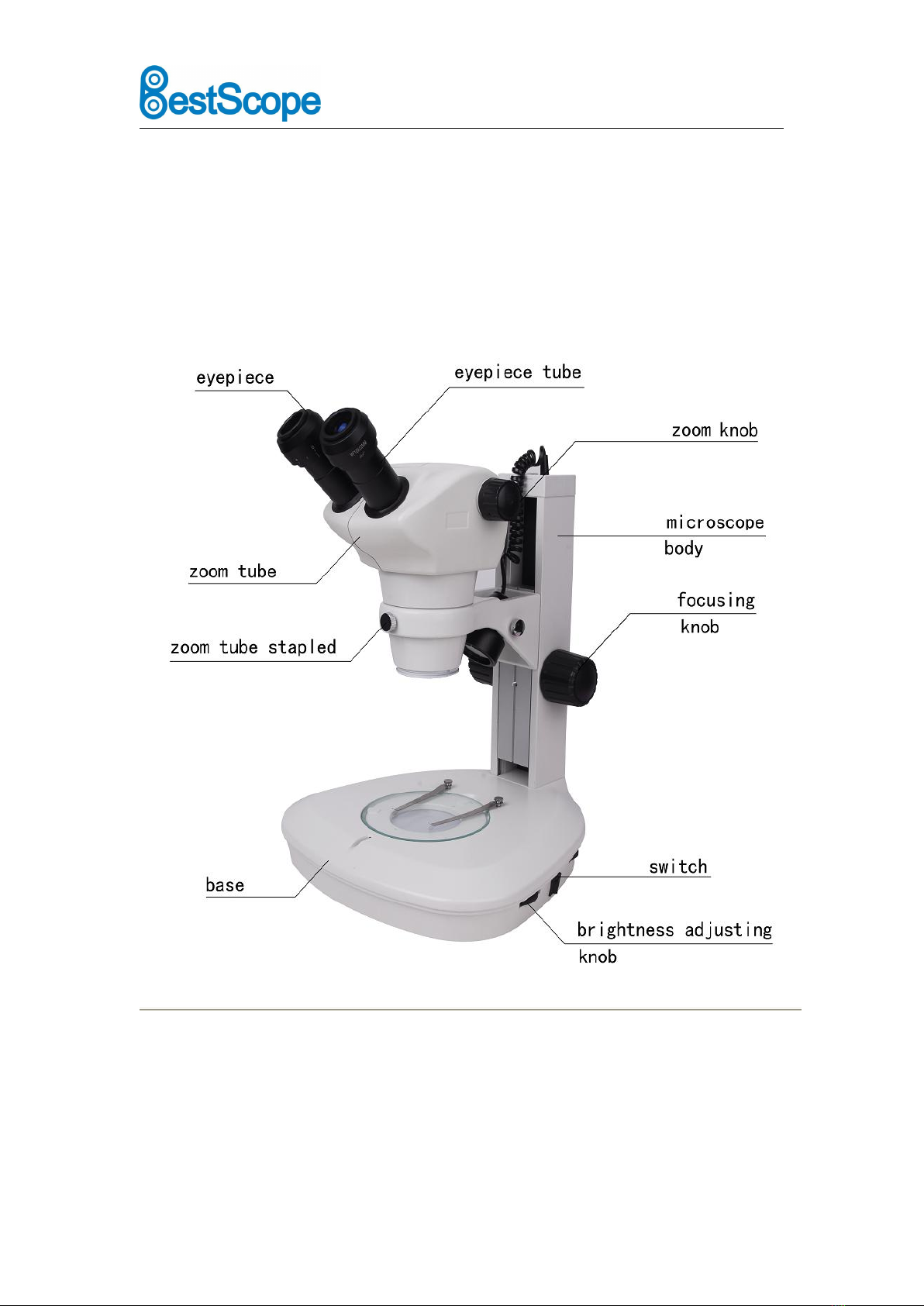

1. Structure Chart of the BS-3035 Series Stereo Zoom Microscope

BestScope International Limited

-4-

2. Characteristic

1) Destaticization: stand, zoom tube, 10×eyepiece and auxiliary objective are all equipped with

destaticization. It is very helpful for users to observe the specimen with static(such as

semiconductor chip). When use this function, please connect the microscope to the ground

through the joggle on the back of the stand.

2) Airproof Function: zoom tube and 10×eyepiece are both equipped with airproof function, and

this ensures the instrument work properly when the humidity around is high.

3) Ergonomics design can make users feel comfortable after long-time operation.

4) High definition, broad wide field of view, long-distance work. Various of attachments can be

added on this instrument. It can be widely used in such fields:

a. Can be used for training and education in school and research institute.

b. Can be used for routine inspection in medical institution.

BestScope International Limited

-5-

c. Can be used for assemblage, testing, measuring and quality control in industry, especially in

IT.

5) Kinds of optional attachments ( such as illumination, stand, eyepiece, objectives and etc.)

II. Main Technical Parameters

1. Technology Parameters

Zoom Ratio: 1:6.3

Magnification Range: 0.8×-5×

Interpupillary distance: 52mm-75mm

Technical parameters

Auxiliary

Objective

(mm)

Eyepiece

10X

15X

20X

30X

Magnification

View

Field

Magnification

View

Field

Magnification

View

Field

Magnification

View

Field

115

8-50X

Φ27.5-

Φ4.4

12-75X

Φ20-

Φ3.2

16-100X

Φ15.6

-Φ2.5

24-150x

Φ8.8-

Φ1.4

0.5X

211

4-25X

Φ55-

Φ8.8

6-37.5X

Φ40-

Φ6.4

8-50X

Φ31.2

-Φ5.0

12-75x

Φ17.6-

Φ2.8

43.5

16-100X

Φ13.8-

Φ2.2

24-150X

Φ10-

Φ1.6

32-200X

Φ7.8-

Φ1.3

48-300x

Φ4.4-

Φ0.7

BestScope International Limited

-6-

III. Configuration

BS-3035 Zoom Stereo Microscope Configuration ( Seeing the following table)

No.

Contents

Quantity

BS-3035 Zoom head

1 PCS for Each

10X Eyepiece

2 PCS

Instruction Manual & Dust Cover

1 PCS for Each

Microscope Stand(with or without illumination)

1 PC

Optional Accessories:

No.

Contents

15× Eyepiece

20× Eyepiece

30× Eyepiece

0.5×Auxiliary Objective

0.7×Auxiliary Objective

2×Auxiliary Objective

LED Circular Illumination(ring light)

Movable Stage

10X Division Eyepiece(eyepiece micrometer 0.1mm)

Stage Micrometer 0.1mm

Universal stand

Illumination ( Halogen )

0.4x reduce lense with C-mount for digital camera

DSLR Camera adapter (For Nikon/Canon DSLR cameras)

BestScope International Limited

-7-

IV. Assemblage

1. Assemblage

1) Assemblage of the Stage

Place the stand on a stable table, insert the stage into the base, and tighten the fixing screw with

wrench (small) attached at the back of the stand.

Note: The stage must be placed at plane table.

2) Lifting of the Focus Arm

The focus arm can be adjusted according to your special demands. Loosen the screw with the

wrench ( big ), and the arm will 55mm lower than before after re-mounting the focus arm.

Note: Before tightening the screw, make sure that the 2 pins on the arm fit into the grooves on the

vertical slider.

3) Mount the Zoom head

Tighten the fixing screw of the zoom tube slightly to fix the zoom head on the stand.

BestScope International Limited

-8-

Warning: Do not tighten the screw too tight as this will make damage to the instrument.

4) Mount the Eyepiece

Rotate the eyepiece to 0, and insert the eyepiece into the tube completely till it touches the end of

the tube.

Note: when inserting the 10x eyepiece, make sure to touch the end of tube.When inserting or

extracting the eyepiece, please hold the cap instead of the diopter ring.

5) Wrenches are put at the Back of the Stand.

6) Image Recording digital camera. To satisfy your special requirements, kinds of interface are

supplied for your choosing, and this will make your operation and observation more convenient.

a. Assemblage of 0.4x reduce lens and the digital camera

Take away the dust-cover of the trinocular, insert one end of the 0.4x reduce lens into the digital

camera and tighten it. Insert the other end into the trinocular port, adjust the CCD, and tighten it.

BestScope International Limited

-9-

b. Assemblage of the DSLR Camera Adapter and Digital SLR Camera

Take away the dust-cover, screw one end of the DSLR camera adapter into the DSLR camera.

Insert the other end of the camera adapter to the trinocular head, and tighten it. Adjust the camera,

and tighten it.

V. Operation

1. Preparation

1) Illumination

Insert the power supply source into the socket of the transmitted base, connect the power supply

source and turn on the switch. Adjust the brightness. It is not necessary to adjust the brightness to

the strongest as this will reduce the life of the bulb.
