Audiovox VBP500 Manuel utilisateur

VBP500

PORTABLE 5" LCD MONITOR & DVD PLAYER

Notice:

ThisProductincorporatescopyrightprotectiontechnologythatispro-

tectedbymethodclaimsof certain U.S. Patents and other intellectual

propertyrightsownedbyMacrovisionCorporationandotherrightsown-

ers.Use of thiscopyrightprotection technology mustbeauthorizedby

MacrovisionCorporation,andisintendedforhomeandotherlimitedview-

ingusesonlyunlessotherwiseauthorizedbyMacrovisionCorporation.

Reverseengineeringordisassemblyisprohibited.

AnLCDpaneland/or videomonitormaybeinstalled inamotorvehicle

and visible to the driver if the LCD panel or video monitor is used for

vehicleinformation,systemcontrol,rearorsideobservation ornaviga-

tion.If the LCD panel or video monitor is used for television reception,

videoorDVD play,theLCD panelorvideomonitormustbeinstalledso

thatthesefeatureswillonlyfunctionwhenthevehicleisin“park”orwhen

thevehicle’sparkingbrakeisapplied.

AnLCD panel or video monitor usedfor televisionreception, videoor

DVDplaythat operateswhen thevehicle isingearorwhentheparking

brake is not applied must be installed to the rear of the driver’s seat

where it will not be visible, directly or indirectly, to the operator of the

motorvehicle.

A. Introduction

Thankyoufor selecting the VBP500 portable DVD player ina bag.

The main features include a 5" Screen (4:3Aspect Ratio) Liquid

CrystalDisplay (LCD) monitor and a DVD player.Theunit applies

thelatest state of theart electronicsand is designed for usein ho-

tels,offices or yourhome.The unit is constructed toprovideyears

ofreliable,trouble-freeservice,andiscompact sothat youcantake

itwithyouanywhereandisdesignedforquickand easyinstallation.

Pleaseread theentireinstruction manualsuppliedwith thisproduct

priortooperation.Thedocumentationwillassistyouininstalling the

systemproperlytoobtainthebestequipmentperformance. Allmanu-

alsshould bestoredfor later use.

B. Cautions and Warnings

1. Placement

To prevent fire or electric shock, do not expose this appliance to

rainormoisture.Do not place the set on an unstablecart, stand,

tripod,bracketortabletopreventitfromfalling.Keeptheunitaway

fromstrongmagnets,heatsources,directsunlight,excessivedust.

Ifthe unit isbroughtdirectlyfrom a cold toawarmlocation, mois-

turemaycondenseinside theunit. Whenyou moveitfrom acold

to a warm location, wait for about one hour before operating the

unit,orremovethediscandleavetheunitturnedonuntilthemois-

ture evaporates.

2. Installation

Ensure that the VBP500 is installed in accordance with the in-

structionsandillustrationsprovidedinthismanual.

3. Object and Liquid

Donot pushobjectsofanykindintotheunit throughopenings;do

not spill or spray liquid of any kind on or in the system (this may

resultin a fire or electric shock). Do not place anything heavy on

theunit.To ensureproperventilationandproper operation,never

coverorblocktheslotsandopeningswithaclothorothermaterial.

4. Disassembly

Do not attempt to disassemble the cabinet. There is a risk of elec-

tric shock and/or exposure to Laser Radiation. Contact qualified

service personnel if your system is in need of repair.

5. Cleaning Unit

Whencleaning,makesurethesystem is unplugged from thepower

source. Do not use liquid cleaners or aerosol cleaners. Use a

cloth lightly dampened with water for cleaning the exterior of the

system only.

6. Disc

Do not use irregularly shaped discs such as heart or star-shaped

discs as they may cause the unit to malfunction. Do not stick pa-

per, tape or glue on the disc. Do not expose the disc to direct sun-

light or heat sources such as hot air ducts. Do not touch the sur-

face of disc. Handle the disc by its edge. Clean the disc by wiping

the disc from the center out with a cleaning cloth. Remove the disc

from the unit and store it in its case after playing. Some playback

operations of discs may be intentionally fixed by software produc-

ers. Since this unit plays discs according to the disc contents the

software producers designed, some playback features may not be

available. Also refer to the instructions supplied with the discs.

C. Contents

1. 1 x 5’’ LCD Monitor & DVD Player Combo

2. 1 x AC to DCAdapter

3. 1 x Remote Control w/Battery

4. 1 x Instruction Manual

5. 1 x Audio/Video Input Cable

6. 1 x Audio/Video output Cable

7. 1 x Power Adapter w/Built-In Wireless FM Modulator

8. 1 x Mounting Bag w/Straps

9. 1 x Carrying bag

10.1 xRechargable Battery Pack (Part Number VBB5058)

OPTIONAL:

Wireless IR headphones (Part Number IRHSCS)

D. Powering and installation

1. Powering the system indoors (Refer to Figure 1)

Plug one end of the AC to DC adapter into the DC 9V jack on the

rightside ofthe mainunit, thenplug theother endintothe 120V AC

power receptacle.

2. Powering the system in a car

Plug one end of the cigarette lighter adapter intothe DC 9V jackon

the unit, then plug the other end into the cigarette lighter socket.

Figure 1

3. Powering the system with optional rechargeable Battery

Please refer to L. * Rechargeable Battery Installation and Use

(Page 33 to page 35).

* Rechargable Battery Pack No. VBB5058 is OPTIONAL

E. Installation Prior to installation

Make sure that the unit is placed into the bag with the clear plastic

coveringaround DVD door, Load disc into the DVD compartmentand

then fasten the Velcro strap accross the top portion of the unit. If you

are installing the bag onto the seatback you will need to attach the

supplied Seat Standoff to the back of the mounting bag with the

Velcro bands to obtain the proper viewing angle as shown in Figure

Seat Standoff

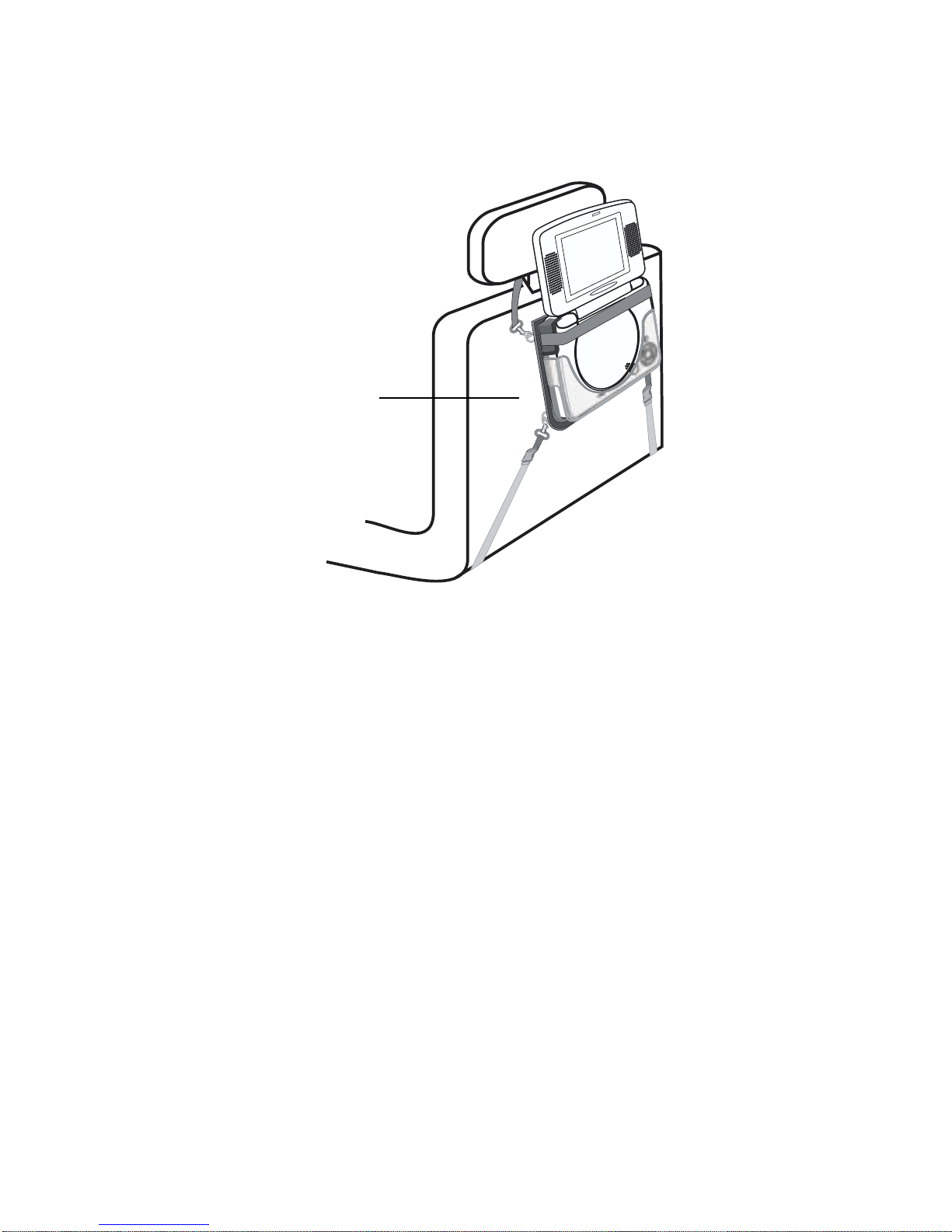

1.Installing the System onto the seat back in a car

(Refer to Figure 2)

Figure 2

1). Take one of the supplied straps from the carrier bag. Connect

the latch to one of the upper metal rings on the mounti ng bag.

Connect the “S” hook to the other upper metal ring and place the

loop over the headrest. Adjust the strap until the bag is firmly

secured.

2). Take another strap from the carrier bag, and connect the latch to

the lower metal ring on the left side of the bag. Attach the “S”

hookto the same ring after looping the straparound the seat rail.

Repeat this process for the right side. In some vehicles, it may

be necessary to attach the “S” connector to the rail directly, as it

may not be long enough to reach back to the ring.

3). Adjust the straps tightly so that the bag is secured.

2. Installing the system between the driver/passenger seat

(Refer to Figure 3)

Figure 3

1). Take one strap and connect the latch to the upper metal ring on

the left side of the bag. Attach the “S” hook to the same ring

after looping the strap around the headrest of the driver’s seat.

Repeat this process for the right side (Passenger Seat).

2). Take another strap and connect the latch to lower metal ring on

the left side of the bag. Attach the “S” hook to the same ring

after looping the strap around the driver’s seat rail. Repeat this

process for the right side. In some vehicles, it may be neces-

sary to attach the “S” connector directly to the rail, as it may not

be long enough to reach back to the ring.

3). Adjust the straps tightly so that the bag is secured.

F. Controls, Indicators, and Connectors

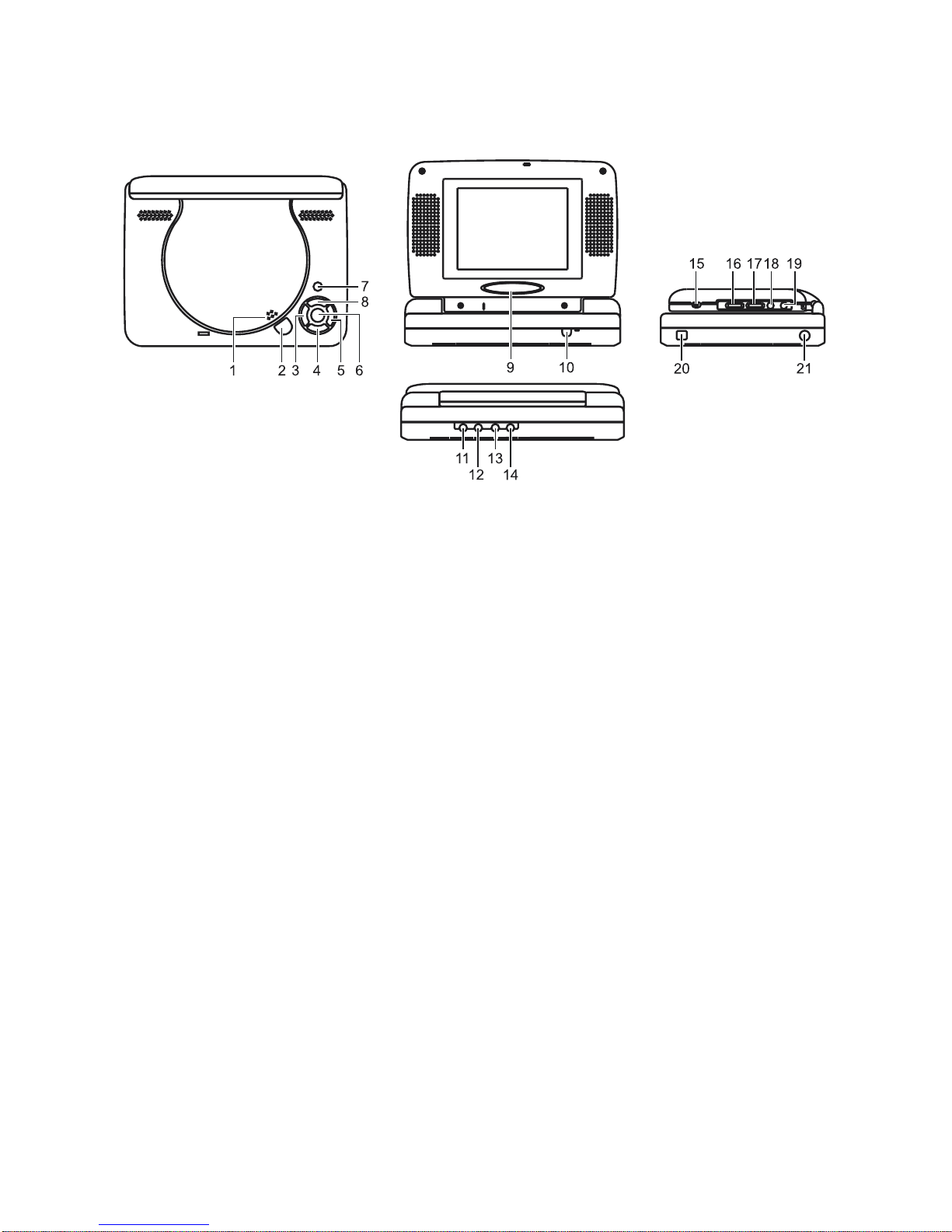

1. Unit View (Refer to Figure 4)

Figure 4

1) Press-to-Close Button on Disc cover

2) Open Button

3) Previous Button

4) Stop Button

5) Next Button

6) Play Button

7) Display Button

8) Pause Button

9) IR Transmitter

10) Remote Control Sensor

11) DVD Video Output Jack

12) DVDAudio Output Jack

13)Video Input Jack

14)AudioInput Jack

15) IR Switch

16) Brightness +/- Thumbwheel

17) Volume +/- Thumbwheel

18) Headphone Jack 1

19) Headphone Jack 2

20) Power On/Off Switch

21) DC 9V Input Jack

2. Remote Control View (Refer to Figure 5)

1) DISPLAY Button

2) ANGLE Button

3) SUBTITLE Button

4) AUDIO Button

5) ZOOM Button

6) UP/DOWN/LEFT/RIGHT/

ENTER Buttons

7) RETURN Button

8) A-B Button

9) FORWARD Button

10) REVERSE Button

11) SLOW Button

12) STOP Button

13) NUMERICKEYPAD

14) SETUP Button

15) MENU Button

16) REPEAT Button

17) PREVIOUS Button

18) NEXT Button

19) PLAY Button Figure5

20) PAUSE Button

G. Loading and Playing a Disc

a. After connecting power to the unit, slide the POWER ON/OFF on

the right side to ON, the DVD player’s POWER indicator lights.

b. Open the disc tray by pressing OPEN at the lower right of the disc

tray,and place a disc into the tray with the disc’s label facing up.

c. Press PRESS at the right side of the door until it clicks shut.The

unit will load the disc and start playing.

d.Rotate BRIGHT and VOLUME to adjust the LCD’sbrightness and

the DVD player’s volume.

e. To stop playing a disc, press STOP.

f. ToturnofftheDVDplayer,slidePOWERON/OFFtoOFF.The

DVDplayer’sPOWERindicator turnsoff.

g. To remove the disc, open the disc tray, then you will see a

pictureontherightinnercornerofthecovertoindicatehowto

removethe disc,justuse your fingertoaccesstheright inner

corner of the disc tray and lift up the disc and remove it from

thedisc tray. Pleaserefer to Figure6.

Figure 6
