Audiovox D1726 Manuel utilisateur
D1726
PORTABLE DVD PLAYER WITH 7" LCD MONITOR
2
NOTICE:
This Product incorporates copyright protection technology that is pro-
tected by method claims of certain patents and other intellectual property
rights owned by Macrovision Corporation and other rights owners. Use of
this copyright protection technology must be authorized by Macrovision
Corporation, and is intended for home and other limited viewing uses only
unless authorized by Macrovision Corporation. Reverse engineering or
disassembly is prohibited.
NOTICE:
An LCD panel and/or video monitor may be installed in a motor vehicle and
visible to the driver if the LCD panel or video monitor is used for vehicle
information, system control, rear or side observation or navigation. If the
LCD panel or video monitor is used for television reception, video or DVD
play, the LCD panel or video monitor must be installed so that these fea-
tures will only function when the vehicle is in ‘park’ or when the vehicle’s
parking brake is applied.
An LCD panel or video monitor used for television reception, video or DVD
play that operates when the vehicle is in gear or when the parking brake
is not applied must be installed to the rear of the driver’s seat where it will
not be visible, directly or indirectly, to the operator of the motor vehicle.
3
A. Introduction
Thank you for purchasing the D1726 portable DVD player. The main
features include a 7" Wide Screen (16:9 Aspect Ratio) Liquid Crystal
Display (LCD) monitor and a DVD player. The unit applies the latest
state of the art electronics and is designed for use in vehicles, hotels,
offices or your home. The unit is constructed to provide years of
reliable, trouble-free service, and is compact so that you can take it with
you anywhere and is designed for quick and easy installation. Please
read the entire instruction manual supplied with this product prior to
using. The documentation will assist you in installing the system properly
to obtain the best equipment performance. Please save this manual for
later use.
B. Cautions and Warnings
1. Placement
To prevent fire or electric shock, do not expose this appliance to rain or
moisture. Do not place the set on an unstable cart, stand, tripod, bracket or
table to prevent it from falling. Keep the unit away from strong magnets, heat
sources, direct sunlight, excessive dust. If the unit is brought directly from a
cold to a warm location, moisture may condense inside the unit. When you
move it from a cold to a warm location, wait for about one hour before operat-
ing the unit, or remove the disc and leave the unit turned on until the moisture
evaporates.
2. Installation
Ensure that the D1726 is installed in accordance with the instructions
and illustrations provided in this manual.
3. Objects and Liquids
Do not push objects of any kind into the unit through openings; do not spill
or spray liquid of any kind on or in the system (this may result in a fire or
electric shock). Do not place anything heavy on the unit. To ensure proper
ventilation and proper operation, never cover or block openings with a
cloth or other material. Do not use the unit in temperatures higher than 104
degrees Fahrenheit or 40 degrees Celsius.
4
4. Disassembly
Do not attempt to disassemble the cabinet. There is a risk of electric
shock and/or exposure to Laser Radiation. Contact qualified service
personnel if your system needs repair.
5. Cleaning Unit
When cleaning, make sure the system is unplugged from the power
source. Do not use liquid cleaners or aerosol cleaners. Use a cloth
lightly dampened with water for cleaning the exterior of the system
only.
6. Disc
Do not use irregularly shaped discs such as heart or star-shaped
discs as they may cause the unit to malfunction. Do not stick paper,
tape or glue on the disc. Do not expose the disc to direct sunlight or
heat sources. Do not touch the surface of disc. Handle the disc by its
edge. Clean the disc by wiping the disc from the center out with a
cleaning cloth. Remove the disc from the unit and store it in its case
after playing. Some playback operations of discs may be intentionally
fixed by software producers. Since this unit plays discs according to
the disc contents the software producers designed, some playback
features may not be available. Also refer to the instructions supplied
with the discs.
7. Regional Coding
Both the DVD player and disc are coded by region. These regional
codes must match in order for the disc to play. If the codes don’t
match, the disc won’t play. This unit’s code is region 1. DVD’s with
other regional codes cannot be played in this unit.
5
C. Contents
1. 1 x 7’’ LCD Monitor & DVD Player Combo
2. 1 x AC to DC Adapter
3. 1 x Remote Control with battery (CR2025)
4. 1 x Instruction Manual
5. 1 x Audio/Video AdapterCable
6. 1 x DC Power Adapter
7. 1 x Mounting Strap
D. Powering and installation
1. Powering the system indoors (Refer to Figure 1)
Plug one end of the AC to DC adapter into the DC 9~12V jack on the right
side of the unit, then plug the other end into a 110~240V AC power outlet.
2. Powering the system in a car (refer to Figure 1)
Plug one end of the DC Power adapter into the DC 9~12V jack on the right
side of the unit, then plug the other end into a DC power outlet in your
vehicle.

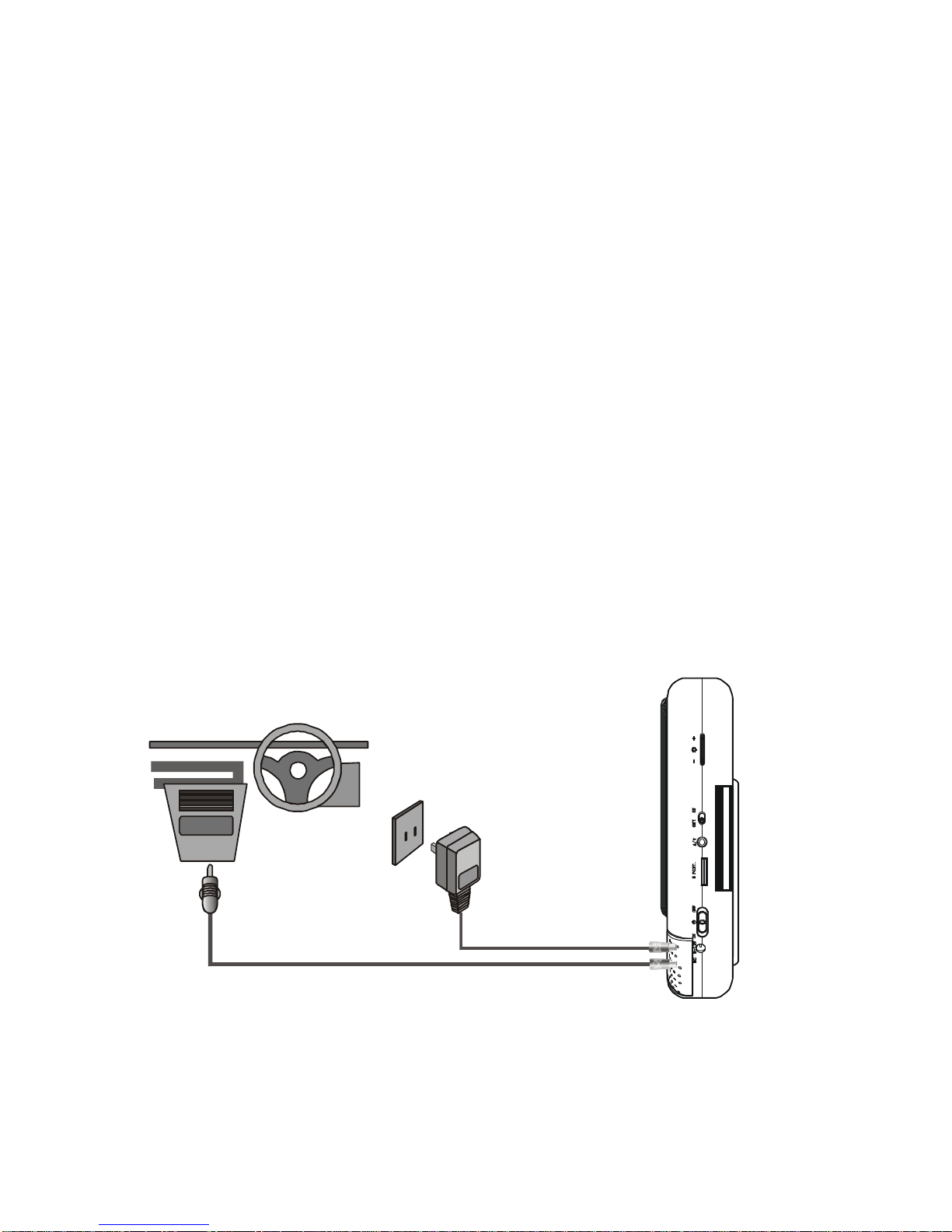

Figure 1
Note: Disconnect the power source when not in use for an extended
period of time.
(1)
(2)
6
3. Charging
The D1726 has a built-in rechargeable battery (Ni-MH) that will power the
unit for approximately 2.5 hours. (Refer to Figure 2)
1) Set the Power switch to the OFF position.
2) Plug one end of theAC-to-DC adapter into the DC 9-12V jack on the right
side of the unit.
3) The red charge indicator light on the left side of the unit will illuminate.
4) When charging is complete, the charge indicator light will turn off.
Note: when charging for the 1st time, allow the unit to charge for at least 8
hours. The unit can only be charged with the AC-to-DC adapter; it will not
charge with the vehicle power adapter.
Charging Indicator
Figure 2
7
Installing the D1726 On a Headrest
Install the monitor according to the following picture.
Figure 3
Head Rest Mounting
1) Insert the mounting strap through the mounting slots on the rear of
the unit.
2) Insert the strap through opening 1 of the buckle from the rear. Pull the
strap through opening 2.
3) Place the strap around the vehicle headrest and pull it tight.
1
2
1
2
8
E. Controls, Indicators, and Connectors
1. Unit View (Refer to Figure 4)
Figure 4
12) Next Button
13) Play Button
14) Stop Button
15) Pause Button
16) Wide Button
17) Brightness Control
18) AV In/Out Switch
19) AV In/Out Jack
20) Game Port**
21) Power On/Off Switch
22) DC 9~12V Jack
23) IR Sensor
1
2
3
4
5
6
7
9
10
12
16
17
18
19
20
21
22
1) Volume Control
2) Headphone Jack 1
3) Headphone Jack 2*
4) Charge Indicator LED
5) Up Button
6) Down Button
7) OK/Enter Button
8) Left Button
9) Right Button
10) Menu Button
11) Previous Button
* Headphone jack 2 disables the internal speakers.
** Not used on this model.
23
9
2. Remote Control View (Refer to Figure 5)
1) Setup Button
2) Up Button
3) Previous Button
4) Enter Button
5) Reverse Scan/Left
6) FWD Button
7) Numeric Button
8) Display Button
9) Zoom Button
10) Subtitle Button
11) Next Button
12) A-B Repeat Button
13) Forward/Right Keypad
14) 1/All Repeat Button
15) Stop Button
16) Menu Button
17) Audio Button
18) Angle Button
19) Play/Pause Button
F. Loading and Playing a Disc
a. After connecting power to the unit, power on “DVD player” with the
power switch.
b. Place the unit on it’s back. Hold the side of the unit and lift the tab in the
center that is marked “OPEN”.
c. Load a disc and close the cover, the disc will start playing automatically.
d. Rotate the BRIGHTNESS and VOLUME to adjust the picture bright-
ness and volume.
e. To stop playing a disc, press STOP.
Figure 5
10
G. Setup
Press ‘SETUP’ to display the Main screen of the Setup Menu on the
screen. Press ‘SETUP’ again to exit the Setup Menu and the unit will
resume it’s last playback mode.
Main Setup Menu Screen
1) Press “SETUP”, the ‘General Setup Page’ will be displayed on the
screen.
a).Select ‘TV Display’ using the UP/DOWN button, and then press
RIGHT to enter the submenu. Select the TV display mode on the
screen using UP/DOWN and press ENTER to confirm the setting.
Press LEFT to return.
* Normal/PS: When the player is connected to a normal TV, and a
wide picture is shown on the full screen.
* Normal/LB: When the player is connected to a normal TV, and a
wide picture is shown on the screen with a black strip at both
the top and bottom of the screen.
* Wide: When the player is connected to a wide screen TV, a
wide picture is shown on the full screen.

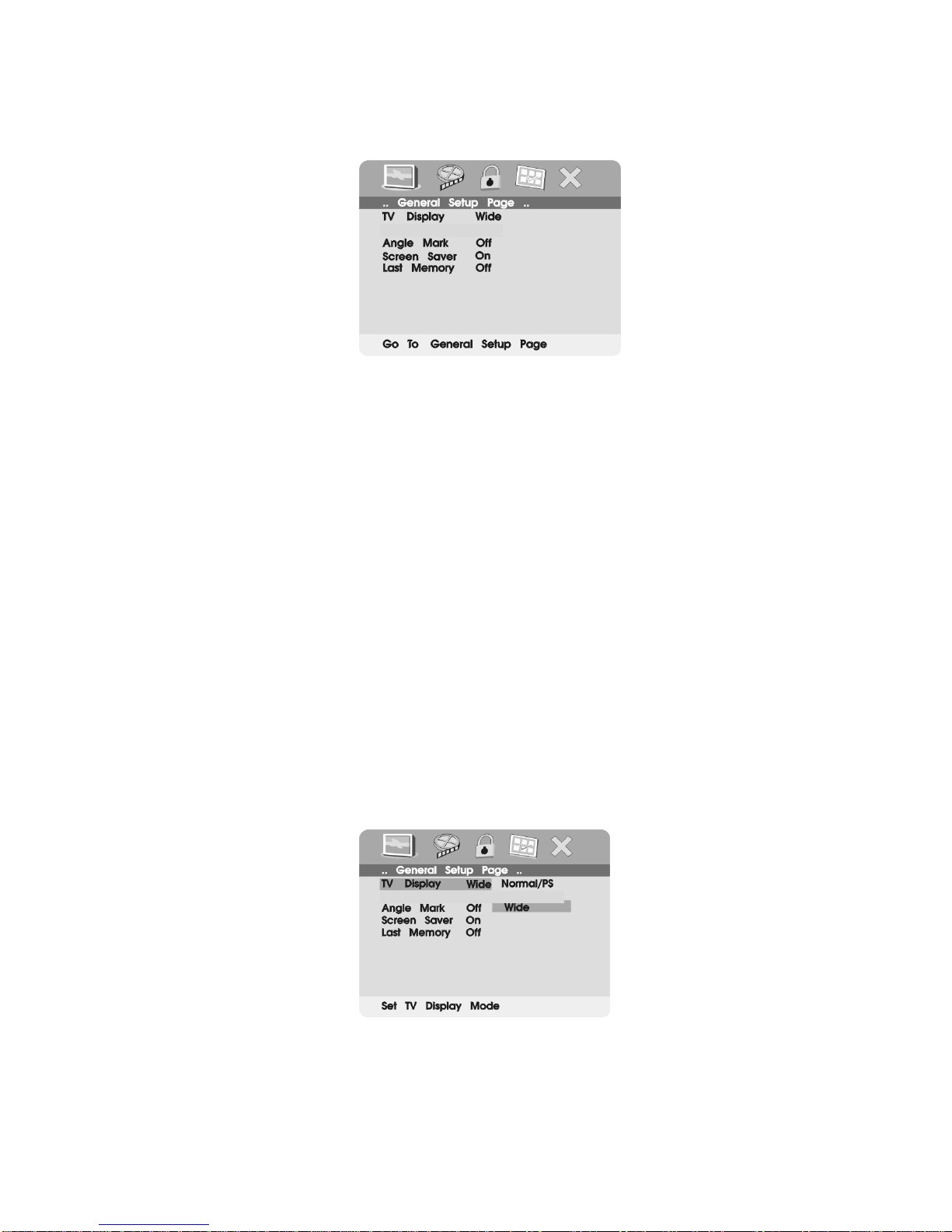

TV Display Screen Display
