VBP50

PORTABLE 5" LCD MONITOR & DVD PLAYER

Notice:

This Product incorporates copyright protection technology that is pro-

tected by method claims of certain U.S. Patents and other intellectual

property rights owned by Macrovision Corporation and other rights own-

ers. Use of this copyright protection technology must be authorized by

Macrovision Corporation, and is intended for home and other limited view-

ing uses only unless otherwise authorized by Macrovision Corporation.

Reverse engineering or disassembly is prohibited.

A. Introduction

Thank you for selecting the VBP50 portable DVD player in a bag. The

main features include a 5" Screen (4:3 Aspect Ratio) Liquid Crystal

Display (LCD) monitor and a DVD player. The unit applies the latest

state of the art electronics and is designed for use in hotels, offices

or your home. The unit is constructed to provide years of reliable,

trouble-free service, and is compact so that you can take it with you

anywhere and is designed for quick and easy installation. Please

read the entire instruction manual supplied with this product prior to

operation. The documentation will assist you in installing the system

properly to obtain the best equipment performance. All manuals should

be stored for later use.

B. Cautions and Warnings

1. Placement

To prevent fire or electric shock, do not expose this appliance to

rain or moisture. Do not place the set on an unstable cart, stand,

tripod, bracket or table to prevent it from falling. Keep the unit away

from strong magnets, heat sources, direct sunlight, excessive dust.

If the unit is brought directly from a cold to a warm location, mois-

ture may condense inside the unit. When you move it from a cold

to a warm location, wait for about one hour before operating the

unit, or remove the disc and leave the unit turned on until the mois-

ture evaporates.

2. Installation

Ensure that the VBP50 is installed in accordance with the instruc-

tions and illustrations provided in this manual.

3. Object and Liquid

Do not push objects of any kind into the unit through openings; do

not spill or spray liquid of any kind on or in the system (this may

result in a fire or electric shock). Do not place anything heavy on

the unit. To ensure proper ventilation and proper operation, never

cover or block the slots and openings with a cloth or other material.

4. Disassembly

Do not attempt to disassemble the cabinet. There is a risk of elec-

tric shock and/or exposure to Laser Radiation. Contact qualified

service personnel if your system is in need of repair.

5. Cleaning Unit

When cleaning, make sure the system is unplugged from the power

source. Do not use liquid cleaners or aerosol cleaners. Use a

cloth lightly dampened with water for cleaning the exterior of the

system only.

6. Disc

Do not use irregularly shaped discs such as heart or star-shaped

discs as they may cause the unit to malfunction. Do not stick pa-

per, tape or glue on the disc. Do not expose the disc to direct sun-

light or heat sources such as hot air ducts. Do not touch the sur-

face of disc. Handle the disc by its edge. Clean the disc by wiping

the disc from the center out with a cleaning cloth. Remove the disc

from the unit and store it in its case after playing. Some playback

operations of discs may be intentionally fixed by software produc-

ers. Since this unit plays discs according to the disc contents the

software producers designed, some playback features may not be

available. Also refer to the instructions supplied with the discs.

C. Contents

1. 1 x 5’’ LCD Monitor & DVD Player Combo

2. 1 x AC to DC Adapter

3. 1 x Remote Control w/Battery

4. 1 x Instruction Manual

5. 1 x Audio/Video Input Cable

6. 1 x Audio/Video Output Cable

7. 1 x Cigarette Lighter Adapter

8. 1 x Mounting Bag w/Straps

9. 1 x Carrying bag

OPTIONAL:

Rechargable Battery Pack - No. VBB5058

D. Powering and installation

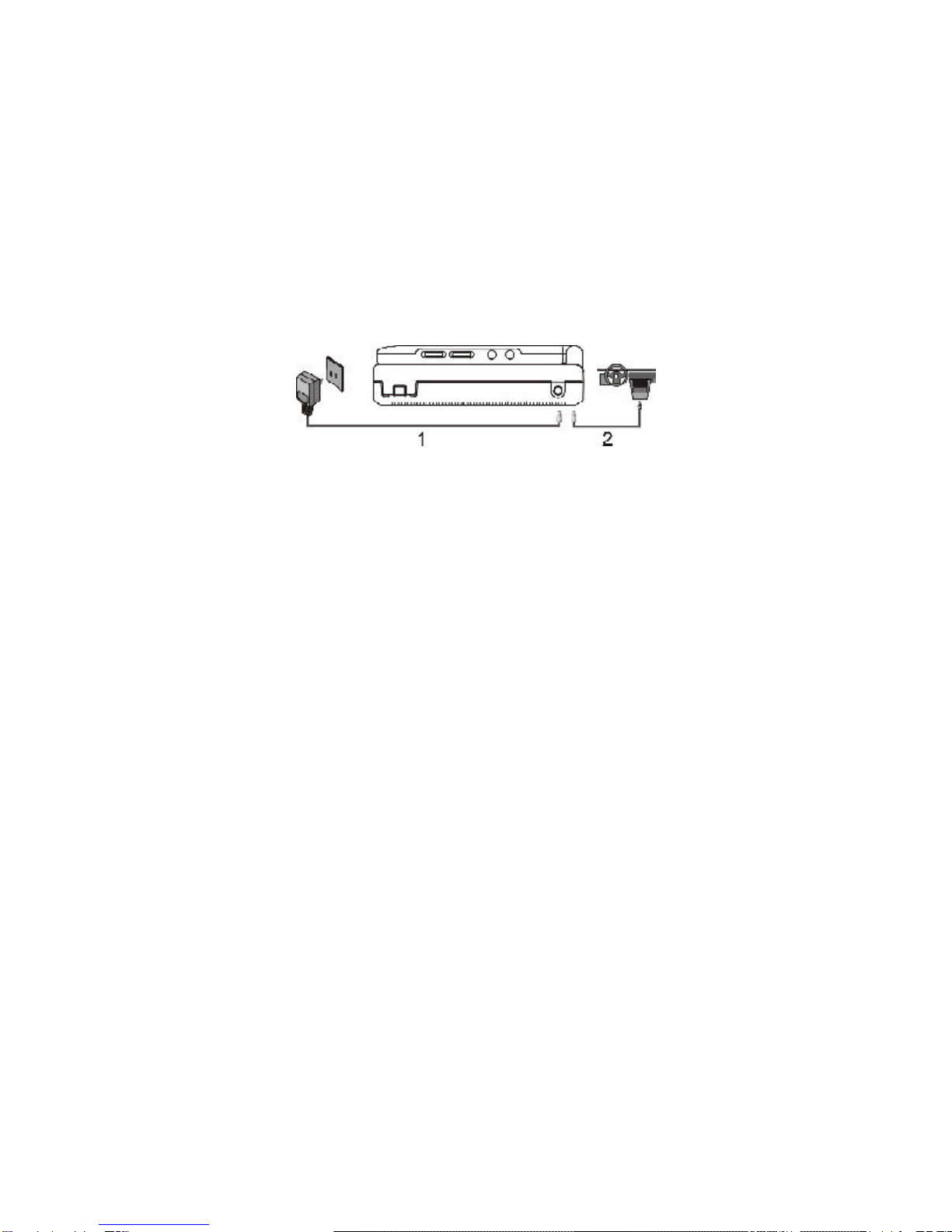

1. Powering the system indoors (Refer to Figure 1)

Plug one end of the AC to DC adapter into the DC 9V jack

on the right side of the main unit, then plug the other end into

the 120V AC power receptacle.

2. Powering the system in a car

Plug one end of the cigarette lighter adapter into the

DC 9V jack on the unit, then plug the other end into

the cigarette lighter socket.

Figure 1

3. Powering the system with optional rechargeable Battery

Please refer to L. * Rechargeable Battery Installation and Use

(Page 29 to page 31).

* Rechargable Battery Pack No. VBB5058 is OPTIONAL

E. Installation Prior to installation

Make sure that the unit is placed into the bag with the clear plastic

covering around DVD door, Load disc into the DVD compartment

and then fasten the Velcro strap accross the top portion of the unit.

If you are installing the bag onto the seatback you will need to attach

the supplied Seat Standoff to the back of the mounting bag with the

Velcro bands to obtain the proper viewing angle as shown in Figure

1). Take one of the supplied straps from the carrier bag. Con-

nect the latch to one of the upper metal rings on the mounti

ng bag. Connect the “S” hook to the other upper metal ring

and place the loop over the headrest. Adjust the strap until

the bag is firmly secured.

2). Take another strap from the carrier bag, and connect the latch

to the lower metal ring on the left side of the bag. Attach the

“S” hook to the same ring after looping the strap around the

seat rail. Repeat this process for the right side. In some

vehicles, it may be necessary to attach the “S” connector to

the rail directly, as it may not be long enough to reach back to

the ring.

3). Adjust the straps tightly so that the bag is secured.

Figure 2.

1.Installing the System onto the seat back in a car

(Refer to Figure 2)

Seat Standoff

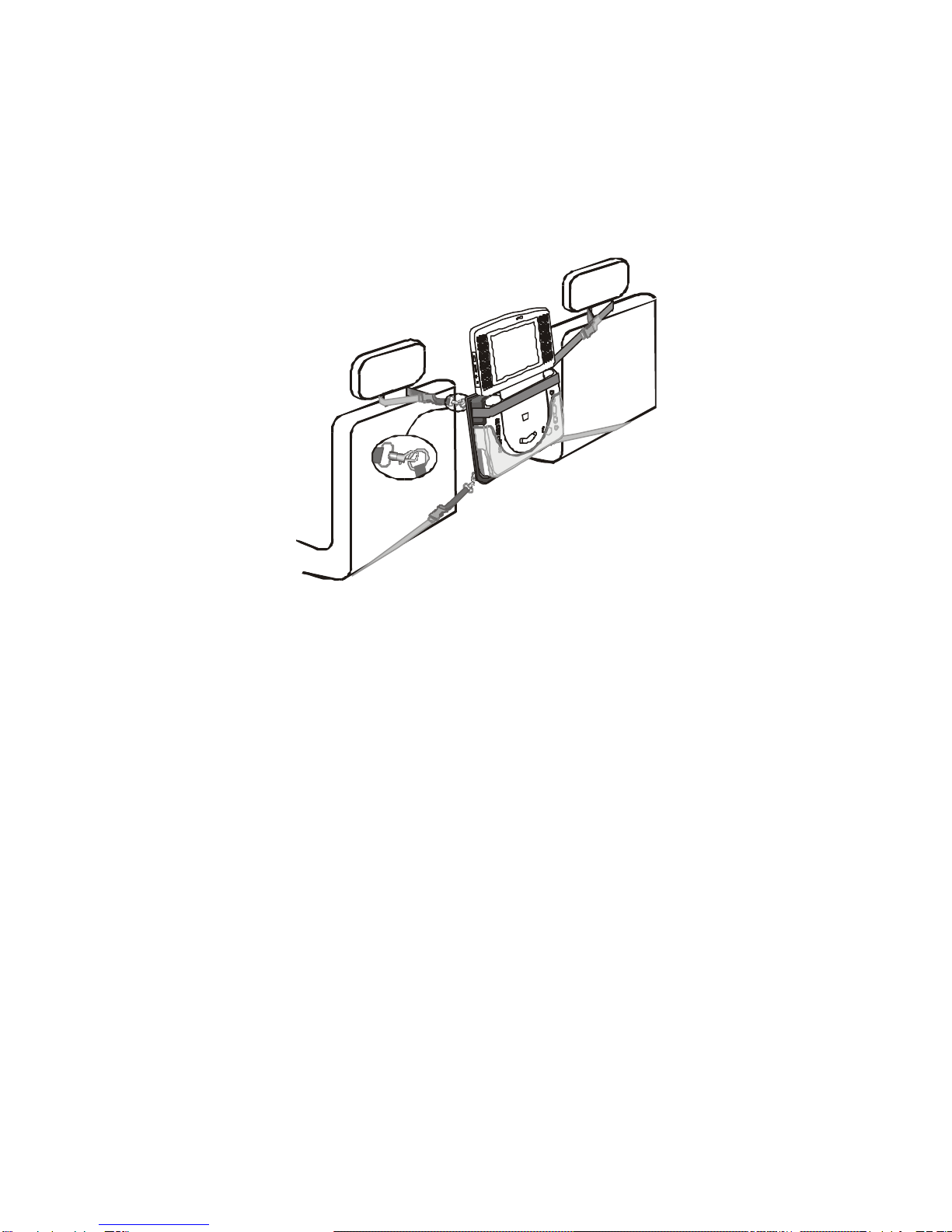

2. Installing the system between the driver/passenger seat

(Refer to Figure 3)

Figure 3.

1). Take one strap and connect the latch to the upper metal ring on

the left side of the bag. Attach the “S” hook to the same ring

after looping the strap around the headrest of the driver’s seat.

Repeat this process for the right side (Passenger Seat).

2). Take another strap and connect the latch to lower metal ring on

the left side of the bag. Attach the “S” hook to the same ring

after looping the strap around the driver’s seat rail. Repeat this

process for the right side. In some vehicles, it may be neces-

sary to attach the “S” connector directly to the rail, as it may not

be long enough to reach back to the ring.

3). Adjust the straps tightly so that the bag is secured.

1) Press-to-Close Button on Disc cover

2) Open button

3) Previous Button

4) Stop Button

5) Next Button

6) Play Button

7) Display Button

8) Pause Button

9) Remote Control Sensor

10) DVD Video Output Jack

11) DVD Audio L+R Output Jack

12) Video Input Jack

13) Audio L+R Input Jack

14) Brightness +/- Thumbwheel

15) Volume +/- Thumbwheel

16) Headphone Input Jack 1

17) Headphone Input Jack 2

18) Power On/Off Switch

19) DC 9V Input Jack

E. Controls, Indicators, and Connectors

1. Unit View (Refer to Figure 4)

Figure 4

2. Remote Control View (Refer to Figure 5)

1) Display Button

2) Angle Button

3) Subtitle Button

4) Audio Button

5) Zoom Button

6) Up/Down/Left/Right/Enter Buttons

7) Return Button

8) A-B Button

9) Forward Button

10) Reverse Button

11) Slow Button

12) Stop Button

13) Number Buttons

14) Setup Button

15) Menu Button

16) Repeat Button

17) Previous Button

18) Next Button

19) Play Button

20) Pause Button Figure 5

F. Loading and Playing a Disc

a. After connecting power to the unit, slide the POWER ON/OFF

on the right side to ON, the DVD player’s POWER indicator

lights.

b. Open the disc tray by pressing OPEN at the lower right of the

disc tray, and place a disc into the tray with the disc’s label fac-

ing up.

c. Press PRESS at the right side of the door until it clicks shut.

The unit will load the disc and start playing by pressing PLAY

located either on the right side of the disc tray or on the remote .

d. Rotate BRIGHT and VOLUME to adjust the LCD’s brightness

and the DVD player’s volume.

e. To stop playing a disc, press STOP.

f. To turn off the DVD player, slide POWER ON/OFF to OFF. The

DVD player’s POWER indicator turns off.

g. To remove the disc, open the disc tray, then you will see a picture

on the right inner corner of the cover to indicate how to remove

the disc, just use your finger to access the right inner corner of

the disc tray and lift up the disc and remove it from the disc

tray. Please refer to Figure 6.

Figure 6
