Audiovox D1788PK Manuel utilisateur
D1788PK
7” LCD MONITOR, DVD PLAYER
WITH BUILT-IN BATTERY
2
Notice:
This Product incorporates copyright protection technology that is
protected by method claims of certain U.S. Patents and other
intellectual property rights owned by Macrovision Corporation and
other rights owners. Use of this copyright protection technology must
be authorized by Macrovision Corporation, and is intended for home
and other limited viewing uses only unless otherwise authorized by
MacrovisionCorporation.Reverseengineeringordisassemblyispro-
hibited.
Notice:
An LCD panel and/or video monitor may be installed in a motor
vehicle and visible to the driver if the LCD panel or video monitor is
used for vehicle information, system control, rear or side observation
or navigation. If the LCD panel or video monitor is used for television
reception, video or DVD play, the LCD panel or video monitor must
be installed so that these features will only function when the vehicle
is in “park” or when the vehicle’s parking brake is applied.
AnLCDpanel or video monitor used fortelevisionreception,videoor
DVD play that operates when the vehicle is in gear or when the
parkingbrakeisnotappliedmustbeinstalledtothe rear ofthedriver’s
seatwhereit will not be visible,directly or indirectly,to the operator of
the motor vehicle.
3
A. Introduction
Thank you for selecting the D1788 PK portable DVD player. The
main features include a 7" Screen (16:9Aspect Ratio) Liquid Crystal
Display (LCD) monitor and a DVD player. The unit applies the latest
state of the art electronics and is designed for use in hotels, offices
home or vehicle. The unit is constructed to provide years of reliable,
trouble-free service, and is compact so that you can take it with you
anywhereandisdesignedforquick and easy installation. Please read
the entire instruction manual supplied with this product prior to
operation. The documentation will assist you in installing the system
properlyto obtain the bestequipment performance. Please savethis
manuals for later use.
B. Cautions and Warnings
1. Placement
To prevent fire or electric shock, do not expose this appliance to
rain or moisture. Do not place the set on an unstable cart, stand,
tripod,bracketortabletopreventitfromfalling.Keeptheunitaway
fromstrongmagnets, heat sources, directsunlight,excessivedust.
If the unit is brought directly from a cold to a warm location,
moisture may condense inside the unit. When you move it from a
cold to a warm location, wait for about one hour before operating
the unit, or remove the disc and leave the unit turned on until the
moisture evaporates.
2. Installation
Ensure that the D1788PK is used and installed in accordance
with the instructions and illustrations provided in this manual.
3. Objects and Liquids
Do not push objects of any kind into the unit through openings; do
not spill or spray liquid of any kind on or in the system (this may
result in a fire or electric shock). Do not place anything heavy on
the unit. To ensure proper ventilation and proper operation, never
cover or block the slots and openings with a cloth or other
material.
4
4. Disassembly
Do not attempt to disassemble the cabinet. There is a risk of
electric shock and/or exposure to Laser Radiation. Contact
qualified service personnel if your system is in need of repair.
5. Cleaning Unit
Whencleaning,makesurethesystemis unplugged from the power
source. Do not use liquid cleaners or aerosol cleaners. Use a
cloth lightly dampened with water for cleaning the exterior of the
system only.
6. Disc
Do not use irregularly shaped discs such as heart or star-shaped
discs as they may cause the unit to malfunction. Do not stick pa-
per, tape or glue on the disc. Do not expose the disc to direct sun-
light or heat sources such as hot air ducts. Do not touch the sur-
face of disc. Handle the disc by its edge. Clean the disc by wiping
the disc from the center out with a cleaning cloth. Remove the disc
from the unit and store it in its case after playing. Some playback
operations of discs may be intentionally fixed by software produc-
ers. Since this unit plays discs according to the disc contents the
software producers designed, some playback features may not be
available.Also refer to the instructions supplied with the discs.
7. Regional Coding
Both the DVD player and disc are coded by region. These re-
gional codes must match in order for the disc to play. If the codes
don’t match, the disc won’t play. This unit’s code is region 1.
DVD’s with other regional codes cannot be played in this unit.
5
C. Contents
1. 1 x 7” LCD Monitor and DVD Player
2. 1 x AC to DCAdapter
3. 1 x Remote Control w/Battery (CR2025)
4. 1 x Instruction Manual
5. 1 x Audio/VideoCable
6. 1 x DC Power Adapter
7. 2 x Wired Headphones
8. 1 x Carry Bag With Straps
D. Powering and installation
1. Powering the system indoors (Refer to Figure 1)
Plug one end of the AC to DC adapter into the DC 9-12V jack on
the right side of the main unit, then plug the other end into the 100-
240VAC power receptacle.
2. Powering the system in a car (Refer to Figure 1)
Plug one end of the DC power adapter into the DC jack on the unit,
then plug the other end into the vehicle‘s DC power socket.
Figure 1
3. Built-in Battery
Plug one end of the AC to DC adapter into the DC jack on the
sideof the player,then plugthe otherend into the100~240VAC
power outlet. Make sure the player is in the “Power Off” mode.
Once fully charged, the LED indicator will turn off. Once the indi-
cator is off, remove the AC to DC adapter wall plug.
NOTE: Your new battery must be charged a minimum of 8 hours
before the first usage. Each full recharge takes approximately five
hours and one full charge can provide power to the player for ap-
proximately 2 hours.
6
E. Vehicle Installation
Installing the DVD Player onto the seat back in a car
(Refer to Figure 2)
1). Unfold the carry bag, and place the DVD player on the bag
beneath the elastic straps. Ensure that the unit’s corners are
secured by the elastic straps.
2). Secure the upper portion of the carry bag to headrest support
barsusing the headrest strap. Adjust theheadrest strap untilthe
bag is firmly secured.
3). Secure the lower portion of the carry bag to the vehicle seat back
using the seat back strap. Adjust the seat back strap until the
bag is firmly secured.
Figure 2
Elastic
Straps
Carry Bag Closed
Vehicle Seat
Back
Vehicle Headrest
Carry Bag Opened
Headrest
Strap
Seat Back
Strap
7
F. Controls, Indicators, and Connectors
1. Unit View (Refer to Figure3)
Figure 3
1) Menu Button
2) Up/Down/Left/Right/OK
Buttons
3) Open Button
4) Previous/Next/Pause/
Stop/Play Buttons
5) Screen Mode Button
6) Remote Sensor
7) Power Indicator
8) Power On/Off Switch
9) Volume Up/Down Control
10) Headphone Jack 1
11) Headphone Jack 2
12) Charge Indicator
13)AV Out Jack
14) DC Input Jack
9
10
11
12
13
14
8

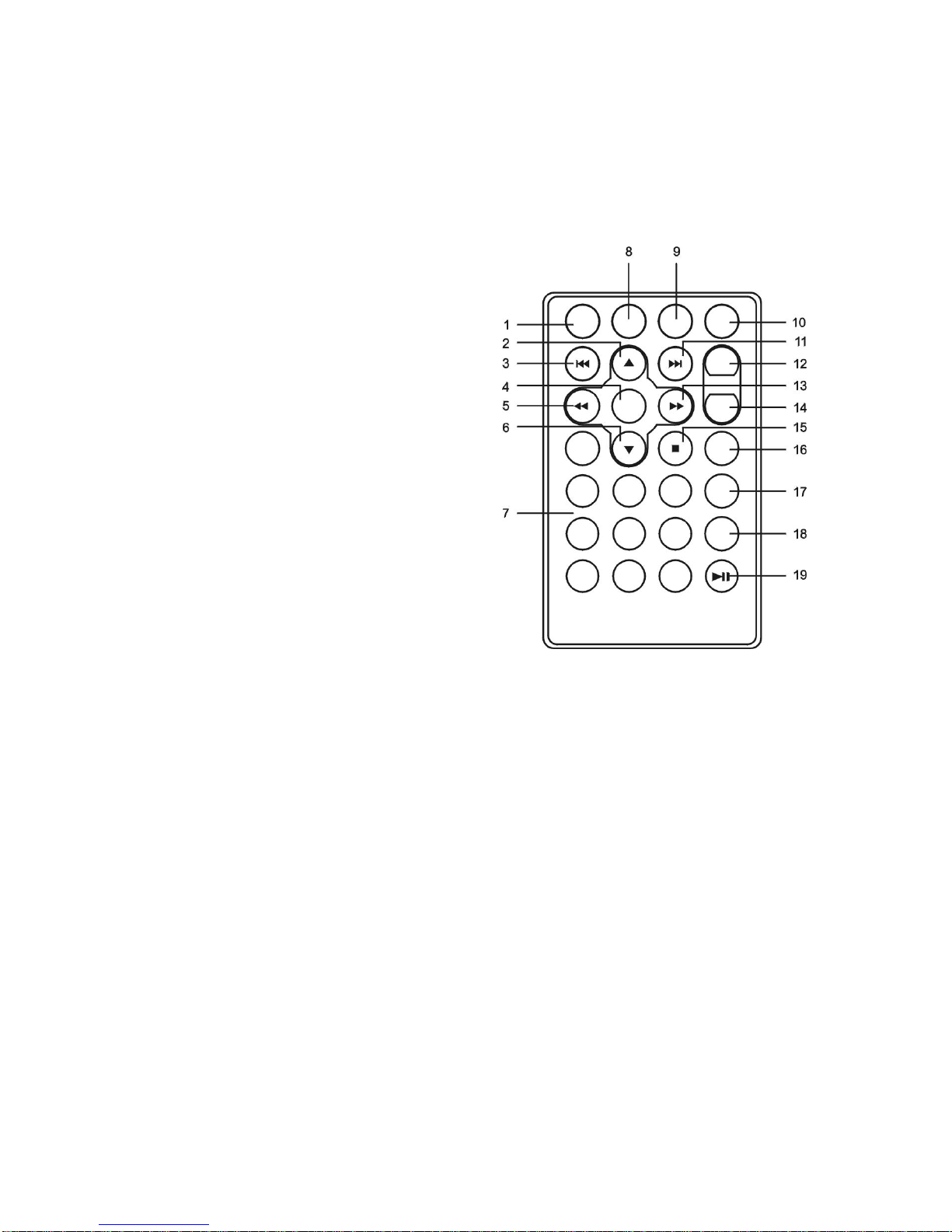

2. Remote Control View (Refer to Figure 4)
1) Setup Button
2) Up Button
3) Previous Button
4) Enter Button
5) Reverse Scan /Left Button
6) Down Button
7) Numeric Keypad
8) Display Button
9) Zoom Button
10) Subtitle Button
11) Next Button
12) A-B Repeat Button
13) Forward Scan /Right Button
14) 1/All Repeat Button
15) Stop Button
16) Menu Button
17) Audio Button
18) Angle Button
19) Play/Pause Button Figure 4
G. Loading and Playing a Disc
a. After connecting power to the unit, apply power to the DVD player
with the power switch. The power indicator will light.
b. Open the disc tray by pressing OPEN button and place a disc into
the tray with the label side facing up.
c. Close the tray by pressing the “PRESS” button. The unit will load
the disc and start playing.
d. Rotate the VOLUME control to adjust the DVD player’s
volume.
e. To stop playing a disc, press STOP.
f. To turn off the DVD player, slide the POWER ON/OFF switch to
OFF.
8
H. SETUP

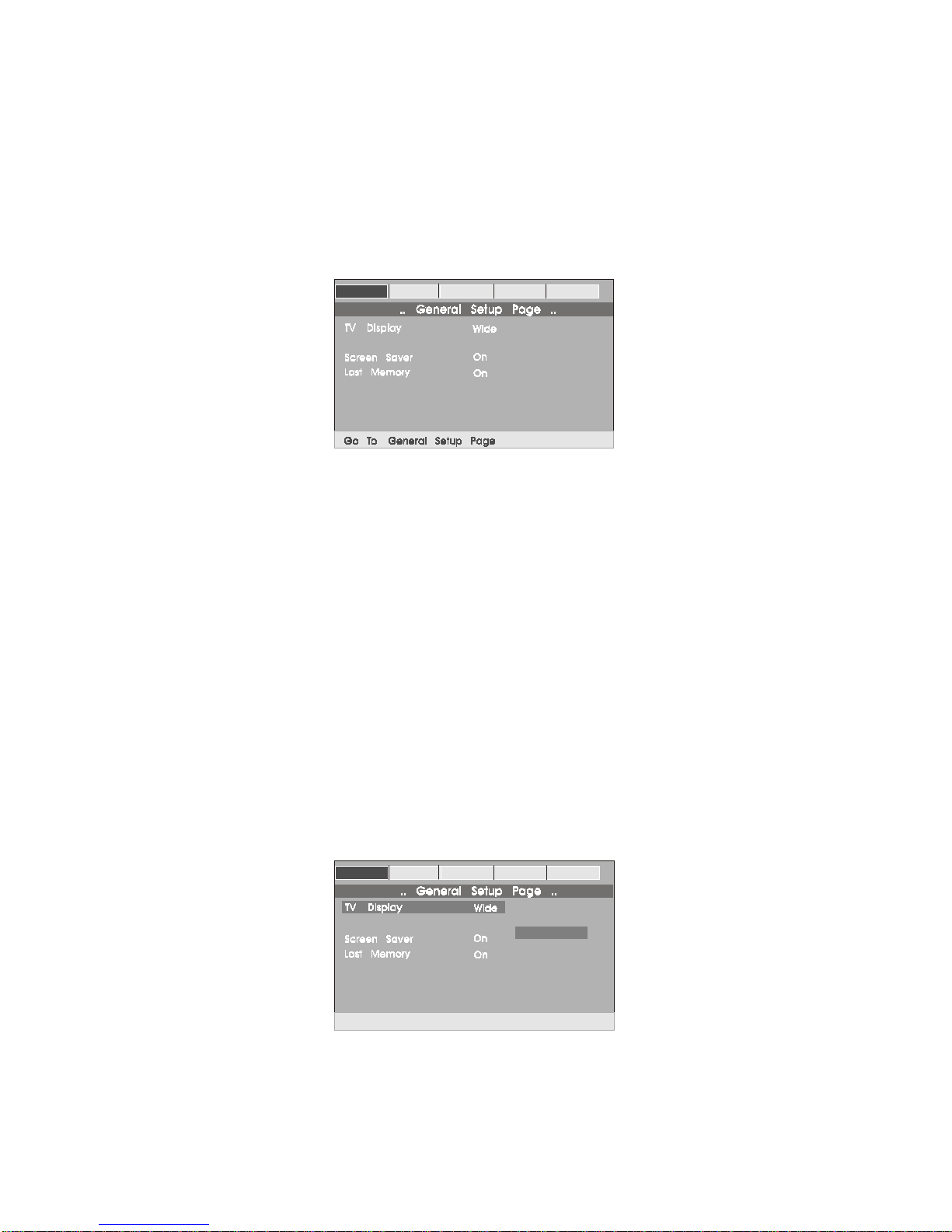

Press ‘SETUP’ to display the Main screen of the SETUP Menu on the
screen. Press ‘SETUP’ again to exit the SETUP Menu and the unit
will resume it’s last playback mode.
1) Press SETUP, the ‘GENERAL SETUP PAGE’ will display on
screen.
a).Select ‘TV DISPLAY’ using the DOWN button, and then press
‘ENTER’ to enter the submenu. Select the TV display mode on
the screen using UP/DOWN, and press ‘ENTER’ to confirm the
setting. Press LEFT to return.
* NORMAL/PS: When the player is connected to a normal TV,
and a wide picture is shown on the full screen.
* NORMAL/LB: When the player is connected to a normal TV,
and a wide picture is shown on the screen with a black strip
at both the top and bottom of the screen.
* WIDE: When the player is connected to a wide screen TV, a
wide picture is shown on the full screen.
General Video Password Preferen Exit
Angle Mark
Off
General Video Password Preferen Exit
Angle Mark
Off
Normal PS
Normal LB
/
/
Wide
Set TV Display Mode
TV Display Screen Display
Main Setup Menu Screen
10
b).Select ‘ANGLE MARK’ using the DOWN button, and then press
the ‘ENTER’button to enter the submenu. Choose Angle Mark
on or off using the UP/DOWN buttons and then press ‘ENTER’
to confirm the setting. Press the LEFT button to return.
* ON: The screen will show the angle mark icon. (*If an angle
optionisavailable).
* OFF: The screen will not display theAngle Mark icon.
NOTE: Not all discs contain above features.
General Video Password Preferen Exit
Angle Mark
Off
On
Off
Set Angle Mark
Angle Mark Screen Display
