Audiovox VBP3800 Manuel utilisateur
1
VBP3800
VIDEO IN A BAG SYSTEM WITH
5" LCD MONITOR & DVD PLAYER
2
SAFETY PRECAUTION
Do not change video media while the vehicle is in motion. Do not allow
children to unfasten seat-belts to change video media or make any
adjustments to the system. Enjoy your entertainment system but al-
ways remember the safety of all passengers remains the number one
priority.
IMPORTANT NOTICE
It is unlawful in most jurisdictions for a person to drive a motor vehicle
which is equipped with a television viewer or screen that is located in
the motor vehicle at any point forward of the back of the driver’s seat,
or that is visible, directly or indirectly, to the driver while operating the
vehicle. In the interest of safety, this system should never be installed
where it will be visible, directly or indirectly, by the operator of the mo-
tor vehicle.
A. Introduction
Thank you for selecting the VBP3800 “Video in a Bag” System.
Please read the entire instruction manual supplied with this product
prior to operation. It will assist you in installing the system properly
and obtaining the best equipment performance. All manuals should
be stored for later use. The system's main features include a 5"
Liquid Crystal Display (LCD) monitor and a DVD player. The sys-
tem utilizes the latest state of the art electronics and is designed for
use in vehicles, hotels, offices or your home. The VBP3800 Video
in a Bag is built to provide years of reliable, trouble-free service. It is
compact so that you can take it with you anywhere and is designed
for quick and easy installation. Additional monitors*(AUDIOVOX
VBPEX56) can be purchased and added to the system allowing you
to utilize up to 3 monitors at once. Simply plug the addition monitor
into the system and you are ready to play.
3
B. Cautions and Warnings
1. Placement
To prevent fire or electric shock, do not expose this appliance to
rain or moisture. To prevent it from falling, do not place the set on
an unstable cart, stand, tripod, bracket or table. Keep the unit away
from strong magnets, heat sources, direct sunlight, excessive dust.
If the unit is brought directly from a cold to a warm location, mois-
ture may condense inside the unit. When you move it from a cold
to a warm location, wait for about one hour before operating the
unit, or remove the disc and leave the unit turned on until the mois-
ture evaporates.
2. Installation
Ensure that the VBP3800 is installed in accordance with the in-
structions and illustrations provided in this manual. When the main
unit is in the bag, the latch of the bag must be fastened to prevent
the unit from falling out. The “S” hooks and all straps must be fas-
tened correctly to secure the system in the vehicle. Operate the
“Video in a Bag” System with the bag open to ensure proper venti-
lation of the monitor and the DVD player. The system is intended to
be mounted for rear seat viewing only. Do not use the system in
the front seat while operating your vehicle.
*NOTE: For home use, the AC/DC power supply that comes with the
VBP3800 can only supply the main unit. If an additional monitor is used,
you must use the AC/DC power supply that is included in all optional
screens.
4
3. Power
This system MUST be powered from the type of switched (Acces-
sory) power indicated on the marking label (i.e. not directly from the
car battery). Power should be applied to the unit when the ignition
key is in the Run and/or Accessory positions. To prevent battery
discharge, disconnect the “Video in a Bag” System jack from the
cigarette lighter socket when the unit is not in use. Use only the
supplied power cable matching this set to avoid electric hazards.
Always disconnect the power source first and then the jack from the
system.
4. Object and Liquid
Do not push objects of any kind into the system through openings;
do not spill or spray liquid of any kind on or in the system (this may
result in a fire or electric shock). Do not place anything heavy on the
unit. To ensure proper ventilation and proper operation, never cover
or block the slots and openings with a cloth or other material.
5. Disassemble
Do not attempt to disassemble the cabinet. There is a risk of electric
shock and/or exposure to Laser Radiation. Contact qualified ser-
vice personnel if your system is in need of repair.
6. Cleaning Unit
When cleaning, make sure the system is unplugged from the power
source. Do not use liquid cleaners or aerosol cleaners. Use a cloth
lightly dampened with water for cleaning the exterior of the system
only.
7. Disc
Do not use irregularly shaped discs such as heart or star-shaped
discs as they may cause the unit to malfunction. Do not stick paper,
tape or glue on the disc. Do not expose the disc to direct sunlight or
heat sources such as hot air ducts. Do not touch the surface of disc.
Handle the disc by its edge. Clean the disc by wiping the disc from
5
the center out with a cleaning cloth. Remove the disc from the unit
and store it in its case after playing. Some playback operations of
discs may be intentionally fixed by software producers. Since this
unit plays discs according to the disc contents the software pro-
ducers designed, some playback features may not be available.
Also refer to the instructions supplied with the discs.
C. Contents
1. 1 x Monitor & DVD Player Combo
2. 1 x AC to DC Adapter
3. 1 x Cigarette Lighter Adapter
4. 1 x Remote Control W/battery CR2025
5. 1 x Mounting Bag with 4 Straps
6. 1 x Travel bag
7. 1 x Instruction Manual
D. Power Source

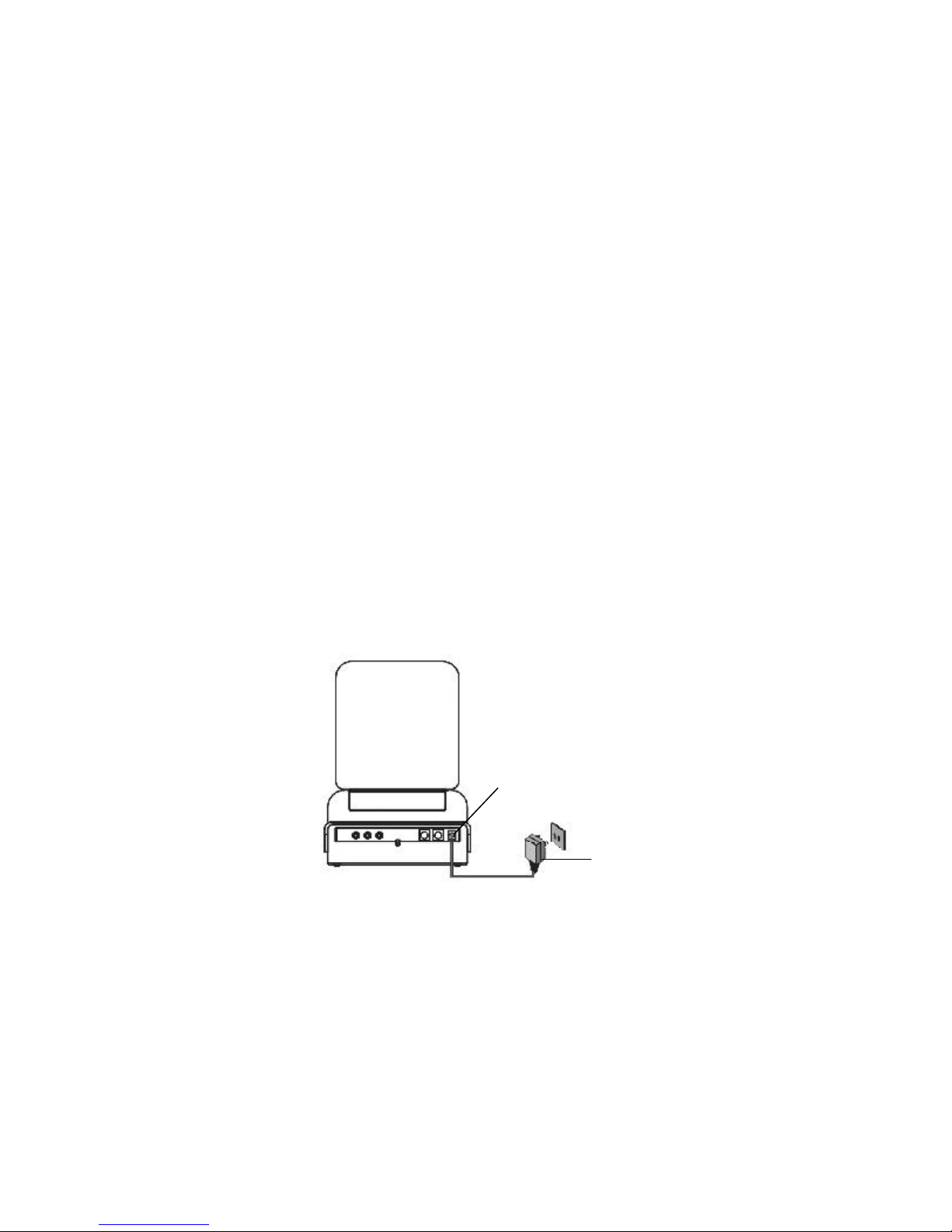

1. Powering the system indoors (Refer to Figure 1)
Figure 1.
Unzip the lower compartment of the bag and take out the AC to DC
adapter. Plug one end of the AC to DC adapter into the DC 12V
Input jack on the rear right side of the main unit, then plug the other
end into the 110V AC power receptacle.
AC/DC
Adapter
DC Input
Jack
6
E. Installation

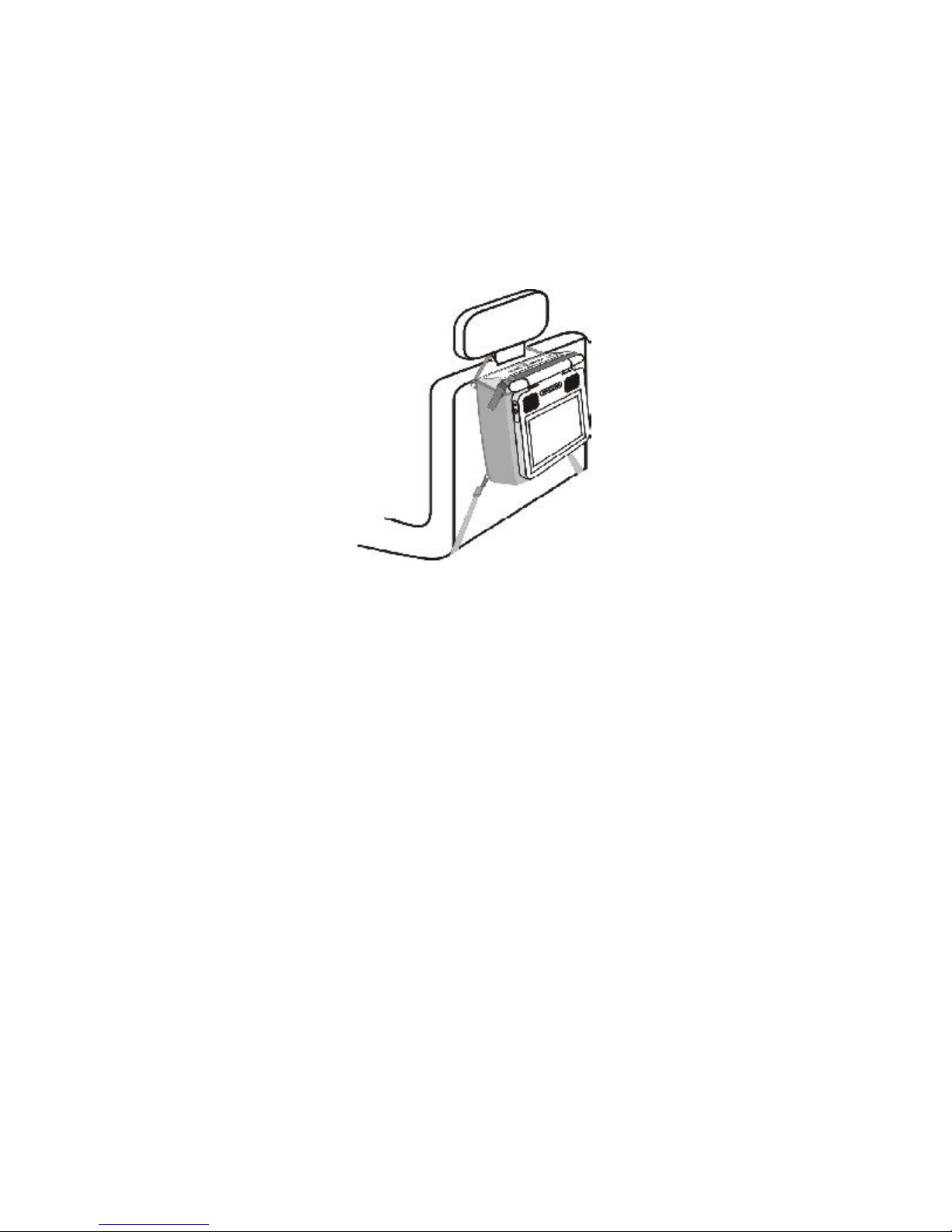

1.Installing the System onto the seat back in a car
(Refer to Figure 2)
Figure 2.
1. Unfasten the Velcro strap on the rear of the bag. Fold the
strap into the shape of a triangle and fasten it to the lower
Velcro strip.
2. Take one of the supplied straps from the lower compartment.
Connect the latch to one of the upper metal rings on the
mounting bag. Connect the “S” hook to the other upper metal
ring and place the loop over the headrest. Adjust the strap
until the bag is firmly secured.
3. Take one of the supplied straps from the lower compartment
of the bag, and connect the latch to the lower metal ring on
the left side of the bag. Attach the “S” hook to the same ring
after looping the strap around the seat rail. Repeat this pro-
cess for the right side. In some vehicles, it may be neces-
sary to attach the “S” connector to the rail directly, as it may
not be long enough to reach back to the ring.
4. Adjust the straps tightly so that the bag is secured.
7

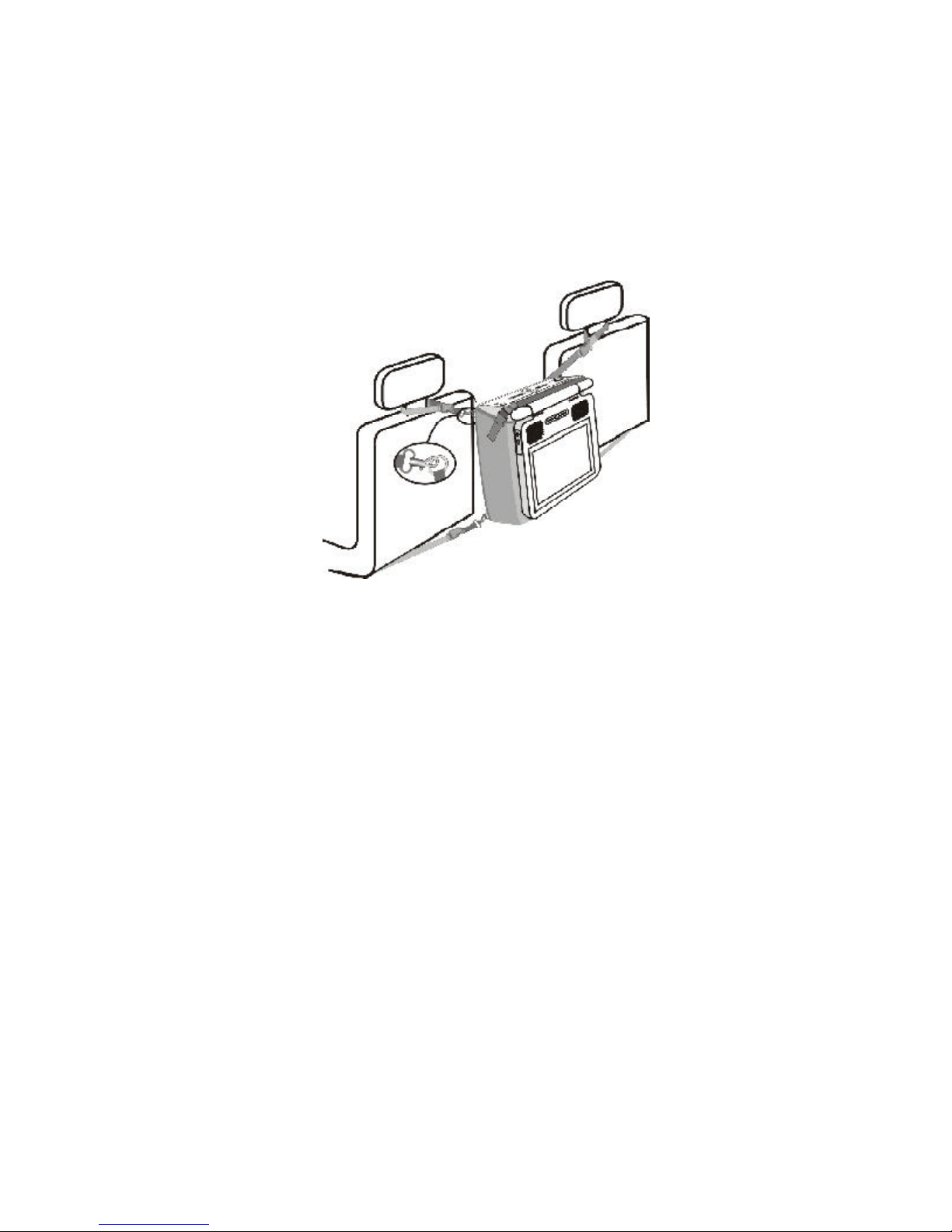

1. Installing the system between the driver/passenger seat
(Refer to Figure 3)
Figure 3.
1. Take one of the supplied straps from the lower compartment
of the bag, and connect the latch to the upper metal ring on
the left side of the bag. Attach the “S” hook to the same ring
after looping the strap around the headrest of the driver’s seat.
Repeat this process for the right side (Passenger Seat).
2. Take another strap and connect the latch to lower metal ring
on the left side of the bag. Attach the “S” hook to the same ring
after looping the strap around the driver’s seat rail. Repeat
this process for the right side. In some vehicles, it may be
necessary to attach the “S” connector directly to the rail, as it
may not be long enough to reach back to the ring.
3. Adjust the straps tightly so that the bag is secured.
4. Swing the monitor upwards and adjust the screen for the de-
sired viewing angle.
8

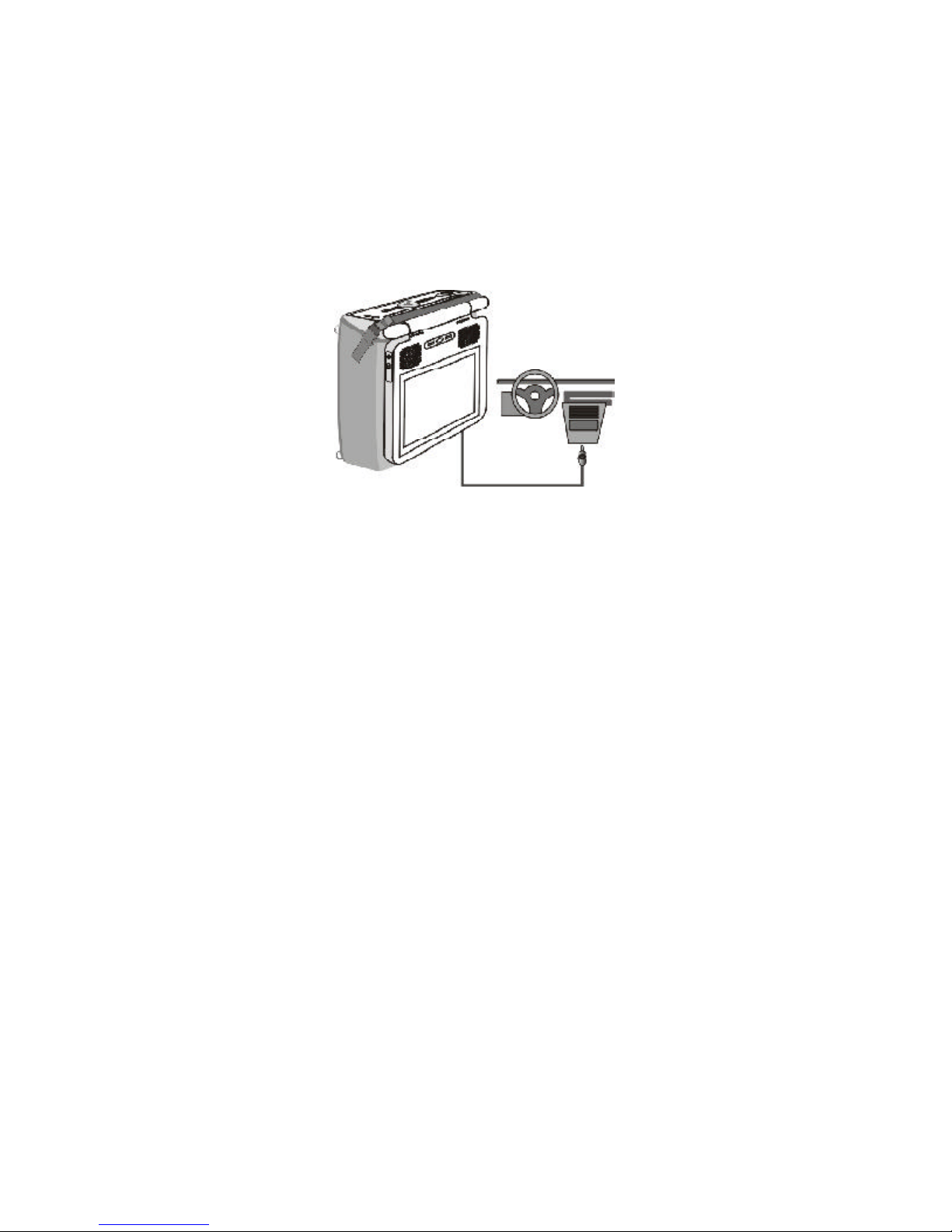

2. Powering the system in the vehicle (Refer to Figure 2)
Figure 4.
Unzip the lower compartment of the bag and take out the cigarette
lighter adapter. Plug one end into the DC 12V jack on the left side of
the main unit, then plug the other end into the cigarette lighter socket.
9

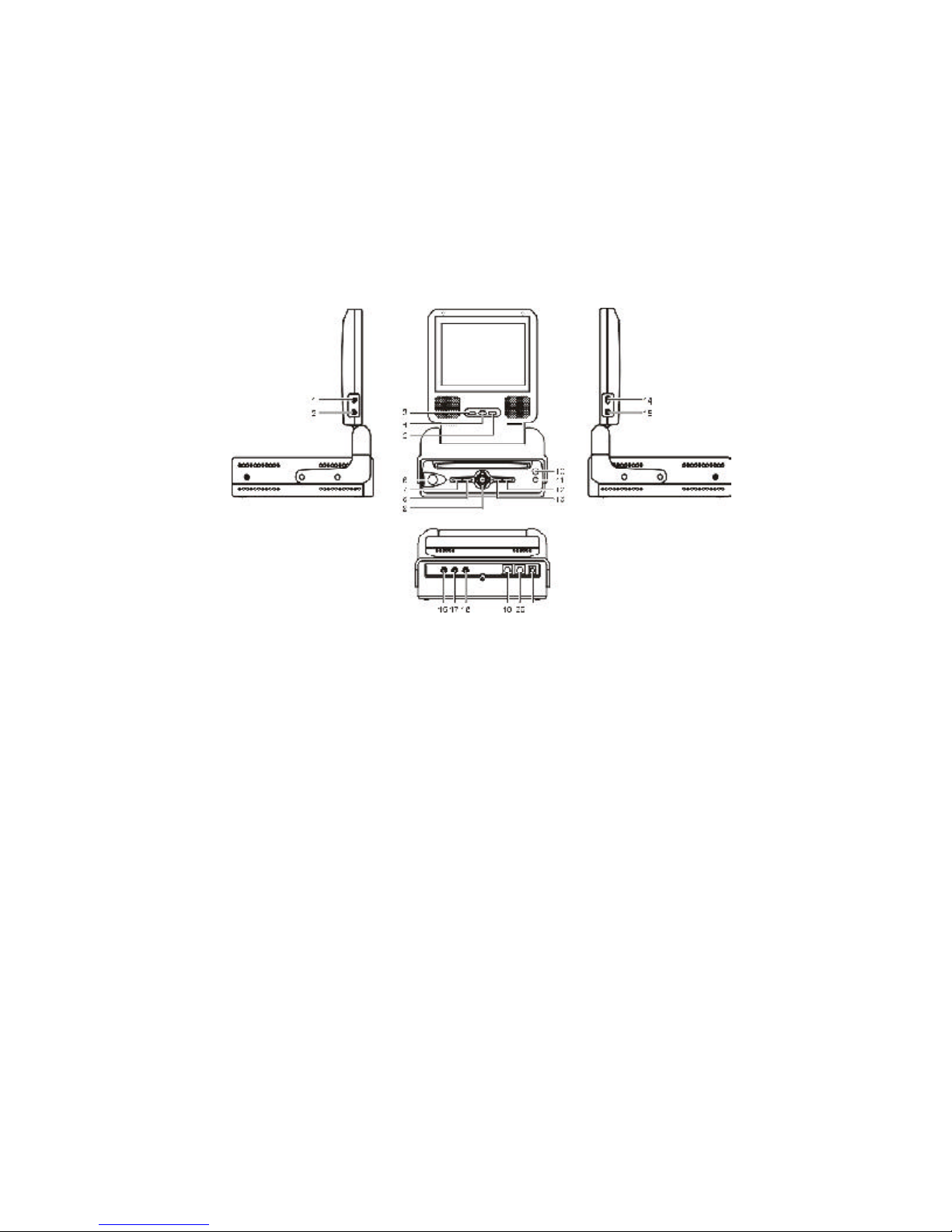

F. Controls, Indicators, and Connectors MAIN Unit
(Refer to Figure 5)
Figure 5.
1) Headphone Jack 1
2) Headphone Jack 2
3) VolumeUp / Down
Thumbwheel
4) Picture Up/Down Button
5) Brightness Thumbwheel
6) Power Button
7) Menu Button
8) Previous Button
9) PLAY/UP/DOWN/LEFT/
RIGHT Button
10) Eject Button
11) Remote Control Sensor
12) Stop Button
13) Next Button
14) DVD/AUX Switch
15) AV Input Jack
16) Video Output Jack
17) DVD Audio L Output Jack
18) DVD Audio R Output Jack
19) Monitor Port 1
20) Monitor Port 2
21) DC12V Input Jack
21
10

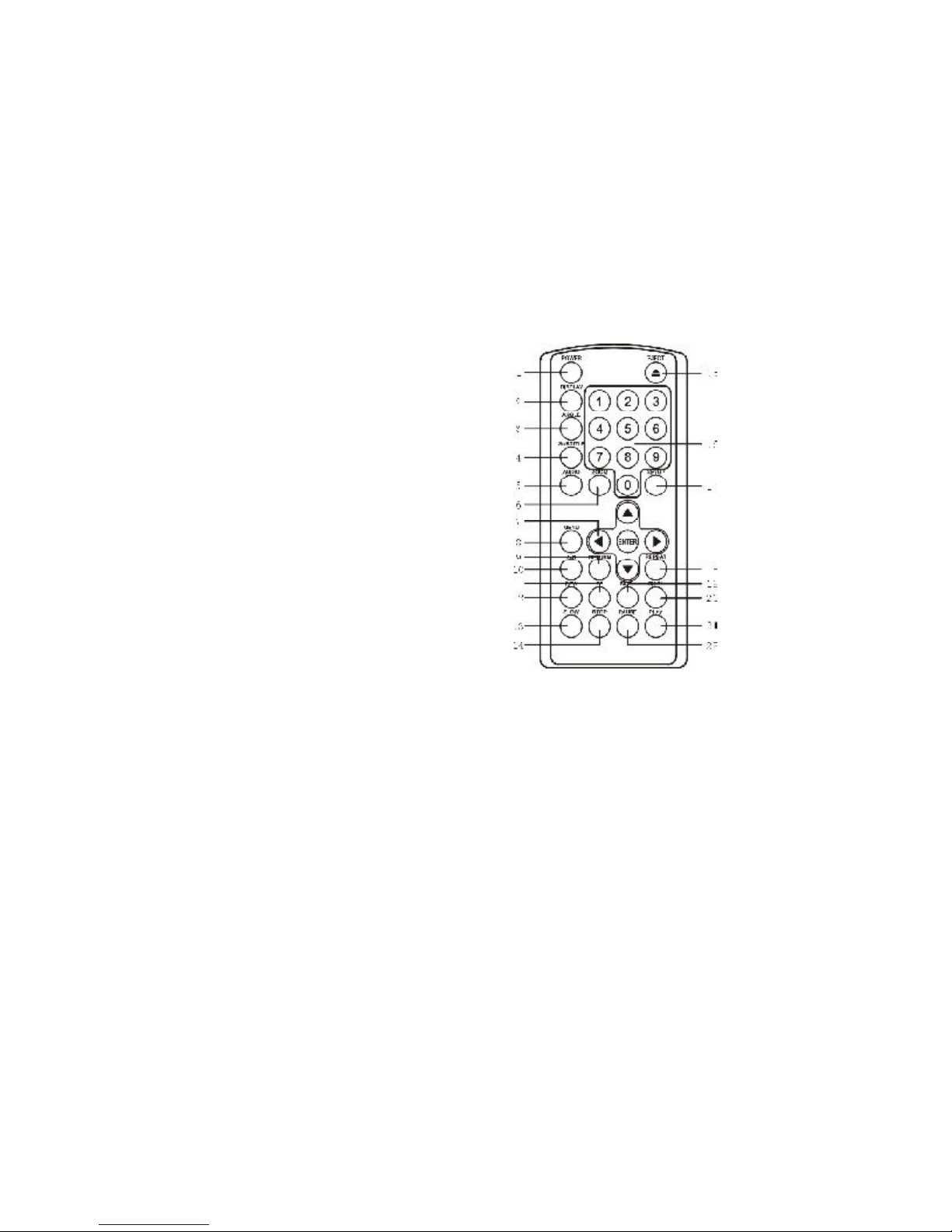

G. Remote Control
(Refer to Figure 7)
1) Power Button
2) Display Button
3) Angle Button
4) Subtitle Button
5) Audio Button
6) Zoom Button
7) Up/Down/Left/Right /
Enter Buttons
8) Menu Button
9) Return Button
10) A-B Button
11) Forward Scan Button
12) Reverse Scan Button
13) Slow Button
14) Stop Button
15) Eject Button
16) Number Buttons
17) Setup Button
18) Repeat Button
19) Skip- Button
20) Skip+ Button
21) Play Button
22) Pause Button
Figure 6.
