Asus PEB-10G Manuel utilisateur

10 Gigabit/s Ethernet

10GBASE-T Dual Port

PEB-10G/57840-2T

User Guide

E9899

First Edition

December 2014

No part of this manual, including the products and software described in it, may be reproduced, transmitted,

transcribed, stored in a retrieval system, or translated into any language in any form or by any means,

except documentation kept by the purchaser for backup purposes, without the express written permission

of ASUSTeK COMPUTER INC. (“ASUS”).

Productwarrantyorservicewillnotbeextendedif:(1)theproductisrepaired,modiedoraltered,unless

suchrepair,modicationofalterationisauthorizedinwritingbyASUS;or(2)theserialnumberofthe

product is defaced or missing.

ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS

OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF

MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS

DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL,

INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS,

LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE),

EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY

DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR

INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE,

AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO

RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS

MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.

Products and corporate names appearing in this manual may or may not be registered trademarks or

copyrightsoftheirrespectivecompanies,andareusedonlyforidenticationorexplanationandtothe

owners’benet,withoutintenttoinfringe.

iii

Contents

Contents...................................................................................................................... iii

About this guide......................................................................................................... iv

Howthisguideisorganized ............................................................................iv

Wheretondmoreinformation.......................................................................iv

Conventions used in this guide ....................................................................... v

Typography ..................................................................................................... v

PEB-10G/57840-2T specifications summary............................................................ vi

Chapter 1: Product introduction

1.1 Welcome! ....................................................................................................1-2

1.2 Package contents ...................................................................................... 1-2

1.3 System requirements.................................................................................1-2

1.4 Card layout .................................................................................................1-3

1.5 Replacing the card bracket .......................................................................1-4

Chapter 2: Boot Agent Configuration

2.1 Broadcom NetXtreme Ethernet Boot Agent ............................................2-2

2.1.1 DeviceHardwareCongurationMenu ........................................ 2-3

2.1.2 MBACongurationMenu............................................................ 2-4

2.1.3 iSCSIBootConguration ............................................................ 2-5

2.1.4 NICPartitionCongurationMenu .............................................. 2-8

Chapter 3: Driver installation

3.1 Windows®Server OS Driver Installation.................................................. 3-2

3.2 Linux OS Driver Installation...................................................................... 3-5

ASUS contact information.......................................................................................... 1

About this guide

Thisuserguidecontainstheinformationyouneedwheninstallingandconguringtheserver

management board.

How this guide is organized

This guide contains the following parts:

• Chapter1:Productintroduction

This chapter discuss the PEB-10G/57840-2T Ethernet card features and the new

technologies it supports.

• Chapter2:BootAgentconfiguration

This chapter provides instructions on setting the Broadcom NetXtreme Ethernet Boot

Agent.

• Chapter3:Driverinstallation

This chapter provides instructions for installing the Ethernet card drivers on different

operating systems.

Where to find more information

Refer to the following sources for additional information and for product and software updates.

1. ASUS websites

The ASUS website provides updated information on ASUS hardware and software

products. Refer to the ASUS contact information.

2. Optional documentation

Yourproductpackagemayincludeoptionaldocumentation,suchaswarrantyyers,

that may have been added by your dealer. These documents are not part of the

standard package.

Typography

Bold text Indicates a menu or an item to select.

Italics

 Usedtoemphasizeawordoraphrase.

<Key> Keys enclosed in the less-than and greater-than sign means

that you must press the enclosed key.

Example: <Enter> means that you must press the Enter or

Return key.

<Key1>+<Key2>+<Key3> If you must press two or more keys simultaneously, the key

names are linked with a plus sign (+).

Example: <Ctrl>+<Alt>+<Del>

Command Means that you must type the command exactly as shown,

then supply the required item or value enclosed in

brackets.

Example: At the DOS prompt, type the command line:

format a:

DANGER/WARNING: Information to prevent injury to yourself

when trying to complete a task.

CAUTION: Information to prevent damage to the components

when trying to complete a task.

NOTE: Tips and additional information to help you complete a

task.

IMPORTANT: Instructions that you MUST follow to complete a

task.

Conventions used in this guide

To make sure that you perform certain tasks properly, take note of the following symbols

used throughout this manual.

PEB-10G/57840-2T specifications summary

Specicationsaresubjecttochangewithoutnotice.

PEB-10G/57840-2T

Speed & Ports

10 Gigabit/s Ethernet 10GBASE-T

Dual Port

Ethernet Controller

PHY

BCM 57840S

BCM 84833

Connector RJ45 Copper

Host Interface PCI-E Gen3 x8

Form factor 4.72in.x1.77in.(lowerthanstandardlowprole)

Support Cable Type

Category 6 (Max. length 55 meters)

Category 6a (Max. length 100 meters)

Category 7 (Max. length 100 meters)

Features

PXE boot

iSCSI boot

Product introduction

This chapter discuss the PEB-10G/57840-2T Ethernet card

features and the new technologies it supports.

Chapter 1: Product introduction

1-2 Chapter 1: Product introduction

1.1 Welcome!

Thank you for buying an ASUS®PEB-10G/57840-2T Ethernet 10GBASE-T Dual Port card!

Before you start installing the Ethernet card, check the items in your package with the list

below.

1.2 Package contents

Check your package for the following items.

1.3 System requirements

Before you install the PEB-10G/57840-2T Ethernet card, check if the system meets the

following requirements:

• Thermalrequirement:

 Withinlettemperatureof50°C,theairowthroughtheheatsinkrequires3CFMor

above.

• ServerorworkstationmotherboardwithaPCIExpressx8orx16cardslot.

• Supportedoperatingsystem:

 WindowsandLinuxoperatingsystems(refertothespecicationtableortheASUS

website for the latest updates).

Standard Gift Box Pack Standard Bulk Pack

Support DVD 11(percarton)

Low-profile Bracket 1 1

Small Bracket for Node* 1 1

Screws 4 4

Packing Quantity 1 pc per carton 5 pcs per carton

Ifanyoftheaboveitemsisdamagedormissing,contactyourretailer.

* The bundled small bracket for node is a proprietray bracket that supports ASUS

Z10PH-D16series,ESC4000G3series,andRS720Q-E8seriesmodels,etc.The

supported list of models are subject to change without prior notice.

ASUS PEB-10G/57840-2T 1-3

1.4 Card layout

1. RJ45CopperPort1

2. RJ45CopperPort2

3. PCIExpressGen3x8Interface

4. LAN2 LED

5. LAN1 LED

6. PCIELinkLED(hidden)

LED indications

Speed/Link

Status Description

LAN1 LED /

LAN2 LED

Green 10 Gbps link

Amber 1 Gbps link

Blinking Data Activity

PCIELinkLED Green PCIElink

Top view

Bottom view

1-4 Chapter 1: Product introduction

1.5 Replacing the card bracket

ThePEB-10G/57840-2TEthernetcardisbundledwithafull-lengthbracket,alow-prole

bracket, and an ASUS proprietary bracket. By default, the card is pre-installed with a full-

length bracket.

TheproprietraybracketsupportsASUSZ10PH-D16series,ESC4000G3series,and

RS720Q-E8seriesmodels,etc.Thesupportedlistofmodelsaresubjecttochangewithout

prior notice.

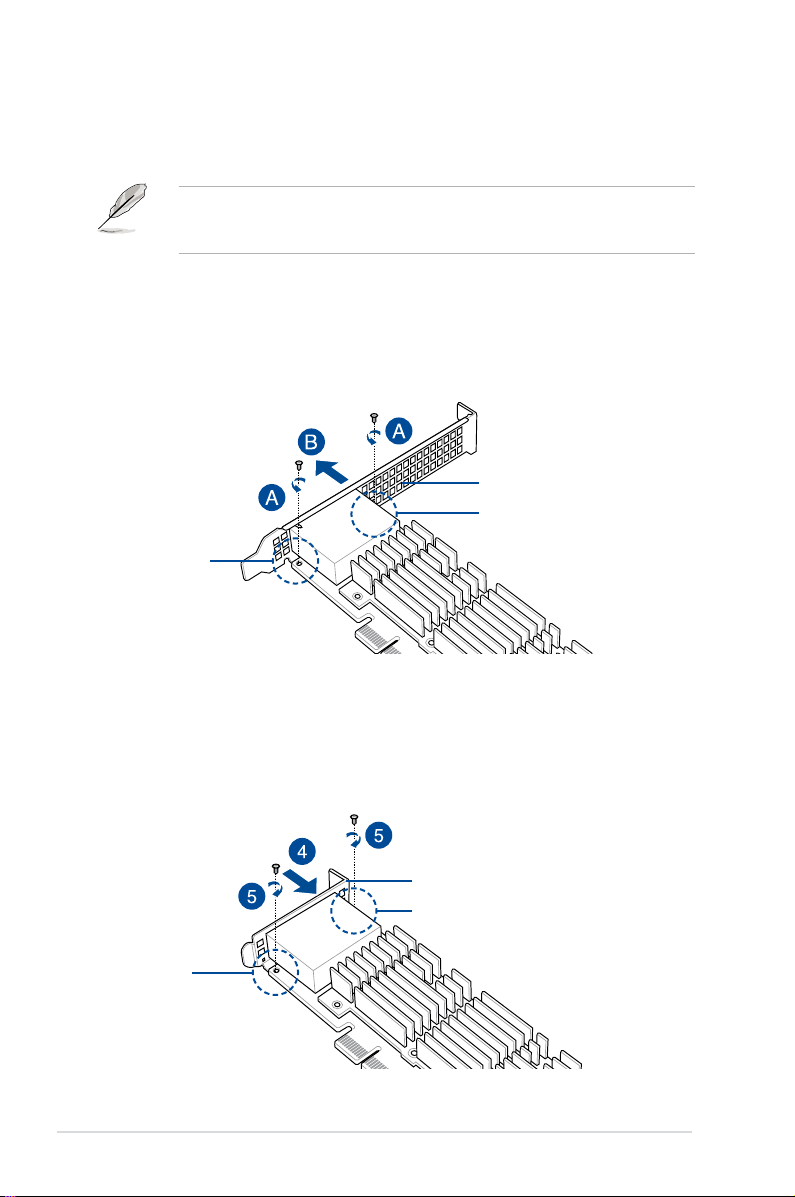

To replace the card bracket:

1. Get the PEB-10G/57840-2TEthernetcardandplaceitonastableandatsurface.

Ensurethattheprintedcircuitboard(PCB)isfacingdown.

2. RemovethetwoscrewsthatsecuresthePEB-10G/57840-2TEthernetcardtothecard

bracket(A)thenremovethecardbracket(B).

3. Getthereplacementcardbracket.

4. Align and insert the PEB-10G/57840-2T Ethernet card into the mounting hole of the

card bracket. Ensure that the screw holes on the PEB-10G/57840-2T Ethernet card

matches the screw holes of the card bracket.

5. Secure the card with the screws that you removed earlier in step 2.

screw

replacement card bracket

default card bracket
