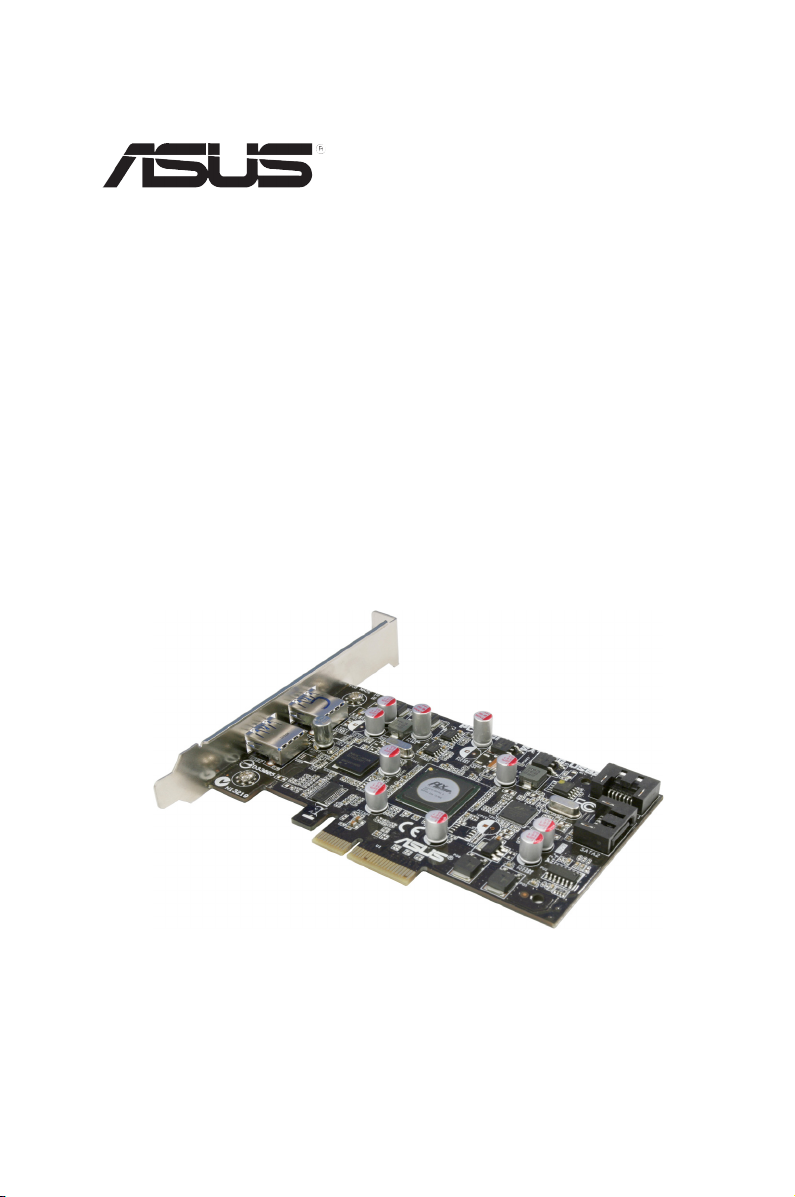

Asus U3S6 Manuel utilisateur

U3S6

expansion card

User Guide

E5159

First Edition

October 2009

No part of this manual, including the products and software described in it, may be reproduced,

transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any

means, except documentation kept by the purchaser for backup purposes, without the express written

permission of ASUSTeK COMPUTER INC. (“ASUS”).

Product warranty or service will not be extended if: (1) the product is repaired, modied or altered, unless

such repair, modication of alteration is authorized in writing by ASUS; or (2) the serial number of the

product is defaced or missing.

ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS

OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF

MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS

DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL,

INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS,

LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE),

EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY

DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR

INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE,

AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO

RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS

MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.

Products and corporate names appearing in this manual may or may not be registered trademarks or

copyrights of their respective companies, and are used only for identication or explanation and to the

owners’ benet, without intent to infringe.

About this guide

Typography

Bold text Indicates a menu or an item to select.

Italics

Used to emphasize a word or a phrase.

<Key> Keys enclosed in the less-than and greater-than sign means

that you must press the enclosed key.

Example: <Enter> means that you must press the Enter or

Return key.

<Key1+Key2+Key3> If you must press two or more keys simultaneously, the key

names are linked with a plus sign (+).

Example: <Ctrl+C>

Command Means that you must type the command exactly as shown,

then supply the required item or value enclosed in

brackets.

Example: At the DOS prompt, type the command line:

format a:

DANGER/WARNING: Information to prevent injury to yourself

when trying to complete a task.

CAUTION: Information to prevent damage to the components

when trying to complete a task.

NOTE: Tips and additional information to help you complete a

task.

IMPORTANT: Instructions that you MUST follow to complete a

task.

Conventions used in this guide

To make sure that you perform certain tasks properly, take note of the following

symbols used throughout this manual.

U3S6 specications summary

Specications are subject to change without notice.

Internal Connectors

- 2 x SATA 6Gb/s ports support of up to 2 SATA hard

disk drives

- Backward compatible with SATA 3Gb/s and SATA

1.5Gb/s hard disk drives

External Connectors - 2 x USB 3.0 ports

- Backward compatible with USB 2.0/1.1 interface

Interface - PCI Express x4 interface

- Compatible with PCI Express x4, x8 and x16 slots

Conguration

Supported AHCI Mode

Operating Systems

Supported Windows 7/Vista/XP 32/64bit

Compatible Models

- Maximus III Formula

- Maximus III GENE

- SABERTOOTH 55i

- P7P55D Premium

- P7P55D Deluxe

- P7P55D EVO

- P7P55D PRO

- P7P55D

- P7P55D LE

Features

True SATA 6Gb/s & USB 3.0: Native support PCIe Gen2

bandwidth

Support Hot Plug function

Support Native Command Queuing (NCQ)

Acessories

2 x Serial ATA 6Gb/s cables

1 x Support CD

1 x User manual

Form factor 4.8 in x 3 in (12.2 cm x 7.6 cm)

Welcome!

Thank you for buying an ASUS®U3S6 expansion card!

The ASUS U3S6 expansion card allows you to install two SATA 6G hard disk

drives and two USB 3.0 devices.

Before you start installing the expansion card, check the items in your package

with the list below.

Package contents

Check your package for the following items.

• ASUS U3S6 expansion card

• 2 x Serial ATA 6.0Gb/s cables

• Support CD

• User guide

If any of the above items is damaged or missing, contact your retailer.

Card layout

The illustration below shows the major components of the U3S6 expansion card.

SATA 6Gb/s

connector 2

SATA 6Gb/s connector 1

PCI Express x4 interface

USB 3.0

connector 1

USB 3.0

connector 2

Card installation

Follow the instructions below to install the U3S6 expansion card to your motherboard.

The following pictures are for reference only. The motherboard layout may vary

with models, but the installation steps remain the same.

1. Locate to an empty PCI Express x4,

x8, or x16 slot on the motherboard.

If your motherboard has two or

more PCI Express x16 slots and

has no PCI Express x4 or x8 slots,

it is recommended to install the card

to the last PCI Express x16 slot.

2. Insert the expansion card into the

PCI Express slot. Ensure that it is

completely seated on slot.

It is recommended to install the U3S6 expansion card to a PCI Express x4 slot

prior to other PCI Express slots. The card supports the maximum bandwidth of

x4 link only and will run at x4 link even installed on a PCI Express x8 or x16 slot.

The last PCIe x16 slot

Support CD information

The support CD that came with the expansion card package contains the drivers

that you can install to avail all product features.

The contents of the support CD are subject to change at any time without

notice. Visit the ASUS website at www.asus.com for updates.

Running the support CD

Place the support CD to the optical drive. The CD automatically displays the

Drivers menu if Autorun is enabled in your computer.

• You have to install the U3S6 expansion card on your motherboard before

you can launch the Autorun function of the support CD.

• If Autorun is NOT enabled in your computer, browse the contents of the

support CD to locate the le ASSETUP.EXE from the BIN folder.

Double-click the ASSETUP.EXE to run the CD.

Drivers menu

The Drivers menu shows the available device drivers if the system detects installed

devices. Install the necessary drivers to activate the devices.

The screen display and driver options may vary under different operating

system versions.

Make disk menu

The Make disk menu allows you to create a Marvell AHCI Driver disk.

ASUS Contact information

Click the Contact tab to display the ASUS contact information. You can also nd

this information on the inside front cover of this user guide.
