UP Squared Pro Edge

M.2 2230 WiFi Installation SOP

Revision: A1.0

Date: May. 2022

Focus • Agility • Competitiveness

www.aaeon.com

AAEON TECHNOLOGY EUROPE BV - Confidential

Step 1:

•Unscrew and disassemble the bottom and front I/IO chassis cover

Bottom Side Front I/O Side

AAEON TECHNOLOGY EUROPE BV - Confidential

Step 2:

•Remove the power button cable and pull the cable out

Front I/O Side

*Lightly out-side-in push the

plastic parts to release the

power button.

AAEON TECHNOLOGY EUROPE BV - Confidential

Step 3:

•Unscrew the screws for GPIO (2pcs) and pull the cable out.

Rear I/O Side

AAEON TECHNOLOGY EUROPE BV - Confidential

Step 4:

•Break the antenna holes on the chassis (left and right side)

Left Side Right Side

AAEON TECHNOLOGY EUROPE BV - Confidential

Step 5:

•Unscrew the screws (4pcs) fixing the PCBA and turn the PCBA over so the

bottom side of the PCBA is facing up.

AAEON TECHNOLOGY EUROPE BV - Confidential

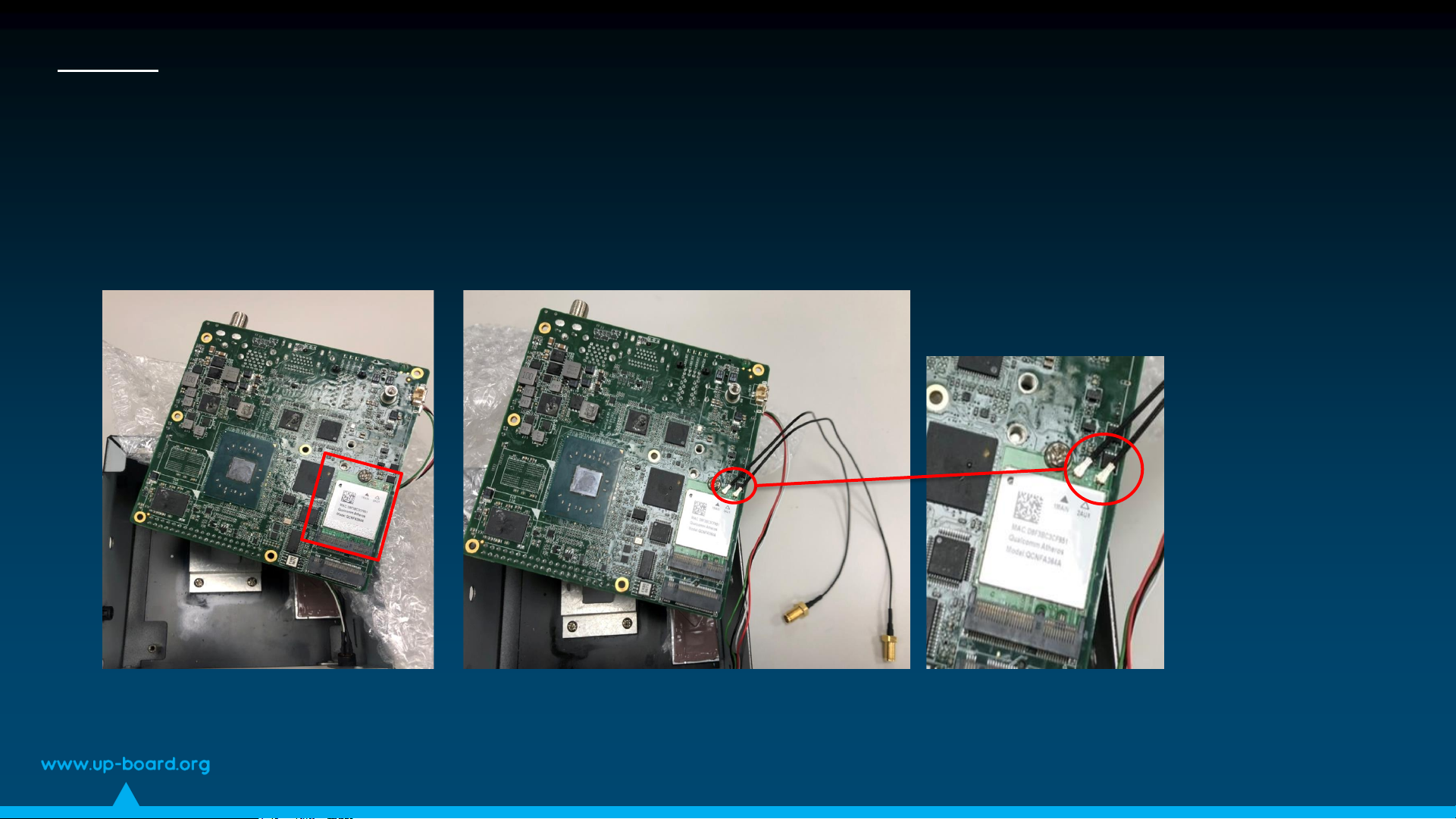

Step 6:

•Install the WiFi module on M.2 2230 E Key slot and the coaxial cable. The cables are

arranged as shown in the figure below (the cables are routed towards the right side

of the board). Connect and glue the ipex connector of the coaxial cable to the WiFi

module pitch.

Glue the ipex connect to the module

AAEON TECHNOLOGY EUROPE BV - Confidential

Step 7:

•Turn the PCBA back, so that the IO side is facing up again (the power button cable is

routed to the top of the board). Assemble the SMA Jack of coaxial cable to the

chassis, and then lock the spacer and nut.

Power button cable

AAEON TECHNOLOGY EUROPE BV - Confidential

Step 7:

•Install the external antenna and restore the parts removed from steps 5>3>2>1

AAEON TECHNOLOGY EUROPE BV - Confidential
