AFe Power 52-10002D Manuel utilisateur

advanced

W engineering Rapid Induction Cold Air Intake System

Instruction Manual P/N: 52-10002D / 52-10002R______________________________

Make: RAM Model: 1500 Year: 2019-2021 Engine: V6-3.6L

Page 2

Please read the entire instruction manual before proceeding.

For technical support please call 951-493-7185.

attempt to work on your vehicle when the engine is hot.

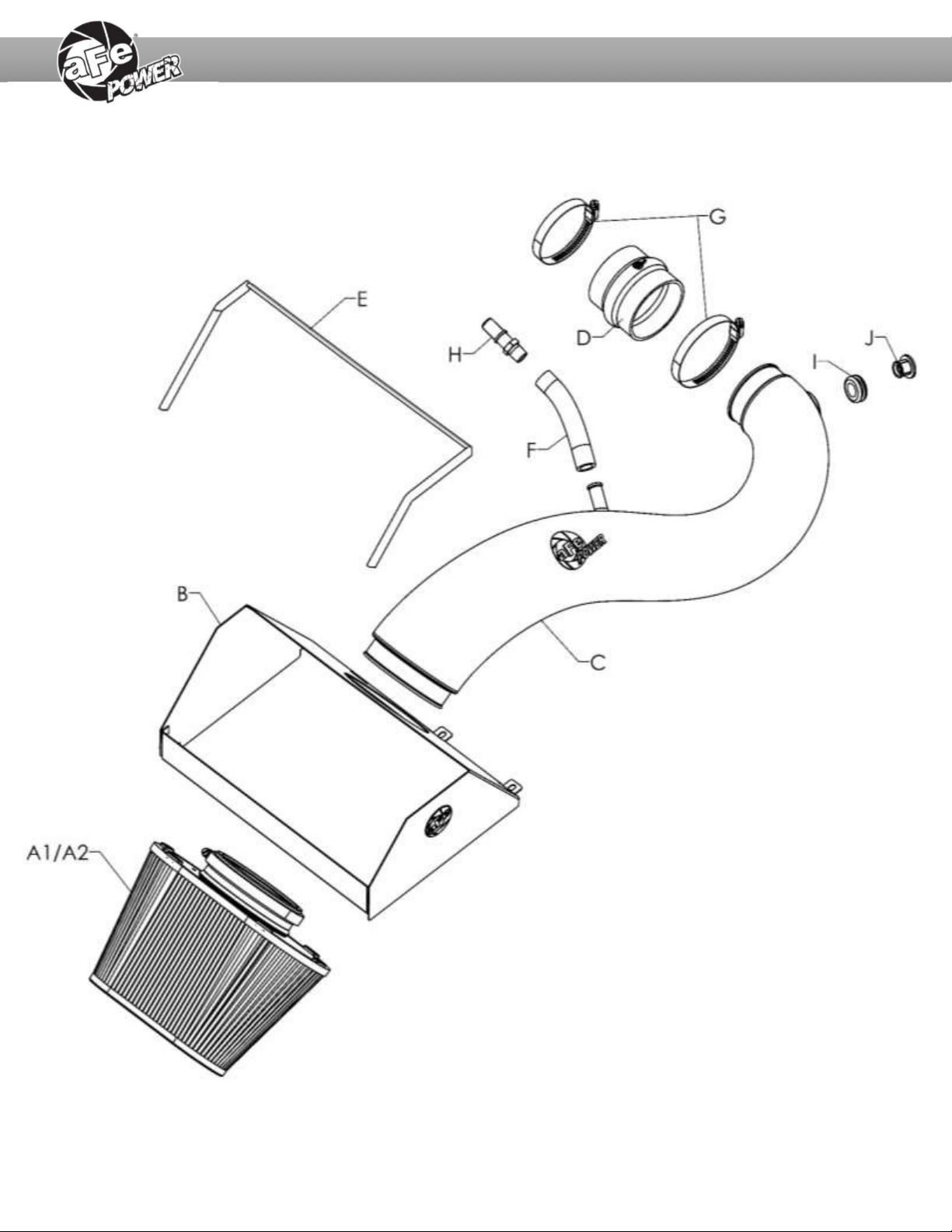

Label Qty. Description Part Number

A1 1 Air Filter (Pro DRY S) 21-90108

A2 1 Air Filter (Pro 5R) 24-90108

B 1 Housing 05-5413020B2

C 1 Tube 05-5210002B1

D 1 Coupling, Silicone Reducer: (3-1 -1/8 05-01330

E 1 Seal, Trim 05-00072

F 1 6 L) 05-01502

G 2 Clamp, #048 03-50007

H 1 03-50659

I 1 Grommet 03-50167

J 1 Fitting, Air Temperature Sensor 05-01454

Installation will require the following tools:

8mm nut driver, 10mm

Emissions Disclaimer: This product is not currently CARB exempt and is not available for purchase in

California or for use on any vehicle registered with the California Department of Motor Vehicles.

Page 3

Page 4

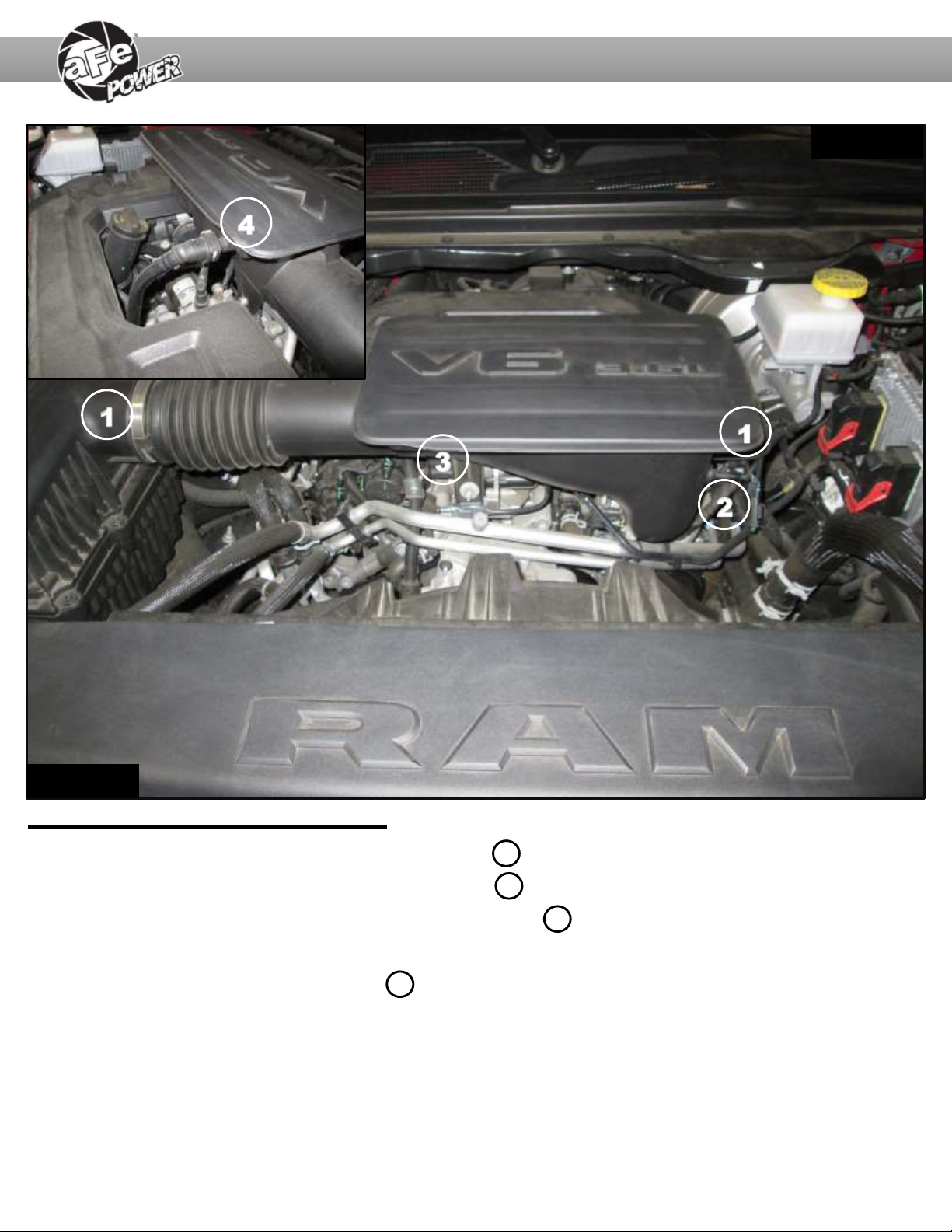

Refer to Figure A for Steps 1-5

Step 1: Using an 8mm nut driver, loosen the two clamps 1 at the throttle body and factory filter housing.

Step 2: Disconnect the temperature sensor wire harness 2 .

Step 3: Using a 10mm deep socket and driver, remove the nut 3 securing the factory intake tube to the

valve cover and set aside.

Step 4: Disconnect the quick connect fitting 4 on the back side of the factory intake tube.

Step 5: Remove the factory intake tube from the vehicle.

REMOVAL

Page 5

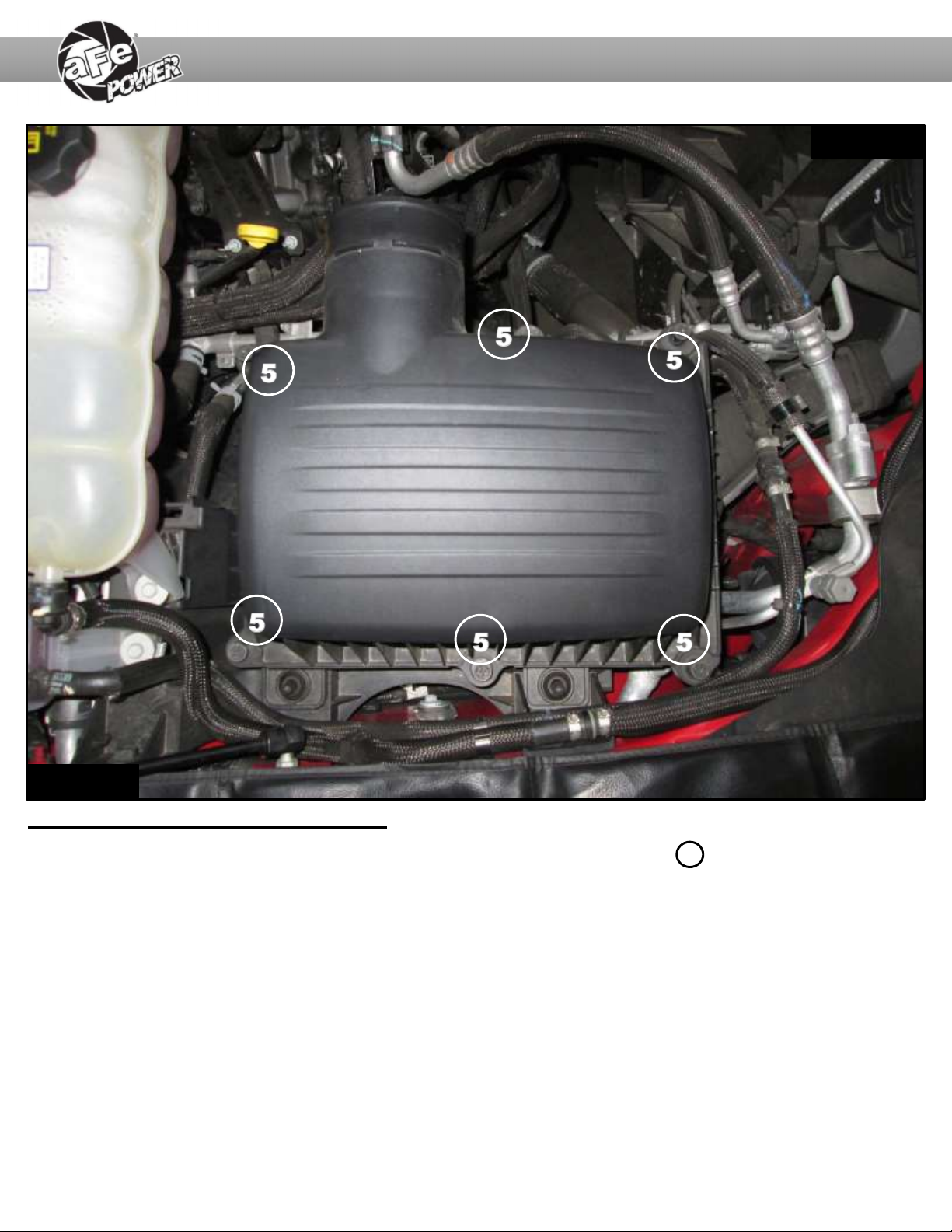

Refer to Figure B for Steps 6-7

Step 6: Using a 10mm socket and driver with extension, remove the 6x screws 5 around the factory filter

housing, and remove the cover.

Step 7: Remove the factory air filter.

REMOVAL

Page 6

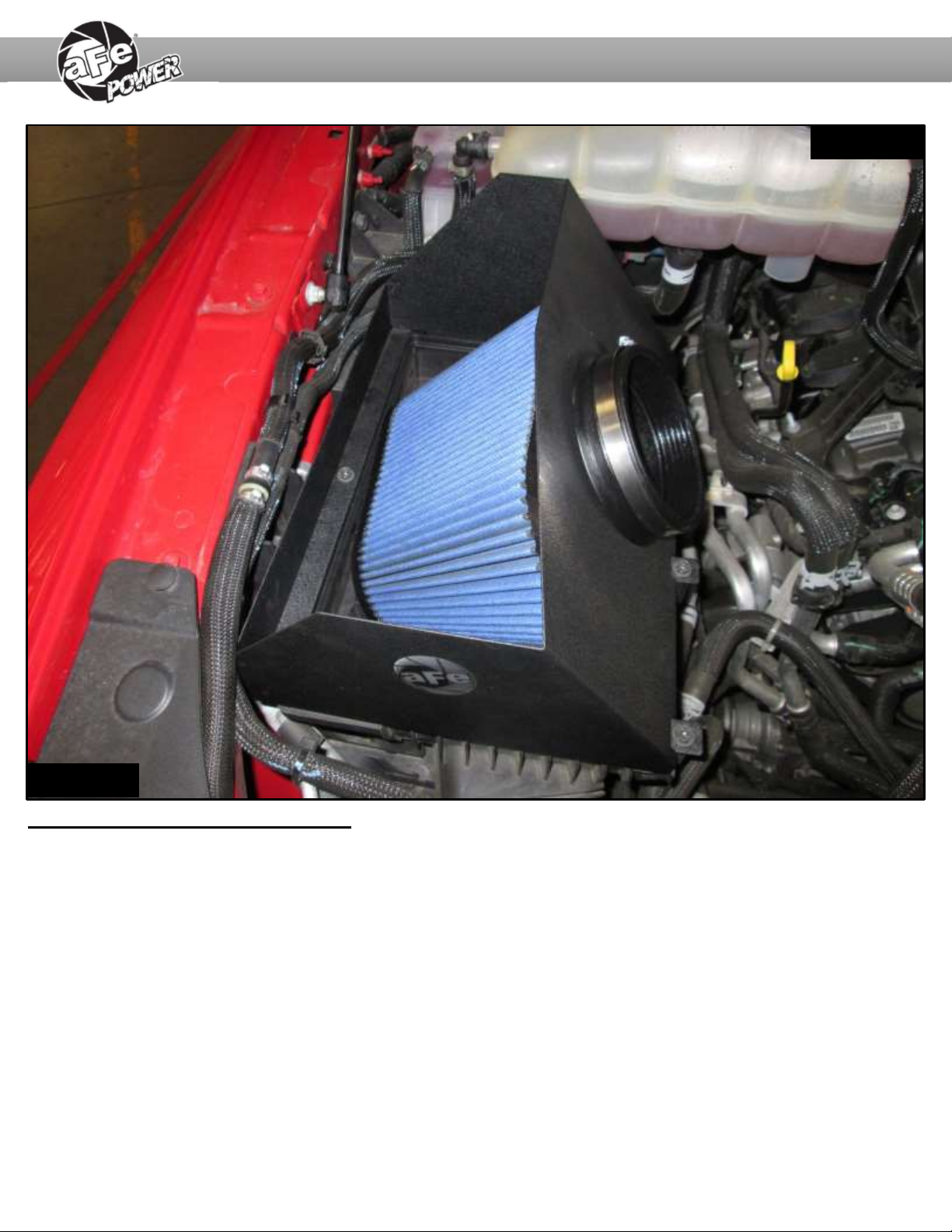

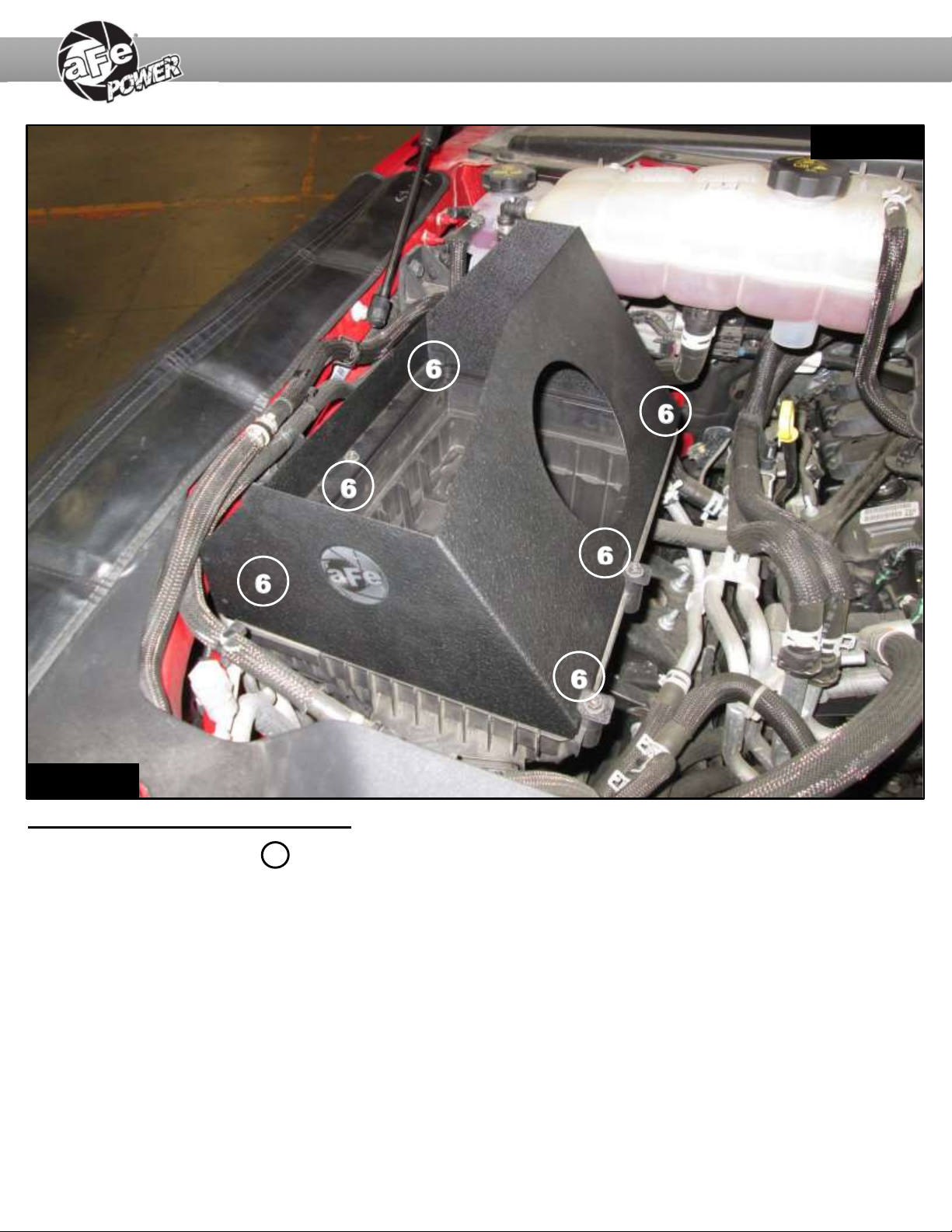

Refer to Figure C for Step 8

Step 8: Using the 6x screws 6 removed in step #6, secure your aFe POWER filter housing to the top of the

factory filter housing and tighten using a 10mm socket with extension.

INSTALL

Page 7

Refer to Figure D for Step 9

Step 9: Install your aFe POWER air filter into the filter housing by removing the clamp, then sliding the filter

flange through the opening on the housing and pressing gently until the filter snaps into place. Place the

filter clamp loosely on the filter flange when finished.

INSTALL

Page 8

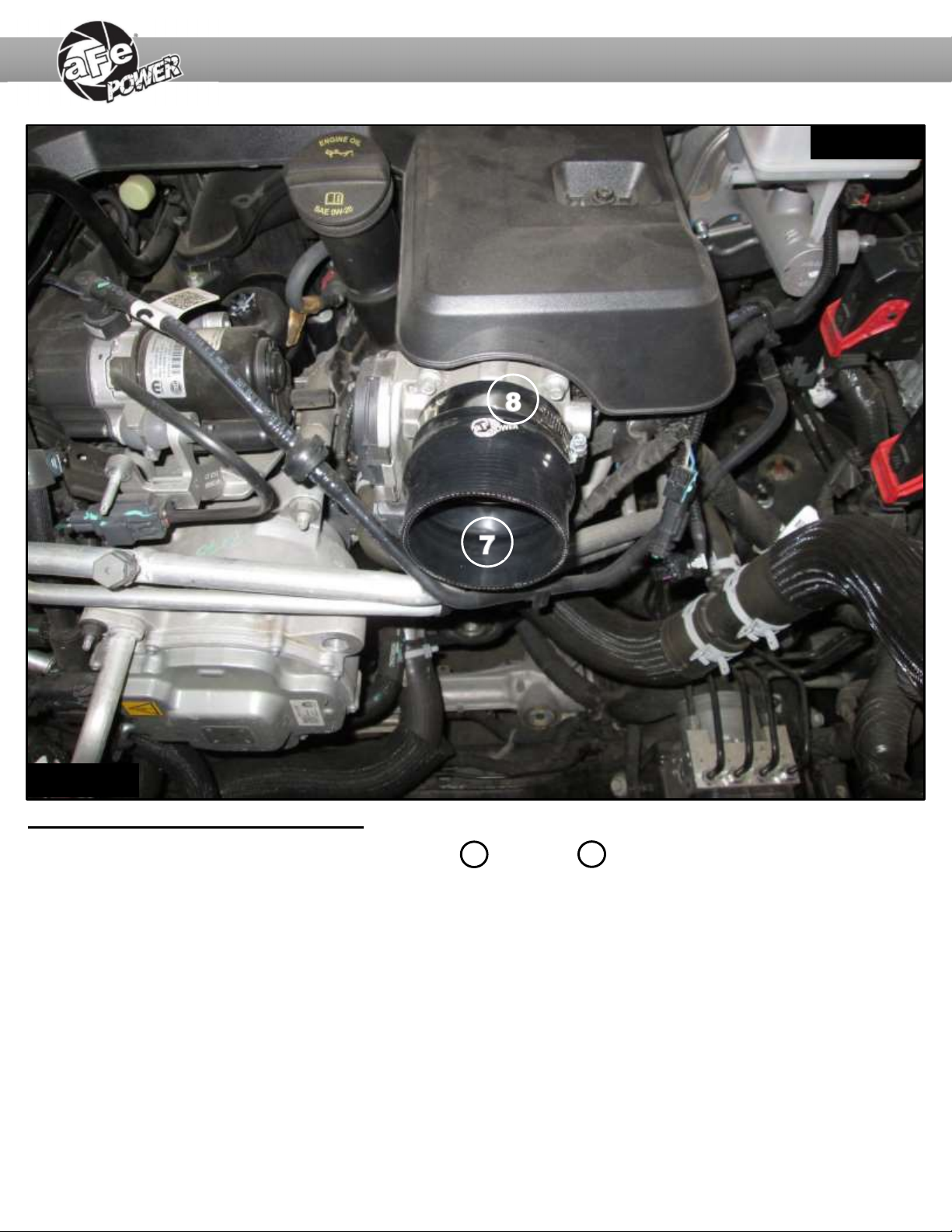

Refer to Figure E for Step 10

Step 10: Install the supplied silicone reducer coupler 7 and clamp 8 with the smaller end on the throttle

body. Tighten the clamp using an 8mm nut driver.

INSTALL
