1 PCM-3680 Startup Manual All product specifications are subject to change without notice.

STARTUP MANUAL

PCM-3680

2-Port CAN-bus PC/104 Module with Isolation Protection

Before installation, please make sure that you have:

• PCM-3680

• ICOM Series Driver CD with Advantech WDM

CAN Driver

• Startup Manual

If anything is missing or damaged, contact your

distributor or sales representative immediately.

FCC Class A

This equipment has been tested and found to comply with

the limits for a Class A digital device, pursuant to part 15 of

the FCC Rules. These limits are designed to provide reason-

able protection against harmful interference when the

equipment is operated in a commercial environment. This

equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the

instruction manual, may cause harmful interference to radio

communications. Operation of this equipment in a residen-

tial area is likely to cause interference in which case the

user is required to correct interference at his expense

This product has passed the CE test for environmental spec-

ifications

when shielded cables are used for external wiring.

We recommend the use of shielded cables. This kind of

cable is available from Advantech. Please contact your local

supplier for ordering information.

PCM-3680 is a special purpose communication card

that brings the Control Area Network to your PC.

With the built-in CAN controller, the PCM-3680

provides bus arbitration and error detection with

automatic transmission repeat function. The onboard

CAN controllers are located at different positions

in the memory. You can run both CAN controllers

at the same time, independently. The PCM-3680

operates at baud rates up to 1 Mbps and can be

installed directly into the expansion slot of your PC.

• Operates 2 CAN networks simultaneously

• High speed transmission (up to 1Mbps)

• 16 MHz CAN controller frequency

• 4 KB address space, 40 base address adjustable in

steps from C800H up to EF00H

• Optical isolation protection of 2500 VDC

• Wide IRQ selection for each port includes:

IRQ 3, 4, 5, 6,7, 9, 10, 11, 12, 15

• LED indicates transmit/receive status on each port

• Direct memory mapping enables speedy access

• Supports 32/64-bit WinXP/Vista/Win7, WinCE

5.0/6.0 and Linux

• Ports: 2

• CAN Controller: SJA-1000

• CAN Transceiver: 82C250

• Signal Support: CAN-L, CAN-H

• Memory Address: From C800H to EF00H

• IRQ: 3, 4, 5, 6, 7, 9, 10, 11,12, 15

• Isolation Voltage: 2500 VDC

• Power Consumption: +5 V @ 400 mA typical,

950 mA max.

• Connectors: Dual DB-9 male connectors

• Operating Temperature: -40 ~ 85°C (-40 ~ 185°F)

• PC/104 Form Factor: 3.6" x 3.8" (90 x 96 mm)

• Shipping Weight: 0.485 lb (0.22 kg)

Packing List Features

Declaration of Conformity

Overview

Notes

For more information on this and other Advantech

products, please visit our websites at:

http://www.advantech.com/eAutomation

For technical support and service:

http://www.advantech.com/support/

This startup manual is for PCM-3680.

Part No. 2000368040 1st Edition

June 2011

Specifications

Jumper & Switch Locations

2 PCM-3680 Startup Manual

Installation

Card Configuration

The PCM-3680 has two ports, each with one jumper.

The jumpers set the IRQ for the ports, which can be

configured separately. A DIP switch sets the memory

base address for each port. The following chart shows

the function of the jumper and the switch (see the previ-

ous page for jumper and switch locations).

Default Settings

• Port 1 is set for COM1 (IRQ=12, Memory address =

DA00:0000).

• Port 2 is set for COM2 (IRQ=15, Memory address

=DA00:0200).

If you need to change these settings, see the following

sections. Otherwise, you can simply install the card.

Note that you will need to disable your CPU card's

onboard COM ports, if any, or set them to alternate

addresses/IRQs.

Jumpers and Switches

Jumpers JP1 and JP2 set the interrupts for Port 1 and

Port 2, respectively. You can choose any IRQ from 3 to

15, except 8, 13 and 14. When you choose IRQs, make

sure they are not used for other cards in the system. The

following figures show the card's default settings.

Note: It is suggested to set the terminator resistor

(120Ω) to keep the baud rate performance.

Switch and Jumper Functions

IRQ Setup

JP1 Port 1

JP2 Port 2

Memory base address

SW1 Port 1, Port 2

JP5/JP6 Setting (Terminator Resistor Setup)

Status Value of Terminator

Resistor (Ω)

Open Mode 0

Close Mode 120

Memory Base Address (SW1)

The memory base address for the PCM-3680, which

requires 4 KB of address space, is made up of the mem-

ory segment and its associated offset. The address for

the memory segment is set through SW1, a six-position

DIP switch. You can choose any base address from

C800 to EF00. The following table shows the DIP

switch settings and the corresponding base addresses.

Memory Address Configuration (SW1)

Address/

DIP Switch

A12 A13 A14 A15 A16 A17

C800H on on on off on on

C900H off on on off on on

CA00H on off on off on on

CB00H off off on off on on

CC00H on on off off on on

CD00H off on off off on on

CE00H on off off off on on

CF00H off off off off on on

D000H on on on on off on

D100H off on on on off on

D200H on off on on off on

D300H off off on on off on

D400H on on off on off on

D500H off on off on off on

D600H on off off on off on

D700H off off off on off on

D800H on on on off off on

D900H off on on off off on

DA00H on off on off off on

DB00H off off on off off on

DC00H on on off off off on

DD00H off on off off off on

DE00H on off off off off on

DF00H off off off off off on

E000H on on on on on off

E100H of on on on on off

E200H on off on on on off

E300H off off on on on off

E400H on on off on on off

E500H off on off on on off

E600H on off off on on off

E700H off off off on on off

E800H on on on off on off

E900H off on on off on off

EA00H on off on off on off

EB00H off off on off on off

EC00H on on off off on off

ED00H off on off off on off

EE00H on off off off on off

EF00H off off off off on off

3 PCM-3680 Startup Manual All product specifications are subject to change without notice.

STARTUP MANUAL

Memory Area

Once the memory segment for the base address is

selected, the offset will be automatically assigned

for Port 1, Port 2, and hardware reset. The following

table shows the base addresses of the CAN control-

lers.

Software Overview

Please install the Advantech CAN WDM Driver

before using PCM-3680. You can find the driver in

the CD come along with the product.

Advantech CAN Windows WDM&CE Driver is

composed of bus drivers, ports drivers, tools and

examples. Bus drivers and ports drivers, which run

in PeliCAN mode, are used to drive SJA1000 chip

on Advantech CAN device. Bus drivers and ports

drivers are compliant with PCI and ISA bus, and

provide the users with coherent operation interfaces.

Users can directly write applications with windows

API. Examples of VC, VB, VB.NET, C#.NET,

VC.NET, eVC are supplied in the package, provid-

ing a reference for users to develop applications.

When developing work is completed, users can use

test tools to verify if functions of the application are

correct.

Installation

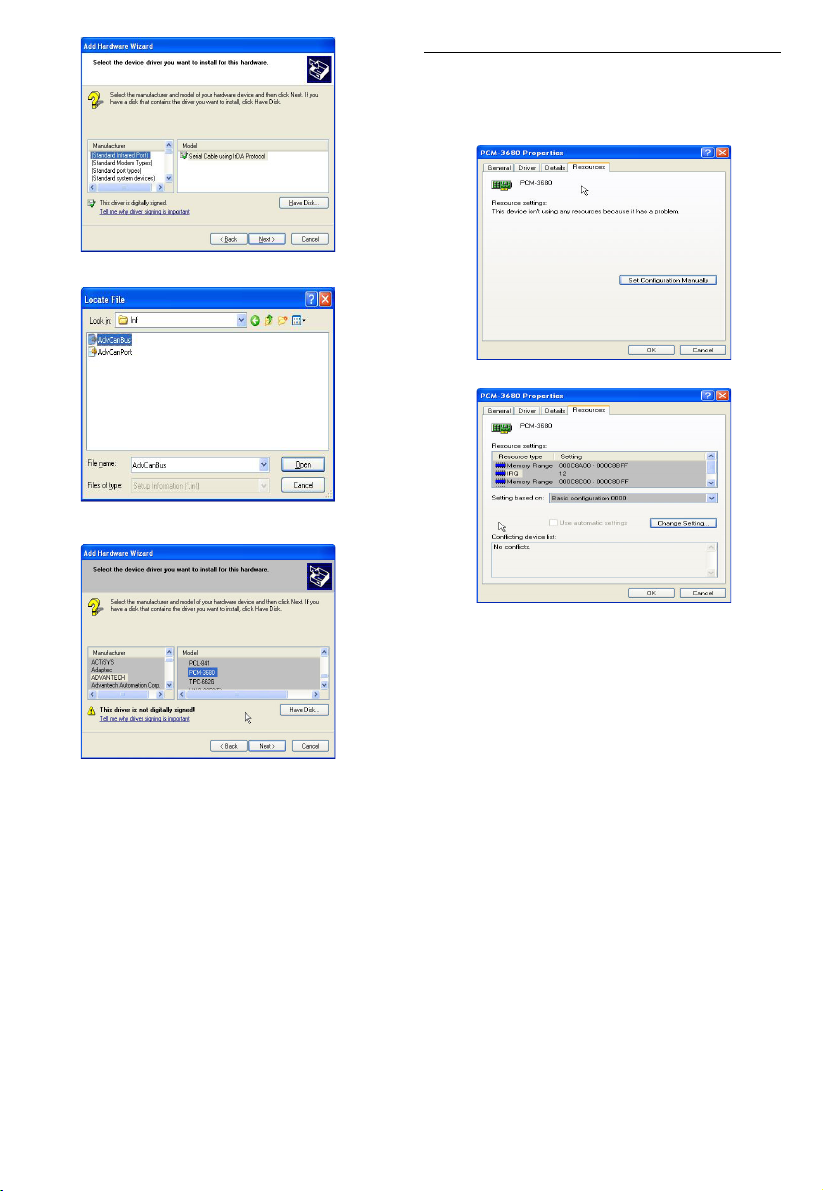

After the installation of the driver, please start the

“Add Hardware Wizard” to add the hardware

device.

Then follow the steps as shown in the figures below.

Base address (hex) CAN Controller

base:0000h - base:00FFh Basic- Port 1

base:0100h - base:01FFh HW reset Basic - Port 1

base:0200h - base:02FFh Basic- Port 2

base:0300h - base:03FFh HW reset Basic - Port 2

base:0400h - base:0FFFh Not used

DataMonitor Utility

4 PCM-3680 Startup Manual

Configuration

Before you start to use PCM-3680, you must configure

the CAN resource. You can refer to the below figures to

set the Memory Address and IRQ.
