Advantech ADAM-6051 Manuel utilisateur

ADAM-6051 16-channel Digital I/O w/Counter Module

The ADAM-6051W is a high-density I/O module built-in a 10/100 based-T interface for seamless Ethernet connectivity.

It provides 12 digital input, 2 digital output, and 2 counter (10 KHz) channels with 5000VRMS Isolating protection. All of

the Digital Input channels support input latch function for important signal handling. Mean while, these DI channels

allows to be used as 1 KHz counter. Opposite to the intelligent DI functions, the Digital Output channels also support

pulse output function.

ADAM-6051W

Figure 1: ADAM-6051W 16-channel Digital I/O w/Counter Module

ADAM-6051W Specification

• Channel: 16

• I/O type: 12DI / 2DO / 2Counter

• Digital Input: Dry Contact:

Logic level 0: Close to GND

Logic level 1: Open

Wet Contact:

Logic level 0: +3 Vmax

Logic level 1: +10 to 30 V

• Digital Output:Open Collector to 30 V, 200 mA max. load

•Optical Isolation: 5000VRMS

•Counter:

Maximum Count: 4,294,967,285(32 bit)

Input frequency: 0.3 ~ 1000 Hz max. (frequency mode), 5000 Hz max. (counter mode)

Isolation voltage: 2500 VRMS

Mode: Counter (Up/Down, Bi-direction), Frequency

•Communication: Wireless LAN IEEE802.11b

•Power Consumption: 2 W (Typical)

Application Wiring

Figure 2: ADAM-6051W Digital Input (Wet Contact) Wiring

Figure 3: ADAM-6051W Digital Input (Wet Contact) Wiring

Figure 4: ADAM-6051W Digital Output and Counter Wiring

System Architecture

ADAM-6051W Configuration

Network Configuration

Step 1 : Please open theADAM-5000TCP-6000 utility software. The utility software will automatically

scan the ADAM-6000 modules. Please wait for the ADAM-6051W being found by utility software.

Step 2 : Please go the “Network” page to change the IP address/SubnetAddress/Default Gateway of

ADAM-6051W module to be compatible with user’s existing network and set the host idle time out value

(the ADAM-6000 module can only accept 8 connection from host station.Any host station doesn’t request

the communication with thisADAM-6000 module over the time out setting, the connection of this host

station will be released for the other stations).

press “Apply” to download the new IP address to ADAM-6051W module (the default password for the

changing configuration is “00000000”).

Step 3 : Re-configuring the IP address of the configuration PC to be the original setting (compatible with

user’s existing network) then re-start the utility software. The software will automatically search the

ADAM-6051W module again.

Step 4 : Go to the “Wireless” page to set the wireless LAN configuration.

Please set the wireless LAN mode to be “Infrastructure” or “Adhoc” based on exact system architecture.

Please assign the SSID for the specific wirelessAP to be connected withADAM-6000W modules. User

can place “ANY” key to let theADAM-6000W modules to automatically search the existing wireless AP. Or

key in the specific SSID to assign the dedicated AP (strongly recommending to set up the dedicated SSID,

it can guarantee the communication ofADAM-6000W modules to be stable)

For assigning the dedicated wireless LANAP, user can use the site survey function to check the existing

AP in connection environment. Please go to the “Site Survey” page.

Press “Scan” bottom to search the existing AP.

Selecting the AP in the searching result table.

Press “Apply” bottom to accept the AP to finish the set up action.

Please select the region for your area.

Setting the used channel, the channel number must be included in the channel segment of your region.

Please select the basic rate for the communication bandwidth.

Table des matières

Autres manuels Advantech Unité de contrôle

Advantech

Advantech EH-8100 Manuel utilisateur

Advantech

Advantech ADAM-3750 3-Wire Series Manuel d'installation et d'exploitation

Advantech

Advantech PCM-3345 Manuel utilisateur

Advantech

Advantech SOM-5962 Manuel utilisateur

Advantech

Advantech IPMI-1000 Manuel d'installation et d'exploitation

Advantech

Advantech PCM-3618 Manuel utilisateur

Advantech

Advantech B+B SmartWorx iMcV-LIM Manuel utilisateur

Advantech

Advantech ADAM-3017 Manuel d'installation et d'exploitation

Advantech

Advantech Qseven SOM-3567 Manuel utilisateur

Advantech

Advantech PCM-233A Manuel d'installation et d'exploitation

Advantech

Advantech PCM-3524 Manuel utilisateur

Advantech

Advantech EPD-132 Manuel utilisateur

Advantech

Advantech ADAM-3656 Manuel d'installation et d'exploitation

Advantech

Advantech AMAX-3285IO Manuel d'installation et d'exploitation

Advantech

Advantech PCA-TPMSPI Manuel d'installation et d'exploitation

Advantech

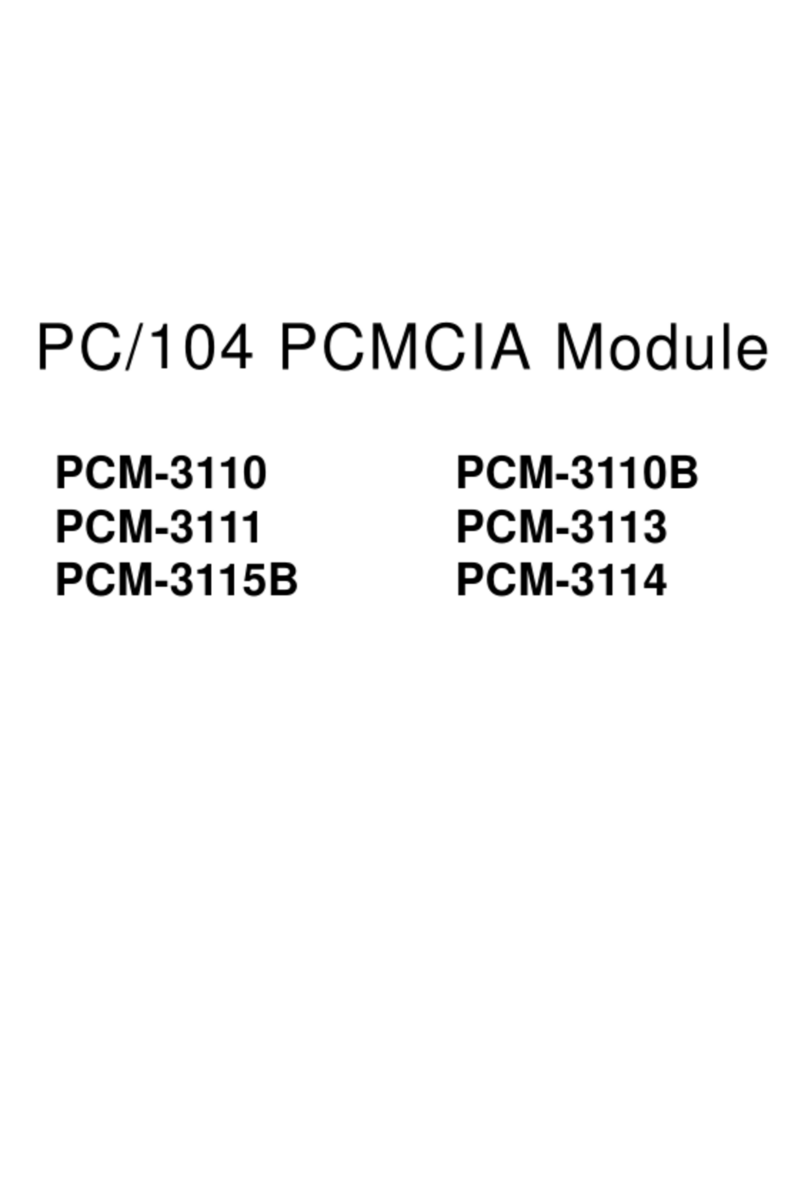

Advantech PCM-3110 Manuel utilisateur

Advantech

Advantech RISC SOM-A2558 Series Manuel utilisateur

Advantech

Advantech WISE-4610 Series Manuel d'installation et d'exploitation

Advantech

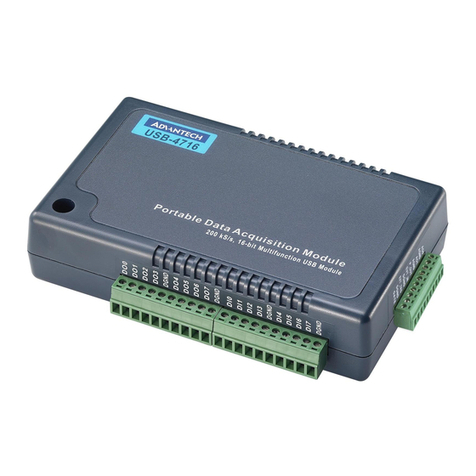

Advantech USB-4716 Manuel d'installation et d'exploitation
