Advantech DVP-1020 Manuel utilisateur

DVP-1020

4Channel PC/104-Plus

Video Capture Module

This documentation and the software included with this product are

copyrighted 2004 by Advantech Co., Ltd. All rights are reserved.

Advantech Co., Ltd. reserves the right to make improvements in the

products described in this manual at any time without notice. No part of

this manual may be reproduced, copied, translated or transmitted in any

form or by any means without the prior written permission of Advantech

Co., Ltd. Information provided in this manual is intended to be accurate

and reliable. However, ADVANTECH CO., LTD. assumes no

responsibility for its use, nor for any infringements of the rights of third

parties which may result from its use.

Acknowledgments

IBM and PC are trademarks of International Business Machines

Corporation. MS-DOS, Windows, Microsoft Visual C++ and Visual

BASIC are trade-marks of Microsoft Corporation. Intel and Pentium are

trademarks of Intel Corporation. Delphi and C++ Builder are trademarks

of Inprise Corporation.

CE notification

The DVP-1020, developed by ADVANTECH CO., LTD., has passed the

CE test for environmental specifications when shielded cables are used

for external wiring. We recommend the use of shielded cables. This kind

of cable is available from Advantech. Please contact your local supplier

for ordering information

On-line Technical Support

For technical support and service, please visit our support website at:

http://www.advantech.com/support

PartNo.2062102000 1st Edition

Printed in Taiwan June. 2004

Rev. 0.1c

iii

Contents

CHAPTER 1 GENERAL INFORMATION .................................... 5

1.1 HARDWARE REQUIREMENTS............................................ 6

1.2 SOFTWARE REQUIREMENT............................................... 6

1.3 BLOCK DIAGRAM............................................................. 7

1.4 PACKING LIST.................................................................. 8

1.5 DIMENSIONS .................................................................... 9

1.6 JUMPERS & CONNECTORS LOCATION ............................. 10

1.7 JUMPERS & CONNECTORS DEFINITION ........................... 11

1.8 BATTERY ....................................................................... 16

1.9 HARDWARE INSTALLATION ........................................... 17

1.10 SOFTWARE INSTALLATION.............................................. 18

CHAPTER 2 SOFTWARE INFORMATION ............................... 25

2.1 DVP-1020 FUNCTIONS LIBRARY SUMMARY .................... 26

2.2 Method ............................................................................. 31

Adv_DVPAPI_CreateSDKInstence ........................................ 31

Adv_DVPAPI_GetNumberOfDevices..................................... 32

Adv_DVPAPI_InitSDK........................................................... 33

Adv_DVPAPI_CloseSDK ....................................................... 34

Adv_DVPAPI_Start ................................................................ 35

Adv_DVPAPI_Stop................................................................. 37

Adv_DVPAPI_GetCapState.................................................... 38

Adv_DVPAPI_GetCurFrameBuffer ....................................... 39

Adv_DVPAPI_SetNewFrameCallback................................... 40

Adv_DVPAPI_GetVideoFormat ............................................. 41

Adv_DVPAPI_SetVideoFormat .............................................. 43

Adv_DVPAPI_GetFrameRate ................................................ 44

Adv_DVPAPI_SetFrameRate ................................................. 45

Adv_DVPAPI_GetVideoResolution ........................................ 46

Adv_DVPAPI_SetVideoResolution ......................................... 47

Adv_DVPAPI_ GetVideoInput................................................ 48

Adv_DVPAPI_SetVideoVideoInput......................................... 49

Adv_DVPAPI_GetBrightness ................................................. 50

Adv_DVPAPI_SetBrightness.................................................. 51

Adv_DVPAPI_GetContrast .................................................... 52

Adv_DVPAPI_SetContrast ..................................................... 53

Adv_DVPAPI_GetHue ........................................................... 54

Adv_DVPAPI_SetHue ............................................................ 55

Adv_DVPAPI_GetSaturation ................................................. 56

Adv_DVPAPI_SetSaturation .................................................. 57

Adv_DVPAPI_GPIOGetData................................................. 58

Adv_DVPAPI_GPIOSetData.................................................. 59

Adv_DVPAPI_GetWDTTimeout............................................. 60

Adv_DVPAPI_SetWDTTimeout.............................................. 61

Adv_DVPAPI_GetUCFlag ..................................................... 62

Adv_DVPAPI_SetUCFlag...................................................... 64

Adv_DVPAPI_GetPoweronEvent........................................... 65

Adv_DVPAPI_GetAlarm ........................................................ 66

Adv_DVPAPI_SetAlarm ......................................................... 67

Adv_DVPAPI_GetChecksum.................................................. 68

Adv_DVPAPI_GetEEData ..................................................... 69

Adv_DVPAPI_SetEEData ...................................................... 70

Adv_DVPAPI_GetRTCData................................................... 71

Adv_DVPAPI_SetRTCData.................................................... 72

CHAPTER

General Information

Chapter 1 General Information

DVP-1020 is a 4-channel video input PC/104-Plus video capture

module that supports up to D1 resolution at 30/25 fps frame rate.

DVP-1020 allows installation of up to 4 modules in one PC system by

utilizing an onboard DIP switch setting that identifies card ID by LED

indicators. DVP-1020 supports NTSC/PAL signals and digitizes data to

the PC through the PC/104-Plus interface.

DVP-1020 has an auto wake-up function that provides 10 sets of

time-settings. From an “off” state, two digital trigger pins can also

remotely trigger this function. DVP-1020 also has a built-in watchdog

timer to reset the system and prevent crashes when an unknown error

occurs. DVP-1020 is also designed with a programmable software

protection key for anonymous user software copy protection.

1.1 HardwareRequirements

! Intel Pentium III 1GHz or above (The CPU speed depends on the

video frame rate, channels and resolution)

! 256 MB RAM or above

! Free PC/104-Plus slot

1.2 Software Requirement

! Microsoft Windows 2000/XP with DirectX 8.1 or above

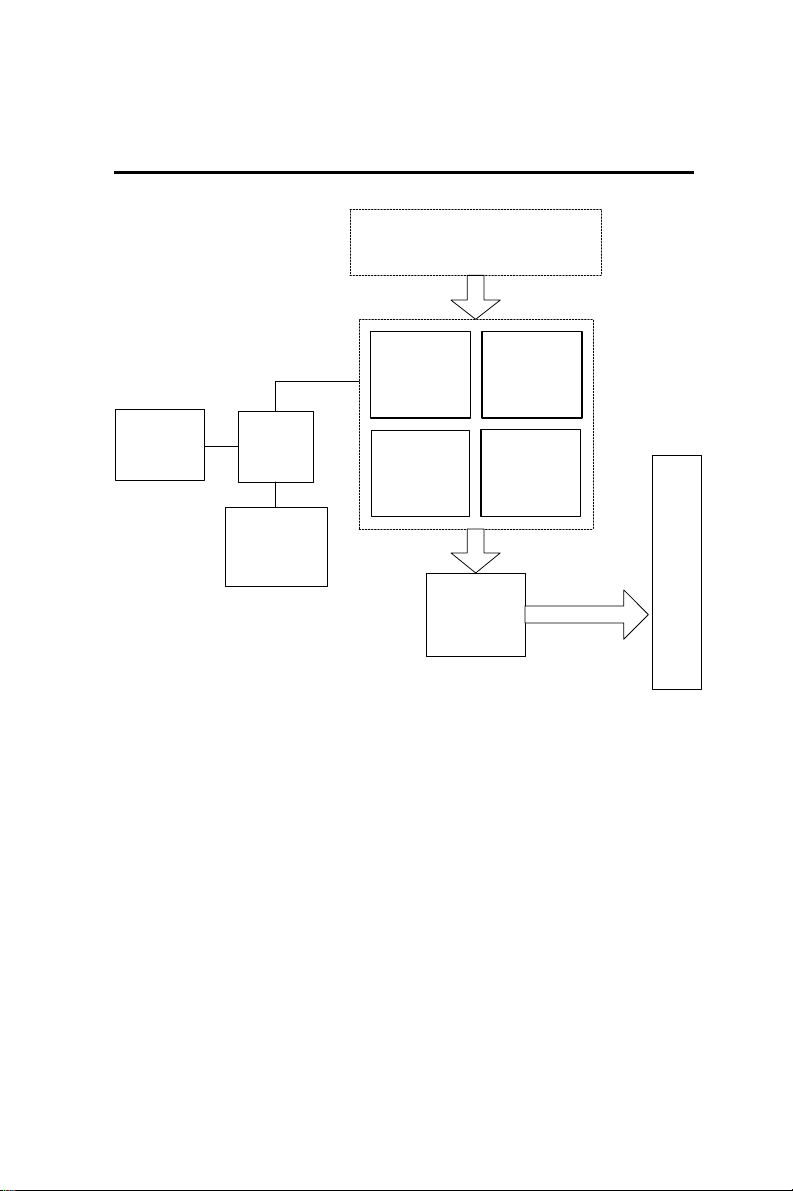

1.3 Block Diagram

PCI Bridge

PC/104-

Plus

CONEXANT

878A

CONEXANT

878A

Programmable

software

protectionkey

Autowake-up

function

Micro-

controller

CONEXANT

878A

CONEXANT

878A

#4 channel D1 input

#16 channel input by shared

frame

Figure 1.1 System diagram

1.4 PackingList

! DVP-1020 PC/104-Plus video capture module X 1

! Utility CD X 1

! Standby power wire (p/n: 1700000575) X 1

! Connection wire for WDT (p/n: 1703020303) X 1

! Connection wire for power switch (p/n: 1703020303) X 1

! Wire for video input (p/n: 1700000860) X 4

! BNC board (p/n: 9696NC2000) X 4

1.5 Dimensions

Figure 1.2 Dimensions

VIN 4

VIN 0

VIN 3

VIN 1

VIN 2

GPIO

J6: WOL

LED indicator

Module ID

switch

PC/104 Plus slot

J2: External trigger input

J3: Auto wake-up & reset

J4: Jumper of Auto wake-up

Security key

writer input

1.6 Jumpers&connectorslocation

Figure 1.3 Jumpers & connectors location
