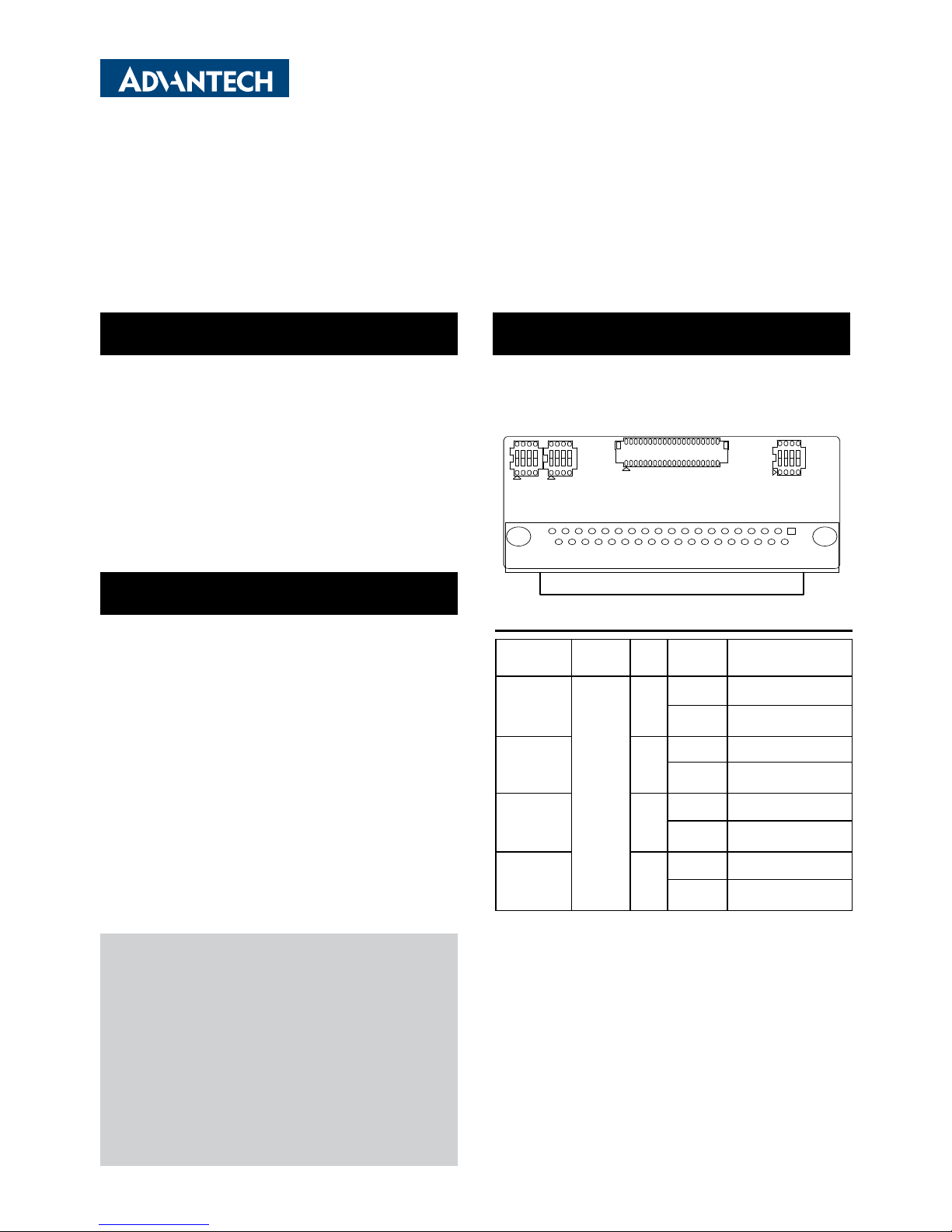

Advantech PCM-2610B Manuel d'installation et d'exploitation

PCM-261X Startup Manual 1

Before installation, please make sure that you have:

1. mPCIe card with controller x 1

2. Wired cable x 1

3. DB37 to DB9(4 ports) cable x 1

4. Startup manual x 1

5. Warranty card x 1

6. DB37 IO plate with bracket x 1

If any of these items are missing or damaged, contact your

distributor or sales representative immediately.

The driver can be downloaded from the product website.

* Supports Windows XP/7/8/10, and Linux

PCM-2610B

PCM-2612B

4-Ports Non-Isolated RS-232 mPCIe, DB37

4-Ports Non-Isolated RS-422/485 mPCIe, DB37

Startup Manual

You can set the terminator resistor via jumper setting if

necessary to match impedance.

PCM-2612B Jumper switch setting as below.

Master/Slave Settings

COM

Port Switch Pin Setting Description

COM 1

SW1

ON RS-422 Master

OFF RS-485/RS-422

Slave (Default)

COM 2 2

ON RS-422 Master

OFF RS-485/RS-422

Slave (Default)

COM 3 3

ON RS-422 Master

OFF RS-485/RS-422

Slave (Default)

COM 4 4

ON RS-422 Master

OFF RS-485/RS-422

Slave (Default)

SW1

SW2

SW3

CN1

CN2

Packing List

For more information on this and other Advantech

products, please visit our website at

http://www.advantech.com

http://www.advantech.com/eAutomation

For technical support and service:

http://www.advantech.com.tw/eservice

This manual is for PCM-2610B-AE/PCM-2612B-AE.

Part No. 2001261000

Printed in China

1st Edition

March 2018

Jumper Settings

Documentation/Software Support Guide

2 PCM-261X Startup Manual

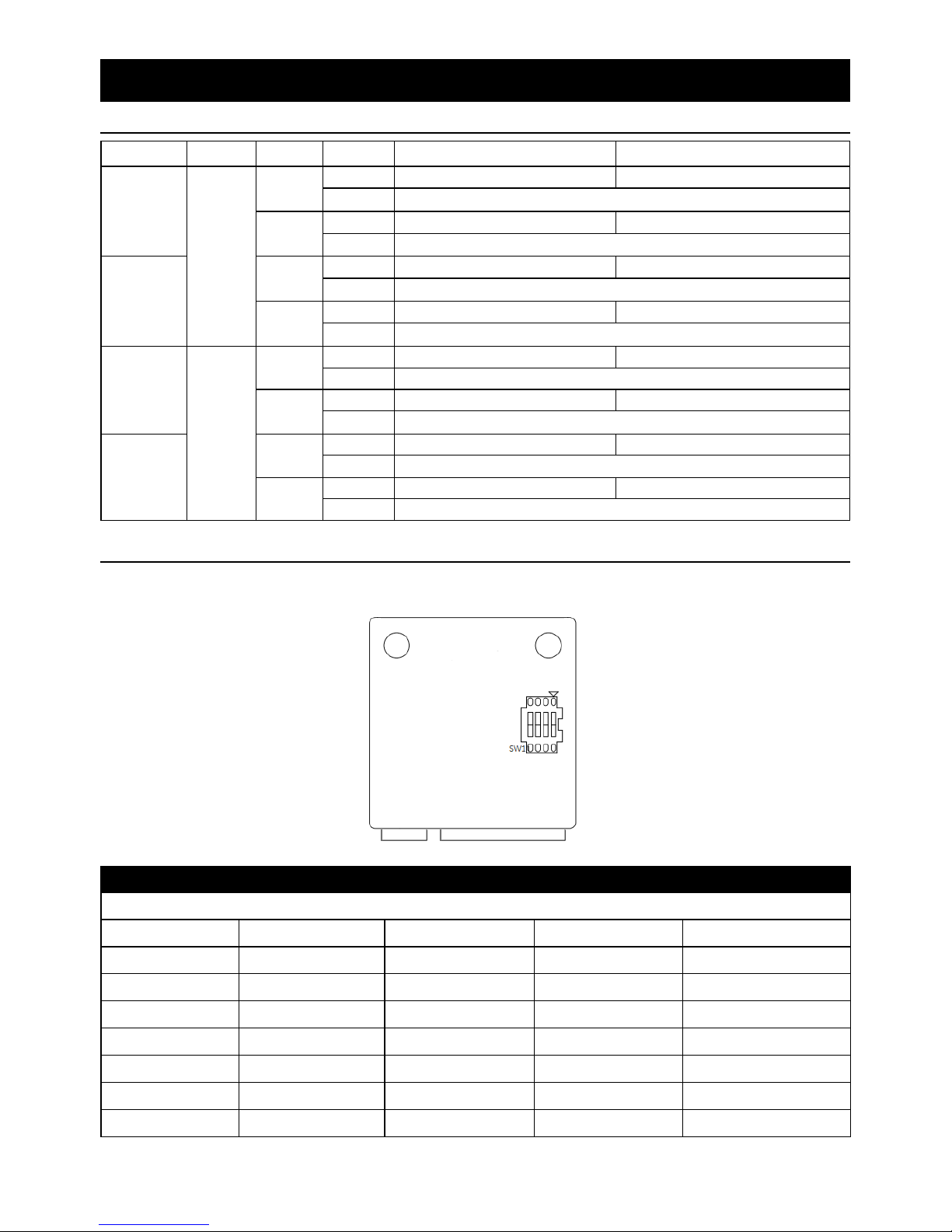

Terminal Resistor Settings

COM Port Switch Pin Setting RS-422 Description RS-485 Description

COM 1

SW2

1ON 120 Ohm between Tx+/Tx- 120 Ohm between Data+/Data-

OFF Open (Default)

2ON 120 Ohm between Rx+/Rx- Invalid

OFF Open (Default)

COM 2

3ON 120 Ohm between Tx+/Tx- 120 Ohm between Data+/Data-

OFF Open (Default)

4ON 120 Ohm between Rx+/Rx- Invalid

OFF Open (Default)

COM 3

SW3

1ON 120 Ohm between Tx+/Tx- 120 Ohm between Data+/Data-

OFF Open (Default)

2ON 120 Ohm between Rx+/Rx- Invalid

OFF Open (Default)

COM 4

3ON 120 Ohm between Tx+/Tx- 120 Ohm between Data+/Data-

OFF Open (Default)

4ON 120 Ohm between Rx+/Rx- Invalid

OFF Open (Default)

Board ID Setting

The comm. cards feature a built-in DIP switch for deﬁning the card’s board ID. When multiple cards are installed, the board ID

switch is useful for identifying the device number of each card.

Board ID Setting

SW Position 3 Position 2 Position 1 Position 0

BoardID BID3 BID2 BID1 BID0

0 ON ON ON ON

1 ON ON ON OFF

2 ON ON OFF ON

3 ON ON OFF OFF

4 ON OFF ON ON

5 ON OFF ON OFF

6 ON OFF OFF ON

Jumper Settings (Cont.)

PCM-261X Startup Manual 3

7 ON OFF OFF OFF

8 OFF ON ON ON

9 OFF ON ON OFF

10 OFF ON OFF ON

11 OFF ON OFF OFF

12 OFF OFF ON ON

13 OFF OFF ON OFF

14 OFF OFF OFF ON

15 OFF OFF OFF OFF

The following tables and ﬁgures show the pin assignments of 1 connector on the bracket to the modular card. if you see two

ports or above, it will use the same pin-deﬁnition of this one.

PCM-2610B Female DB37 on bracket PCM-2612B Female DB37 on bracket

PIN RS-232 PIN RS-232 PIN RS-422 RS-485 PIN RS-422 RS-485

1 - 20 3_RI 1 - - 20 - -

2 3_DCD 21 3_DTR 2 3_TxD- 3_Data- 21 3_RxD- -

3 3_GND 22 3_DSR 3 3_GND 3_GND 22 - -

4 3_CTS 23 3_RTS 4 - -- 23 - -

5 3_RxD 24 3_TxD 5 3_TxD+ 3_Data+ 24 3_RxD+ -

6 4_RI 25 4_DCD 6 - - 25 4_TxD- 4_Data-

7 4_DTR 26 4_GND 7 4_RxD- - 26 4_GND 4_GND

8 4_DSR 27 4_CTS 8 - - 27 - -

9 4_RTS 28 4_RxD 9 - - 28 4_TxD+ 4_Data+

10 4_TxD 29 2_RI 10 4_RxD+ - 29 - -

11 2_DCD 30 2_DTR 11 2_TxD- 2_Data- 30 2_RxD- -

12 2_GND 31 2_DSR 12 2_GND 2_GND 31 - -

13 2_CTS 32 2_RTS 13 - - 32 - -

14 2_RxD 33 2_TxD 14 2_TxD+ 2_Data+ 33 2_RxD+ -

15 1_RI 34 1_DCD 15 - - 34 1_TxD- 1_Data-

16 1_DTR 35 1_GND 16 1_RxD- - 35 1_GND 1_GND

17 1_DSR 36 1_CTS 17 - - 36 - -

18 1_RTS 37 1_RxD 18 - - 37 1_TxD+ 1_Data+

19 1_TxD 19 1_RxD+ -

19 1

37 20

Jumper Settings (Cont.)

PIN Assignment

4 PCM-261X Startup Manual

1. Remove the screws from the backplate and lift it off.

2. Unscrew to remove the blank expansion plate.

3. Instert the PCM Module through the blanking plate slot.

4. Insert the PCM IO plate through the blank plate hole

and lock the screws.

5. Insert the mPCIe card and lock the screws

6. Connect IO plate to mPCIe card with the FFC cables.

TPC Embedded Panel Computer Installation

PCM Module with iDoor technology supports following iAutomation Computing Platforms:

Standard Mount UNO-2000

DIN-Rail Mount UNO-1000

Wall Mount UNO-3000

4:3 Panel Mount TPC-xx51T/xx82, TPC-2000/5000

16:9 Panel Mount TPC-xx51WP/xx81WP, TPC-2000/5000

See the following page for installation in TPC Embedded Panel Computers and UNO Embedded Computers.

Installation

PCM-261X Startup Manual 5

UNO Embedded Computer Installation

1. Remove the screws from the base plate and lift to

remove.

2. Insert the mPCIe card and lock the screws.

3. Unscrew to remove the blank expansion plate.

4. Insert the PCM IO plate through the blank plate hole

and lock the screws. Connect IO plate to mPCIe card

with the FFC cables.
