Installation Instructions for the Following Wilson Ampliﬁers:

Mobile Wireless Single Band Ampliﬁer

Model #804002

FCC ID: PWO806WV IC: 4726A-806WV

The term “IC” before the radio certiﬁcation number only signiﬁes that

Industry Canada technical speciﬁcations were met.

Inside this Package

How it Works

Your new Wilson ampliﬁer has been carefully engineered to signiﬁcantly improve the

performance of your cell phone or cellular data card in mobile applications. Together with

an outside antenna (sold separately), the ampliﬁer’s state-of-the-art technology is designed

to increase your signal up to 10 times, reduce disconnects and dropouts, and increase data

communication rates needed for 3G technologies.

The outside antenna will collect the cell tower signal and send it through the cable to the

ampliﬁer. The signal is then boosted and sent to the inside antenna. Your cell phone or

data card then communicates with the improved signal. When the cell phone or data card

transmits, the signal goes through the inside antenna, is boosted by the ampliﬁer and

broadcast back to the cell tower through the outside antenna.

Wilson Electronics manufactures a wide variety of antennas to help you customize your

ampliﬁer for your speciﬁc application. Several are shown below. See your dealer or visit

www.wilsonelectronics.com.

Before Getting Started

Wireless

ampliﬁer DC plug-in

power cable

NMO

Mount

Magnet

Mount Trucker

Mount

Mini

Magnet Marine

Antenna

Low-proﬁle

antenna

NOTE: Use of this ampliﬁer with an

antenna gain higher than 5.12 dBi

is in violation of FCC regulations

for which the offender is fully

liable. All Wilson mobile

antennas are 5.12 dBi or less

in the 800 MHz band.

This guide will help you properly install Wilson’s single-band, mobile wireless ampliﬁer. It is

important to read through all of the installation steps for your particular application

prior to installing any equipment. Read through the instructions, visualize where all the

equipment will need to be installed and do a soft installation before mounting any equipment.

If you do not understand the instructions in full, seek professional help, or contact Wilson

Technical Support at 866-294-1660.

Warning: In a wireless installation,

do not plug the ampliﬁer directly into the

cell phone or data card using an antenna

adapter. It can damage the ampliﬁer, the

cell phone or the cellular data card.

Outside

Antenna

Inside

Antenna

Ampliﬁer

DC Power

Supply

Cell Phone

PDA

Notebook

Installation Diagram

Before Getting Started

Installing a Wilson Outside Antenna

To receive the best cell signal, select a location in the center of the vehicle’s roof at least

12 inches away from any other antennas and free of obstructions.

Follow the speciﬁc antenna installation instructions included with the outside antenna

(sold separately).

The outside antenna must be installed

vertically. Signal performance will be

degraded if the antenna is not vertical.

The antenna cable may be run through the

door to the ampliﬁer.

The antenna cable is small enough to easily

tuck under the door seal or plastic molding.

For a more professional-looking installation,

the antenna cable may be run under the

door seal. Carefully pull down the door

seal. Run the cable through the seal

and push the seal back into place. This

prevents constant wear and tear on the

cable as the door opens and closes.

Warning: Do not use any type of glass-

mount antenna with this ampliﬁer. The outside

and inside antennas must be shielded from

each other to prevent oscillation.

Optional Magnet-

Mount Antenna

Shown

Part #301103

Carefully

Pull Down

Door Seal

Run Cable

Under

Seal

Tuck Cable

Under Seal

Warning: The outside antenna must

be installed with a separation of at least 20

inches from any of the vehicle’s occupants or

nearby persons and must not be located or

operating in conjuction with any other antenna

or ampliﬁer.

Installing a Wilson Ampliﬁer

Warning: Do not plug in the DC power

supply until the outside and inside antenna

cables are attached to the ampliﬁer.

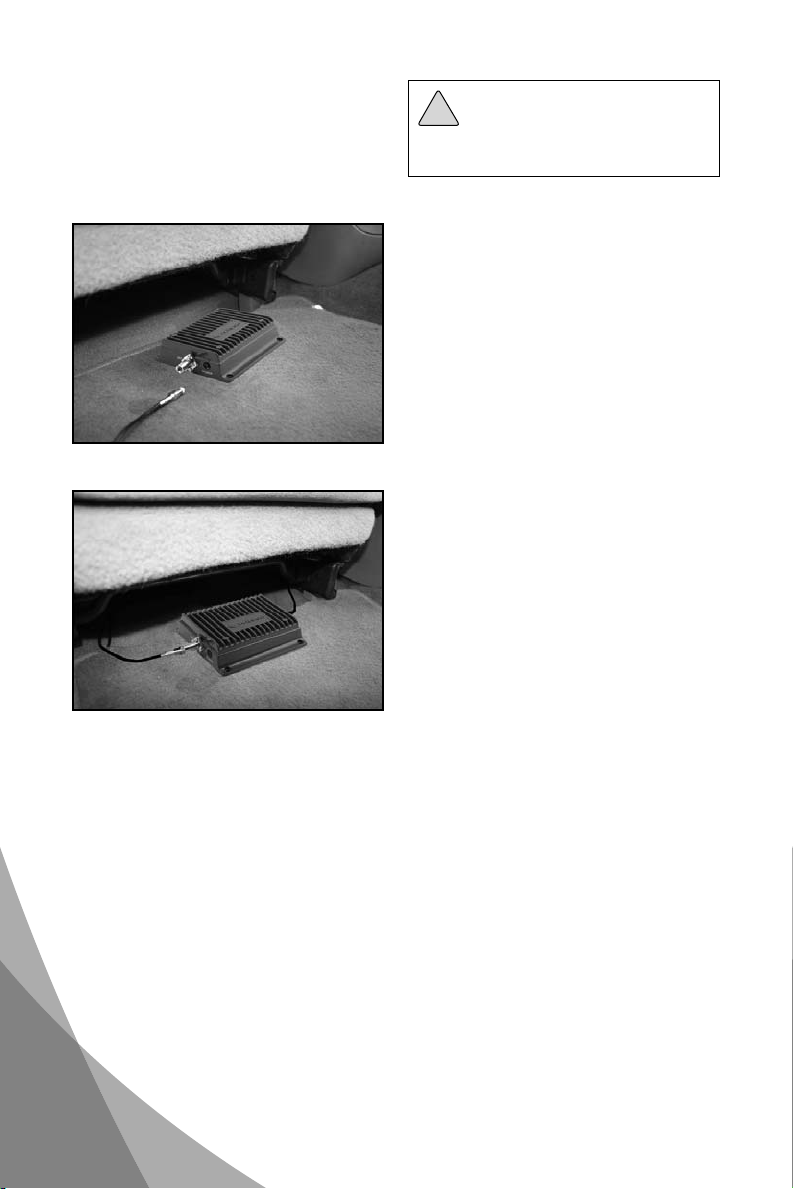

Select a location to install the ampliﬁer that

is away from excessive heat, direct sunlight

or moisture and that has proper ventilation.

Recommended installation locations are:

• Under the seat

• Under the dash

Run the cable from the outside antenna and

attach it to the FME-Male connector labeled

“outside antenna” on the ampliﬁer.

Attach the inside antenna cable to the FME-

Male connector labeled “inside antenna” on

the ampliﬁer.

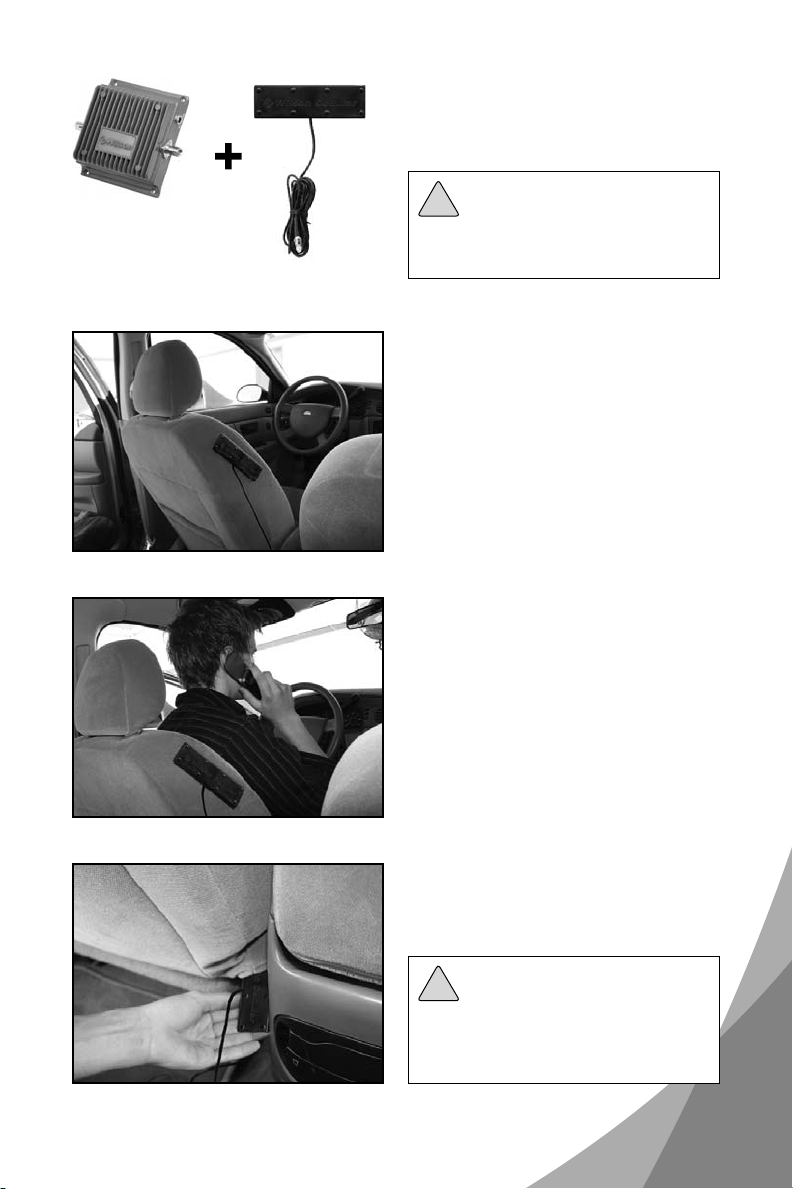

Installing the Low-Proﬁle Antenna

Install the low-proﬁle inside antenna 8-12

inches from where the cell phone or cellular

data card will be used.

Place the inside antenna on the side of the

driver’s seat for maximum performance.

Install the inside antenna at least eight

inches, but not more than 12 inches, from

where the cell phone or cellular data card

will be used.

Install the inside antenna at the same angle

as the cell phone when held in use, or place

next to the laptop’s cellular data card. This

will maximize the signal strength.

For a more professional-looking installation,

the low-proﬁle antenna may be slid under

the seat cover or leather, high on the

driver’s seat.

Warning: Do not install the low-proﬁle

antenna within four inches of metal. (Metal

found inside the vehicle’s seat will not affect

the antenna’s performance.)

Ampliﬁer

Warning: The inside antenna must

be installed with a separation of at least

eight inches from all persons and must not

be located in conjunction with any other

antenna or ampliﬁer.

Low-proﬁle

Antenna

Powering up a Wilson Ampliﬁer

Make sure both the outside and inside

antenna cables are connected before

powering up the ampliﬁer.

Connect the DC plug-in power supply

cable to the ampliﬁer marked “Power” and

insert the large end into DC power socket

(the cigarette lighter outlet.)

The ampliﬁer may remain on all the time.

However, leaving the ampliﬁer on in a

vehicle when it is not running can discharge

the battery in a day or two.

A good option is to power the ampliﬁer

through the ignition switch so the ampliﬁer

is turned on and off with the vehicle.

NOTE: The aluminum casing of a Wilson ampliﬁer will adjust very quickly to the ambient

temperature of its environment. For example, in the summer, when the inside of a car can

reach 140 degrees Fahrenheit, the ampliﬁer temperature may be 150 degrees or higher.

The casing will be hot to the touch, similar to a metal door handle or a steering wheel. Such

high temperatures will not damage the ampliﬁer, nor do they pose a ﬁre risk to the vehicle.

As recommended in these instructions, install the ampliﬁer in a location with adequate

ventilation, such as under the seat, in the trunk or under the dashboard. Keep the area free

of items that could block air ﬂow to the ampliﬁer.

Separation of inside and outside antennas is very important. The metal roof of the vehicle

acts as a barrier and helps shield the two antennas from each other, preventing oscillation.

If the vehicle has a sunroof, it is important to separate the inside and outside antennas by at least

ﬁve feet.This prevents the ampliﬁer from overloading or oscillating.

IMPORTANT: Do not power up the ampli-

ﬁer unless antenna cables are attached to

ampliﬁer.

Distance between antennas

through a sunroof must be

5 feet or more.

Carefully insert the power cable. Warning: Use only the power

supply cable provided in this package.

The power supply must be 12 V DC.

Warnings and Recommendations

Warning: In a wireless installation, do not plug the ampliﬁer directly into the

cell phone or cellular data card using an antenna adapter. It will

damage the ampliﬁer, the cell phone or the cellular data card.

Warning: Do not install the inside antenna within four inches of metal.

(Metal found inside the vehicle’s seat will not affect antenna

performance.)

Warning: Do not use any type of glass-mount antenna with this ampliﬁer.

The outside and inside antennas must be shielded from each

other to prevent oscillation.

Warning: Do not plug in the DC power supply until the outside and inside

antenna cables are attached to the ampliﬁer.

Warning: RF Safety: The inside antenna must be installed with a

separation of at least eight inches from all persons and must not

be located in conjunction with any other antenna or ampliﬁer.

Warning: RF Safety: The outside antenna must be installed with a

separation of at least 20 inches from any of the vehicle’s

occupants or nearby persons and must not be located or

operating in conjunction with any other antenna or ampliﬁer.

All roof-mount antennas should be centrally located on the

roof of the vehicle. Mirror-mount antennas should be at least

six inches from the ground and leave at least 20 inches of

separation from any persons near or around the vehicle. Use

of a cellular ampliﬁer with an antenna gain higher than 5.12 dBi

is in violation of FCC regulations for which the offender is fully

liable. All Wilson mobile antennas are 5.12 dBi or less in the

800 MHz band.

Recommended ampliﬁer installation locations are:

• Under the seat

• In the trunk

• Under the dash

Install the low-proﬁle antenna 8-12 inches from where the cell phone or cellular

data card will be used.

Power the ampliﬁer through the ignition switch so the ampliﬁer is turned on and

off with the vehicle.

If the vehicle has a sunroof, it is important to separate the inside and outside

antennas by at least ﬁve feet. This prevents the ampliﬁer from overloading or

oscillating.

Understanding the Ampliﬁer Lights

Power Indicator Light

Shows green when the unit is turned on.

Signal Indicator Light

If the ampliﬁer is powered up and the light is off, this indicates the unit is

working properly.

If the light is red, the ampliﬁer has shut down because the signal from the

cell site is adequate and ampliﬁcation is unnecessary.

Power Indicator Light

(located on the side)

Signal Indicator Light

(located on the back)

Table des matières

Autres manuels Wilson Electronics Amplificateur

Wilson Electronics

Wilson Electronics 271247-75 Manuel utilisateur

Wilson Electronics

Wilson Electronics 814001 Manuel utilisateur

Wilson Electronics

Wilson Electronics 271245 Manuel utilisateur

Wilson Electronics

Wilson Electronics SIGNALBOOST 811210 Manuel utilisateur

Wilson Electronics

Wilson Electronics 801306 Manuel utilisateur

Wilson Electronics

Wilson Electronics SIGNALBOOST C-Booster Manuel utilisateur

Wilson Electronics

Wilson Electronics IoT 5-Band Manuel utilisateur

Wilson Electronics

Wilson Electronics WilsonPro ENTERPRISE A8000 Manuel utilisateur

Wilson Electronics

Wilson Electronics SIGNALBOOST MobilePro Manuel utilisateur

Wilson Electronics

Wilson Electronics SignalBoost DT Manuel utilisateur

Wilson Electronics

Wilson Electronics 271247-50 Manuel utilisateur

Wilson Electronics

Wilson Electronics SIGNALBOOST 811210 Manuel utilisateur

Wilson Electronics

Wilson Electronics 814001 Manuel utilisateur

Wilson Electronics

Wilson Electronics BD800AM-M Manuel utilisateur

Wilson Electronics

Wilson Electronics 271245 Manuel utilisateur

Wilson Electronics

Wilson Electronics 271247-75 Manuel utilisateur

Wilson Electronics

Wilson Electronics 801105 Manuel utilisateur

Wilson Electronics

Wilson Electronics 801102 Manuel utilisateur

Wilson Electronics

Wilson Electronics SIGNALBOOST U-Booster 2B5225 Manuel utilisateur

Wilson Electronics

Wilson Electronics Smart Technology 801201-A Manuel utilisateur

Wilson Electronics

Wilson Electronics 271245 Manuel utilisateur

Wilson Electronics

Wilson Electronics WILSONPRO ENTERPRISE 1300 Manuel utilisateur

Wilson Electronics

Wilson Electronics WILSONPRO ENTERPRISE 4300R Manuel utilisateur

Wilson Electronics

Wilson Electronics PRO 710i Manuel utilisateur

Manuels Amplificateur populaires d'autres marques

ASTRO

ASTRO HVO V40 P Manuel utilisateur

Marantz

Marantz SUPERSCOPE BLA-545 Instructions de montage

NAD

NAD CI980 Manuel utilisateur

Technics

Technics SE-CH770 Manuel utilisateur

Harman Kardon

Harman Kardon HK6300 Manuel utilisateur

NAD

NAD T975 Manuel utilisateur

McIntosh

McIntosh MA6850 Manuel utilisateur

Electro-Harmonix

Electro-Harmonix ENGLISH MUFF’N Manuel utilisateur

Viatron

Viatron Autrix Manuel utilisateur

GME

GME GA9800 Manuel utilisateur

Atlas

Atlas CP700 Manuel utilisateur

Roland

Roland KC-1000 Manuel utilisateur

Pyle

Pyle PFMRA350BW Manuel utilisateur

Advantage

Advantage S-250 Manuel utilisateur

IRT Electronics

IRT Electronics DVA-3007 Manuel utilisateur

Dimavery

Dimavery BA-100 Series Manuel utilisateur

Sony

Sony XM-S400D Manuel utilisateur

Schertler

Schertler ROY X Manuel utilisateur

Wilson Electronics iDEN Manuel utilisateur

Manuels Amplificateur populaires d'autres marques
