CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Save this manual

for future reference.

Serial Number Decal (Under Seat)

SEARS, ROEBUCK AND CO.,

HOFFMAN ESTATES, IL 60179

Model No. 831.150680

Serial No.

Write the serial number in the

space above for future reference.

Visit our website at

www.weiderfitness.com

new products, prizes,

fitness tips, and much more!

USER’S MANUAL

Patent Pending

WARNING DECAL PLACEMENT

WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

PART IDENTIFICATION CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

FULL 90 DAY WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

The decal shown at the right has

been applied to the weight bench.

If the decal is missing, or if it is

not legible, please call our toll-

free HELPLINE at 1-800-736-6879,

Monday through Saturday, 7 a.m.

until 7 p.m. Central Time (exclud-

ing holidays), to order a free

replacement decal. Apply the

replacement decal in the location

shown.

TABLE OF CONTENTS

1. Read all instructions in this manual before

using the weight bench. Use the weight

bench only as described in this manual.

2. It is the responsibility of the owner to ensure

that all users of the weight bench are ade-

quately informed of all precautions.

3. The weight bench is intended for home use

only. Do not use the weight bench in any

commercial, rental, or institutional setting.

4. Use the weight bench only on a level surface.

Cover the floor beneath the weight bench to

protect the floor.

5. Make sure all parts are properly tightened

each time you use the weight bench. Replace

any worn parts immediately.

6. Keep children under the age of 12 and pets

away from the weight bench at all times.

7. Always wear athletic shoes for foot protec-

tion while exercising.

8. Keep hands and feet away from moving parts.

9. Always be sure there is an equal amount of

weight on each side of your barbell when

you are using it. When adding or removing

weights, always keep some weight on both

ends of the barbell and prevent the barbell

from tipping. Note: The weight bench does

not include a barbell or weights.

10.

Always exercise with a partner. Your partner

should be ready to catch the barbell if you

cannot complete a repetition.

11. The weight bench is designed to support a

maximum user weight of 250 pounds. Do not

place more than 310 pounds, including a bar-

bell and weights, on the weight rests. Do not

place more than 150 pounds on the leg lever.

12. When you are using the leg lever, place a

barbell with the same amount of weight on

the weight rests to balance the bench.

13. When you put weight on the weight rests,

make sure you put at least ten pounds on the

leg lever to balance the weight bench.

14. Make sure that the adjustment knobs are

inserted completely and tightened into the

uprights before beginning any exercise.

15. When adjusting the position of the seat,

make sure that the adjustment pin is inserted

through both adjustment tubes before begin-

ning any exercise.

16. Always remove the curl post from the front

leg before performing leg exercises with the

leg lever.

17. If you feel pain or dizziness at any time while

exercising, stop immediately and begin cool-

ing down.

WARNING: Before beginning this or any exercise program, consult your physician. This

is especially important for persons over the age of 35 or persons with pre-existing health problems.

Read all instructions before using. SEARS assumes no responsibility for personal injury or property

damage sustained by or through the use of this product.

IMPORTANT PRECAUTIONS

WARNING: To reduce the risk of serious injury, read the following important precau-

tions before using the weight bench.

Backrest

Weight Rests

Upright

Knob

Adjustment

Tubes

Storage

Tube

Leg Lever

Weight

Tube

Curl Pad

Thank you for selecting the WEIDER®PRO 875 weight

bench. The versatile WEIDER®PRO 875 is designed

to be used with your own weight set (not included) to

develop every major muscle group of the body.

Whether your goal is a shapely figure, dramatic mus-

cle size and strength, or a healthier cardiovascular

system, the WEIDER®PRO 875 will help you to

achieve the specific results you want.

For your benefit, read this manual carefully before

using the WEIDER®PRO 875 weight bench. If you

have additional questions, please call our toll-free

HELPLINE at 1-800-736-6879, Monday through

Saturday, 7 a.m. until 7 p.m. Central Time (excluding

holidays). To help us assist you, please note the prod-

uct model number and serial number before calling.

The model number is 831.150680. The serial number

can be found on a decal attached to the weight bench

(see the front cover of this manual).

Before reading further, please look at the drawing

below and familiarize yourself with the parts that are

labeled.

BEFORE YOU BEGIN

Seat

This chart is provided to help you identify the small parts used in assembly. The number in parenthesis below

each part refers to the part number of the part, from the PART LIST on page 14 of this manual. Important:

Some parts may have been pre-assembled for shipping purposes. If you cannot find a part in the parts

bags, check to see if it has been pre-assembled.

M10 x 81mm Bolt (35)

M10 Nylon Locknut (36)

M6 x 16mm Screw (37)

M6 Washer (40)

M4 x 16mm Screw (38)

M6 x 38mm Screw (39)

M8 Nylon Locknut (44)

M8 Washer (43)

M8 x 58mm Bolt (42)

M10 x 72mm Bolt (45)

M10 x 65mm Bolt (47)

M10 x 178mm Bolt (46)

M10 Washer (41)

PART IDENTIFICATION CHART

1. Press two 30mm x 60mm Inner Caps (21) into the

base on the Left Upright (4).

Align one of the adjustment holes in the left Weight

Rest (6) with the hole in the Left Upright (4).

Tighten an Upright Knob (18) into the holes.

Orient the Crossbar (3) and the Left Upright (4) so

the decals are in the positions shown. Attach the

Crossbar to the Left Upright with four M10 x 81mm

Bolts (35), two Joint Plates (14), and four M10

Nylon Locknuts (36). Do not tighten the Nylon

Locknuts yet.

Repeat this step with the Right Upright (not shown).

3Warning

Decal

Name

Decal

Before beginning assembly, carefully read the

following information and instructions:

•Assembly requires two people.

•For help identifying small parts, use the PART

IDENTIFICATION CHART on page 5.

•Tighten all parts as you assemble them, unless

instructed to do otherwise.

•As you assemble the weight bench, make sure all

parts are oriented as shown in the drawings.

•Place all parts in a cleared area and remove the

packing materials. Do not dispose of the packing

materials until assembly is completed.

The following tools (not included) are required

for assembly:

• Two adjustable wrenches

• One rubber mallet

• One standard screwdriver

• One Phillips screwdriver

• Lubricant, such as grease or petroleum jelly,

and soapy water.

Assembly will be more convenient if you have a

socket set, a set of open-end or closed-end

wrenches, or a set of ratchet wrenches.

Make Things Easier for Yourself

This manual is designed to ensure that the

weight bench can be assembled successfully

by anyone. Most people find that by setting

aside plenty of time, assembly will go smoothly.

ASSEMBLY

WARNING: Always insert the

Upright Knobs (18) through a set of adjust-

ment holes in the Weight Rests (6). Do not

insert the Upright Knobs through the slots in

the Uprights (4, 5).

236

24 39

4. Press four 1” Square Inner Caps (23) into the

ends of the Right and Left Backrest Frames (7,

8). Press two 1” x 2” Inner Caps (24) into the

adjustment tubes on the Backrest Frames.

Orient the Backrest (10) as shown. Attach the

Backrest to the Right and Left Backrest Frames

(7, 8) with four M6 x 38mm Screws (39) and four

M6 Washers (40). Do not tighten the Screws

yet.

3. Attach the Frame (2) to the Crossbar (3) with two

M10 x 81mm Bolts (35) and two M10 Nylon

Locknuts (36). Do not tighten the Nylon

Locknuts yet.

2. Press three 45mm Square Inner Caps (22) into the

Front Leg (1).

Attach the Front Leg (1) to the Frame (2) with two

M10 x 65mm Bolts (47), a Support Plate (16), and

two M10 Nylon Locknuts (36). Do not tighten the

Nylon Locknuts yet.

Wide End

77. Orient the Seat (11) with the wide end on the side

shown. Attach the Seat to the Frame (2) with four

M6 x 16mm Screws (37).

Lubricate

6. Press three 45mm Square Inner Caps (22) into the

Leg Lever (9). Press a 1” Round Inner Cap (27)

into the indicated end of the Weight Tube (15).

Attach the Weight Tube (15) to the Leg Lever (9)

with the M8 x 58mm Bolt (42), two M8 Washers

(43), the Spacer (30), and an M8 Nylon Locknut

(44). Press the 1” Angled Cap (28) onto the back

of the Weight Tube.

Lubricate an M10 x 72mm Bolt (45). Attach the

Leg Lever (9) to the Front Leg (1) with the Bolt

and an M10 Nylon Locknut (36). Do not over-

tighten the Nylon Locknut; the Leg Lever

must be able to pivot easily.

5. Lubricate the M10 x 178m Bolt (46). Attach the

Right and Left Backrest Frames (7, 8) to the

Frame (2) with the Bolt, two M10 Washers (41),

and an M10 Nylon Locknut (36).

Align an adjustment hole in the Right and Left

Backrest Frames (7, 8) with the indicated hole in

the Frame (2). Insert the Backrest Pin (26)

through the Frame and the Backrest Frames, and

secure it with the Spring Clip (25).

Tighten all of the M10 Nylon Locknuts (36)

used in steps 1–3. Tighten the four M6 x

38mm Screws (39) used in step 4.

Lubricate

41 8

8. Press two 3/4” Round Inner Caps (29) into each

Pad Tube (19).

Slide two Pad Tubes (19) through the Leg Lever

(9). Slide the third Pad Tube through the holes in

the Front Leg (1).

Slide two Foam Pads (20) onto the ends of each

Pad Tube (19).

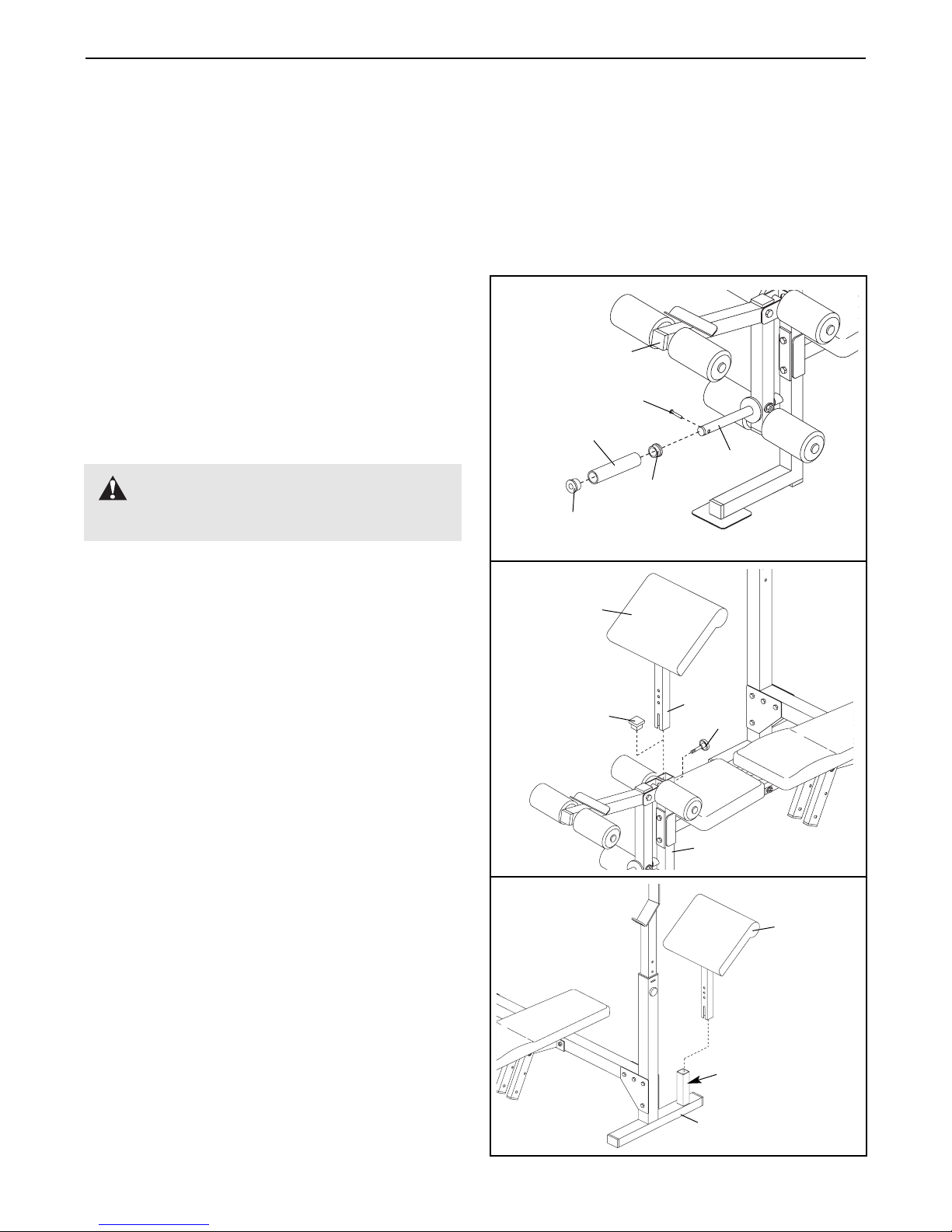

9. Attach the Curl Pad (13) to the Curl Post (12) with

two M6 x 16mm Screws (37).

10. Make sure that all parts are properly tightened

before you use the weight bench. The use of

all remaining parts will be explained in ADJUST-

MENTS, beginning on page 10.

The weight bench is designed to be used with your own weight set (not included). The steps below explain how

the weight bench can be adjusted. See EXERCISE GUIDELINES on page 12 for important exercise information

and refer to the accompanying exercise guide to see the correct form for several exercises. Refer also to the

exercise information accompanying your weight set for additional exercises.

Make sure all parts are properly tightened each time you use the weight bench. Replace any worn parts immediate-

ly. The weight bench can be cleaned with a damp cloth and a mild, non-abrasive detergent. Do not use solvents.

ATTACHING WEIGHTS TO THE LEG LEVER

To use the Leg Lever (9), slide the desired weights

(not included) onto the Weight Tube (15).

To use Olympic weights, press a Weight Adapter

Bushing (34) into each end of the Weight Adapter

(33). Slide the Weight Adapter onto the Weight Tube

(15) and secure it with the Weight Pin (48).

WARNING: Do not place more

than 150 pounds on the Leg Lever (9).

ADJUSTMENTS

ATTACHING THE CURL PAD

For some exercises, the Curl Pad (13) must be

attached to the weight bench.

Slide the Curl Post (12) into the Front Leg (1). Align

one of the adjustment holes in the Curl Post with the

adjustment hole in the Front Leg. Tighten the Curl

Post Knob (17) into the adjustment hole in the Front

Leg. Make sure that you fully tighten the Curl Post

Knob.

Note: When the Curl Pad (13) is not in use, the

45mm Square Inner Cap (22) should be inserted

into the Front Leg (1).

22 17

Storage Tube

STORING THE CURL PAD

When the Curl Pad (13) is not in use, it can be stored

in the storage tube on the Left Upright (4).

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Weider Salle de sport à domicile

Weider

Weider PRO 900 Manuel d'utilisation et d'entretien

Weider

Weider 350 Bench Manuel utilisateur

Weider

Weider PowerGym 15601 Manuel utilisateur

Weider

Weider WESY20000 Manuel utilisateur

Weider

Weider Pro 2000 Guide de démarrage rapide

Weider

Weider WEEVBE33110 Manuel utilisateur

Weider

Weider 8700 I Manuel d'utilisation et d'entretien

Weider

Weider Sb21.5slant Board Manuel utilisateur

Weider

Weider WEBE29911 Manuel utilisateur

Weider

Weider Flex 8960 Manuel d'utilisation et d'entretien

Weider

Weider Pro 250x Manuel utilisateur

Weider

Weider Cjxt 3 Master Trainer Manuel utilisateur

Weider

Weider Platinum 800 WESY75740 Manuel utilisateur

Weider

Weider Flex 225 Manuel utilisateur

Weider

Weider 140 WEIGHT BENCH COMBO Manuel utilisateur

Weider

Weider 184 Bench Guide de l'utilisateur

Weider

Weider Pro 9730 Manuel utilisateur

Weider

Weider 170 Tc Bench Guide de l'utilisateur

Weider

Weider WESY5983.3 Manuel utilisateur

Weider

Weider 9000 Bench Manuel utilisateur

Weider

Weider Pro 215 Bench Manuel utilisateur

Weider

Weider FLEX-CTS WESY20318.0 Manuel utilisateur

Weider

Weider WEMC0942.1 Manuel utilisateur

Weider

Weider Power Flex D621 354.156350 Manuel utilisateur

Manuels Salle de sport à domicile populaires d'autres marques

Horizon Fitness

Horizon Fitness OXFORD 6 Manuel utilisateur

Energetics

Energetics Multi Trainer 5.1 Manuel utilisateur

Matrix

Matrix MG-PL Series Manuel utilisateur

Reebok

Reebok Tbr2i Manuel d'utilisation et d'entretien

Pure Fitness

Pure Fitness 8526HE Manuel utilisateur

Bowflex

Bowflex Sport 001-6961 Manuel utilisateur

NordicTrack

NordicTrack E8200 Competition Bench Guide de démarrage rapide

Body Solid

Body Solid GHYP-345 Manuel utilisateur

Evo

Evo TAHOE 5105 Manuel utilisateur

cardiobull

cardiobull RA17 Manuel utilisateur

ParaBody

ParaBody 40 Manuel utilisateur

JLL

JLL Ventus Pro Air Power Manuel utilisateur

Trojan

Trojan Colorado 370 Manuel utilisateur

Octane Fitness

Octane Fitness xRide xR650 Manuel utilisateur

Precor

Precor Discovery Series Manuel utilisateur

Insportline

Insportline RW600 Manuel utilisateur

Stamina

Stamina 55-1532 Manuel utilisateur

Tunturi

Tunturi R25 Manuel utilisateur
