Viessmann Vitodens 100-W Manuel utilisateur
Operating instructions
for the system user
VIESMANN
Heating system
with control unit for constant temperature or weather-compensated
mode
VITODENS 100-W
5608 698 GB 1/2012 Please keep safe.
2
Please follow these safety instructions closely to prevent accidents and mate-
rial losses.
Safety instructions explained
Danger
This symbol warns against the
risk of injury.
!Please note
This symbol warns against the
risk of material losses and envi-
ronmental pollution.
Note
Details identified by the word "Note" con-
tain additional information.
Target group
These operating instructions are for the
heating system user.
This unit is not designed to be used by
persons (including children) with limited
bodily, sensory or mental capacities, or
lacking experience and/or lacking knowl-
edge, unless they are supervised by a
person responsible for their safety, or
have received instructions from such a
person as to how to use the unit.
!Please note
Children should be supervised.
Ensure that children do not play
with the unit.
Danger
Incorrectly executed work on the
heating system can lead to life-
threatening accidents.
■ Work on gas appliances must
only be carried out by a regis-
tered gas fitter.
■ Work on electrical equipment
must only be carried out by a
qualified electrician.
If you smell gas
Danger
Escaping gas can lead to explo-
sions which may result in serious
injury.
■ Do not smoke. Prevent naked
flames and sparks. Never
switch lights or electrical appli-
ances ON or OFF.
■ Close the gas shut-off valve.
■ Open windows and doors.
■ Remove all people from the
danger zone.
■ Notify your gas or electricity
supplier and your heating con-
tractor from outside the build-
ing.
■ Shut off the electricity supply to
the building from a safe place
(outside the building).
Safety instructions
For your safety
5608 698 GB
3
If you smell flue gas
Danger
Flue gas can lead to life-threat-
ening poisoning.
■ Shut down the heating system.
■ Ventilate the boiler room.
■ Close all doors in the living
space.
In case of fire
Danger
Fire creates the risk of burning
and explosions.
■ Shut down the heating system.
■ Close the shut-off valves of the
fuel lines.
■ Use a tested fire extinguisher,
class ABC.
Boiler room requirements
!Please note
Incorrect ambient conditions can
lead to damage to the heating
system and put the safe opera-
tion at risk.
■ Ensure ambient temperatures
above 0 ºC and below 35 ºC.
■ Prevent air contamination by
halogenated hydrocarbons
(e.g. as contained in paints,
solvents or cleaning fluids) and
excessive dust (e.g. through
grinding/polishing work).
■ Avoid continuously high humid-
ity levels (e.g. through frequent
drying of washing).
■ Never close existing ventilation
apertures.
Ancillary components, spare and
wearing parts
!Please note
Components that are not tested
with the heating system may lead
to damage to the heating system,
or may affect their various func-
tions.
Installation or replacement work
must only be carried out by quali-
fied personnel.
Safety instructions
For your safety (cont.)
5608 698 GB
4
Introductory information
Commissioning..................................................................................................... 5
Your system is preset at the factory..................................................................... 5
Where to find the controls
Summary of controls and indicators..................................................................... 6
■Opening the control unit.................................................................................... 6
■Control and display elements............................................................................ 6
■ Indicators on display......................................................................................... 7
Operating mode of the heating system................................................................ 7
■Operation without room temperature control unit.............................................. 7
■ Operation with room temperature control unit................................................... 7
Start-up/shutdown
Starting the heating system.................................................................................. 8
Shutting down the heating system....................................................................... 8
■With frost protection monitoring for the boiler................................................... 8
■Shutting down the heating system.................................................................... 9
Settings
Heating................................................................................................................. 10
Domestic hot water............................................................................................... 10
Displays
Heating water temperature................................................................................... 11
What to do if...
System characteristics......................................................................................... 12
Fault indicator on display...................................................................................... 13
Maintenance
Cleaning............................................................................................................... 14
Inspection and maintenance................................................................................ 14
■.......................................................................................................................... 14
Energy saving tips............................................................................................. 15
Keyword index.................................................................................................... 16
Index
Index
5608 698 GB
5
The commissioning and matching up of
the control unit to local conditions and
the structural characteristics of the build-
ing must be carried out by your heating
contractor.
As the user of new combustion equip-
ment, you may be obliged to notify your
local flue gas inspector of the installation
[check local regulations]. Local flue gas
inspectors will also inform you [where
appropriate] about work they may be
required to perform on your combustion
equipment (e.g. regular checks, clean-
ing).
g Gas-Council-No.
Rated heating
output range
kW
6.5 - 21 41-819-30
6.5 - 25 41-819-31
Your system is preset at the factory
The control unit is preset at the factory
for standard operation.
Your heating system is therefore ready
for operation. You may change the fac-
tory settings in accordance with individ-
ual requirements.
Introductory information
Commissioning
5608 698 GB
6
Opening the control unit
The controls and display elements are behind the cover flap at the front.
Control and display elements
AB C D E
r
1
0
2
3
4
bar
°C
A
0
6
APressure gauge
BDisplay
Ctw Rotary selector "DHW temper-
ature "
Dtr Rotary selector "Heating water
temperature" and "Reset"
EON/OFF switch
Where to find the controls
Summary of controls and indicators
5608 698 GB
7
Indicators on display
°C
°F
r
A
SERV
8:8:8
A B C D
EFG
AHeating mode
BDHW heating
CDisplay value or flashing fault code
DTemperature in °C or °F (in conjunc-
tion with the display value)
EService setting active (only for con-
tractors)
FCurrent burner output
GBurner in operation
Operating mode of the heating system
Operation without room temperature control unit
The required heating water temperature
can be set with the rotary selector
"tr" (see page 10).
Operation with room temperature control unit
Please make any adjustments to the
connected room temperature control unit
using the relevant operating instruc-
tions.
Note
The heating water temperature must be
set sufficiently high using the rotary
selector "
tr
" for the desired room tem-
perature to be reached.
Where to find the controls
Summary of controls and indicators (cont.)
5608 698 GB
8
We recommend you contact your local
heating contractor if you are planning to
start up a heating system that has not
been used for a long period.
1
0
2
3
4
bar
1. Check the pressure of your heating
system on the pressure gauge.
Minimum system pressure 0.8
bar.
If the system pressure is too low,
please notify your heating contrac-
tor.
2. During open flue operation (com-
bustion air is removed from the instal-
lation room):
Check that the ventilation openings of
the installation room are open and
unrestricted.
3. Open the gas shut-off valve.
4. Turn ON/OFF switch ON.
Your heating system and room tem-
perature control unit (if connected)
are now ready for operation.
Shutting down the heating system
With frost protection monitoring for the boiler
If you do not wish to use your boiler for
several days you can switch the unit
off.
Start-up/shutdown
Starting the heating system
5608 698 GB
9
r
Turn both rotary selectors to "0".
Frost protection is now active for the
boiler.
Note
Frost protection for the entire heating
system - see operating instructions for
the room temperature control unit.
Shutting down the heating system
Shut down your heating system com-
pletely if it will not be needed for longer
periods of time (several months).
We recommend you contact your local
heating contractor if you are planning to
take your heating system out of use for
longer periods. Your heating contractor
can then take any necessary action, sub-
ject to requirements, e.g. frost protection
or preserving the heating surfaces.
1. Close the gas shut-off valve and safe-
guard against unauthorised reopen-
ing.
2. Switch ON/OFF switch OFF.
The power to the system is now
switched off.
Note that the system is no longer
frost-protected.
Start-up/shutdown
Shutting down the heating system (cont.)
5608 698 GB

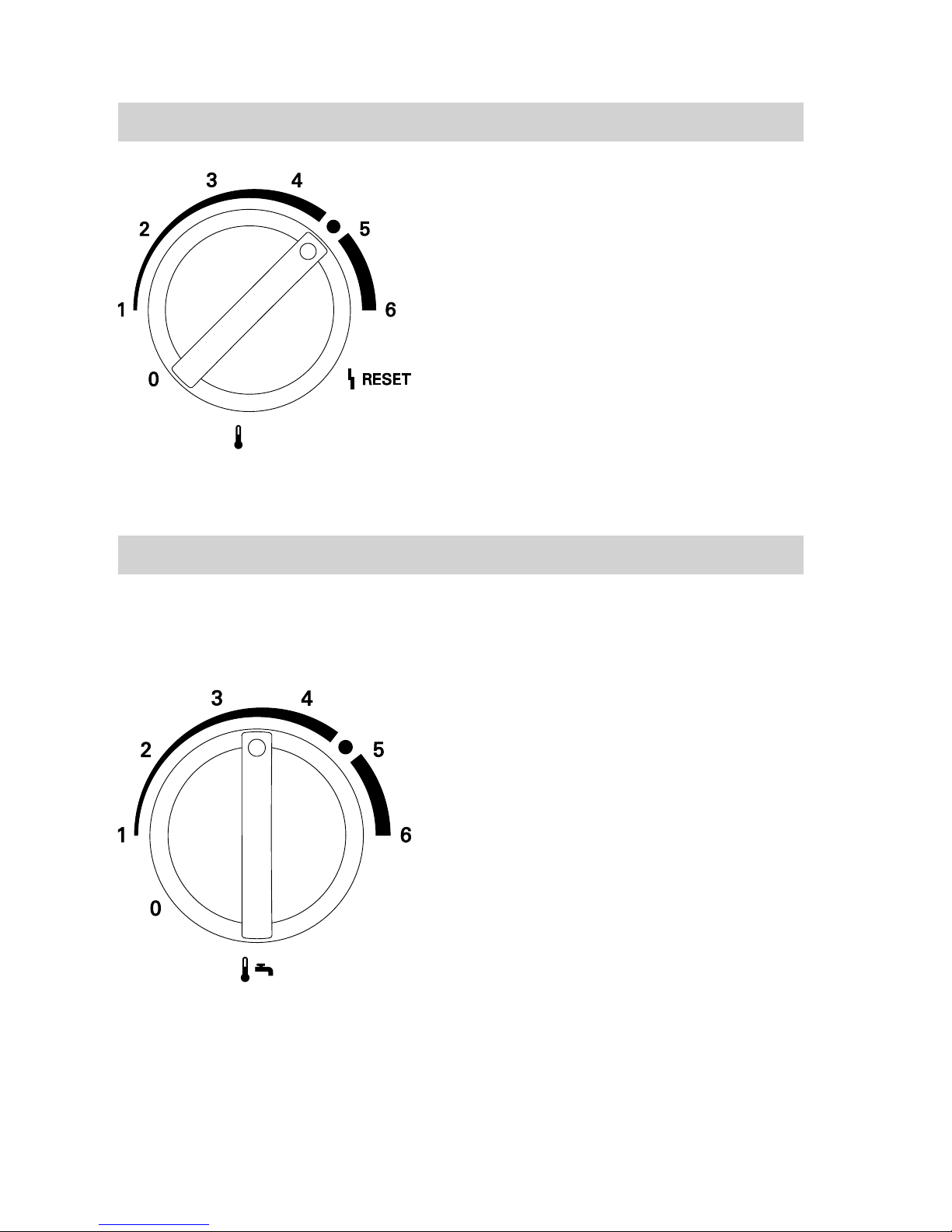

10
r
Switching ON:
Move rotary selector "tr" to the
required heating water temperature.
Note
If a room temperature control unit is con-
nected, use this unit to set the desired
room temperature (see page 7).
If central heating is active, the display
shows "r".
Switching OFF:
Turn rotary selector "rt" to "0".
Domestic hot water
Select the DHW temperature in accord-
ance with your personal requirements
(e.g. for showering).
Switching ON:
Move rotary selector "tw" to the
required DHW temperature.
If DHW heating is active, the display
shows "w".
Switching OFF:
Turn rotary selector "tw" to "0".
Note
If the boiler does not have a DHW cylin-
der connected or an integral instantane-
ous water heater, turn the rotary selector
"
tw
" to "0".
Settings
Heating
5608 698 GB
Autres manuels pour Vitodens 100-W
41
Table des matières
Autres manuels Viessmann Système de chauffage
Viessmann
Viessmann VITOSOL 200-T SD2A 2m2 Series Manuel utilisateur
Viessmann
Viessmann Divicon Manuel utilisateur
Viessmann
Viessmann VITODENS Manuel utilisateur
Viessmann
Viessmann VITOCELL 100-W Mode d'emploi
Viessmann
Viessmann VITOTRONIC 300 Manuel utilisateur
Viessmann
Viessmann VITOTRONIC 200 Manuel utilisateur
Viessmann
Viessmann VITOTRONIC 100 Manuel utilisateur
Viessmann
Viessmann Vitodens series Manuel utilisateur
Viessmann
Viessmann VITOCELL 100-B Mode d'emploi
Viessmann
Viessmann VITOCELL 300B Mode d'emploi
Viessmann
Viessmann AC-Box Mode d'emploi
Viessmann
Viessmann VITOTRONIC 100 Manuel utilisateur
Viessmann
Viessmann NC-Box Mode d'emploi
Viessmann
Viessmann Vitocrossal 300 CT3 SERIES Manuel utilisateur
Viessmann
Viessmann VITODENS Manuel utilisateur
Viessmann
Viessmann Vitovalor PA2 Mode d'emploi
Viessmann
Viessmann Vitodens 100-W Manuel utilisateur
Viessmann
Viessmann Vitotronic 200 Series Mode d'emploi
Viessmann
Viessmann Vitodens 100-W Manuel utilisateur
Viessmann
Viessmann Vitotronic 200 KW2 Manuel utilisateur
