Viessmann VITODENS Manuel utilisateur
Operating instructions
for the system user
VIESMANN
Heating system with the Vitotronic 200 control unit, type HO1B
for weather-compensated mode
VITODENS
VITOLADENS
VITOPEND
5592 682 GB 1/2011 Please keep safe.
2
Please follow these safety instructions closely to prevent accidents and mate-
rial losses.
Safety instructions explained
Danger
This symbol warns against the
risk of injury.
!Please note
This symbol warns against the
risk of material losses and envi-
ronmental pollution.
Note
Details identified by the word "Note" con-
tain additional information.
Target group
These operating instructions are for the
heating system user.
This unit is not designed to be used by
persons (including children) with limited
bodily, sensory or mental capacities, or
lacking experience and/or lacking knowl-
edge, unless they are supervised by a
person responsible for their safety, or
have received instructions from such a
person as to how to use the unit.
!Please note
Children should be supervised.
Ensure that children do not play
with the unit.
Danger
Incorrectly executed work on the
heating system can lead to life-
threatening accidents.
■ Work on gas appliances must
only be carried out by a regis-
tered gas fitter.
■ Work on electrical equipment
must only be carried out by a
qualified electrician.
If you smell gas
Danger
Escaping gas can lead to explo-
sions which may result in serious
injury.
■ Do not smoke. Prevent naked
flames and sparks. Never
switch lights or electrical appli-
ances ON or OFF.
■ Close the gas shut-off valve.
■ Open windows and doors.
■ Remove all people from the
danger zone.
■ Notify your gas or electricity
supplier and your heating con-
tractor from outside the build-
ing.
■ Shut off the electricity supply to
the building from a safe place
(outside the building).
Safety instructions
For your safety
5592 682 GB
3
If you smell flue gas
Danger
Flue gas can lead to life-threat-
ening poisoning.
■ Shut down the heating system.
■ Ventilate the boiler room.
■ Close all doors in the living
space.
In case of fire
Danger
Fire creates the risk of burning
and explosions.
■ Shut down the heating system.
■ Close the shut-off valves of the
fuel lines.
■ Use a tested fire extinguisher,
class ABC.
Boiler room requirements
!Please note
Incorrect ambient conditions can
lead to damage to the heating
system and put the safe opera-
tion at risk.
■ Ensure ambient temperatures
above 0 ºC and below 35 ºC.
■ Prevent air contamination by
halogenated hydrocarbons
(e.g. as contained in paints,
solvents or cleaning fluids) and
excessive dust (e.g. through
grinding/polishing work).
■ Avoid continuously high humid-
ity levels (e.g. through frequent
drying of washing).
■ Never close existing ventilation
apertures.
Ancillary components, spare and
wearing parts
!Please note
Components that are not tested
with the heating system may lead
to damage to the heating system,
or may affect their various func-
tions.
Installation or replacement work
must only be carried out by quali-
fied personnel.
Safety instructions
For your safety (cont.)
5592 682 GB
4
Introductory information
Commissioning..................................................................................................... 6
Your system is preset at the factory..................................................................... 6
Terminology.......................................................................................................... 7
Tips on saving energy.......................................................................................... 7
Operation
Controls................................................................................................................ 9
■Programming unit.............................................................................................. 9
Menu.................................................................................................................... 10
How to use the controls........................................................................................ 12
Start-up/shutdown
Starting the heating system.................................................................................. 15
Shutting down the heating system....................................................................... 16
■ With frost protection monitoring........................................................................ 16
■ Without frost protection monitoring (shutdown)................................................ 16
Central heating
Required settings (central heating)...................................................................... 17
Selecting a heating circuit.................................................................................... 17
Setting the room temperature............................................................................... 18
Setting the heating program for central heating................................................... 19
Setting the time program for central heating........................................................ 19
Changing the heating curve................................................................................. 20
Stopping the central heating................................................................................. 21
Comfort and energy saving functions.............................................................. 22
DHW heating
Required settings (DHW heating)......................................................................... 25
Setting the DHW temperature.............................................................................. 25
Setting the heating program for DHW heating..................................................... 25
Setting the time program for DHW heating.......................................................... 26
■ Heating system with DHW circulation pump..................................................... 27
Stopping the DHW heating................................................................................... 28
Further adjustments
Setting the display contrast.................................................................................. 29
Setting the display brightness.............................................................................. 29
Entering names for the heating circuits................................................................ 29
Changing the standard menu............................................................................... 30
Setting the time and date..................................................................................... 30
Index
Index
5592 682 GB
5
Language selection.............................................................................................. 31
Setting the temperature unit (°C/°F)..................................................................... 31
Restoring factory settings..................................................................................... 31
Scanning
Scanning information............................................................................................ 32
Scanning the service messages........................................................................... 33
Scanning fault messages..................................................................................... 34
Emissions test mode......................................................................................... 36
What to do if...
Rooms are too cold.............................................................................................. 37
Rooms are too hot................................................................................................ 38
There is no hot water............................................................................................ 38
The DHW is too hot.............................................................................................. 39
"ã" flashes and "Fault" is displayed.................................................................... 39
"ë" flashes and "Service" is displayed................................................................ 39
"Controls locked out" is displayed........................................................................ 39
"External hook-up" is displayed............................................................................ 39
"External program" is displayed........................................................................... 39
Maintenance........................................................................................................ 40
Appendix
Ordering fuel oil.................................................................................................... 41
Menu overview..................................................................................................... 42
■ Extended menu................................................................................................. 42
■ Scanning options in the extended menu........................................................... 43
Terminology.......................................................................................................... 44
Keyword index.................................................................................................... 49
Index
Index (cont.)
5592 682 GB
6
The commissioning and matching of the
control unit to local conditions and build-
ing characteristics, as well as instructing
the user in the operation of the system,
must be carried out by your heating con-
tractor.
As the user of new combustion equip-
ment, you may be obliged to notify your
local flue gas inspector of the installation
[check local regulations]. Your local flue
gas inspector will also inform you [where
appropriate] about work he may be
required to perform on your combustion
equipment (e.g. regular checks, clean-
ing).
Your system is preset at the factory
The control unit is factory-set to "Heat-
ing and DHW".
Your heating system is therefore ready
for use:
Central heating
■ Between 6:00 and 22:00 h, the rooms
are heated with 20 °C "Set room
temp" (standard heating mode).
■ Between 22:00 and 6:00 h, the rooms
are heated with 3 °C "Set reduced
room temp" (reduced heating mode,
frost protection).
■ Your heating contractor can make fur-
ther settings for you during commis-
sioning.
You can change any settings individu-
ally at any time to suit your require-
ments (see chapter "Central heating").
DHW heating
■ Between 5:30 and 22:00 h, the DHW
is heated to 50 °C "Set DHW temper-
ature". Any installed DHW circulation
pump is ON.
■ Between 22:00 and 05:30 h, the DHW
cylinder temperature will not be rehea-
ted. Any installed DHW circulation
pump is OFF.
■ Your heating contractor can make fur-
ther settings for you during commis-
sioning.
You can change any settings individu-
ally at any time to suit your require-
ments (see chapter "DHW heating").
Frost protection
■ Your boiler and DHW cylinder are pro-
tected against frost.
Wintertime/summertime changeover
■ This changeover is automatic.
Time and date
■ The day and time were set by your
heating contractor during commission-
ing.
Introductory information
Commissioning
5592 682 GB
7
Power failure
■ All data is saved if there is a power
failure.
Terminology
To provide you with a better understand-
ing of the functions of your control unit,
the appendix contains the chapter "Ter-
minology" (see page 44).
Tips on saving energy
Utilise the setting options for the control
unit and remote control (if installed):
■ Never overheat your rooms. Every
degree by which the room temperature
is reduced saves up to 6 % on heating
costs.
Never set your room temperature
higher than 20 °C (see page 18).
■ Never set the DHW temperature too
high (see page 25).
■ Only activate the DHW circulation
pump for times when DHW is drawn
off. Set the time program for this (see
page 27).
■ Select the heating program that meets
your current requirements:
– For short absences (e.g. shopping
trips), select "Economy mode"
(see page 23).
As long as economy mode is activa-
ted, the room temperature is
reduced.
– If you are going away, set the "Hol-
iday program" (see page 23).
As long as the holiday program is
activated, the room temperature is
reduced and DHW heating is off.
– In summer, when you don't want to
heat any rooms but do need DHW,
select the heating program "Only
DHW" (see page 25).
Introductory information
Your system is preset at the factory (cont.)
5592 682 GB
8
In conjunction with a solar ther-
mal system:
DHW heating is set at the factory to
start at 05:30 h. On sunny days, the
DHW cylinder receives sufficient
heat from the solar thermal system
that the DHW temperature is still
high enough the next morning. You
can program DHW heating to start at
10:00 h, for example.
– If you don't want to heat the rooms
and you don't require DHW for an
extended period, select the heating
program "Standby mode" (see
page 16).
For additional energy saving functions of
the control unit, please contact your
heating contractor.
Further recommendations:
■ Correct ventilation/airing.
Briefly open windows fully and at the
same time close the thermostatic radi-
ator valves.
■ Close roller shutters (if installed) at
dusk.
■ Set thermostatic valves correctly.
■ Never cover radiators or thermostatic
valves.
■ Controlled DHW consumption: A
shower generally uses less energy
than a full bath.
Introductory information
Tips on saving energy (cont.)
5592 682 GB
9
You can change any settings on your
heating system centrally at the program-
ming unit of the control unit.
If remote control units are installed in
your rooms, you can also adjust the set-
tings at the remote control units.
Remote control operating instruc-
tions
Note
The programming unit can be placed in
a wall mounting base. This is available
as an accessory. Ask your heating con-
tractor for more information.

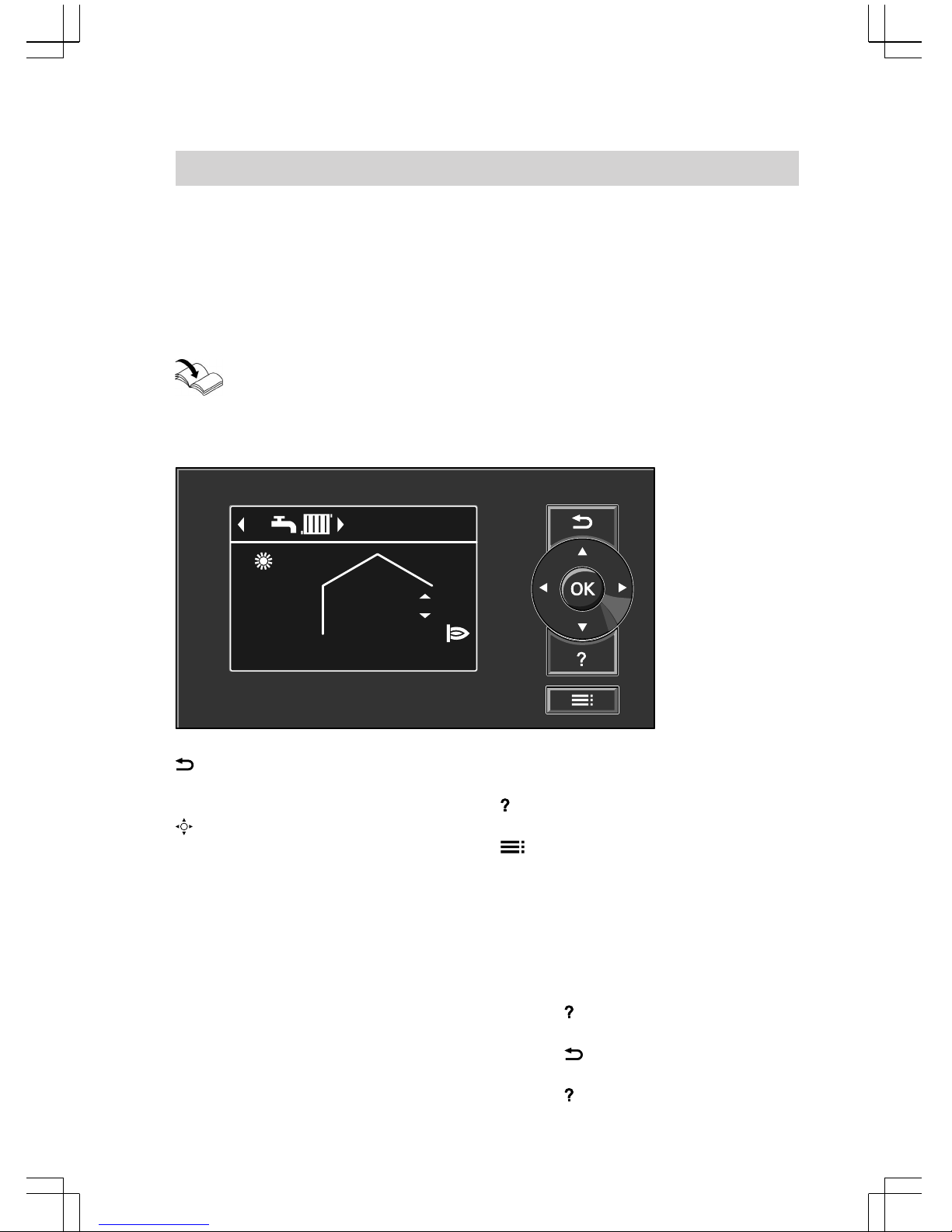

Programming unit
48°CBoiler temperature
HC1
14°C 21°C
Takes you to the previous step in
the menu or cancels a setting that
has been started.
Cursor keys
To scroll in the menu or to set val-
ues.
OK Confirms your selection or saves
the setting.
Calls up help texts for the selected
menu option.
Calls up the extended menu.
Menu "Help"
You can view a short guide giving an
explanation of the controls and informa-
tion about heating circuit selection (see
page 17).
Call up the short guide as follows:
■ If the screen saver is active (see
page 12):
Press .
■ If you are somewhere in the menu:
Press until the standard menu is
shown (see the following chapter).
Press .
Operation
Controls
5592 682 GB
10
There are two control levels available,
the "Standard menu" and the "Extended
menu".
Standard menu
B
C
A
48°CBoiler temperature
14°C 21°C
HC1
D
AHeader (shows the heating program
for the displayed heating circuit
D)
BCurrent outside temperature
CSet room temperature
DHeating circuit which is selected for
operation in the standard menu
Note
■ If your heating system has 2 or 3 heat-
ing circuits:
You can select the heating circuit
"HC1", "HC2" or "HC3" to be dis-
played in the standard menu (see
page 30).
■ If your heating system only has one
heating circuit:
No heating circuit name "HC..." is
shown in the header.
In the standard menu, you can adjust
and scan the most frequently used set-
tings for the heating circuit shown in
the header:
■ Set room temperature
Press the following keys:
/ for the required value.
OK to confirm.
■ Heating program
Heating programs:
Standby mode with frost protec-
tion monitoring
Only DHW
Heating and DHW
Operation
Menu
5592 682 GB
Autres manuels pour VITODENS
12
Ce manuel convient aux modèles suivants
2
Table des matières
Autres manuels Viessmann Système de chauffage
Viessmann
Viessmann Vitodens 100-W Manuel utilisateur
Viessmann
Viessmann VITODENS Manuel utilisateur
Viessmann
Viessmann Vitotronic 200 KW2 Manuel utilisateur
Viessmann
Viessmann Vitodens 100-W Manuel utilisateur
Viessmann
Viessmann NC-Box Mode d'emploi
Viessmann
Viessmann VITODENS Manuel utilisateur
Viessmann
Viessmann VITOVENT 300 Manuel utilisateur
Viessmann
Viessmann Divicon Manuel utilisateur
Viessmann
Viessmann Vitocell 100-E Mode d'emploi
Viessmann
Viessmann Vitotronic 200 KW2 Manuel utilisateur
Viessmann
Viessmann VITOTRONIC 300 Manuel utilisateur
Viessmann
Viessmann VITODENS 200 WB2B Manuel utilisateur
Viessmann
Viessmann Vitodens 100-W Manuel utilisateur
Viessmann
Viessmann Vitocell 100-H Mode d'emploi
Viessmann
Viessmann Vitotronic 200 Series Mode d'emploi
Viessmann
Viessmann VITOSOL300 Manuel utilisateur
Viessmann
Viessmann VITOSOL 200-T SD2A 2m2 Series Manuel utilisateur
Viessmann
Viessmann VITOBLOC 200 Manuel de la liste des pièces
Viessmann
Viessmann VITOTRONIC 200 Manuel utilisateur
Viessmann
Viessmann Vitocrossal 300 CT3 SERIES Manuel utilisateur
