VIA Technologies EPIA PD-Series Manuel utilisateur

November 18, 2004 Version 1.1

Operating Guide

EPIA PD-Series Mini-ITX Mainboard

EPIA PD-Series Operating Guide

November 18, 2004 - i - Version 1.1

Table of Contents

TABLE OF CONTENTS ................................................................................................................................................................I

VIA EPIA PD-SERIES OVERVIEW ...........................................................................................................................................1

VIA EPIA PD-SERIES LAYOUT.................................................................................................................................................2

VIA EPIA PD-SERIES SPECIFICATIONS................................................................................................................................3

VIA EPIA PD PROCESSOR SKUS..............................................................................................................................................4

VIA CLE266 CHIPSET OVERVIEW..........................................................................................................................................5

VIA EPIA PD-SERIES I/O BACK PANEL LAYOUT ...............................................................................................................6

VIA EPIA PD-SERIES LAYOUT DIAGRAM & MOUNTING HOLES..................................................................................7

VIA EPIA PD-SERIES LAYOUT DIAGRAM & HEIGHT DISTRIBUTION.........................................................................8

NOISE LEVEL DATA...................................................................................................................................................................9

POWER CONSUMPTION..........................................................................................................................................................10

VIA EPIA PD 10000..................................................................................................................................................................10

VIA EPIA PD 6000E .................................................................................................................................................................11

POWER SPECIFICATIONS ......................................................................................................................................................12

VIA EPIA PD-SERIES LINUX & MICROSOFT DRIVER SUPPORT .................................................................................13

LINUX DRIVER SUPPORT..............................................................................................................................................................13

MICROSOFT DRIVER SUPPORT......................................................................................................................................................13

CONTACT....................................................................................................................................................................................14

EPIA PD-Series Operating Guide

November 18, 2004 - 1 - Version 1.1

VIA EPIA PD-Series Overview

The VIA EPIA PD-Series Mini-ITX Mainboard is an ultra compact x86 digital I/O, 4 COM ports and dual

LAN platform with unprecedented expandability and versatility for today’s ever-growing need of

networking applications. The VIA EPIA PD features more connectivity options than any other EPIA

mainboard opening up a vast range of applications in the POS, office, public places, and commercial

LANs. Measuring a mere 17 x 17 cm, the VIA EPIA PD-series enables space and power saving systems

with minimal moving parts making it ultra reliable for 24/7 operation in a once-on-always-on network

environment.

The VIA EPIA PD-series is fully compatible with Microsoft® and Linux operating systems and is available

in a variety of configurations, including the fanless VIA Eden™ ESP processor for silent system designs

and the highly efficient VIA C3™ processor for more demanding multimedia applications.

The mainboard is based on the VIA CLE266 chipset featuring an embedded hardware MPEG-2

accelerator and integrated VIA UniChrome™ 2D/3D graphics for rich digital media performance. With the

sizable memory bandwidth of DDR266 SDRAM and the high data transfer speeds of ATA-133, the VIA

EPIA PD-series delivers the increased performance levels required by today’s commercial digital video

and audio applications.

The latest in high-bandwidth connectivity is supported with up to six USB 2.0 connections, as well as four

COM ports and two 10/100 Fast Ethernet ports for extended broadband connectivity. The VIA EPIA PD-

series also offers support for a number of LVDS embedded LCD panels, has one PCI slot for

expandability options, The VIA EPIA PD-series is compatible with a full range of Mini-ITX chassis as well

as FlexATX and MicroATX enclosures and power supplies.

EPIA PD-Series Operating Guide

November 18, 2004 - 2 - Version 1.1

VIA EPIA PD-Series Layout

EPIA PD-Series Operating Guide

November 18, 2004 - 3 - Version 1.1

VIA EPIA PD-Series Specifications

Processor • VIA C3/EDEN EBGA Processor

Chipset • VIA CLE266 North Bridge

• VT8235 South Bridge

System Memory • 1 DDR266 DIMM socket

• Up to 1GB memory size

VGA • Integrated VIA Uni Chrome AGP graphics with MPEG-2

Accelerator

Expansion Slots • 1 PCI

Onboard IDE • 2 X UltraDMA 133/100/66 Connector

Onboard Digital I/O • 1 x Digital I/O Connector (4 pin GPI + 4 pin GPO with 5V/12V

support)

Onboard LAN • VIA VT6105 LOM+VT6103 10/100 Base-T Ethernet PHY

Onboard Audio • VIA VT1612A 2 channel AC’97 Codec

Onboard I/O Connectors • 1 USB connectors for 2 additional USB 2.0 ports

• Front-panel audio connectors (mic-in and line-Out)

• 1 Buzzer

• SIR connector

• CIR connector (Switchable for KB/MS)

• Wake-on-LAN

• CPU/Sys FAN/Fan 3

• 1 Connector for LVDS module

• 3 Serial port connector for 2/3/4 com port; 3/4 com port with 5V or

12V power jumper selection (Default power setting is 5V)

Back Panel I/O • 1 PS2 mouse port

• 1 PS2 keyboard port

• 1 Parallel

• 2 RJ-45 LAN port

• 1 Serial port

• 4 USB 2.0 ports

• 1 VGA port

• 3 Audio jacks: line-out, line-in and mic-in

BIOS • Award BIOS

• 2/4Mbit flash memory

System Monitoring & Management • CPU voltage monitoring

• Wake-on-LAN, Keyboard-Power-on, Timer-Power-on

• System power management

• AC power failure recovery

Operating Temperature • 0 ~ 50°C

Operating Humidity • 0% ~ 93% (relative humidity; non-condensing)

Form Factor • Mini-ITX (4 layer)

• 17 cm x 17 cm

EPIA PD-Series Operating Guide

November 18, 2004 - 4 - Version 1.1

VIA EPIA PD Processor SKUs

The VIA EPIA PD-Series is available in three different speed grades. The VIA EPIA PD6000E utilizes

VIA’s ultra low power VIA Eden™ ESP processor while the VIA EPIA PD12000/PD10000 utilizes the

robust VIA C3™ processor.

Suitable for fanless systems

with low heat and ultra-low

power requirements

Suitable for compact systems

running multimedia applications

EPIA PD6000E

VIA Eden™ ESP 6000 processor

600 MHz

Fanless Operation

1.2v Operating Volts

128KB L1 Cache &

64KB L2 Cache

MMX and 3DNow!

EPIA PD10000

VIA C3™ processor

1.0 GHz

1.4v Operating Volts

128KB L1 Cache

64KB L2 Cache

MMX and SSE

EPIA PD-Series Operating Guide

November 18, 2004 - 5 - Version 1.1

VIA CLE266 Chipset Overview

The VIA Apollo CLE266 Chipset is designed to enable high quality digital video streaming and DVD

playback in a new generation of fanless, small form factor PCs and IA devices. The CLE266 features the

embedded VIA UniChrome™ 2D/3D MPEG-2 accelerator, DDR266 support, motion compensation and

duo-view support to ensure a rich overall entertainment experience. Outstanding connectivity features

include USB 2.0, 10/100 LAN and ATA/133.

EPIA PD-Series Operating Guide

November 18, 2004 - 6 - Version 1.1

VIA EPIA PD-Series I/O Back Panel Layout

The EPIA PD’s ultra compact 17cm x 17cm, integrated design supports all the standard legacy x86

connectivity options as well as Dual LAN, USB 2.0, serial port, parallel port and VIA two channel AC’97

audio. Video connectivity options are second to none and include a VGA port.

Line-In

Line-Out

Microphone

COM1VGA Out USBPS2_KB

RJ45Parallel (LPT1)PS2_MS

EPIA PD-Series Operating Guide

November 18, 2004 - 7 - Version 1.1

VIA EPIA PD-Series Layout Diagram & Mounting Holes

EPIA PD-Series Operating Guide

November 18, 2004 - 8 - Version 1.1

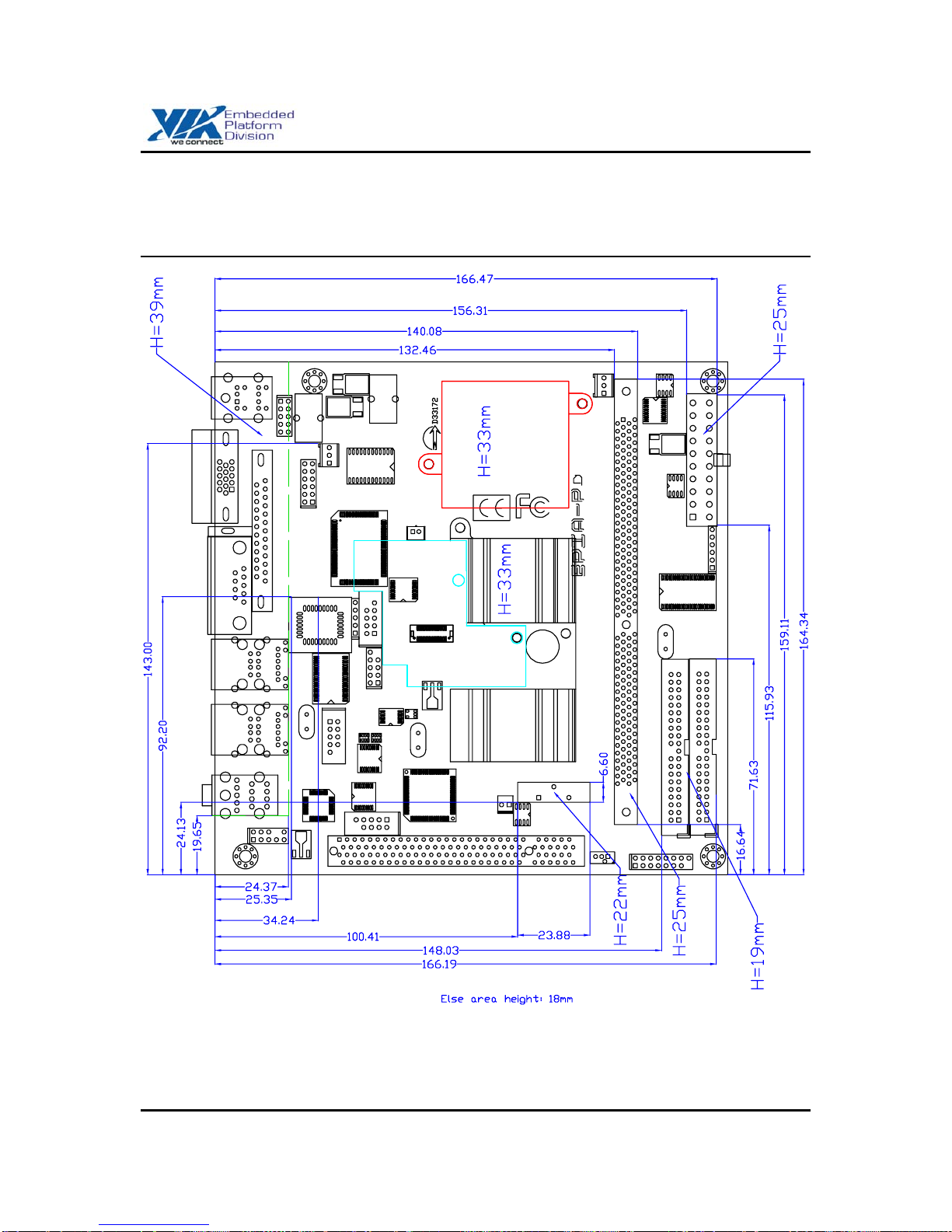

VIA EPIA PD-Series Layout Diagram & Height Distribution
