Vision™ OPLC™ Installation Guide

V1040-T20B

This guide provides basic information for Unitronics’ controllers V1040-T20B.

General Description

V1040 OPLCs are programmable logic controllers that comprise a built-in operating panel containing

a10.4” Color Touchscreen. The V1040 offers function keys along with a virtual alpha-numeric

keyboard which is automatically displayed when the application requires the operator to enter data.

Communications 2isolated RS232/RS485 ports

USB programming port (Mini-B)

Isolated CANbus port

The user can order and install an additional port. This may be

either Ethernet or serial.

Communication Function Blocks include: SMS, GPRS, MODBUS

serial/IP; Protocol FB enables PLC to communicate with almost

any external device, via serial or Ethernet communications

I/O Options V1040 supports digital, high-speed,

analog, weight and temperature

measurement I/Os via:

Snap-in I/O Modules

Plug into the back of the

controller to provide an on-

board I/O configuration

I/O Expansion Modules

Local or remote I/Os may be

added via expansion port or

CANbus.

Installation instructions and other data may be found in the module’s technical

specification sheet.

Information Mode This mode enables you to:

Calibrate the touchscreen

View & Edit operand values, COM port settings, RTC and screen

contrast/brightness settings

Stop, initialize, and reset the PLC

To enter Information Mode, press the touchscreen and maintain contact for

several seconds.

Programming

Software,

&Utilities

The Unitronics Setup CD contains VisiLogic software and other utilities

VisiLogic

Easily configure hardware and write both HMI and Ladder control

applications; the Function Block library simplifies complex tasks

such as PID. Write your application, and then download it to the

controller via the programming cable included in the kit.

Utilities

These include UniOPC server, Remote Access for remote

programming and diagnostics, and DataXport for run-time data

logging.

To learn how to use and program the controller, as well as use utilities such as

Remote Access, refer to the VisiLogic Help system.

Vision™ OPLC™, V1040-T20B

Removable

Memory Storage

Micro-SD card: store datalogs, Alarms, Trends,

Data Tables; export to Excel;

backup Ladder, HMI & OS and use this data to ‘clone’ PLCs.

For more data, refer to the SD

topics in the VisiLogic Help system.

Data Tables

Data tables enable you to set recipe parameters and create datalogs.

Additional product documentation is in the Technical Library, located at

www.unitronics.com

Technical support is available at the site, and from [email protected].

Standard Kit Contents

Vision controller USB programming cable

(Type A to Mini

3pin power supply connector Mounting brackets (x8)

5pin CANbus connector Rubber seal

CANbus network termination resistor Unitronics’ Setup CD

Battery (not installed)

Danger Symbols

When any of the

following symbols appear, read the associated information carefully.

Symbol Meaning Description

Danger

The identified danger causes physical and property damage.

Warning

The identified danger could cause physical and property damage.

Caution Caution Use caution.



Before using this product, the user must read and understand this document.

All examples and diagrams are intended to aid understanding,

and do not guarantee operation.

Unitronics accepts no responsibility for actual use of this prod

uct based on these examples.



Please dispose of this product according to local and national standards and regulations.

Only qualified service personnel shou

ld open this device or carry out repairs.

Failure to comply with appropriate safety guidelines

can cause severe injury or property damage.



Do not attempt to use this device with parameters that exceed permissible levels.



To avoid damaging the system, do not connect/disconnect the device when power is on.

Environmental Considerations



Do not install in areas with: excessive or conductive dust, corrosive or flammable gas,

moisture or rain, excessive heat, regular impact shocks or excessive vibration, in accordance

with the standards given in the product’s technical specification sheet.



Ventilation: 10mm space required between controller’s top/bottom edges & enclosure walls.

Do not place in water or let water leak onto the unit.

Do not allow debris to fall inside the unit during installation.

Install at maximum distance from high-volta

ge cables and power equipment.

Installation Guide

Unitronics

Tables; export to Excel;

PLCs.

Help system.

create datalogs.

w.unitronics.com

ype A to Mini

-B)

carefully.

property damage.

and property damage.

ent.

tguarantee operation.

nthese examples.

and regulations.

airs.

njury or property damage.

issible levels.

ce when power is on.

or flammable gas,

evibration, in accordance

et.

dges & enclosure walls.

uipment.

Installation Guide Vision™ OPLC™, V1040-T20B

Unitronics 3

Inserting the Battery

In order to preserve data in case of power-off, you must insert the battery.

The battery is supplied taped to the battery cover on the rear of the controller.

1. Remove the battery cover shown on page 4. The polarity (+) is marked on the battery holder and

on the battery.

2. Insert the battery, ensuring that the polarity symbol on the battery is:

-facing up

-aligned with the symbol on the holder

3. Replace the battery cover.

Mounting

Dimensions

Note that the LCD screen may have a single pixel that is permanently either black or white.

Vision™ OPLC™, V1040-T20B Installation Guide

Unitronics

Panel Mounting

Before you begin, note that the mounting panel cannot be more than 5 mm thick.

1. Make a panel cut-out according to

the dimensions in the figure to the

right.

2. Slide the controller into the cut-

out, ensuring that the rubber seal

is in place.

3. Push the 8 mounting brackets into

their slots on the sides of the

controller as shown in the figure to

the right.

4. Tighten the bracket screws

against the panel. Hold the

bracket securely against the unit

while tightening the screw.

5. When properly mounted, the

controller is squarely situated in

the panel cut-out as shown below.

Installation Guide

Vision™ OPLC™

Unitronics

Wiring

Do not touch live wires.

Install an external circuit breaker. Guard against short-

circuiting in external wiring.

Use appropriate circuit protection devices.



Unused pins should not be connected. Ignoring this directive may damage the device.

Double-check all wiring before turning on the power supply.

Caution

To avoid

damaging the wire, do not exceed a maximum torque of 0.5



Do not use tin, solder, or any substance on stripped wire that might cause the wire

strand to break.

Install at maximum distance from high-

voltage cables and power equipment.

Wiring Procedure

Use crimp terminals for wiring; use 26-12 AWG wire (0.13 mm

–3.31 mm

1. Strip the wire to a length of 7±0.5mm (0.250–0.300 inches).

2. Unscrew the terminal to its widest position before inserting a wire.

3. Insert the wire completely into the terminal to ensure a proper connection.

4. Tighten enough to keep the wire from pulling free.

Power Supply

The controller V1040-T20B requires e

ither an external 12 or 24VDC power supply.

Permissible input voltage range: 10.2-28.8VDC, with less than 10% ripple.

The power supply

must include double insulation. Outputs must be rated as

SELV/PELV/Class 2/Limited Power.

Do not connect either the ‘Neutral or ‘Line’ signal of the

110/220VAC to device’s 0V pin.

Install an external circuit breaker. Guard against short-

circuiting in external wiring.

Double-check all wiring before turning on the power

supply.

In the event of voltage fluctuations or non-conformity to

voltage power supply specifications, connect the device

to a regulated power supply.

Earthing the OPLC

To maximize system performance, avoid electromagnetic interference by:

Mounting the controller on a metal panel.

Connect the functional earth terminal of the OPLC, and the

common and ground

I/Os, directly to the earth ground of your system.

For ground wiring, use the shortest and thickest possible wire.

sion™ OPLC™

,V1040-T20B

ng in external wiring.

may damage the device.

ue of 0.5

N·m (5 kgf·cm).

might cause the wire

wer equipment.

upply.

rated as

Cto device’s 0V pin.

dground

lines of

Vision™ OPLC™, V1040-T20B Installation Guide

Unitronics

Communication Ports

This series comprises a USB port, 2 RS232/RS485 serial ports and a CANbus port. An additional

port may be ordered separately and installed. This port may be either Ethernet, or serial (COM 3).

For the most updated information regarding ports and their installation, please refer to the Technical

Library at www.unitronics.com.

Turn off power before making communications connections.

Caution Always use the appropriate port adapters.

The USB port may be used for programming, OS download, and PC access.

Note that COM port 1 function is suspended when this port is physically connected to a PC.

The serial ports are type RJ-11 and may be set to either RS232 or RS485 via DIP switches, in

accordance with the table shown below.

Use RS232 to download programs from a PC, and to communicate with serial devices and

applications, such as SCADA.

Use RS485 to create a multi-drop network containing up to 32 devices.

Pinouts

The pinouts below show PLC port signals.

To connect a PC to a port that is set to RS485, remove the RS485 connector, and connect the PC to

the PLC via the programming cable. Note that this is possible only if flow control signals are not used

(which is the standard case).

RS232 RS485** Controller Port

Pin # Description Pin # Description

Pin #1

1* DTR signal

1 A signal (+)

20V reference 2(RS232 signal)

3TXD signal 3(RS232 signal)

4RXD signal 4(RS232 signal)

50V reference 5(RS232 signal)

6* DSR signal

6 B signal (-)

*Standard programming cables do not provide connection points for pins 1 and 6.

**When a port is adapted to RS485, Pin 1 (DTR) is used for signal A,

and Pin 6 (DSR) signal is used for signal B.

RS232 to RS485: Changing DIP Switch Settings

The ports are set to RS232 by factory default.

To change the settings, first remove the Snap-in I/O Module, if one is installed, and then set the

switches according to the following table.

RS232/RS485: DIP Switch Settings

The settings below are for each COM port.

Switch Settings

123456

RS232* ON ON ON OFF ON OFF

RS485 OFF OFF OFF ON OFF ON

RS485 with

termination**

ON ON OFF ON OFF ON

Installation Guide

Vision™ OPLC™

Unitronics

*Default factory setting

**Causes the unit to function as an end unit in an RS485 network

Installing a Snap-in I/O Module

Before installing a Snap-In Module,

ensure that the Communication Module Cover is

closed.

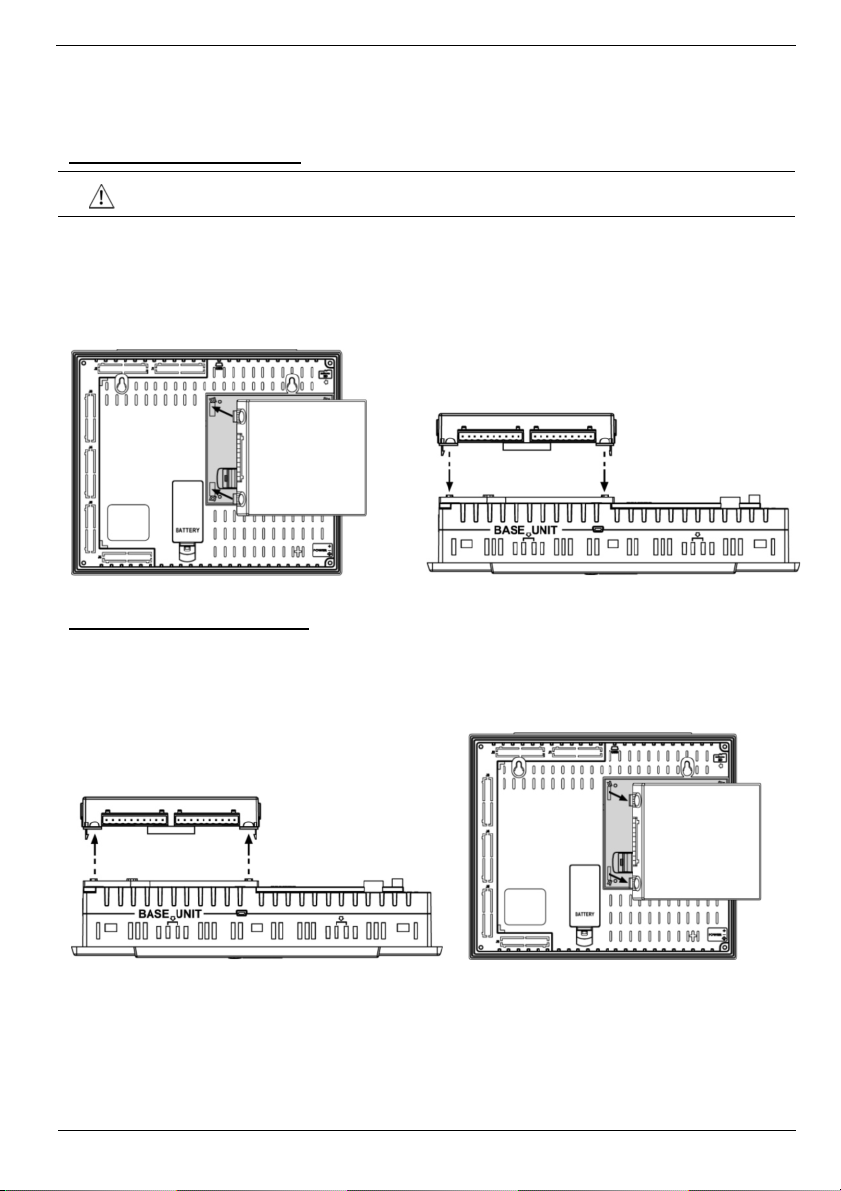

1. Remove the I/O connector cap shown on Page 4.

2. Line the circular guidelines on the Snap-in I/O Module with the slots

on the controller as shown

below.

Apply even pressure on all 4 corners until you hear a distinct ‘click’. The module is now installed.

Check that all sides and corners are correctly aligned.

Removing a Snap-in I/O Module

1. Locate the four buttons on the sides of the controller, two on either side.

2. Press the buttons and hold them down to open the locking mechanism.

Gently rock the module from side to side, easing the module from the controller.

sion™ OPLC™

,V1040-T20B

cation Module Cover is

econtroller as shown

module is now installed.

troller.

Vision™ OPLC™, V1040-T20B Installation Guide

Unitronics

CANbus

These controllers comprise a CANbus port. Use

this to create a decentralized control network using

one of the following CAN protocols:

CANopen: 127 controllers or external

devices

CANLayer 2, J1939

Unitronics’ proprietary UniCAN: 60

controllers, (512 data bytes per scan)

The CANbus port is galvanically isolated.

CANbus Wiring

Use twisted-pair cable. DeviceNet® thick shielded

twisted pair cable is recommended.

Network terminators: These are supplied with the

controller. Place terminators at each end of the

CANbus network.

Resistance must be set to 1%, 121Q,1/4W.

Connect ground signal to the earth at only one

point, near the power supply.

The network power supply need not be at the end

of the network

CANbus Connector

The information in this document reflects products at the date of printing. Unitronics reserves the right, subject to all applicable laws, at any time, at its sole

discretion, and without notice, to discontinue or change the features, designs, materials and other specifications of its products, and to either permanently or

temporarily withdraw any of the forgoing from the market.

All information in this document is provided "as is" without warranty of any kind, either expressed or implied, including but not limited to any implied warranties of

merchantability, fitness for a particular purpose, or non-infringement. Unitronics assumes no responsibility for errors or omissions in the information presented in

this document. In no event shall Unitronics be liable for any special, incidental, indirect or consequential damages of any kind, or any damages whatsoever arising

out of or in connection with the use or performance of this information.

The tradenames, trademarks, logos and service marks presented in this document, including their design, are the property of Unitronics (1989) (R"G) Ltd. or other

third parties and you are not permitted to use them without the prior written consent of Unitronics or such third party as may own them.

DIG-V1040-T20B 11/10

Autres manuels pour Vision OPLC V1040-T20B

Table des matières

Autres manuels Unitronics Contrôleurs

Unitronics

Unitronics Vision OPLC V130 Manuel utilisateur

Unitronics

Unitronics Vision OPLC V570-57-T34 Manuel utilisateur

Unitronics

Unitronics Vision V130J-TR34 Manuel utilisateur

Unitronics

Unitronics UniStream USC-B5-TA32 Manuel utilisateur

Unitronics

Unitronics M90 OPLC Manuel utilisateur

Unitronics

Unitronics Vision OPLC V130-33-T38 Manuel utilisateur

Unitronics

Unitronics Jazz OPLC JZ20-R10 Manuel utilisateur

Unitronics

Unitronics Vision OPLC V1040-T20B Manuel utilisateur

Unitronics

Unitronics UniStream USC-C3-R20 Manuel utilisateur

Unitronics

Unitronics Vision V130-T2 Manuel utilisateur

Unitronics

Unitronics Vision V130-33-T2 Manuel utilisateur

Unitronics

Unitronics Samba OPLC Series Manuel utilisateur

Unitronics

Unitronics Vision V350-35-T2 Manuel utilisateur

Unitronics

Unitronics Vision OPLC V350-35-TR20 Manuel utilisateur

Unitronics

Unitronics UniStream US5-B5-B1 Manuel utilisateur

Unitronics

Unitronics Vision V120 Manuel utilisateur

Unitronics

Unitronics MJ20-MEM1 Manuel utilisateur

Unitronics

Unitronics Vision V350-35-TU24 Manuel utilisateur

Unitronics

Unitronics Vision OPLC V350-35-TA24 Manuel utilisateur

Unitronics

Unitronics UniStream USC-B5-R38 Manuel utilisateur

Unitronics

Unitronics UniStream PLC Series Manuel utilisateur

Unitronics

Unitronics Samba OPLC SM43-J-R20 Manuel utilisateur

Unitronics

Unitronics V230 Manuel utilisateur

Unitronics

Unitronics Vision V130-J-TA24 Manuel utilisateur

Manuels Contrôleurs populaires d'autres marques

Digiplex

Digiplex DGP-848 Mode d'emploi

YASKAWA

YASKAWA SGM series Manuel utilisateur

Sinope

Sinope Calypso RM3500ZB Manuel utilisateur

Isimet

Isimet DLA Series Style 2 Manuel d'installation

LSIS

LSIS sv-ip5a Manuel utilisateur

Rockwell Automation

Rockwell Automation 1769-L31 Manuel utilisateur

Airflow

Airflow Uno hab Manuel utilisateur

ABB

ABB ACS580-01 drives Manuel utilisateur

Panasonic

Panasonic GM1 Series Manuel utilisateur

Emerson

Emerson SW93 Manuel utilisateur

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manuel utilisateur

Panasonic

Panasonic FP? Positioning Unit RTEX Manuel utilisateur

Samson

Samson Type 5824 Manuel de service

Alpha IP

Alpha IP MIOB 21001 Manuel utilisateur

Siemens

Siemens OpenAir GMA 1 Series Manuel utilisateur

Surecom

Surecom SR-629 Manuel utilisateur

Fishman

Fishman TriplePlay Manuel utilisateur

Regulus

Regulus SRS1 T Manuel utilisateur
