Unitronics UniStream US5-B5-B1 Manuel utilisateur

Unitronics

UniStream®

Built-in

User Guide

US5-B5-B1, US5-B10-B1, US5-B5-TR22,

US5-B10-TR22, US5-B5-T24, US5-B10-T24,

US5-C5-B1, US5-C10-B1, US5-C5-TR22,

US5-C10-TR22, US5-C5-T24, US5-C10-T24

US7-B5-B1, US7-B10-B1, US7-B5-TR22,

US7-B10-TR22, US7-B5-T24, US7-B10-T24,

US7-C5-B1, US7-C10-B1, US7-C5-TR22,

US7-C10-TR22, US7-C5-T24, US7-C10-T24

US10-B5-B1, US10-B10-B1, US10-B5-TR22,

US10-B10-TR22, US10-B5-T24, US10-B10-T24,

US10-C5-B1, US10-C10-B1, US10-C5-TR22,

US10-C10-TR22, US10-C5-T24, US10-C10-T24

This guide provides basic installation information for specific UniStream® models with built-in I/O.

Technical specifications may be downloaded from the Unitronics website.

General Features

Unitronics’ UniStream®Built-in series are PLC+HMI All-in-One programmable controllers that comprise

a built-in CPU, an HMI panel, and built-in I/Os.

The series is available in two versions: UniStream Built-in and UniStream Built-in Pro.

Note that a model number that includes:

•B5/C5 refers to UniStream Built-in

•B10/C10 refers to UniStream Built-in Pro. These models offer additional features, detailed

below.

HMI

▪Resistive Color Touch-screens

▪Rich graphic library for HMI design

Power

Features

▪Built-in Trends and Gauges, auto-tuned PID, data tables, data sampling, and Recipes

▪UniApps™: Access & edit data, monitor, troubleshoot & debug and more –via HMI or remotely via

VNC

▪Security: Multi-level password protection

▪Alarms: Built-in system, ANSI/ISA standards

I/O

Options

▪Built-in I/O configuration, varies according to model

▪Local I/O via UAG-CX series I/O expansion adapters and standard UniStream Uni-I/O™modules

▪Remote I/O using UniStream Remote I/O or via EX-RC1

COM

Options

▪Built-in ports: 1 Ethernet, 1 USB host, 1 Mini-B USB device port

▪Serial and CANbus ports may be added via UAC-CX modules

COM

Protocols

▪Fieldbus: CANopen, CAN Layer2, MODBUS, EtherNetIP and more. Implement any serial

RS232/485, TCP/IP, or CANbus third-party protocols via Message Composer

▪Advanced: SNMP Agent/Trap, e-mail, SMS, modems, GPRS/GSM, VNC Client, FTP Server/Client

Programming

Software

All-in-One software for hardware configuration, communications, and HMI /PLC

applications, available as a free download from Unitronics.

User Guide

Unitronics

Comparison

table

Feature

B5/C5

B10/C10 (Pro)

System Memory

3GB

6GB

Audio Jack

Yes

Video/RSTP Support

Yes

Web Server

Yes

SQL Client

Yes

Before You Begin

Before installing the device, the user must:

▪Read and understand this document.

▪Verify the Kit Contents.

Alert Symbols and General Restrictions

When any of the following symbols appear, read the associated information carefully.

Symbol

Meaning

Description

Danger

The identified danger causes physical and property damage.

Warning

The identified danger could cause physical and property damage.

Caution

Use caution.

▪All examples and diagrams are intended to aid understanding, and do not guarantee operation.

Unitronics accepts no responsibility for actual use of this product based on these examples.

▪Please dispose of this product according to local and national standards and regulations.

▪This product should be installed only by qualified personnel.

▪Failure to comply with appropriate safety guidelines can cause severe injury or property

damage.

▪Do not attempt to use this device with parameters that exceed permissible levels.

▪Do not connect/disconnect the device when power is on.

Environmental Considerations

▪Ventilation: 10mm space is required between the device top/bottom edges and the enclosure’s

walls

▪Do not install in areas with: excessive or conductive dust, corrosive or flammable gas, moisture

or rain, excessive heat, regular impact shocks or excessive vibration, in accordance with the

standards and limitations given in the product’s technical specification sheet.

▪Do not place in water or let water leak onto the unit.

▪Do not allow debris to fall inside the unit during installation.

▪Install at maximum distance from high-voltage cables and power equipment.

UniStream®Built-in

Unitronics

UL Compliance

The following section is relevant to Unitronics’ products that are listed with the UL.

The following models are UL listed for Hazardous Locations: US5-B5-B1, US5-B10-B1, US7-B5-B1 and

US7-B10-B1

The following models are UL listed for Ordinary Location:

▪USL followed by -, followed by 050 or 070 or 101, followed by B05

▪US followed by 5 or 7 or 10, followed by -, followed by B5 or B10 or C5 or C10, followed by -,

followed by B1 or TR22 or T24 or RA28 or TA30 or R38 or T42

Models from series US5, US7 and US10 that include “T10” or “T5” in the model name are suitable for

mounting on the flat surface of Type 4X enclosure. For examples: US7-T10-B1, US7-T5-R38, US5-T10-

RA22 and US5-T5-T42.

UL Ordinary Location

In order to meet the UL ordinary location standard, panel-mount this device on the flat surface

of Type 1 or 4X enclosures

UL Ratings, Programmable Controllers for Use in Hazardous Locations,

Class I, Division 2, Groups A, B, C and D

These Release Notes relate to all Unitronics products that bear the UL symbols used to mark products

that have been approved for use in hazardous locations, Class I, Division 2, Groups A, B, C and D.

Caution

This equipment is suitable for use in Class I, Division 2, Groups A, B, C and D, or Non-

hazardous locations only.

▪Input and output wiring must be in accordance with Class I, Division 2 wiring methods and in

accordance with the authority having jurisdiction.

▪WARNING—Explosion Hazard—substitution of components may impair suitability for Class I,

Division 2.

▪WARNING –EXPLOSION HAZARD –Do not connect or disconnect equipment unless power has

been switched off or the area is known to be non-hazardous.

▪WARNING –Exposure to some chemicals may degrade the sealing properties of material used

in Relays.

▪This equipment must be installed using wiring methods as required for Class I, Division 2 as

per the NEC and/or CEC.

Panel-Mounting

For programmable controllers that can be mounted also on panel, in order to meet the UL Haz Loc

standard, panel-mount this device on the flat surface of Type 1 or Type 4X enclosures.

Communication and Removable Memory Storage

When products comprise either USB communication port, SD card slot, or both, neither

the SD card slot nor the USB port are intended to be permanently connected, while the USB port is

intended for programming only.

Removing / Replacing the battery

When a product has been installed with a battery, do not remove or replace the battery unless the power

has been switched off, or the area is known to be non-hazardous.

Please note that it is recommended to back up all data retained in RAM, in order to avoid losing data

when changing the battery while the power is switched off. Date and time information will also need to

be reset after the procedure.

User Guide

Unitronics

UL des zones ordinaires:

Pour respecter la norme UL des zones ordinaires, monter l'appareil sur une surface plane de type de

protection 1 ou 4X

Certification UL des automates programmables, pour une utilisation en environnement à risques, Class I, Division

2, Groups A, B, C et D.

Cette note fait référence à tous les produits Unitronics portant le symbole UL - produits qui ont été

certifiés pour une utilisation dans des endroits dangereux, Classe I, Division 2, Groupes A, B, C et D.

Attention

▪Cet équipement est adapté pour une utilisation en Classe I, Division 2, Groupes A, B, C et

D, ou dans Non-dangereux endroits seulement.

▪Le câblage des entrées/sorties doit être en accord avec les méthodes

de câblage selon la Classe I, Division 2 et en accord avec l’autorité compétente.

▪AVERTISSEMENT: Risque d’Explosion – Le remplacement de certains composants rend

caduque la certification du produit selon la Classe I, Division 2.

▪AVERTISSEMENT - DANGER D'EXPLOSION - Ne connecter pas ou ne débranche pas

l'équipement sans avoir préalablement coupé l'alimentation électrique ou la zone est

reconnue pour être non dangereuse.

▪AVERTISSEMENT - L'exposition à certains produits chimiques peut dégrader les propriétés

des matériaux utilisés pour l'étanchéité dans les relais.

▪Cet équipement doit être installé utilisant des méthodes de câblage suivant la norme Class

I, Division 2 NEC et /ou CEC.

Montage de l'écran:

Pour les automates programmables qui peuvent aussi être monté sur l'écran,

pour pouvoir être au standard UL, l'écran doit être monté dans un coffret avec une surface plane de type

1 ou de type 4X.

Communication et de stockage amovible de mémoire (carte mémoire)

Produits comprend un port USB de communication, soit un port carte SD ou les deux, ni le port SD, ni

le port USB ne sont censés être utilisés en permanence, tandis que l'USB est destiné à la

programmation uniquement.

Retrait / Remplacement de la batterie

Lorsqu'un produit a été installé avec une batterie, retirez et remplacez la batterie seulement si

l’alimentation est éteinte ou si l’environnement n’est pas dangereux.

Veuillez noter qu'il est recommandé de sauvegarder toutes les données conservées dans la RAM, afin

d'éviter de perdre des données lors du changement de la batterie lorsque l'alimentation est coupée. Les

informations sur la date et l'heure devront également être réinitialisées après la procedure.

Kit Contents

▪1 PLC+HMI controller

▪4,8 mounting brackets (US5/US7, US10)

▪1 panel mounting seal

▪2 panel supports (US7/US10 only)

▪1 power terminal block

▪2 I/O terminal blocks (provided only with models

comprising built-in I/Os)

▪1 Battery

UniStream®Built-in

Unitronics

Product Diagram

Front and Rear View

Screen

Protection

A plastic sheet attached to the screen for protection. Remove it during

installation of the HMI Panel.

Battery Cover

The battery is supplied with the unit, but must be installed by the user.

Power Supply

Input

Connection point for the controller power source.

Connect the Terminal Block supplied with the kit to the end of the power

cable.

microSD Slot

Supports standard microSD cards.

USB Host port

Provides the interface for external USB devices.

Ethernet port

Supports high-speed Ethernet communications.

USB Device

Use for application download and direct PC-UniStream

communication.

I/O Expansion

Jack

Connection point for an I/O Expansion Port.

Ports are supplied as part of I/O Expansion Model Kits. Kits are available by

separate order.

Note that UniStream®Built-in is compatible only with adapters from the

series UAG-CX.

Audio Jack

Pro models only. This 3.5mm Audio jack enables you to connect external

audio equipment.

Built-in I/O

Model-dependent. Present in models with built-in I/O configurations.

Uni-COM™CX

Module Jack

Connection point for up to 3 stack-on modules. These are available by

separate order.

Installation Space Considerations

Allocate space for:

▪the controller

▪any modules that will be installed

▪access to ports, jacks, and the microSD card slot

For exact dimensions, please refer to the Mechanical Dimensions shown below.

User Guide

Unitronics

Mechanical Dimensions

UniStream 5”

UniStream 7"

UniStream®Built-in

Unitronics

UniStream 10.1"

NOTE

Allow space for modules to be snapped onto the back of the controller, if required by your

application. Modules are available by separate order.

Panel Mounting

NOTE

▪Mounting panel thickness must be less or equal to 5mm (0.2”).

▪Ensure that the space considerations are met.

1. Prepare a panel cut-out according to the dimensions as shown in the previous section.

2. Slide the controller into the cut-out, ensuring that the Panel Mounting Seal is in place as shown

below.

3. Push the mounting brackets into their slots on the sides of the panel as shown below.

4. Tighten the bracket screws against the panel. Hold the brackets securely against the unit while

tightening the screws. The torque required is 0.35 N·m (3.1 in-lb).

When properly mounted, the panel is squarely situated in the panel cut-out as shown below.

Caution

▪Do not apply torque exceeding 0.35 N·m (3.1 in-lb) of torque to tighten the bracket

screws. Using excessive force to tighten the screw can damage this product.

UniStream 5”

User Guide

Unitronics

UniStream 7”

UniStream 10.1”

Battery: Back-up, First Use, Installation, and Replacement

Back-up

In order to preserve back-up values for RTC and system data in the event of power off, the battery

must be connected.

First Use

The battery is protected by a removable cover on

the side of the controller.

The battery is supplied installed inside the unit, with

a plastic tab preventing contact which must be

removed by the user.

UniStream®Built-in

Unitronics

Battery Installation and Replacement

▪Use proper precautions to prevent Electro-Static Discharge (ESD) while servicing the battery.

Caution

▪To preserve back-up values for RTC and system data during battery replacement, the

controller must be powered.

▪Note that disconnecting the battery halts the preservation of back-up values and causes

them to be deleted.

1. Remove the battery cover from the controller as shown in the accompanying figure:

- Press the tab on the module to disengage it.

- Slide it up to remove it.

2. If you are replacing the battery, remove the battery

from its slot on the side of the controller.

3. Insert the battery, ensuring that the polarity is

aligned with the polarity marking as shown in the

accompanying figure.

4. Replace the battery cover.

5. Dispose of the used battery according to local and

national standards and regulations.

Panel Support Installation

1. Insert the Panel Support tabs into their location.

Note that the exact location varies according to the

panel model.

2. Pull on the Panel Support

until it locks (clicks) into

it’s place.

Wiring

▪This equipment is designed to operate only at SELV/PELV/Class 2/Limited Power environments.

▪All power supplies in the system must include double insulation. Power supply outputs must be

rated as SELV/PELV/Class 2/Limited Power.

▪Do not connect either the ‘Neutral’ or ‘Line’ signal of the 110/220VAC to device’s 0V point.

▪Do not touch live wires.

▪All wiring activities should be performed while power is OFF.

▪Use over-current protection, such as a fuse or circuit breaker, to avoid excessive currents into

the power supply connection point.

▪Unused points should not be connected (unless otherwise specified). Ignoring this directive may

damage the device.

▪Double-check all wiring before turning on the power supply.

User Guide

Unitronics

Caution

▪To avoid damaging the wire, use a maximum torque of 0.5 N·m (4.4 in-lb).

▪Do not use tin, solder, or any substance on stripped wire that might cause the wire strand to

break.

▪Install at maximum distance from high-voltage cables and power equipment.

Wiring Procedure

Use crimp terminals for wiring; use 26-12 AWG wire (0.13 mm2–3.31 mm2 )

1. Strip the wire to a length of 7±0.5mm (0.250–0.300 inches).

2. Unscrew the terminal to its widest position before inserting a wire.

3. Insert the wire completely into the terminal to ensure a proper connection.

4. Tighten enough to keep the wire from pulling free.

Wiring Guidelines

In order to ensure that the device will operate properly and to avoid electromagnetic interference:

▪Use a metal cabinet. Make sure the cabinet and its doors are properly earthed.

▪Use wires that are properly sized for the load.

▪Use shielded twisted pair cables for wiring High Speed and Analog I/O signals.

In either case, do not use the cable shield as a signal common / return path.

▪Route each I/O signal with its own dedicated common wire. Connect common wires at their respective common (CM) points

at the controller.

▪Individually connect each 0V point and each common (CM) point in the system to the power supply 0V terminal, unless

otherwise specified.

▪Individually connect each functional ground point ( ) to the earth of the system (preferably to the metal cabinet chassis).

Use the shortest and thickest wires possible: less than 1m (3.3’) in length, minimum thickness 14 AWG (2 mm2).

▪Connect the power supply 0V to the earth of the system.

▪Earthing the cables' shield:

➢Connect the cable shield to the earth of the system (preferably to the metal cabinet chassis). Note that the shield must be

connected only at one end of the cable; it is recommended to earth the shield at the PLC-side.

➢Keep shield connections as short as possible.

➢Ensure shield continuity when extending shielded cables.

NOTE

For detailed information, refer to the document System Wiring Guidelines,

located in the Technical Library in the Unitronics’ website.

Wiring the Power Supply

The controller requires an external power supply.

▪In the event of voltage fluctuations or non-conformity to voltage power supply specifications,

connect the device to a regulated power supply.

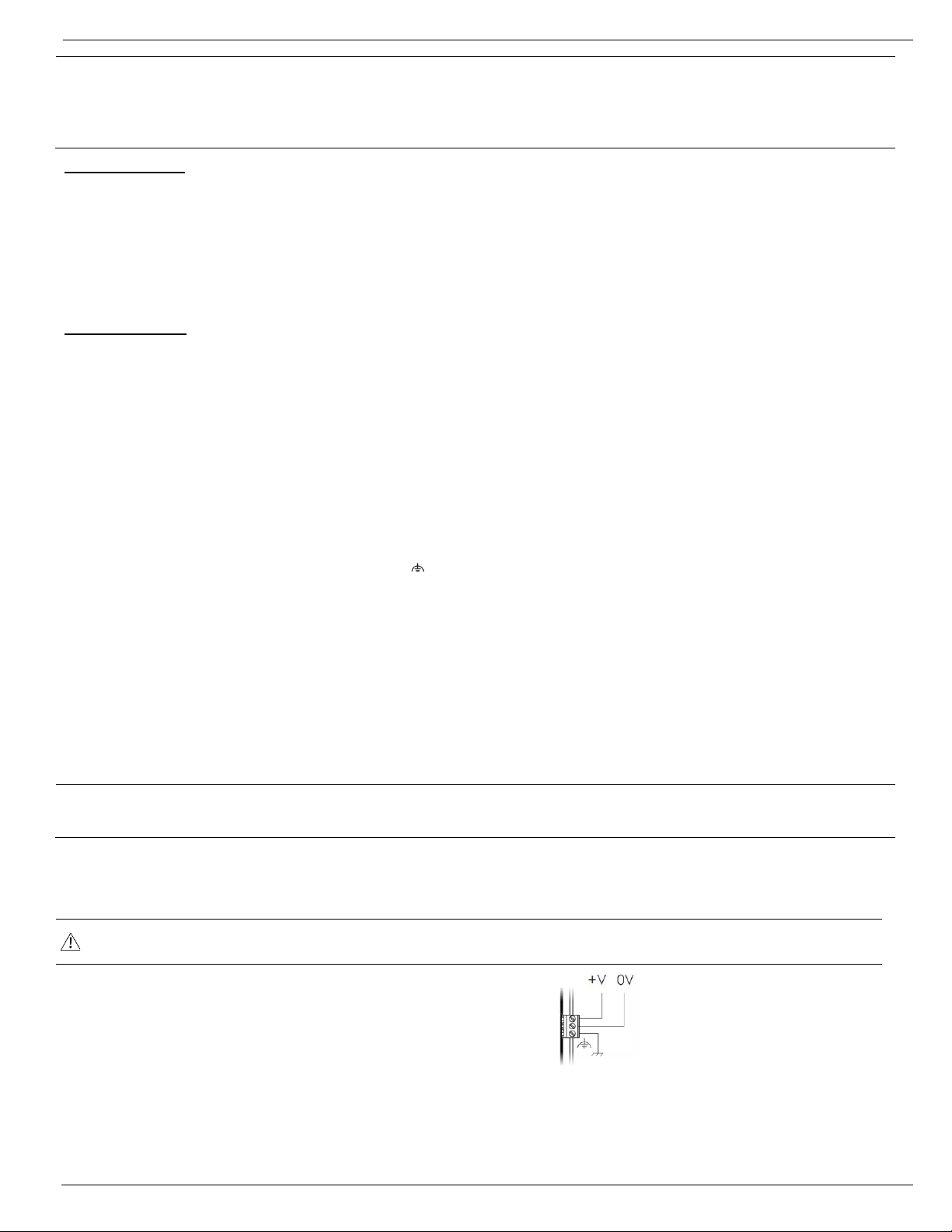

Connect the +V and 0V

terminals as shown in the

accompanying figure.

Ce manuel convient aux modèles suivants

Autres manuels Unitronics Contrôleurs

Unitronics

Unitronics UniStream USC-B3-R20 Manuel utilisateur

Unitronics

Unitronics Vision OPLC V130-33-T38 Manuel utilisateur

Unitronics

Unitronics Vision V130-J Series Manuel utilisateur

Unitronics

Unitronics Vision OPLC V130-J-TR20 Manuel utilisateur

Unitronics

Unitronics Vision V130-J-TA24 Manuel utilisateur

Unitronics

Unitronics Jazz JZ10-11-R16L Manuel utilisateur

Unitronics

Unitronics Vision120 Manuel utilisateur

Unitronics

Unitronics Vision OPLC V560-T25B Manuel utilisateur

Unitronics

Unitronics Vision OPLC V350-35-TA24 Manuel utilisateur

Unitronics

Unitronics VisionV120-22-UN2 Manuel utilisateur

Unitronics

Unitronics Vision V130J-TR34 Manuel utilisateur

Unitronics

Unitronics Vision OPLC V130-33-B1 Manuel utilisateur

Unitronics

Unitronics Vision V120 Manuel utilisateur

Unitronics

Unitronics Samba SM70-J-RA22 Manuel utilisateur

Unitronics

Unitronics Samba OPLC SM43-J-R20 Manuel utilisateur

Unitronics

Unitronics UniStream USC-C3-R20 Manuel utilisateur

Unitronics

Unitronics V120-22-R34 Manuel utilisateur

Unitronics

Unitronics UniStream USC-B5-TA32 Manuel utilisateur

Unitronics

Unitronics Vision130 Manuel utilisateur

Unitronics

Unitronics Vision V350-35-TU24 Manuel utilisateur

Unitronics

Unitronics Vision OPLC V350-35-TR20 Manuel utilisateur

Unitronics

Unitronics Samba OPLC SM43-J-R20 Manuel utilisateur

Unitronics

Unitronics Uni-COM UAC-CB-01RS2 Manuel utilisateur

Unitronics

Unitronics Vision V570-57-T40B Manuel utilisateur

Manuels Contrôleurs populaires d'autres marques

Digiplex

Digiplex DGP-848 Mode d'emploi

YASKAWA

YASKAWA SGM series Manuel utilisateur

Sinope

Sinope Calypso RM3500ZB Manuel utilisateur

Isimet

Isimet DLA Series Style 2 Manuel d'installation

LSIS

LSIS sv-ip5a Manuel utilisateur

Rockwell Automation

Rockwell Automation 1769-L31 Manuel utilisateur

Airflow

Airflow Uno hab Manuel utilisateur

ABB

ABB ACS580-01 drives Manuel utilisateur

Panasonic

Panasonic GM1 Series Manuel utilisateur

Emerson

Emerson SW93 Manuel utilisateur

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manuel utilisateur

Panasonic

Panasonic FP? Positioning Unit RTEX Manuel utilisateur

Samson

Samson Type 5824 Manuel de service

Alpha IP

Alpha IP MIOB 21001 Manuel utilisateur

Siemens

Siemens OpenAir GMA 1 Series Manuel utilisateur

Surecom

Surecom SR-629 Manuel utilisateur

Fishman

Fishman TriplePlay Manuel utilisateur

Regulus

Regulus SRS1 T Manuel utilisateur
