Vision™ OPLC™ Installation Guide

V130-33-T38/V130-J-T38

V350-35-T38/V350-J-T38

V430-J-T38



22 Digital Inputs, including 2 Analog,

2 HSC/Shaft-encoder inputs



16 Transistor Outputs

General Description

All of the controllers covered in this guide are micro-OPLCs, rugged programmable logic controllers that

comprise built-in operating panels and on-board I/Os.

Item V130-T38

V130J-T38

V350-T38

V350J-T38

V430J-T38

On-board I/O Model Dependent

Screen 2.4" 3.5" Color Touch 4.3" Color Touch

Keypad Yes None

Function Keys None Yes

Com Port, Built-in

RS232/485 Yes Yes Yes Yes Yes*

USB device,

mini-B None None None None Yes*

Com Ports, separate

order, user-installed

The user may install a CANbus port (V100-17-CAN), and one of the following:

•RS232/RS485 port (V100-17-RS4/V100-17-RS4X)

•Ethernet (V100-17-ET2)

•Profibus Slave (V100-17-PB1)

* V430J comprises both RS232/485 and USB ports; note that only one channel may be used at a time.

Standard Kit Contents

Item V130-T38

V130J-T38

V350-T38

V350J-T38

V430J-T38

Controller Yes

Terminal Blocks Yes

Battery (installed) Yes

Slides

(2 sets of key labels) None Yes None

Mounting Brackets Yes (2 parts) Yes (4 parts)

Rubber Seal Yes

Programming cable

+ RS232 adapter Yes None

USB

programming cable None Yes

Vision™ OPLC™ Installation Guide

2 Unitronics

Alert Symbols and General Restrictions

When any of the following symbols appear, read the associated information carefully.

Symbol Meaning Description

Danger The identified danger causes physical and property damage.

Warning The identified danger could cause physical and property damage.

Caution Caution Use caution.

Before using this product, the user must read and understand this document.

All examples and diagrams are intended to aid understanding, and do not guarantee operation.

Unitronics accepts no responsibility for actual use of this product based on these examples.

Please dispose of this product according to local and national standards and regulations.

Only qualified service personnel should open this device or carry out repairs.

Failure to comply with appropriate safety guidelines can cause severe injury or property

damage.

Do not attempt to use this device with parameters that exceed permissible levels.

To avoid damaging the system, do not connect/disconnect the device when power is on.

Environmental Considerations

Do not install in areas with: excessive or conductive dust, corrosive or flammable gas,

moisture or rain, excessive heat, regular impact shocks or excessive vibration, in

accordance with the standards given in the product’s technical specification sheet.

Do not place in water or let water leak onto the unit.

Do not allow debris to fall inside the unit during installation.

Ventilation: 10mm space required between controller’s top/bottom edges & enclosure walls.

Install at maximum distance from high-voltage cables and power equipment.

Mounting

Note that figures are for illustrative purposes only.

Dimensions: V130/V350/V130J/V350J

* Note that for models V130J/V350J, the bezel width is 6.7 mm (0.26”).

Vision™ OPLC™

Unitronics 3

Dimensions: V430J

Panel Mounting

Before you begin, note that the mounting panel cannot be more than 5 mm thick.

UL listed models:

To meet the UL508 standard, panel-mount the device on the flat surface of a Type 1 enclosure.

1. Make a panel cut-out of the appropriate size:

V130/V350/V130J/V350J: 92x92 mm (3.622”x3.622”).

V430J: 122.5x91.5 mm (4.82”x3.6”).

2. Slide the controller into the cut-out, ensuring that the rubber seal is in place.

3. Push the mounting brackets into their slots on the sides of the panel as shown in the figure below.

4. Tighten the bracket’s screws against the panel. Hold the bracket securely against the unit while

tightening the screw.

5. When properly mounted, the controller is squarely situated in the panel cut-out as shown in the

accompanying figures.

V130/V350/V130J/V350J

Vision™ OPLC™ Installation Guide

4 Unitronics

V430J

DIN-rail Mounting (V130/V350/V130J/V350J)

1. Snap the controller onto the DIN rail as

shown in the figure to the right.

2. When properly mounted, the controller is

squarely situated on the DIN-rail as

shown in the figure to the right.

Vision™ OPLC™

Unitronics 5

Wiring

Do not touch live wires.

Install an external circuit breaker. Guard against short-circuiting in external wiring.

Use appropriate circuit protection devices.

Unused pins should not be connected. Ignoring this directive may damage the device.

Double-check all wiring before turning on the power supply.

Caution

To avoid damaging the wire, do not exceed a maximum torque of 0.5 N·m (5 kgf·cm).

Do not use tin, solder, or any substance on stripped wire that might cause the wire

strand to break.

Install at maximum distance from high-voltage cables and power equipment.

Wiring Procedure

Use crimp terminals for wiring; use 3.31 mm ² –0.13 mm² wire (12-16 AWG):

1. Strip the wire to a length of 7±0.5mm (0.270–0.300“).

2. Unscrew the terminal to its widest position before inserting a wire.

3. Insert the wire completely into the terminal to ensure a proper connection.

4. Tighten enough to keep the wire from pulling free.

Input or output cables should not be run through the same multi-core cable or share

the same wire.

Allow for voltage drop and noise interference with I/O lines used over an extended distance.

Use wire that is properly sized for the load.

The controller and I/O signals must be connected to the same 0V signal.

I/Os

V130/V350/V130J/V350J/V430J-T38 models comprise a total of 22 inputs and 16 transistor outputs.

Input functionality can be adapted as follows:

22 inputs may be used as digital inputs. They may be wired in a group via a single jumper

as either npn or pnp.

According to jumper settings and appropriate wiring:

- Inputs 14 and 15 can function as either digital or analog inputs.

- Inputs 0 and 2 can function as, high-speed counters, as part of a shaft-encoder,

or as normal digital inputs.

- Inputs 1 and 3 can function as either counter reset, as normal digital inputs, or as part of a shaft-

encoder.

If inputs 0 and 2 are set as high-speed counters (without reset), inputs 1 and 3 can function

as normal digital inputs.

Vision™ OPLC™ Installation Guide

6 Unitronics

Input Jumper Settings

The tables below show how to set a specific jumper to change input functionality. To access the I/O

jumpers, you must open the controller according to the instructions beginning on page 11.

Incompatible jumper settings and wiring connections may seriously damage the controller.

Digital Inputs 0-21: Set Type

Set to JP5 (all Inputs)

npn (sink) A

pnp (source)* B

Inputs 14/15: Set as Digital or Analog

Set to JP2 (Input 14) JP1 (Input 15)

Digital* B B

Analog A A

Analog Inputs AN0/AN1: Set Type

Set to JP4 (AN0) JP3 (AN1)

Voltage A A

Current* B B

*Default settings

I/O Wiring

npn (sink) Input

Input wiring HSC input wiring

Vision™ OPLC™

Unitronics 7

pnp (source) Input

Input wiring HSC input wiring

Shaft-encoder

Analog Input

Analog input wiring, current (2/3-wire) Analog input wiring, current (4-wire), voltage

Shields should be connected at the signal’s source.

The 0V signal of the analog input must be connected to the controller’s 0V.

Vision™ OPLC™ Installation Guide

8 Unitronics

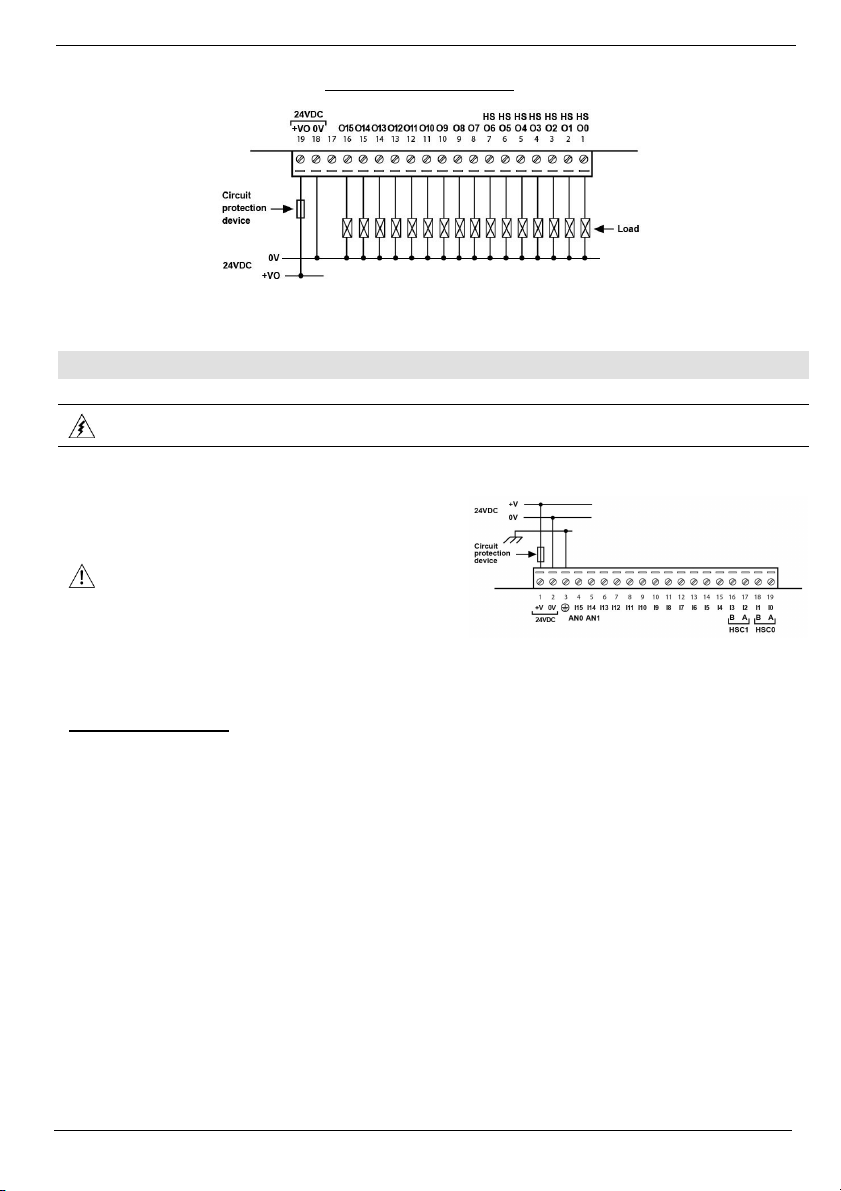

Transistor Outputs (pnp)

Outputs 0 to 6 can be used as PWM outputs.

Power Supply

The controller requires an external 24VDC power supply.

The power supply must include double insulation. Outputs must be rated as

SELV/PELV/Class2/Limited Power.

Use separate wires to connect the functional

earth line (pin 3) and the 0V line (pin 2) to the

system earth ground.

Install an external circuit breaker. Guard

against short-circuiting in external wiring.

Double-check all wiring before turning

on the power supply.

Do not connect either the ‘Neutral’ or ‘Line’

signal of the 110/220VAC to device’s 0V pin

In the event of voltage fluctuations or non-

conformity to voltage power supply

specifications, connect the device to

a regulated power supply.

Earthing the OPLC

To maximize system performance, avoid electromagnetic interference by:

Mounting the controller on a metal panel.

Connect each common and ground connection directly to the earth ground of your system.

For ground wiring uses the shortest and thickest possible wire.

Vision™ OPLC™

Unitronics 9

Communication

V130/V350/V130J/V350J

These models comprise a built-in RS232/RS485 serial port (Port 1)

V430J

These models comprise built-in ports: 1 USB and 1 RS232/RS485 (Port 1).

Note that physically connecting a PC to the controller via USB suspends RS232/RS485

communications via Port 1. When the PC is disconnected, RS232/RS485 resumes.

RS232/RS485 Port

Turn off power before making communications connections.

Caution

Always use the appropriate port adapters.

Caution

Signals are related to the controller’s 0V; the same 0V is used by the power supply.

The serial port is not isolated. If the controller is used with a non-isolated external device,

avoid potential voltage that exceeds ± 10V.

Use RS232 to download programs from a PC, and to communicate with serial devices

and applications, such as SCADA.

Use RS485 to create a multi-drop network containing up to 32 devices.

Pinouts

The pinouts below show the PLC port signals.

RS232 RS485** Controller Port

Pin # Description Pin # Description

Pin #1

1* DTR signal 1 A signal (+)

2 0V reference 2 (RS232 signal)

3 TXD signal 3 (RS232 signal)

4 RXD signal 4 (RS232 signal)

5 0V reference 5 (RS232 signal)

6* DSR signal 6 B signal (-)

* Standard programming cables do not provide connection points for pins 1 and 6.

** When a port is adapted to RS485, Pin 1 (DTR) is used for signal A,

and Pin 6 (DSR) signal is used for signal B.

Note that it is possible to establish a PC to PLC connection using RS232 even when the PLC is set to

RS485 (this eliminates the need to open the controller to set jumpers).

To do so, remove the RS485 connector (pins 1 & 6) from the PLC and connect a standard RS232

programming cable.

Note that this is possible only if DTR and DSR signals of RS232 are not used (which is the standard

case).

Vision™ OPLC™ Installation Guide

10 Unitronics

Setting RS232/RS485 Communication Parameters, V430J

This port may be set to either RS232 or RS485 via DIP switches:

The table shows the DIP switches factory default settings. Use the table to adapt the settings.

Switch Settings

1 2 3 4 5 6

RS232* ON OFF

OFF

ON OFF

OFF

RS485 OFF ON ON OFF OFF OFF

RS485 with

termination**

OFF ON ON OFF ON ON

* Default factory setting

** Causes the unit to function as an end unit in an RS485 network

USB Port

Caution

The USB port is not isolated.

Make sure that the PC and the controller are grounded to same potential.

The USB port may be used for programming, OS download, and PC access.

Setting RS232/RS485 Communication Parameters, V130/V350/V130J/V350J

This port may be set to either RS232 or RS485 via jumper.

The accompanying figure shows the jumper factory

default settings.

These jumpers may be used to:

Set communications to RS485, by setting

both COMM jumpers to ‘485’.

Set RS485 termination, by setting

both TERM jumpers to ‘OFF’.

To access the jumpers, you must open the controller

according to the instructions on page 11.

Autres manuels pour Vision OPLC V130-33-T38

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Unitronics Contrôleurs

Unitronics

Unitronics Samba SM70-J-TA22 Manuel utilisateur

Unitronics

Unitronics Vision OPLC V350-35-TR20 Manuel utilisateur

Unitronics

Unitronics Samba OPLC Series Manuel utilisateur

Unitronics

Unitronics Samba OPLC SM43-J-R20 Manuel utilisateur

Unitronics

Unitronics Vision OPLC V130-J-TR20 Manuel utilisateur

Unitronics

Unitronics UniStream PLC Series Manuel utilisateur

Unitronics

Unitronics Uni-COM UAC-CB-01RS2 Manuel utilisateur

Unitronics

Unitronics UniStream USC-B3-R20 Manuel utilisateur

Unitronics

Unitronics MJ20-MEM1 Manuel utilisateur

Unitronics

Unitronics Vision OPLC V130-33-T38 Manuel utilisateur

Unitronics

Unitronics Vision V130-J Series Manuel utilisateur

Unitronics

Unitronics US5-B5-RA28 Manuel utilisateur

Unitronics

Unitronics Jazz JZ20-J-UN20 Manuel utilisateur

Unitronics

Unitronics Vision OPLC V130 Manuel utilisateur

Unitronics

Unitronics Vision 230 Manuel utilisateur

Unitronics

Unitronics Vision OPLC V570-57-C30B Manuel utilisateur

Unitronics

Unitronics Vision OPLC V350-35-TA24 Manuel utilisateur

Unitronics

Unitronics V280 Manuel utilisateur

Unitronics

Unitronics UniStream USC-B5-TA32 Manuel utilisateur

Unitronics

Unitronics Jazz OPLC JZ20-T40 Manuel utilisateur

Unitronics

Unitronics Vision V130-33-R34 Manuel utilisateur

Unitronics

Unitronics V130-33-TR6 Manuel utilisateur

Unitronics

Unitronics Jazz JZ20-UA24 Manuel utilisateur

Unitronics

Unitronics Vision 230 Manuel utilisateur

Manuels Contrôleurs populaires d'autres marques

Digiplex

Digiplex DGP-848 Mode d'emploi

YASKAWA

YASKAWA SGM series Manuel utilisateur

Sinope

Sinope Calypso RM3500ZB Manuel utilisateur

Isimet

Isimet DLA Series Style 2 Manuel d'installation

LSIS

LSIS sv-ip5a Manuel utilisateur

Rockwell Automation

Rockwell Automation 1769-L31 Manuel utilisateur

Airflow

Airflow Uno hab Manuel utilisateur

ABB

ABB ACS580-01 drives Manuel utilisateur

Panasonic

Panasonic GM1 Series Manuel utilisateur

Emerson

Emerson SW93 Manuel utilisateur

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manuel utilisateur

Panasonic

Panasonic FP? Positioning Unit RTEX Manuel utilisateur

Samson

Samson Type 5824 Manuel de service

Alpha IP

Alpha IP MIOB 21001 Manuel utilisateur

Siemens

Siemens OpenAir GMA 1 Series Manuel utilisateur

Surecom

Surecom SR-629 Manuel utilisateur

Fishman

Fishman TriplePlay Manuel utilisateur

Regulus

Regulus SRS1 T Manuel utilisateur
